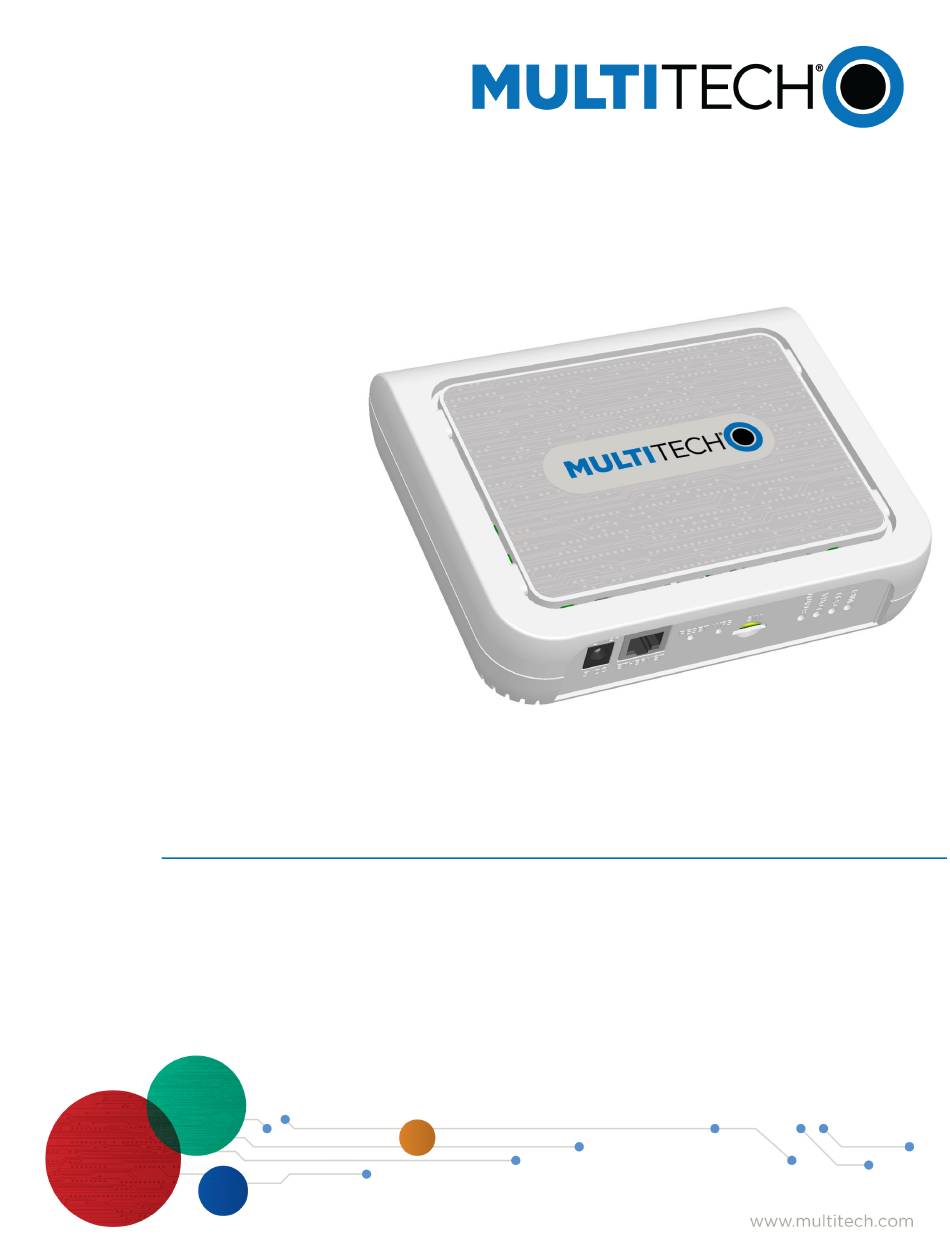

- Page 1 ® MultiConnect Conduit MTCAP User Guide for Sprint...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Product Overview ..........................5 Overview ..................................5 Product Build Options ..............................5 Package Contents................................5 Documentation Overview ............................. 5 Related Documentation .............................. 6 Chapter 2 – Specifications and Hardware Information ..................... 7 Dimensions..................................7 MTCAP Specifications..............................8 Connectors and LEDs.............................. - Page 4 CONTENTS Setting Time Zone, Time, and Date..........................17 Setting the Custom IP Address, Network Information, and Ethernet Internet Access ..........18 Configuring the Cellular Connection ........................... 18 Starting Cellular Connection on Boot ......................... 19 Sprint Device Activation.............................. 20 Configuring the LoRa Network Server for mLinux ...................... 21 Additional LoRa and mLinux Information ........................
-
Page 5: Chapter 1 - Product Overview
1 – RJ45 Ethernet cable 1 – Quick Start Important: Contact MultiTech Systems if a replacement power supply is needed. Using a different power supply may damage the device and voids the warranty. Documentation Overview The following documents are available at http://www.multitech.com/brands/multiconnect-conduit-ap. Select your model to find the documents specific for that device. -
Page 6: Related Documentation
Related Documentation This manual provides the basics for getting started with mLinux or AEP. For addition information, visit our developer site at http://multitech.net and select Software > mLinux. ® MultiConnect Conduit AP MTCAP User Guide for Sprint... -
Page 7: Chapter 2 - Specifications And Hardware Information
SPECIFICATIONS AND HARDWARE INFORMATION Chapter 2 – Specifications and Hardware Information Dimensions ® MultiConnect Conduit AP MTCAP User Guide for Sprint... -
Page 8: Mtcap Specifications
SPECIFICATIONS AND HARDWARE INFORMATION MTCAP Specifications Category Description General Standards LoRaWAN 1.0.2 specifications LTE FDD Cat 1, 3GPP release 10 compliant 256MB Flash 256MB Radio Frequency ISM Band 915 MHz ISM band for US and Canada 4G/LTE 1900 (B2/B25) / AWS 1700 (B4) / 850 (B5/B26) / 700 (B12) Physical Description Weight 1.36 kg... -
Page 9: Connectors And Leds
SPECIFICATIONS AND HARDWARE INFORMATION Connectors and LEDs Note: Some features are available only on select models. The above image shows the model with all features. For models that don't have a cellular radio, the chassis will not have a SIM slot. Item Description Connectors... -
Page 10: Resetting The Device
SPECIFICATIONS AND HARDWARE INFORMATION Resetting the Device You need: A pin, paperclip, or similar thin object that can fit into the reset hole To reset the device: Find the hole labeled RESET. The reset button is recessed into the case. Use the pin to press and release the RESET button as follows: Reset options: To reboot, press RESET for less than 3 seconds. -
Page 11: Chapter 3 - Safety Information
This battery has an estimated life expectancy of ten years. When this battery starts to weaken, the date and time may be incorrect. Battery is not user replaceable. If the battery fails, the device must be sent back to MultiTech Systems for battery replacement. -
Page 12: Handling Precautions
SAFETY INFORMATION Attention: Maintenir une distance d'au moins 20 cm (8 po) entre l'antenne du récepteur et le corps de l'utilisateur ou à proximité de personnes. Le modem n'est pas conçu pour, ou destinés à être utilisés dans les applications portables, moins de 20 cm du corps de l'utilisateur. Handling Precautions To avoid damage due to the accumulation of static charge, use proper precautions when handling any cellular device. -
Page 13: Interference With Pacemakers And Other Medical Devices
SAFETY INFORMATION Interference with Pacemakers and Other Medical Devices Potential interference Radio frequency energy (RF) from cellular devices can interact with some electronic devices. This is electromagnetic interference (EMI). The FDA helped develop a detailed test method to measure EMI of implanted cardiac pacemakers and defibrillators from cellular devices. -
Page 14: Ul Notice
SAFETY INFORMATION Using accessories that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty. If the device is not working properly, contact MultiTech Technical Support. UL Notice UL Listed at 40° C, limited by power supply. UL Certification does not apply or extend to an ambient above 40° C and has not been evaluated by UL for ambient greater than 40°... -
Page 15: Chapter 4 - Labels
(2) this device must accept any interference received, including interference that may cause undesired operation. The label shown is not the actual size. 1 - MultiTech Model Identification. 2 - MultiTech Ordering Part Number. 3 - IMEI Number 4 - Device Node Number 5 - UUID Example 915 Models Package Label ®... -
Page 16: Chapter 5 - Setting Up Hardware
SETTING UP HARDWARE Chapter 5 – Setting Up Hardware Installing a SIM Card If your device has a SIM slot, you'll need a micro SIM card from your network provider. To install the SIM card: With the contact side facing down, align the notched edge as shown on the following image and slide the SIM card completely into the SIM holder. -
Page 17: Chapter 6 - Getting Started With Mlinux Models
To use sudo, either execute : sudo [command] or start the root shell: sudo -s Then enter the mtadm password. The prompt changes to mtcap:/home/mtadm# For tips on using sudo, go to http://www.multitech.net/developer/software/mlinux/using-mlinux/log-in- as-an-admin-post-production/. The following commands require sudo: ln -sf /usr/share ... hwclock ifdown... -
Page 18: Setting The Custom Ip Address, Network Information, And Ethernet Internet Access
GETTING STARTED WITH MLINUX MODELS Update the hardware clock: hwclock -u -w Setting the Custom IP Address, Network Information, and Ethernet Internet Access Network configuration is defined in /etc/network/interfaces. To change the static IP, change the address and netmask fields in /etc/network/interfaces, (use vi or nano). -
Page 19: Starting Cellular Connection On Boot
GETTING STARTED WITH MLINUX MODELS # Dial the connection (using /etc/ppp/peers/xxx# config) # pppd call xxx# (where xxx# is your radio, LSP3 for Sprint) Use the Linux route utility to verify ppp0 is up. # route Kernel IP routing table Destination Gateway Genmask Flags Metri... -
Page 20: Sprint Device Activation
GETTING STARTED WITH MLINUX MODELS # /etc/init.d/ppp start To set init script to auto start, issue: # update-rc.d ppp defaults Restart and test your connection. Stop Automatic Start Up To stop ppp from automatically starting, issue: # update-rc.d -f ppp remove Sprint Device Activation After you establish a Sprint account and install the SIM into your device, the device uses Sprint's Over-The-Air (OTA) Activation (otherwise known as OMADM) to automatically register your SIM to their network. -
Page 21: Configuring The Lora Network Server For Mlinux
If using external IP stack Configuring the LoRa Network Server for mLinux Note: This section applies to LoRaWAN V1.5 devices only. To configure the LoRa Network Server: Log in to the console. Refer to http://www.multitech.net/developer/software/mlinux/getting-started- with-conduit-mlinux/ if needed. Issue these commands: ® MultiConnect... -
Page 22: Additional Lora And Mlinux Information
For additional information, including how to configure LoRa devices to communicate with your gateway, visit http://www.multitech.net. For an introduction to Lora, go to : http://www.multitech.net/developer/software/lora/introduction-to-lora/ For help using mLinux, go to: http://www.multitech.net/developer/software/mlinux/. For additional packet forwarder information, go to: http://www.multitech.net/developer/software/lora/conduit-mlinux-convert-to-basic-packet-forwarder/ ®... -
Page 23: Chapter 7 - Mounting The Device
MOUNTING THE DEVICE Chapter 7 – Mounting the Device Mounting the Device The device ships with a mounting bracket. You will need Mounting bracket MTCAP Four #6 screws, with anchors (not provided) Screwdriver Drill Mounting Bracket Determining Location for the MTCAP Select a location central to all devices to be connected to this MTCAP. -
Page 24: Mounting The Mtcap
MOUNTING THE DEVICE Mounting the MTCAP Determine where you want to mount the device. Mark where you want the screws to go. Drill holes for the screws and insert anchors. Place the mounting bracket and secure it with screws. Attach the device to the bracket and rotate to lock into place. ®... - Page 25 MOUNTING THE DEVICE ® MultiConnect Conduit AP MTCAP User Guide for Sprint...
-
Page 26: Chapter 8 - Regulatory Information
REGULATORY INFORMATION Chapter 8 – Regulatory Information 47 CFR Part 15 Regulation Class B Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 27: Industry Canada
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. -
Page 28: Substances Of Very High Concern (Svhc)
2011/65/EU of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <... -
Page 29: Information On Hs/Ts Substances According To Chinese Standards
REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc. -
Page 30: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部... -
Page 31: Index
INDEX Index build options ..............5 Industry Canada Class B ..............26 interférence des radiofréquences.........12 IP address..............18 CELL LED ................9 cellular configuration ............18 cellular connection on startup ........19 certifications..............8 labels ................15 Chinese hazardous substances LEDs.................9 Chinese version............30 lithium battery ..............11 English version ............29 LoRa Class B ................26 setup ................21... - Page 32 INDEX safety................11 terminal interface ............17 modem..............11 time ................17 RF interference ............12 transmission ..............8 SIM card remove..............16 SIM installation .............16 specifications..............8 user responsibility............14 static................12 STATUS LED ..............9 sécurité................11 interférences RF............12 WIFI LED ................9 ® MultiConnect Conduit AP MTCAP User Guide for Sprint...
