Summary of Contents for Multitech Conduit AP 300 Series

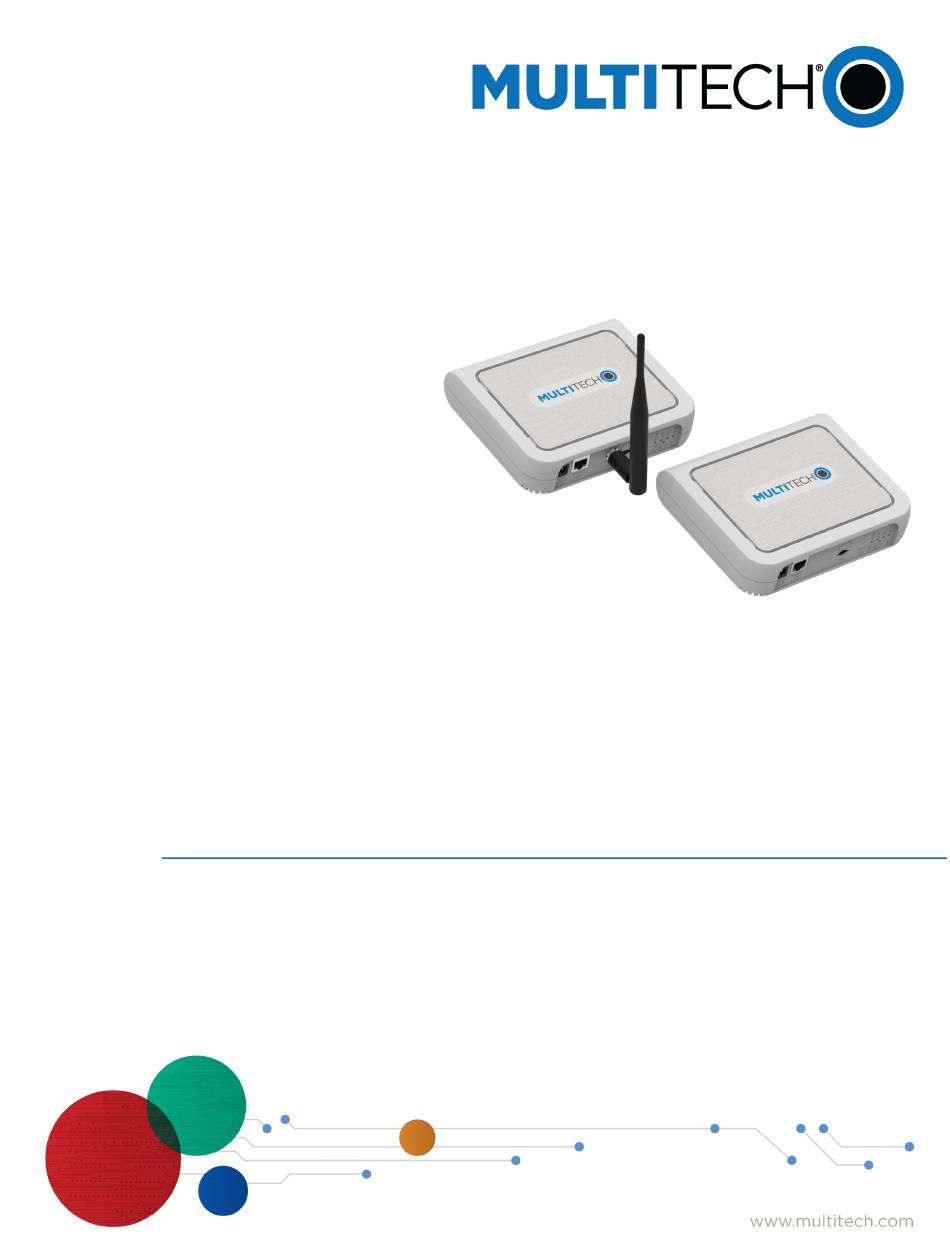

- Page 1 ® Conduit MTCAP3 Hardware Guide for Australia and New Zealand...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Product Overview ..........................5 Overview ..................................5 Package Contents................................5 Product Build Options ..............................6 Documentation Overview ............................. 6 Related Documentation .............................. 6 Chapter 2 – Specifications and Hardware Information ..................... 7 Dimensions..................................7 Specifications for 915 MHz Models ..........................8 Connectors and LEDs.............................. - Page 4 CONTENTS Chapter 6 – Getting Started ........................... 18 Setting Up Your Credentials (Commissioning) for mPower..................18 mPower Models First-Time Setup ..........................18 Connecting with LoRaWAN End Devices........................18 Chapter 7 – Mounting the Device........................... 19 Mounting the Device..............................19 You will need................................19 Determining Location..............................
-
Page 5: Chapter 1 - Product Overview
Not pictured Mounting feet set Quick start Important: Contact MultiTech Systems if a replacement power supply is needed. Using a different power supply may damage the device and voids the warranty. ® Conduit AP MTCAP3 Hardware Guide for Australia and New Zealand... -
Page 6: Product Build Options
LoRa antenna MTCAP3-EN-A23UEA-DWM Ethernet-only mPower programmable access point with LoRa 915 MHz Documentation Overview The following documents are available at http://www.multitech.com/brands/multiconnect-conduit-ap. Select your model to find the documents specific for that device. Document Description (Part Number) Conduit AP MTCAP3 Hardware Guide for This document. -
Page 7: Chapter 2 - Specifications And Hardware Information
SPECIFICATIONS AND HARDWARE INFORMATION Chapter 2 – Specifications and Hardware Information Dimensions ® Conduit AP MTCAP3 Hardware Guide for Australia and New Zealand... -
Page 8: Specifications For 915 Mhz Models
SPECIFICATIONS AND HARDWARE INFORMATION Specifications for 915 MHz Models Category Description General Standards LoRaWAN 1.0.2 specifications Radio Frequency ISM Band 915 MHz ISM band Physical Description Weight 0.41 kg Dimensions Refer to Mechanical Drawings for Dimensions. Chassis Type PC-ABS Environment Operating Temperature 0°... - Page 9 SPECIFICATIONS AND HARDWARE INFORMATION LoRa only models with external LoRa antenna Note: Some features are available only on select models. Item Description Connectors Power 5 Volt power jack. Ethernet RJ45 Ethernet jack. Reset Reset button. Reboots device or restores factory defaults. Refer to Resetting the Device details.
-
Page 10: Ac Power Consumption
SPECIFICATIONS AND HARDWARE INFORMATION AC Power Consumption Ethernet active, LoRa RX: 2W LoRa Power LoRa Maximum Output Power Australia Maximum EIRP (includes external LoRa antenna): 27.5 dBm New Zealand Maximum EIRP (includes external LoRa antenna): 24.7 dBm ® Conduit AP MTCAP3 Hardware Guide for Australia and New Zealand... -
Page 11: Resetting The Device
SPECIFICATIONS AND HARDWARE INFORMATION Resetting the Device You need: A pin, paperclip, or similar thin object that can fit into the reset hole To reset the device: Find the hole labeled RESET. The reset button is recessed into the case. Use the pin to press and release the RESET button as follows: Reset options: To reboot, press RESET for less than 3 seconds. -
Page 12: Antenna
SPECIFICATIONS AND HARDWARE INFORMATION Antenna Your device ships with the following antenna. Contact MultiTech if you need a replacement antenna. LoRa Antenna Manufacturer: PulseLarsen Antenna Description: 868-928 MHz RP-SMA Antenna, 8" Model Number: W1063 MultiTech ordering information: Ordering Part Number... -
Page 13: Chapter 3 - Safety Information
SAFETY INFORMATION Chapter 3 – Safety Information Power Supply Caution CAUTION: Do not replace the power supply with one designed for another product; doing so can damage the modem and void your warranty. Adapter shall be installed near the equipment and shall be easily accessible. CAUTION: Pour garantir une protection continue contre les risques d'incendie, remplacez les fusibles uniquement par des fusibles du même type et du même calibre. -
Page 14: Sécurité Relative Aux Appareils À Radiofréquence (Rf)
SAFETY INFORMATION Switch OFF your wireless device in hospitals and any other place where medical equipment may be in use. Sécurité relative aux appareils à radiofréquence (RF) À cause du risque d'interférences de radiofréquence (RF), il est important de respecter toutes les réglementations spéciales relatives aux équipements radio. -
Page 15: Device Maintenance
Do not expose the device to water, rain, or spilled beverages. It is not waterproof. Exposure to liquids could result in damage to the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with the device's accessory specifications may invalidate the warranty. -
Page 16: Chapter 4 - Labels
Actual labels vary depending on the regulatory approval markings and content. The label shown is not the actual size. 1 - MultiTech Model Identification. 2 - MultiTech Ordering Part Number. 3 - UUID 4 - Ethernet MAC Address 5 - Device Node Number... -
Page 17: Chapter 5 - Setting Up Hardware
SETTING UP HARDWARE Chapter 5 – Setting Up Hardware Attaching the Antenna (Models with external antenna only) To connect the antenna: Finger-tighten the antenna to the antenna connector on your device. Cabling the Device To cable the device: For Ethernet only models, connect the Ethernet cable to the Ethernet port on the device and to your computer. -
Page 18: Chapter 6 - Getting Started
To do this: Note: MultiTech recommends using Firefox. Open a browser on your computer and enter the default IP address in the URL field, 192.168.2.1. Most browsers display a warning about HTTP addresses being unsafe because of a self-signed certificate. -
Page 19: Chapter 7 - Mounting The Device
MOUNTING THE DEVICE Chapter 7 – Mounting the Device Mounting the Device The device ships with a mounting bracket. You will need Device Mounting bracket Four #6 (3.5mm) screws with anchors (not provided) Screwdriver Drill Mounting Bracket Determining Location Follow these guidelines for best performance: The LoRa antenna is omnidirectional, but for best results, mount the device so the LoRa antenna is in a vertical position as shown in the following image. - Page 20 MOUNTING THE DEVICE Drill holes for the screws and insert anchors. Place the mounting bracket and secure it with screws. Attach the device to the bracket and rotate until it locks into place. ® Conduit AP MTCAP3 Hardware Guide for Australia and New Zealand...
- Page 21 MOUNTING THE DEVICE Models with Internal LoRa Antenna Only Models with External LoRa Antenna ® Conduit AP MTCAP3 Hardware Guide for Australia and New Zealand...
-
Page 22: Chapter 8 - Regulatory Information
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. -
Page 23: Restriction Of The Use Of Hazardous Substances (Rohs)
2015/863 of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS 3). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <... -
Page 24: Index
INDEX Index LoRa power ..............10 AC power consumption..........10 antenna .................12 attach ...............17 maintenance ..............15 modem safety ...............13 mounting device ............19 build options ..............6 mPower software............18 CELL LED ................8 package contents ............5 certifications..............8 Ports Ethernet ...............13 configuring ..............18 power jack...............8 connectors...............8 power measurements loRa ................10 power supply..............17...
