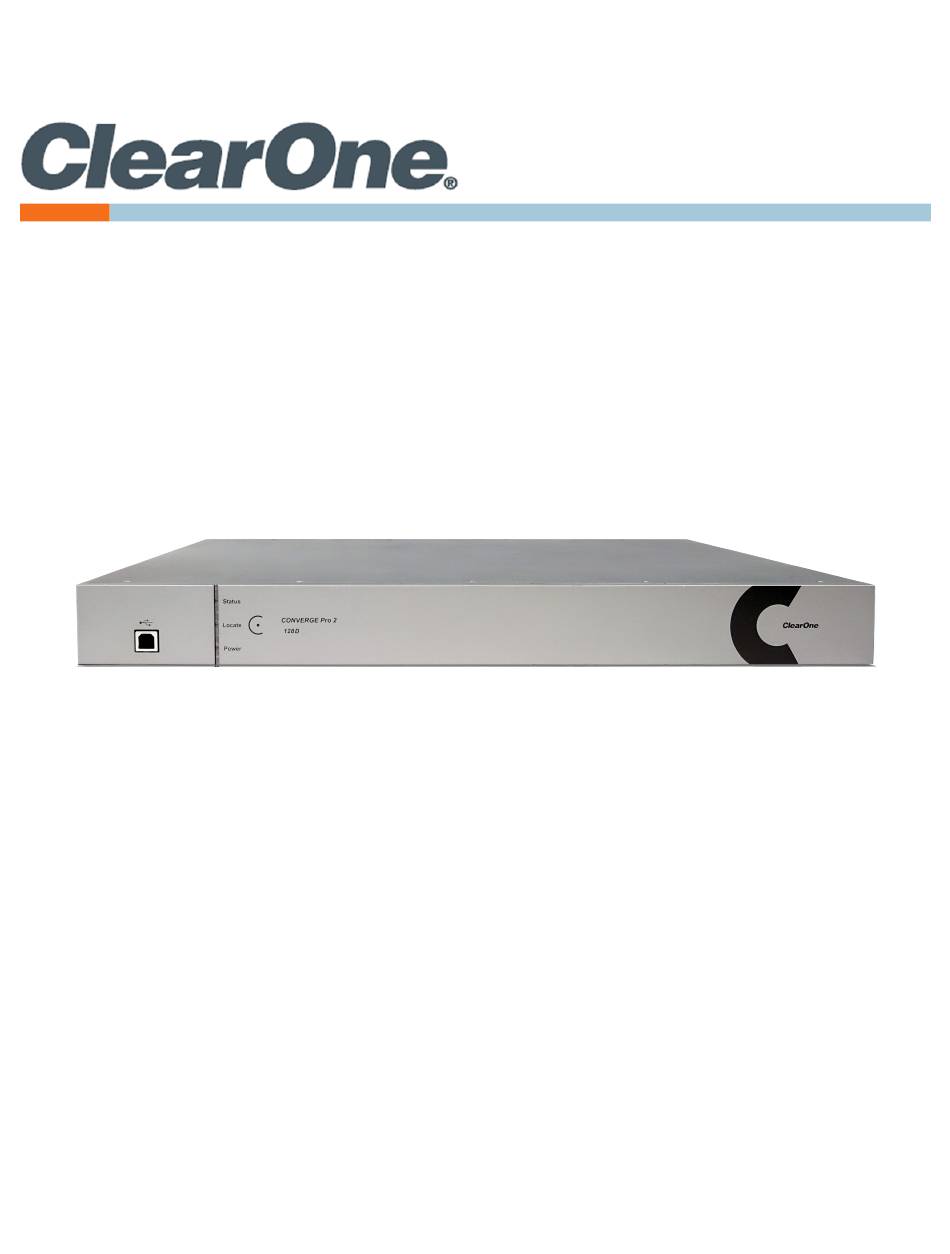

- Page 1 Quick-Start Guide CONVERGE Pro 2 ® Next Generation Audio DSP Platform Professional Audio Conferencing and Sound Reinforcement Systems QSG-0032-001v1.6 October 2021...
-
Page 2: Clearone ® Contacts
Tel: +1.801.975.7200 Tel: +1.801.974.3760 sales@clearone.com audiotechsupport@clearone.com Notices © 2021 ClearOne, Inc, Inc. All rights reserved. Information in this document is subject to change without notice. Document: QSG-0032-001v1.6 October 2021 Important Safety Instructions See the safety instructions at the end of this document. - Page 3 Quick-Start Guide Unpacking Use the illustrations below to verify that you have received all components. ClearOne is not responsible for product damage incurred during shipment. Inspect your shipment carefully for obvious signs of damage. If the shipment appears damaged, retain original boxes and packing material for inspection by the carrier, and contact them immediately.
-
Page 4: Installation
CONVERGE® Pro 2 Quick-Start Guide Installation Your CP2 comes with rack mount ears that fit a standard 19 in rack, and a screw/washer kit. Rack mounting eliminates the need for space between multiple units. To change position of your rack ears: 1. - Page 5 To connect together multiple CP2 units to create a site. Ports Warning: Use the C-Link In and C-Link Out ports with only CONVERGE Pro 2 Devices. Connecting any other devices to the C-Link In and C-Link Out ports, including CONVERGE Pro or Beamforming Microphone Array products results in severe equipment damage.
-
Page 6: Related Documents
The following documents are available in ClearOne’s Resource Library: • CONVERGE Pro 2 Datasheet, with full specifications • PoE and CONVERGE Pro 2 P-Link Peripheral Products Application Note • PoE Calculator Tool - Excel-based • CONVERGE Pro 2 Serial Commands Reference Manual Page 5... - Page 7 18. Class 2 Wiring is required for these devices. Wiring and install should only be performed by qualified personnel. 19. For CONVERGE Pro 2 (CP2) products that include a telephone circuit, Underwriters Laboratories (UL) requires these safety notifications: Page 6 QSG-0032-001v1.6 October 2021...
- Page 8 CONVERGE® Pro 2 Quick-Start Guide Caution: • To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord. • When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: •...
