Page 1 CONVERGE™ PRO 880/840T/TH20/8i Professional Conferencing Systems INSTALLATION & OPERATION MANUAL...
Page 2: Technical Support
INSTALLATION & OPERATION MANUAL CLEARONE PART NO. 800-151-880 (REVISION 1.1) August 2007 © 2007 ClearOne Communications, inc. All rights reserved. No part of this document may be reproduced in any form or by any means without written permission from ClearOne Communications.
Page 3: Table Of Contents
TABLE OF CONTENTS CHAPTER 1: INTRODUCTION Converge Pro Product Family Overview ..........1 Converge Pro Product Descriptions .
Page 4 TABLE OF CONTENTS (CONTINUED) Gating Tab ................130 Control Tab .
Page 5: Chapter 1: Introduction
ClearOne® Communications introduced its first audio conferencing products to the market in 1990 under the brand name Gentner®. Since that time, four generations of products have been produced, each offering improved performance and reliability.
Page 6 Four or eight independent signal processing blocks with 15 user-configurable filters (including all pass, low pass, high pass, low shelving, high shelving, and parametric), delay, and compression. ClearOne ® ’s unparalleled processing power enables you to use all of these features simultaneously in any combination, allowing you to deliver optimized audio configurations for every environment and application.
Page 7 Front panel control of mute and gain for all input and output channels. • Safety mute button on the Console™ software button bar instantly mutes all outputs. ClearOne ® ’s DSP (Digital Signal Processing) technology ensures crystal-clear audio between • teleconferencing sites.
Page 8: Converge Pro Product Descriptions
ALC & AGC keep participants’ audio balanced and consistent Configuration Flexibility • Scalable – link multiple Converge Pro units (880, 840T, 8i, TH20) for extensive microphone coverage and up to 16 phone lines • Enhanced expansion bus, featuring 12 mix-minus audio buses for routing between units •...

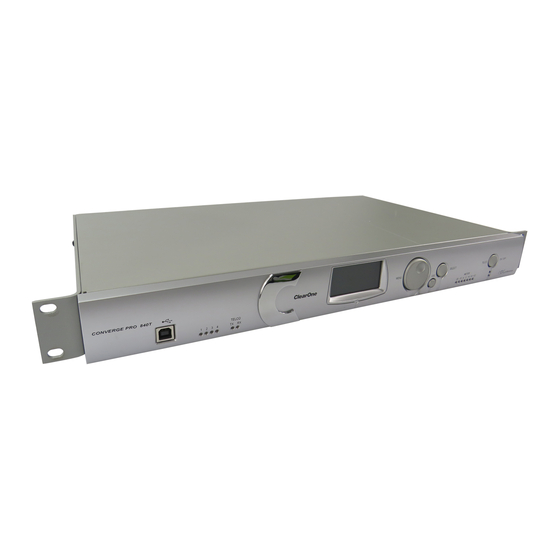

Page 9 The successor to the industry-leading XAP® 400. Leveraging the rich functionality of the flagship Converge Pro 880, the new 840T includes a built-in telephone interface and power amplifier for standalone conferencing applications. It also provides expansion capability with other Converge Pro mixers for complex installations.
Page 10 Converge Pro 840T (Continued) Configuration Flexibility • Scalable – link multiple Converge Pro units (880, 840T, 8i, TH20) for extensive microphone coverage and up to 16 phone lines • Enhanced expansion bus, featuring 12 mix-minus audio buses for routing between units •...
Page 11 An input-only expansion box for the Converge Pro platform. The 8i delivers new economical configuration flexibility. It can be added to 880, 840T, and TH20 systems for additional mic and line inputs, allowing customers to match the number of inputs and outputs required for audio conferencing and sound reinforcement installations.
Page 12 AGC on line inputs keeps audio balanced and consistent Configuration Flexibility • Scalable – link multiple Converge Pro units (880, 840T, 8i, TH20) for extensive microphone coverage and up to 16 phone lines • Enhanced expansion bus, featuring 12 mix-minus audio buses for routing between units •...
Page 13: Customer Service And Support
Converge Pro system, or if you have questions about ClearOne products or services, please contact us at one of the locations listed below. ClearOne also welcomes your comments and suggestions so we can continue to improve our products and serve our customers’ needs.
Page 14: Operating Requirements
OPERATING REQUIREMENTS Power Converge Pro devices automatically accommodate voltages of 100–240 VAC, 50/60 Hz, 15 W. Telephone Converge Pro devices operate on a standard analog telephone line and connect to the telephone system with a standard RJ-11 modular jack. If you do not have an RJ-11 jack where you want to install your Converge Pro, call your local telephone company for installation.
Page 15: Unpacking
Use the pack-out diagrams below to verify that you received all components for your Converge Pro product. NOTE: ClearOne is not responsible for product damage incurred during shipment. You must make claims directly with the carrier. Inspect your shipment carefully for obvious signs of damage.
Page 16 SCREW/WASHER ACC KIT, RACK DECOR 4EA BLK 673-017-212 (QTY 1) 680-000-001 (QTY 1) CONN, TERM BLOCK/F 12 POS BLACK 673-017-012 (QTY 2) CD, MANUAL CONVERGE 880/840/TH20 800-151-881 (QTY 1) PWR CORD, MOLDED 8' BLK 3 COND CABLE ASSEMBLY, RJ45/RJ45 18" 699-150-006 (QTY 1)
Page 17 -30 -10 -4 0 +4 +8 CONVERGE PRO TH20 910-151-820 (QTY 1) SCREW/W ASHER ACC KIT , RACK DECOR 4EA CD, MANUAL CONVERGE 880/840/TH20 680-000-001 (QTY 800-151-881 (QTY CONN, TERM BLOCK/F 6 POS 3.18 MM SPC BLACK PHOENIX 673-017-006 (QTY CABLE ASSEMBL Y, RJ45/RJ45 18"...
Page 18 CONN, TERM BLOCK/F 12 POS ORANGE 673-017-1 12 (QTY 2) CABLE ASSEMBL Y, RJ45/RJ45 18" 830-150-004 (QTY PWR CORD, MOLDED 8' BLK 3 COND CD, MANUAL CONVERGE 880/840/TH20/8i 699-150-006 (QTY 800-151-881 (QTY CABLE ASSY , USB A-B TYPE 6FT MANUAL, CONVERGE 8i...
Page 19: Controls And Connections
CONTROLS AND CONNECTIONS Refer to the following diagrams for Converge Pro front panel controls and the back panel connections. Converge Pro Front Panels Converge Pro 880 Front Panel ClearOne Converge 880 CONVERGE PRO 880 11: CONVERGE880-77 MENU SELECT IPA: 192.168.1.1 1.0.00...
Page 20 LED Bar Meter: The LED bar meter displays the audio level of a selected input, output, processing, or fader channel. Default meters: 880-Output 12, 840T-Output 8, TH20-Telco Tx, 8i-Mic 1. Telco TX/RX LEDs: The Telco TX/RX LEDs display transmit, receive, and mute status of the connected telephone line (840T and TH20 only).
Page 21 Converge Pro Rear Panels Converge Pro 880 Rear Panel LINK IN VOLTAGE RANGE 100-240 VAC 2A MIC / LINE LINE OUT FREQUENCY 50Hz / 60Hz RS-232 CONTROL / STATUS LINE IN LINE OUT LINK OUT Converge Pro 840T Rear Panel...
Page 22 AC Power: IEC connector, 100–240VAC auto-adjusting, 50/60Hz. Mic/Line Inputs: Mini-terminal push-on block connector for any combination of microphone and/or line level inputs. (Converge Pro 880: 8 inputs. Converge Pro 840T: 4 inputs. Converge Pro 8i: 8 inputs. Converge Pro TH20: 0 inputs.) Line Outputs: Mini-terminal push-on block connector for line-level outputs.
Page 23: Chapter 2: Expansion Bus & Lcd Programming
Converge Pro devices. Expansion Bus Connections Using the E-bus Link In and Link Out ports, you can connect up to 28 Converge Pro 840T/880/8is and 16 Converge Pro TH20 units, where the total number of microphone inputs does not exceed 64.
Page 24: Device Ids
DEVICE IDS Device IDs provide unique identifiers for all Converge Pro units that are linked together. After making E-bus connections between Converge Pro units, you must set a unique Device ID number for all units of the same Device Type in the network. Device Types and IDs Converge Pro Device Types and Device IDs by model are as follows: Model...
Page 25: Lcd Programming Overview
LED Bar Meter: The LED bar meter displays the audio level of a selected input, output, processing, or fader channel. Default meters: 880-Output 12, 840T-Output 8, TH20-Telco Tx, 8i-Mic 1. Telco TX RX LEDs: The Telco TX RX LEDs display transmit, receive, and mute status of the connected telephone line (840T and TH20 only).
Page 26 Presets Mics Macros RS-232 1-255 1-32 Inputs Network Outputs Process Default (880, 840T, 8i) Contrast Faders (880, 840T, 8i) Telco Tx (840T, TH20) Telco Rx (840T, TH20) As shown above, the main menus on the LCD display are: • Channels •...
Page 27 LCD Default Display When you power up a Converge Pro unit, the LCD display reads Initializing. If an error occurs, contact ClearOne Technical Support. When initialization is complete, ClearOne Converge[Model Number] appears on the LCD panel, along with the device type, device ID, device name, IP address, and firmware revision level as shown below.
Page 28: Lcd Channels Menu
The Channels menu appears as shown below: CHANNELS PAGE 1/2 Inputs Mics Outputs Process Channels menu options (i.e. channel types) include: • Mics (880, 840T, 8i) • Inputs • Outputs (880, 840T, TH20) • Process (880, 840T, 8i) • Faders (880, 840T, 8i) •...
Page 29: Lcd Settings Menu
Press the Select button Select the desired value using the Menu Dial Press the Select button to set the selected value Press the Esc button to return to the Channels menu NOTE: When mute is set to on for a mic input channel, the Microphone-On LED for that channel illuminates red on the front panel.
Page 30 When None is selected, Converge Pro units ignore flow control, and the connected external control device ensures that data is not lost. NOTE: ClearOne recommends that you leave Flow Control enabled and connect all DB9 pins to avoid communication errors.
Page 31: Lcd Macros Menu
For more information, see the Table of Contents for these related topics: • LCD Programming Overview • LCD Channels Menu • LCD Macros Menu • LCD Presets Menu • Site Properties • String Tab • Unit Properties LCD MACROS MENU The LCD Macros Menu allows you to run macros from the Converge Pro front panel.
Page 32: Lcd Preset Menu
LCD PRESET MENU The LCD Preset Menu allows you to execute presets from the Converge Pro front panel. To create presets, use Console in Preset Mode. Accessing the Presets Menu To access the menu, press the Select button on the front panel, use the Menu Dial to select Presets, and press the Select Button.
Page 33: Chapter 3: Converge Console Programming
At the Select Installation Folder window, choose the directory where you want to install Console. Press the Disk Cost button to analyze available and required free space (if needed). NOTE: ClearOne recommends that you use the default directory when installing Console. Chapter 3: Converge™ Console™ Programming...
Page 34 When installation is complete, the Converge Console icon appears on your desktop. You can now start Console by double-clicking the icon, or through the All Programs > ClearOne Communications > Converge Console program group on the Windows Start menu. Connect USB cables between the PC and Converge Pro devices (if you will be using USB to run Console).
Page 35: Converge Console Overview
Start Converge Console by double-clicking the desktop icon, or by clicking the Start button in Windows and selecting All Programs > ClearOne Communications > Converge Console > Converge Console from the program list. After Console loads, you can open an existing Site File from the File menu, or create a new site file by selecting New Site.
Page 36 Menu Bar Menus available on the Menu Bar include: • File • View • • Connect • Modes • Services • Help: Opens this help system and provides software and firmware version information. Button Bar Controls on the Button Bar include: Create Site Open Site Save Site...
Page 37 Tab Bar Tabs available on the Tab Bar include: • Unit • Channel • Matrix • AEC Reference • Macro • Gating • Control • String • Event Scheduler • Database Clicking a tab displays the screen for that tab in the Console Center Pane. Site Pane In Configuration Mode, the Site Pane contains the Site Selection drop-down list, Site View tab, and Tree View tab.
Page 38 In Preset Mode, the Site Pane displays the Current Site, Current Unit, Preset Selection list, and the Preset Name, Description, and Preset Mask entry fields. Center Pane The Center Pane displays the screen for the selected Console Tab. As shown above, the default screen is Unit Tab. Technical Services: 800-283-5936...
Page 39 Objects Pane The Object Pane contains the AV Devices tab, which allows you to select from a list of pre-configured device settings and apply them instantly to a channel; and the Objects tab, which allows you to select from a list of custom channel objects and instantly apply them to a specific channel type.
Page 40: Site File Overview
SITE FILE OVERVIEW Site Files allow you to store configuration settings for one or more Converge Pro units, including Inputs, Outputs, Fader channels, Processing channels, Matrix routing, and Presets, for a specific application or venue. Site files also provide Console with the necessary information to communicate with the site hardware using your PC. Site files are a powerful tool for creating a library of configuration files for specific applications and room types.
Page 41 The File menu appears. Select Open Site as shown below. The Open dialog appears as shown below. Locate the site file you want to open and click Open. Console opens the site file, and it appears in the Site Selection drop-down list in the Site Pane as shown below. Use the Files of type drop-down list to open G-ware files (.PSR file extension) to convert G-ware site files to Converge site files.
Page 42 Saving Site Files To save the current Site configuration parameters, including any changes made since the active Site file was opened, click the Save button on the Button Bar, or select Save or Save As from the File menu. For additional information, refer to the Table of Contents for these related topics: •...
Page 43: Connect To A Site
(or enter an IP address in the Enter Address entry box) Press the Connect button to connect to the site or Cancel to close the dialog. NOTE: The default login username is ClearOne. The default password is Converge. Usernames and passwords are not case sensitive.
Page 44: Site Properties
For additional information, refer to the Table of Contents for these related topics: • Site File Overview • Site Properties • Unit Communication (IP) Settings SITE PROPERTIES Site Files are created and modified using the Site Properties window in Console. Site files contain all information about a particular installation including properties for all units in a site.
Page 45 The Site Properties window appears with the General tab selected. Create A New Site To create a new site, select New Site from the File menu or by clicking the New Site button on the Console Button Bar. The Site Properties window appears. Site Properties are described in the following sections. NOTE : You must have administrator privileges to connect to units with Console, and to modify usernames and passwords.
Page 46 author, and site description in the Site Info section of the tab. Press OK to save the changes, Cancel to close the Site Properties window, or click on the Management or Time/Local tabs to continue site configuration. Site Properties: Management Tab The Management tab (shown below) enables you to configure SNMP parameters, email notification settings, as well as usernames and passwords.
Page 47 In the Username/Passwords section, click the button for the user type that you want to create. The Name/ Password dialog appears as shown below. NOTE: The default username is ClearOne. The default password is Converge. Usernames and passwords are not case sensitive.
Page 48 In the Time section of the tab, select Local Time or Network Time for the clock synchronization source. When Local Time is selected, the Apply button is activated; pressing it updates the date and time on all units in the current site.
Page 49: Unit Properties
UNIT PROPERTIES Unit Properties define properties for a specific Converge Pro unit. Unit Properties enable you to configure general unit settings such as name, and telephone country code, as well as IP and serial communication settings. Properties that apply to all units in a site are configured using Site Properties. Accessing Unit Properties To access the Unit Properties window, right click the unit you want to configure in either the Site View tab or the Tree View tab of the Site Pane in Console.
Page 50: Device Name
Add A New Unit To add a unit to a Site, right-click in either the Site View tab or the Tree View tab of the Site View pane, or select the unit type you want to add from the Add menu on the Menu Bar as shown below. The Unit Properties window appears.
Page 51 -30 -10 -4 0 +4 +8 +12 Slave Link Out RS-232 control Audio ﬂow is stopped device Link In Converge Pro 880 CONVERGE PRO 880 MENU SELECT TELCO METER 1 2 3 4 5 6 7 8 -30 -10 -4 0 +4 +8 +12...
Page 52 from the first and second units in the network does not pass beyond the second unit. Likewise the second Audio Master unit in the network does not pass audio from the unit before it. Sites can use multiple RS-232 devices, which you can connect to any unit regardless of Control Slave or Master designations.
Page 53 IP Settings If you want to use DHCP (Dynamic Host Configuration Protocol), select the DHCP checkbox. (Selecting DHCP disables the remaining IP settings.) Otherwise, enter the IP Address, Subnet, and Gateway information, and DNS (Domain Name Server) addresses for your installation. The default is Use DHCP . IP Filters Use IP Filters to enter specific IP addresses that will be allowed to connect to the selected unit.
Page 54: Configuration Mode Overview
CONFIGURATION MODE OVERVIEW Converge Console has two modes: Configuration Mode (default) and Preset Mode. Configuration Mode enables you to perform advanced configuration of Converge Pro Sites and Units and customize them to your specific application. Accessing Configuration Mode Console automatically starts in Configuration Mode with the Unit tab displayed as shown below. You can switch between modes by clicking on the Mode buttons on the Button Bar.
Page 55: Unit Tab
UNIT TAB The Unit Tab shows a detailed block diagram for the Converge Pro unit selected in the site pane. The diagram shows the path of the audio signal, based on the current unit configuration, and provides a graphical explanation of each stage of audio processing.
Page 56 Input Channel Settings Pointing to an input channel on the left side of the screen highlights it in orange, and shows the routing for the channel in white on the right side of the screen (shown above). Clicking the channel selects it and displays the routing to other units in the site by channel type in the site pane (shown below).
Page 57 Processing Channel Settings Pointing to a processing channel in the Matrix section of the screen highlights it in orange, and shows the routing for the channel in white (shown above). Clicking the channel selects it and displays the routing to other units in the site by channel type in the Site Pane (shown below).
Page 58 Fader Channel Settings Pointing to a fader channel in the Matrix section of the screen highlights it in orange, and shows the routing for the channel in white (shown above). Clicking the channel selects it and displays the routing to other units in the site by channel type in the Site Pane (shown below).
Page 59 Expansion Audio RX and TX Pointing to an Expansion RX or TX channel in the Matrix section of the screen highlights it in orange. Clicking the channel selects it and shows the Input (TX channels only), Output (RX channels only), Processing, Expansion, and Fader channel routing (white highlights) for the selected channel as shown above.
Page 60: Channel Tab Overview
CHANNEL TAB OVERVIEW The Channel section of the interface provides complete configuration of all functionality related to a given channel, from input to processing to output. The type of channel selected in the Tree View tab of the Current Unit pane determines the contents of the Channel pane in the center of the Console.
Page 61 Some buttons, such as the Mute and PPWR (Phantom Power) shown above, toggle features on and off. Other buttons as shown above, including AEC (Automatic Echo Cancellation), NC (Noise Cancellation), Filter, AGC (Automatic Gain Control), ALC (Automatic Level Control), bring up the Channel Property Configuration screen shown below.
Page 62 Channel Routing Matrix The channel routing matrix of the Channel pane shows the associated Matrix row and routing configuration for the channel selected in the Tree View tab of the Current Unit pane. The channel routing matrix of the Channel pane for a Mic Input channel is shown below.
Page 63 This display is identical to that shown on the Channel Tab when the channel is selected in the Tree View pane. NOTE: Changes to channel configuration settings made in the channel routing matrix apply globally to the channel. For example, changing the label (name) from “Output 1” to “Ceiling Speakers”...
Page 64: Aec (Acoustic Echo Cancellation)
AEC (ACOUSTIC ECHO CANCELLATION) AEC (Acoustic Echo Cancellation) is a process in which acoustical echo is removed from an input signal, thereby improving audio clarity. AEC uses a reference source to perform AEC based on the acoustic characteristics and dynamics of a specific application (room).
Page 65 The AEC tab shows a signal flow diagram for AEC, and has the following features: Enable AEC, PA Adapt and AEC Reference, NLP (Non-linear Processing), and PTT (Push-to-Talk) Mode. These features are described in the following sections. Enable AEC Checkbox Select the checkbox to enable AEC.
Page 66 ERL + ERLE Meter Shows the total ERL and ERLE reduction. This is an average meter that updates only when a receive -only signal is present. PTT (Push to Talk) Mode Select the Enable Push to Talk Mode checkbox to enable PTT. PTT notifies AEC when a microphone is switched off, and freezes AEC convergence until the microphone is switched back on.
Page 67: Nc (Noise Cancellation)
NC (NOISE CANCELLATION) NC (Noise Cancellation) is a process in which ambient (background) noise is removed from an input signal, with no noticeable degradation in signal quality. NC is available on Mic Input and Telco Rx channels only. Accessing NC With the Channel tab selected in the Center Pane, select the desired Mic Input channel on the Tree View tab in the Site Pane, and press the NC button (located just below the Coarse Gain slider).
Page 68 Configuring Noise Cancellation Select the Enable Noise Canceller checkbox to enable NC for the channel. Adjust the Cancellation Depth slider to the dB setting which provides the best combination of low noise and maximum speech clarity. The cancellation depth can also be set using the arrow buttons or by entering a value directly in the field. The attenuation depth can be set in 1dB increments from 6dB to 15dB.
Page 69: Filters
FILTERS Filters enable you to shape the audio signals from Mic Inputs for improved audio quality. There are four configurable filter types available for mic input channels: • All Pass • High Pass • Low Pass • Notch • PEQ (Parametric Equalizer) Accessing Filters With the Channel tab selected on the Tab Bar, select the desired input channel on the Tree View tab in the Site Pane, and press the Filter button (located just below the Post Gain meter).
Page 70 The following sections describe how to configure and activate input channel filters. Active Filter Use the Active Filter drop-down list to select among active filters. Selecting a filter highlights its node on the graph and displays its current settings. You can configure up to four active filters per input channel. NOTE: There are no filters configured by default.
Page 71 Filter Nodes In graph view, you can click on a filter node and drag it to the desired location on the graph. The setting fields immediately reflect changes made by dragging filter nodes. Filter node colors represent the following: • Green: The filter node is selected and active.
Page 72 Phase Press the Phase button to display the phase relationship of the graphed frequency response (appears as a grey line on the active filter graph). The phase scale appears on the right vertical axis of the graph. Bypass All Press the Bypass All button to bypass all filters for the selected input channel. The filters are grayed out in graph view, and the bypass status is shown as on in table view.
Page 73 Add Filter Press the Add Filter button to create a filter for the input channel. When you add a filter, it appears in the Active Filter drop-down list, and on the active filter graph. You can configure up to four active filters per input channel. The number of remaining available filters for the channel is shown under Filters Remaining.
Page 74: Agc/Alc Tab
AGC/ALC TAB AGC/ALC enables AGC (Automatic Gain Control) or ALC (Automatic Level Control) and allows you to configure AGC settings for the selected input channel. Either AGC or ALC can be enabled—you cannot use them both at the same time. AGC keeps an input signal at a target gain level that you select, and is generally used for Line Input channels.
Page 75 Use the AGC/ALC radio buttons to select Off, ALC, or AGC. The default is Off. ALC is performed automatically; there are no user-configurable settings for ALC. NOTE: AGC occurs after gain and filter settings in the audio signal path. The configuration controls for AGC are described in the following sections. Maximum Gain Slider Set the Target Level first, then set the Maximum Gain that you want the AGC to apply to the signal.
Page 76: Mic Gating
MIC GATING The Gate button on the Channel tab enables you to configure gating control for individual Mic Input channels, and assign them to Gating Groups. There are two types of gating for Mic Input channels: Auto Gating and Manual Gating.
Page 77 Gating Settings: Auto Gating The upper section of the Gate Settings section of the screen contains the gating controls for Auto Gating as shown below. Auto Gating: Settings • Gate Ratio: Specifies how much louder than the ambient level the audio level must be before the channel automatically gates on.
Page 78 Gating Tab on the Tab Bar in Console. The 880, 840T, and 8i feature four internal gating groups (Internal 1–4) and four global gating groups across the expansion bus (Global A–D). Mic Inputs can only be used in one gating group at a time. If an input is not assigned to a gating group, that mic’s gating properties are independent, and they have no effect on any gating group.
Page 79 For more information, refer to the Table of Contents for these related topics: • Gating Tab • AEC (Acoustic Echo Cancellation) • AGC/ALC (Automatic Gain Control/Automatic Level Control) • NC (Noise Cancellation) • Filters • Line Input Settings • Mic Input Settings Chapter 3: Converge™...
Page 80: Mic Input Settings
MIC INPUT SETTINGS Mic Input Settings enable you to customize mic input channel settings using the Channel screen. Accessing Mic Input Settings With the Channel tab selected on the Tab Bar, select the desired mic input channel on the Tree View tab in the Site Pane.
Page 81 Pre Gain Meter The Pre Gain meter displays the mic input level before gain adjustments. Meter range is determined by the Coarse Gain Slider in the Gain section of the screen as described below. NOTE: All meters in Console are peak-level meters. Gain Section The Coarse and Fine gain sliders are used to match the level settings between mic inputs, and to adjust the volume level for a given mic input channel.
Page 82 Post Gate Meter The Post Gate Meter displays the audio level after gating. Channel gating for mic inputs is configured on the Gating tab of the Channel Property Configuration window for mic input channels, which is described in the next section.
Page 83 Channel Routing Matrix: Inputs The channel routing matrix section of the Channel screen shows the matrix row and audio routing configuration for the selected input channel (mic input 1 in this case). Clicking a cross point box selects it, clicking it a second time sets the cross point, as indicated by a colored box.
Page 84 This display is identical to that shown in Channel when the output channel is selected in the Tree View pane. See Output Settings for more information. You can change the channel Label (name) of the output channel in the label entry field; toggle NOM constant gain on or off;...
Page 85 Optimizing Input Gain Structure Optimizing gain structure for input channels maximizes the signal-to-noise ratio for the channel and ensures optimal audio performance. Before configuring an input channel, ClearOne recommends that you review the Optimizing Gain Structure topic. For additional information, refer to the Table of Contents for these related topics: •...
Page 86: Line Input Settings
LINE INPUT SETTINGS Line Input Settings enable you to customize line input channel settings. All settings for a given line input are available on the Channel screen. Accessing Line Input Settings With the Channel tab selected on the Tab Bar, select the desired line input channel on the Tree View tab in the Site Pane.
Page 87 Pre Gain Meter The Pre Gain Meter shows the line input level before gain adjustments. NOTE: All meters in Console are peak-level meters. Gain Slider The Gain Slider adjusts the line input volume level. The fine gain sliders are used to set minimum and Min/Max maximum gain settings, and to report min/max gain settings via serial commands.
Page 88 Select the Enable AGC checkbox to enable AGC, or deselect it to disable AGC. For AGC configuration details, see AGC Configuration Settings. Channel Routing Matrix: Line Inputs The channel routing matrix shows the associated matrix row and audio routing configuration for the selected input channel (line input 5 in this case).
Page 89 The Cross Point Attenuation slider appears. Move the slider or use the selector box to set the gain/attenuation level in dB. The range is from -60 to 12dB in .5dB increments. The default is 0dB. NOTE: Your changes are automatically saved when you close the slider. Channel Routing Matrix: Outputs, Processing, Faders In the channel routing matrix, pressing the button underneath an Output, Process, or Fader cross point box displays the signal flow diagram and configuration controls for that channel.
Page 90 Optimizing Input Gain Structure Optimizing gain structure for input channels maximizes the signal-to-noise ratio for the channel and ensures optimal audio performance. Before configuring an input channel, ClearOne recommends that you review the Optimizing Gain Structure topic. For more information, refer to the Table of Contents for these related topics: •...
Page 91: Telco Rx Settings (840T And Th20)
TELCO RX SETTINGS (840T AND TH20) Telco Rx Settings enable you to customize telephone receive channel settings using the Channel screen. Accessing Telco Rx Settings With the Channel tab selected on the Tab Bar, select the Telco Rx channel on the Tree View tab in the Site Pane. As shown above, the center pane displays a signal flow diagram for the telco rx channel, real-time peak-level meters, as well as the channel routing matrix that displays the audio routing configuration for the channel.
Page 92 of the Mute, ClearEffect, and ALC buttons, which toggle their respective functions and have no user-configurable settings, clicking a channel configuration button displays the Channel Property Configuration window as shown below. The window contains three tabs: NC (Noise Cancellation), Telco Settings, and Telco Meters, which are described in the following sections.
Page 93 Telco Settings Tab Settings available on the Telco Settings Tab include: Auto Answer: Set the number of rings before the unit connects an incoming call (or disable the function). The default is Disabled. Auto-Disconnect: Select the auto disconnect mode to control when the unit disconnects a connected call. Modes include Loop Drop + Call Progress, Call Progress, and Loop Drop, and Off.
Page 94 Telco Meters Tab The Telco Meters tab displays a round-trip signal flow diagram for the selected telco rx, as well as real-time level meters for the signal at each stage of processing. The settings on this tab cannot be modified. NOTE: When you click the Close button (bottom right corner of screen), or close the window manually, any changes you make in the tabs of the Channel Property Configuration: Telco RX screen are automatically saved.
Page 95 See the Dialer topic for more information on using the dialer and its features. Dial Tone Level Slider The Dial Tone Level slider allows you to set dial tone gain using the slider or selector box. The default is zero. Range is -12dB to 12dB in 1dB increments.
Page 96 The Receive Input meter displays the dB level of the incoming telco signal prior to any signal processing. NOTE: All meters in Console are peak-level meters. NC Button Clicking the Noise Cancellation button opens the Channel Property Configuration: Telco RX window with the NC tab selected, allowing you to configure noise cancellation settings.
Page 97 Min/Max Limits Use the yellow and green upper and lower limit arrows on the Gain Scale in the Gain section of the screen to set minimum and maximum gain level limits. These limits only apply when using relative gain commands; absolute gain commands can exceed the min and max limits.
Page 98 The Cross Point Attenuation slider appears. Move the slider or use the selector box to set the gain/attenuation level in dB. The range is from -60 to 12dB in .5dB increments. The default is 0dB. NOTE: Your changes are automatically saved when you close the slider. In the channel routing matrix, pressing the button underneath an Output, Process, or Fader cross point box displays the signal flow diagram and configuration controls for that output channel as shown below.
Page 99 Optimizing Input Gain Structure Optimizing gain structure for input channels maximizes the signal-to-noise ratio for the channel and ensures optimal audio performance. When configuring the telco rx channel, ClearOne recommends that you follow the procedures outlined in the Optimizing Gain Structure topic.
Page 100: Output Settings
OUTPUT SETTINGS Output Settings enable you to customize output channel settings. All settings for a given output are available on the Channel screen. Accessing Output Settings With the Channel tab selected on the Tab Bar, select the desired output channel on the Tree View tab in the Site Pane.
Page 101 Mute Button Clicking the Mute button toggles muting. The default is Off. Gain Slider The Gain slider adjusts the output gain level. To change the value, use the slider or selector box. Range is from -65 to +20dB in .5dB increments. The default is 0dB. Min/Max Limits Use the yellow and green upper and lower limit arrows on the Gain Scale in the Gain section of the screen to set minimum and maximum gain level limits.
Page 102 menu. The Cross Point Attenuation slider appears. Move the slider or use the selector box to set the gain/attenuation level in dB. The range is from -60 to 12dB in .5dB increments. The default is 0dB. NOTE: Your changes are automatically saved when you close the slider. Channel Routing Matrix: Inputs, Processing, Faders In the channel routing matrix, pressing the button above an Input, Process, or Fader cross point box displays the signal flow diagram and configuration controls for that channel.
Page 103 NOTE: Changes to configuration settings made in the channel routing matrix apply globally to that channel. For example, changing the label (name) from “Input 1” to “Ceiling Mic” changes the name of the channel in the Tree View pane, and everywhere else the label appears in Console.
Page 104 Optimizing Output Gain Structure Optimizing gain structure for output channels ensures optimal audio performance. When initially configuring an output channel, ClearOne recommends that you follow the procedures outlined in the Optimizing Gain Structure topic. For additional information, refer to the Table of Contents for these related topics: •...
Page 105: Telco Tx Settings
TELCO TX SETTINGS Telco Tx Settings enable you to customize telephone transmit channel settings using the Channel screen. Accessing Telco Tx Settings With the Channel tab selected on the Tab Bar, select the Telco Tx channel on the Tree View tab in the Site Pane. As shown above, the Center Pane displays a signal flow diagram for the telco tx channel, real-time peak-level meters, as well as the channel routing matrix, which shows the audio routing configuration for the channel.
Page 106 See Dialer for more information on using the dialer and its features . NOM (Number of Open Mics/Constant Level) Maintains a constant output level by automatically adjusting gain levels based on the number of mics gated on and routed to the selected output channel. NOM reduces the output level proportionally by 3dB for every doubling in the number of open mics.
Page 107 Post-Gain Meter The Post Gain level meter displays the post-gain signal level in dB. Limiter The Limiter limits the output level to the telco side to comply with telco system requirements. Note that the meter is only a graphic; it does not show limiter activity. Output Level Meter Shows the signal level in dB when a signal is present.
Page 108 NOTE: Your changes are automatically saved when you close the slider. Channel Routing Matrix: Inputs, Processing, Faders In the channel routing matrix, pressing the button above an Input, Process, or Fader cross point box displays the signal flow diagram and configuration controls for the channel as shown below. This display is identical to that shown in Channel when the channel is selected in the Tree View pane.
Page 109 Creating Channel Objects One of the most powerful features of the Console software is the ability to create Channel Objects. Channel objects capture all settings for the channel at the time the object is created. After configuring an input using the Channel tab as described in this topic, you can save it into the Database, and use drag and drop configuration to streamline configuration tasks.
Page 110 Optimizing gain structure for output channels ensures optimal audio performance. When initially configuring output channels, ClearOne recommends that you follow the procedures outlined in the Optimizing Gain Structure topic. For more information, refer to the Table of Contents for these related topics: •...
Page 111: Processing Settings
Processing Settings enable you to configure filters, delay, compression, and gain to create precise audio configurations for any venue. There are four processing blocks available for the 840T and eight for the 880 and 8i (A-D for 840T, A-H for 880 and 8i).
Page 112 Filter Button Pressing the Filter button brings up the Channel Property Configuration window with the Filter Tab selected as shown below. For more information on Filters and their configuration, use the Table of Contents to locate the Filters topic. Delay Button Pressing the Delay button brings up the Channel Property Configuration window with the Delay Tab selected as shown below.
Page 113 Introducing an appropriate amount of delay to the forward-mounted driver(s) re-establishes the acoustical alignment necessary for proper sound imaging in a room. The same principle of introducing delay applies to separate speaker enclosures located various distances from the listening area. Other types of delay to consider when establishing delay parameters are delays which occur naturally as a result of processing within the Converge Pro unit.
Page 114 Select the Enable Compressor checkbox to activate the compressor. Using the compressor, you can change the gain transfer characteristics of the signal path and control the dynamics of a signal. Compressor settings are described below. Group Use the Group radio buttons to assign this compressor to a compressor group. The default is None. When you assign a compressor to a compressor group—such as a group of two compressors configured for left and right stereo channels—the compressors will monitor each other.
Page 115 Input Meter Shows the level of the signal as it enters the compressor. Compression Meter Shows the instantaneous compression value at a given time. Gain Slider & Process Meter Use the Gain Slider to establish the gain level for this processing channel. Range is -65 to 20dB. The Process Meter shows the signal level when a signal is present.
Page 116 NOTE: Your changes are automatically saved when you close the slider. Expanded Channel Routing Matrix In the channel routing matrix, pressing the button above or below the cross point box for a channel displays the signal flow diagram and configuration controls for that channel as shown below. This display is identical to that shown in Channel when the channel is selected in the Tree View pane.
Page 117 Creating Channel Objects One of the most powerful features of the Console software is the ability to create Channel Objects. Channel objects capture all settings for the channel at the time the object is created. After configuring a processing channel using the Channel tab as described in this topic, you can save it into the Database, and use drag and drop configuration to streamline configuration tasks.
Page 118 For more information, refer to the Table of Contents for these related topics: • Channel Tab Overview • Filters • Line Input Settings • Mic Input Settings • Output Settings • Processing Settings • Fader Settings • Telco Rx Settings (840T and TH20) •...
Page 119: Fader Settings
FADER SETTINGS Fader Settings allow you to set configuration parameters for fader channels using the Channel tab. Fader channels are internal sub-bus channels similar to Processing channels that provide additional sub-bus mixes to control volume settings within a site. Accessing Fader Settings With the Channel tab selected on the Tab Bar, select the desired fader channel on the Tree View tab in the Site Pane.
Page 120 Gain Slider & Post Gain Meter Adjusts output gain level. Use the Gain slider to adjust output volume level. You can also enter the level directly in the selector box. The Post Gain meter reflects the post-gain level of the signal in dB. Min/Max Limits Use the yellow and green upper and lower limit arrows on the Gain scale to create minimum and maximum gain level limits.
Page 121 Expanded Channel Routing Matrix This display is identical to that shown on the Channel tab when the channel is selected in the Tree View pane. You can change the label (name) of the channel in the label entry box. You can also change channel configuration settings.
Page 122 Click Export to save the configuration to the database, or Cancel to return to the Channel screen. Console saves the object to the database and displays it in the Object Tree as shown below. For more information on using AV devices and channel objects, see the following topics: •...
Page 123: Matrix Tab
The channels available in routing matrix for each Converge Pro model are summarized below: • Converge Pro 840T: 25 inputs x 26 outputs • Converge Pro 880: 36 inputs x 36 outputs • Converge Pro 8i: 36 inputs x 28 outputs •...
Page 124 The color of the cross point cell identifies the input type: • Yellow = gated mic input • Blue = non-gated mic input • Brown = pre-AEC • Green = cross point NOTE: The current audio level to the nearest dB is shown in cross point cells. Black cell are restricted routing paths which prevent Telco, E-Bus, Processing, and Fader channels from being routed back to themselves.
Page 125 Process A–D (840T) and Process A–H (880 and 8i) Routing There are four processing channels on the Converge Pro 840T and eight on the 880 and 8i. With these processing channels, you can apply filters, compression, delay, and other processing settings to an input or a group of inputs, which can then be routed to a single output or group of outputs.
Page 126 Copy and Paste Matrix To copy the entire matrix, use the shortcut menu commands; or press <Ctrl+G> to copy the matrix, select the unit you want to copy the matrix to in the Site View Tab, and press <Ctrl+P> to paste the matrix into the matrix screen for the selected unit.
Page 127: Aec Reference Tab
AEC REFERENCE TAB The AEC Reference Tab allows you to establish reference sources for Acoustic Echo Cancellation (AEC). AEC uses reference signals as the basis for acoustic echo cancellation. An AEC reference is a digital sample of the receive audio signal that is used by the AEC filter model for adaption and convergence. You can use both unit and expansion bus audio sources as AEC references for the Mic Inputs connected to a unit.
Page 128 • Output channels • Expansion bus channels • Speaker outputs (840T only) • Virtual references Virtual AEC References Virtual AEC References allow you to combine multiple audio sources for applications where there are two speakers (left and right) providing audio to the far side, combined audio/video conferencing, and audio/video teleconferencing.
Page 129 NOTE: If the channels selected for a virtual reference use Processing or Faders, you should select the processing or fader channel as the virtual reference source. This provides the AEC process with the most accurate reference for the signal, thereby providing faster convergence and more accurate AEC performance.
Page 130: Macro Tab
MACRO TAB Macros define a series of commands which can be run using the Front Panel LCD, Serial Commands, Control Ports, Presets, the Converge Pro Web Portal, SNMP , and other macros. Macros allow you to make quick configuration changes and to execute multiple Presets simultaneously. Macros can also contain commands that are executed on other Converge Pro units on the Expansion Bus.
Page 131 Make the routing and input/output configuration changes (such as gain adjustments, mute, etc.) in Console that you want to include in the macro. Click Stop in the Macro Record dialog to end macro recording. The macro Command Editor appears with a list of the commands captured. Click Save to save the macro.
Page 132 Click Add to add the command to the end of the macro, or Insert to insert the command before the currently selected row of the macro. The command appears in the Macro Command List. NOTE: When there are multiple commands in the Macro Command List, you can drag and drop them to change their execution order.
Page 133 Select the Macro tab from the Console main screen or press the Run Macro button on the button bar (only available when Console is in Configuration mode). Select the macro from the Select Macro list. Click Run to run the macro and close the window. Running Macros Using the Front Panel Use the following procedure to run a macro from the front panel: Using the Menu Dial, select the Macros Menu.
Page 134: Gating Tab
GATING TAB The Gating tab allows you to create gating groups and assign mic inputs to gating groups. Gating group assignments combine individual channel gating configurations created using the Channel Properties Configuration screen. When inputs are assigned to a gating group, the gating information from the assigned inputs is used to control how the entire mixer behaves.
Page 135 The maximum number of mics is limited to the number of mics included in the gating group. For internal gating groups, the maximum number of mics is 8 for Converge Pro 880 and 8i units, and 4 for 840T units. •...
Page 136 For global gating groups, the maximum number of mics is 8 for Converge Pro 880 and 8i units, and 4 for 840T units, up to a total of 64 mics in E-bus linked systems.
Page 137: Control Tab
CONTROL TAB The Control Tab allows you to configure pin assignments for the user-definable pins on Control/Status Port A and Control/Status Port B of Converge Pro units. Converge Pro devices implement control/status using DB-25 pin ports on the back panel, and GPIO (General Purpose Input Output) with active low/pull to ground inputs and open collector outputs.
Page 138 Default Pin Assignments For default pin assignments for Control/Status ports by model, refer to Appendix B: Default Pin Assignments. Control/Status Ports Control/Status A and B ports are female DB25 connectors used for General Purpose Input/Output (GPIO) interactions between Converge Pro devices and external control devices such as wall switches and push-to- talk microphones.
Page 139 Set parameter values for the command as required, then press the Apply button. The command appears in the selected Active/Inactive Command text box. To complete programming for the selected pin, repeat steps 3 through 6 to set the Active Command for the opposite pin state.
Page 140: String Tab
STRING TAB The String Tab enables you to create up to eight command strings that allow Converge Pro units to control external devices such as lighting, projectors, and room dividers. Command strings are written using the command syntax of the external device being controlled. Converge Pro devices pass command strings as literal text strings to external devices through the RS-232 Port.
Page 141 Running Command Strings Console stores the commands strings created in the Control tab for subsequent execution via the STRING serial command. You can execute the STRING command in macros, using control pin programming, in the Event Scheduler, and from the Control Console page of the Web Builder tab. Using macros also enables you to execute command strings from external control devices.
Page 142: Event Scheduler Tab
EVENT SCHEDULER TAB The Event Scheduler allows you to schedule commands for execution at a specific time (events). Using the event scheduler, you can schedule single events or recurring events that are executed at pre-defined time intervals. Accessing the Event Scheduler To schedule events, press the Event Scheduler Tab on the Tab Bar in Console.
Page 143 • SFTYMUTE –Mutes all channels on the specified unit • STRING –Runs a command string • SYSCHECKS –Runs system diagnostics To schedule a single event, select Single Event and set the desired Start Date/Time in the Time Scheduler section of the screen. To schedule a recurring event, select Event Recurrence;...
Page 144: Database Tab
DATABASE TAB The Database Tab enables you to create, modify, and save AV devices, channel objects, and advanced objects. AV devices allow you to save pre-defined configurations for a particular type of device, such as a ceiling microphone. Channel objects allow you to save pre-defined configurations for a channel. Advanced objects allow you to save matrix, macro, control, and preset objects for advanced configuration and automation tasks.
Page 145 To access AV devices, expand the AV Device Tree in the AV Devices Tab in the Object Pane on the right side of Console. Click on a device in the tree to display its configuration in the center pane. For example, the default settings for a ClearOne tabletop microphone are shown below. ReadOnly...
Page 146 Name the new device using the Name field. Enter other information as needed, adjust the configuration controls to optimize device performance, and click the Save button to save the changes. The new device now appears in the AV Device Tree as shown below. NOTE: The AV Device Tree is also available when the Unit Tab is selected, making all pre-defined and custom AV Devices available for Drag and Drop Configuration of a venue.
Page 147 Center Pane. ReadOnly NOTE: Pre-defined AV devices created by ClearOne are as indicated in the center pane. They cannot be modified or deleted. Chapter 3: Converge™ Console™ Programming...
Page 148 Advanced Object Types In addition to AV devices and channel objects, Console provides advanced object types to streamline site configuration. To access advanced objects, you must select the corresponding tab for the object type on the tab bar. For more information, see these topics under Drag & Drop Configuration: •...
Page 149: Optimizing Gain Structure
OPTIMIZING GAIN STRUCTURE Optimizing Gain Structure maximizes the signal-to-noise ratio for each channel, optimizes the performance of Converge Pro processing functions, and ensures optimal audio quality. • Use these guidelines when optimizing initial gain structure for a venue: • Connect all input sources and output devices to the Converge Pro unit(s). •...
Page 150 NOTE: The Post Gain Meter is a peak meter. If the meter remains green, the level may be too low. If it peaks into red, clipping occurs. Optimizing Gain for Line Input Channels Line inputs are optimized using the same procedure as mic inputs, with the following exceptions. Select the Line Input you want to optimize on the Tree View Tab.
Page 151 Optimize the gain level for all mic, line, and telco rx inputs routed to the selected output channel. Adjust the Gain Slider until the average level on the Gain Meter matches the nominal level of the next device in the chain. Repeat the above steps for each output channel in the system.
Page 152: Drag And Drop Configuration
DRAG AND DROP CONFIGURATION Console provides powerful Drag and Drop Configuration capabilities that allow you to quickly configure Converge Pro devices and perform advanced system configuration tasks. The types of objects available in Console for drag and drop configuration include: •...
Page 153 The object is now available for drag and drop configuration. AV Devices ClearOne provides numerous pre-configured AV devices, with settings that optimize the performance of the device for a typical (baseline) room. These devices are available in the AV Devices tab of the Objects Pane as shown below.
Page 154 To apply an AV device to a channel, drag the object onto the channel in the Unit or Channel tabs. For example, to apply a Crown PCC130 tabletop microphone to Mic/Line Input 1, select the object from the AV Devices tree and drag it onto the channel.
Page 155 To view detailed information about an AV device’s configuration settings, or to create a custom AV device, use the AV Devices pane of the Database tab. Channel Objects In addition to using AV devices, you can drag and drop Channel Objects in the Unit Tab and the Channel Tab to instantly apply a saved configuration to a channel.
Page 156 To view detailed information about an AV device’s configuration settings, or to create a custom AV device, use the AV Devices pane of the Database tab. Advanced Configuration Objects For advanced configuration tasks, Console allows you to create and apply Matrix Objects, Control Objects, Macro Objects, and Preset Objects as described in the following sections.
Page 157 For additional information, refer to the Table of Contents for these related topics: • Database Tab • Mic Input Settings • Line Input Settings • Telco Rx Settings (840T and TH20) • Telco Tx Settings (840T and TH20) • Output Settings •...
Page 158: Preset Mode
PRESET MODE Preset Mode allows you to create and modify presets. To execute presets, Console must be in Configuration Mode. There are 32 presets available in Console. Presets provide the configuration flexibility needed to meet the challenges of changing conference room requirements.
Page 159 Preset Configuration Tabs In preset mode, the following tabs are available on the Console Tab Bar for defining preset configurations: • Unit Tab • Channel Tab • Matrix Tab • AEC Reference Tab • Gating Tab • Control Tab The channels available for configuration in a preset are determined by the channels selected in the Use in preset row on the matrix tab.
Page 160 Creating Presets Use the following procedure to create presets: Press the Preset Mode button on the Button Bar to put Console into preset mode. Select the number of the preset you want to configure in the Preset Selection list. Enter a Preset Name and Description in the entry fields (optional). Select the channels you want to include in the preset using the Use in preset check boxes in the matrix.
Page 161 Set the output channel cross points that you want to include in the preset using the matrix. Configure the desired setting changes for the preset including: • Mic Input, Line Input, Output, Telco Rx, Telco Tx, Processing, and Fader channel settings •...
Page 162 Executing Presets There are five ways to execute presets: Using Console in Configuration Mode Using the LCD Preset Menu on the Front Panel Using control programming and external control devices (such as the closure contacts on a room partition) Using macros Using serial commands via a Telnet session or via RS-232 NOTE: Presets only run on the current unit shown in the site pane.
Page 163 Executing Presets Using Macros Use the PRESET serial command to execute presets in a macro. To run multiple presets at the same time, use multiple PRESET commands in the macro. Macros can be executed from within Console or by using any external control device.
Page 164 Exporting Preset Objects Preset objects allow you to save preset configurations into the Database and reuse them. This enables you to instantly apply preset changes, and to rapidly configure additional Converge Pro units using Drag and Drop Configuration. To capture the current preset and save it as an object, right click anywhere in the center pane of the preset screen and select Export as object from the shortcut menu.
Page 165: File Menu Overview
FILE MENU OVERVIEW File Menu allows you to use Site Files and Print Reports. Accessing the File Menu In Console, select File from the menu bar. The File menu appears as shown below: The File menu appears as shown below: File menu options are explained in the following sections.
Page 166: Print Reports
PRINT REPORTS The Print Reports option on the File menu allows you to print a configuration properties report for a Converge Pro Site or Unit. Accessing Print Reports To print a site or unit report, click on the File menu, select Print, then select Print Site Report or Print Unit Report as shown below.
Page 167: View Menu Overview
VIEW MENU OVERVIEW The View Menu provides an alternate navigation method for viewing the screens displayed by clicking on the Console Tabs. Accessing the View Menu In Console, click View on the menu bar. The View menu appears as shown below: A bullet indicates the view currently displayed in Console.
Page 168 View Menu Options Options available on the View menu include: • Unit View • Channel View • Matrix View • AEC Reference Builder • Macro Builder • Gating Builder • Control Builder • Command Strings • Event Scheduler • Database Builder Technical Services: 800-283-5936...
Page 169: Add Menu
ADD MENU The Add Menu allows you to add Converge Pro units to a site using default configuration settings. Accessing the Add Menu In Console, click Add on the menu bar. The Add menu appears as shown below: Adding Units On the Add menu, select the Converge Pro model you want to add to the site.
Page 170 Configure the new unit’s properties using the General tab. Configure the new unit’s IP and serial port settings using the Comm tab. For more information on configuring unit properties, see Unit Properties. Press OK to add the unit to the site or Cancel to return to Console. The added unit appears on the Site View tab of the Site pane, highlighted in orange as shown below: NOTE: The Status bar at the bottom of the Console window displays the current status of the unit and the site.
Page 171 For more information, refer to the Table of Contents for these related topics: • Unit Properties • Create A New Site • Connect To A Site • Site Properties • Unit Tab • Configuration Mode Overview Chapter 3: Converge™ Console™ Programming...
Page 172: Connect Menu Overview
CONNECT MENU OVERVIEW The Connect Menu enables you to connect to a site, disconnect from a site, and refresh the current display for a site. Connecting to a site allows you to control and configure the units in that site. See Site Setup Overview for more information.
Page 173: Modes Menu Overview
MODES MENU OVERVIEW The Modes Menu allows you to switch Console between Configuration Mode and Preset Mode. Configuration Mode allows you to configure a wide range of advanced settings for your Converge Pro unit. Preset Mode allows you to create presets for specific venues and apply them to instantly to your Converge Pro unit. Accessing the Modes Menu In Console, select Modes from the menu bar.
Page 174: Services Menu Overview
SERVICES MENU OVERVIEW The Services Menu provides various utilities for using and managing Converge Pro units. Accessing the Services Menu In Console, click Services on the menu bar. The Services menu appears as shown below: Service Menu Options Options available on the Services menu include: •...
Page 175: Dialer
DIALER The Dialer provides a software telephone interface for teleconferencing applications. NOTE: Dialer is only available when Console is connected to a site. Accessing Dialer To access the dialer, select Dialer from the Services menu; press the Dialer button on the Console Button Bar;...
Page 176 Using Dialer When using the dialer, the date and time, number dialed, and call status are displayed in the LCD section of the dialer window. Placing and Ending Calls To place a call, select a number from the Phonebook section of the dialer window, or manually enter a number, then press the ON/OFF hook button.
Page 177: Phonebook (840T And Th20)
PHONEBOOK (840T AND TH20) The Phonebook allows you to store telephone numbers and make speed-dial assignments for teleconferencing applications. Accessing Phonebook To access the phone book, select Phonebook from the Services menu; press the Phonebook button on the Console Button Bar; or press the Phonebook button in the Dialer screen. Using Phonebook To add an entry to the phonebook, press the New Entry button;...
Page 178 Press the Add button to add the entry to the phonebook. The number now appears in the phonebook list, and in the Phonebook portion of the Dialer screen. To edit an entry, select it and press the Change button. To delete an entry, select it and press the Remove button. For additional information, please refer to the Table of Contents for these related topics: •...
Page 179: Label Editor
LABEL EDITOR The Label Editor allows you to quickly change the names (labels) assigned to Converge Pro units and channels. Using descriptive names makes it easier to identify units and channels for configuration and management purposes. Label changes are global, and appear throughout Console wherever the label is referenced. In addition to using the label editor to rename objects, you can use the label entry fields provided throughout Console.
Page 180: Device Log
DEVICE LOG The Device Log captures Converge Pro device events for administration, configuration, and troubleshooting purposes. NOTE: The device log can store 256K bytes of data. Once this limit is reached, the first 128K of data is truncated and logging resumes. Accessing Device Log To access the device log, select Device Log from the Services menu, or click the Device Log button on the...
Page 181 Using Device Log In the Device Log window, select the events you want to log using the Event Selection check boxes. Events available for logging include: • Reset: Reports unit reset events • Errors: Reports internal unit errors • Access: Reports all web, Telnet, front panel, and USB access events •...
Page 182 For additional information, please refer to the Table of Contents for these related topics: • Site Properties • System Checks • Firmware Loader • Console Overview • LCD Settings Menu • Macro Tab • Preset Mode Overview • Execute Presets •...
Page 183: Event Log
EVENT LOG The Event Log captures Console events for administration and troubleshooting purposes. Event types captured include failed login attempts, site disconnects, unit reboots, socket time outs, internal system errors, and serial command execution errors. Accessing Event Log To access the event log, select Event Log from the Services menu, or click the Event Log button on the Console Button Bar.
Page 184 Using Event Log Captured events appear in the left section of the Event Log window. Event Codes and Messages appear in the right section of the window. To print the event log, press the Print button. To clear the event log, press the Clear button and answer Yes to the confirmation dialog that appears.
Page 185: Web Builder
Configuring User Console The User Console tab allows you to configure the web version of Dialer, a software interface that emulates the functionality of Clearone’s Tabletop Controller. User Console provides six user-programmable keys as described in the following sections. Chapter 3: Converge™ Console™ Programming...
Page 186 Select the key you want to program from the drop-down list in the upper left hand corner of the screen. Programmable keys include: • Line 1 • Line 2 • User • Volume Down • Volume Up • Mute If you are configuring a Line or User button, enter a name for it in the Line (or User) Name field (optional). The key selected determines the commands available in the Command drop-down lists in the Command section of the screen.
Page 187 For some commands, such as MACRO, the Status section of the command editor becomes active. Status controls the LED status indicator for the associated button based on the state conditions entered in the Active State (LED on) and Inactive State (LED off) rows of the Status section. Pressing a programmed button in the Converge Pro Web Portal executes the command selected in the Press row of the Command section.
Page 188 The element selected determines the commands available in the Command drop-down lists in the Command section of the screen. For example, the commands available for the mute buttons include MACRO and MUTE. When you select a command, the configurable parameters for that command appear as shown above. (For more information on the command editor, see Command Editor in the Control Tab topic.) Select the Type, DID (device ID), and Command from the drop-down lists.
Page 189 To access programmed call management functions, click on DIALER. To access programmed control console mixing functions, click on MANAGEMENT (shown above). For additional information, please refer to the Table of Contents for these related topics: • Dialer • Phonebook • Macro Tab •...
Page 190: Firmware Loader
Firmware Loader allows you to upgrade the firmware in your Converge Pro unit when enhancements are released. All Converge Pro units (880, 840T, 8i, TH20) use the same firmware file: converge.mdo. When upgrading firmware, all units in the site are automatically updated simultaneously.
Page 191 When the firmware load is complete, the unit reboots. The unit now has the selected firmware file loaded. If you experience problems with firmware loads, please contact ClearOne Technical Support. For additional information, please refer to the Table of Contents for these related topics: •...
Page 192: Debug Console
DEBUG CONSOLE The Debug Console provides five tabs for monitoring system performance, testing and troubleshooting audio performance, and running system diagnostics: • Meter View • Gate View • Signal Generator • System Checks • System Check Config Accessing Debug Console To access the debug console, select Debug Console from the Services menu, or press the Debug Console button on the Console Button Bar.
Page 193 To configure a meter, select the Unit, Meter Type, and Channel using the drop-down lists. Meter view provides a useful diagnostic tool for system-wide troubleshooting and configuration. Gate View Tab The Gate View tab shows real-time gating status, allowing you to monitor gating activity for the mics and gating groups for the currently connected Converge Pro unit.
Page 194 Signal Generator The Signal Generator tab enables you to generate test signals to audibly test signal paths, gain settings, routing, and channel configuration settings. The signal generator can also be used for noise masking in courtroom, clergy, and corporate applications. NOTE: When the signal generator is on for any unit in the site, the Signal Generator LED on the Console Button Bar flashes green.
Page 195 Tone Frequency Settings Configure Frequency settings for tone tests as follows: Select a tone frequency using the Frequency slider, or enter a frequency in the entry box. Alternatively use the Auto Sweep button to sweep a range of frequencies using the Begin Frequency, End Frequency, Increment, and Rate settings.
Page 196 Telephone: Select this check box to test Telco Rx and/or Telco Tx functionality (840T and TH20 only). • Mic 1-4 (840T), Mic 1-8 (880, 8i): Select the check box(es) for the mic input channels that you want to test. •...
Page 197: Execute Presets
EXECUTE PRESETS The Execute Presets command on the Services menu allows you to run presets while Console is in Configuration Mode. NOTE: This command is not available while Console is in Preset Mode. Accessing Execute Presets From the Console main screen, click on the Services menu and select Execute Preset as shown below. The Execute Preset dialog appears as shown below.
Page 198 Select the preset you want to run from the drop-down list, then click Execute to run the preset or Cancel to return to Console. You can also use macros to execute presets or multiple presets simultaneously. For more information, see the Table of Contents for the Macro Tab topic.
Page 199: Appendix A: Serial Command Guide
#10 MUTE 2 M 0. In this command line, 1 = the Device Type for Converge 880, 0 = the Device ID for unit 0, MUTE = Converge Pro serial command, 2 = MUTE command Value to un-mute mic channel 2, M = MUTE command Value that specifies a microphone input channel, 0 = MUTE command Value specifying that mute is OFF.
Page 200: Groups And Channels
All Converge Pro serial commands use common alpha and numeric designators to reference channel group, channel types, and other command values. Also, different channel groups have different allowable channel ranges, as shown in the following table. Group Alpha Number Converge 880 Converge TH20 Converge Converge Channel Channel...
Page 201: Meter Type Definitions Table
METER TYPE DEFINITIONS TABLE Alpha Numeric Level Position Level Level position Level Level Level Position for Mics Position for for Outputs and Position for Position for for Telco Rx Line Inputs Telco Tx Faders Processors Level into Input level Input level Input level Input Level Compressor...
Page 202 SERIAL COMMAND INDEX AA – Auto Answer Enable / Disable (840T & TH20 only) ........202 AAMB –...
Page 203 ENETADDR – Ethernet Port IP Address ............211 ENETDHCP –...
Page 204 ........229 REFSEL – Reference Select for PA Adaptation & AEC (880, 840T, 8i only) .
Page 205 RXBSTEN – Receive Boost Enable (840T & TH20 only) ........231 SERECHO –...
Page 206: Serial Commands
SERIAL COMMANDS Converge Pro serial commands are shown in bold, followed by the command form and argument details. AA – Auto Answer Enable / Disable (840T & TH20 only) This command selects/reports the setting of auto answer. Command Form: DEVICE AA <Channel> [Value] Argument Type Size Values...
Page 207 ACONNLVL – Audible Connect / Disconnect Level (840T & TH20 only) This command selects/reports the audible connect / disconnect indicator’s level. Command Form: DEVICE ACONNLVL <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 17 (R) Value Signed Float...
Page 208 ADPRESENT – Audio Presence This command displays the channels that currently have valid audio signals present. This command is read only. Command Form: DEVICE ADPRESENT [Values] Argument Type Size Values Value Bit Map of XXXX XXXX XXXX XXXX Inputs |…………………| Input 1 (lsb) to 12 (msb) |…….| Reserved...
Page 209 AGCSET – Automatic Gain Control Adjust This command selects/reports the settings of the Automatic Gain Control. Command Form: DEVICE AGCSET <Channel> <Group> [Threshold Target Attack Gain] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 1, 3, 7 (I, M, L) Threshold Signed Integer -50 –...
Page 210 CALLDUR – Call Duration (840T & TH20 only) This command indicates how long a call has lasted. If no call is in session, this will report 0. At the time of call termination, this command will automatically be sent out reporting the duration. This command is read only. Command Form: DEVICE CALLDUR <Channel>...
Page 211 CLEAREFFECT – Clear Effect Wide Band Telco Emulation (840T & TH20 only) This command enables / disables or reports the current status of the clear effect. Command Form: DEVICE CLEAREFFECT <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 17 (R)
Page 212 COMPSEL – Compression Select This command selects/reports the compressor activation. Command Form: DEVICE COMPSEL <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 5 (P) Value Unsigned Integer 0 = Off 1 = On 2 = Toggle (Null to query in text) COUNTRY –...
Page 213 DEFAULT – Default The Unit Sets the unit to factory defaults. There is no query for this command. Command Form: DEVICE DEFAULT No Arguments DELAY – Delay Adjust This command selects/reports the setting of delay time. Command Form: DEVICE DELAY <Channel> [Value] Argument Type Size Values...
Page 214 DEVICETYPE – Sets the Type of a Connected Device This command enables / disables or reports the current type of device connected to an input or output. Command Form: DEVICE DEVICETYPE <Channel> <Group> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group...
Page 215 DTMFLVL – DTMF Tone Level (840T & TH20 only) This command selects/reports the DTMF tone’s level. Command Form: DEVICE DTMFLVL <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 17 (R) Value Signed Float -12.00 –...
Page 216 ENETDHCP – Ethernet DHCP Selection This command selects/reports the use of DHCP of the Ethernet port on the unit. Command Form: DEVICE ENETDHCP [Value] Argument Type Size Values Units Value Unsigned Integer 0 = On 1 = Off 2 = Toggle (Null to query in text) ENETDNS –...
Page 217 ENETSUBN – Ethernet Subnet Mask This command selects/reports the Subnet mask of the Ethernet port on the unit. Command Form: DEVICE ENETSUBN [Value] Argument Type Size Values Units Value IP Address (Null to query in text) EREF – Expansion Bus Reference This command selects an output or reports which output is the expansion bus reference.
Page 218 FILTSEL – Filter Select This command turns on and off the filters. Command Form: DEVICE FILTSEL <Channel> <Group> <Node> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 3, 5 (M, P) Node Unsigned Integer Group 3 1 –...
Page 219 GAIN – Gain Adjustment This command changes or reports back the gain for a channel. Command Form: DEVICE GAIN <Channel> <Group> [Value] [Absol/Rel] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 1, 2, 3, 5, 7, 12, 16, 17 (I, O, M, P , L, F, T, R) Value Signed -99.90 –...
Page 220 GOVER – Gating Override This command selects/reports the setting of gating override. Command Form: DEVICE GOVER <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 3 (M) Value Unsigned Integer 0 = Off 1 = On 2 = Toggle (Null to query in text) GPIOSTATUS –...
Page 221 GRPSEL – Gating Group Select This command selects/reports which Gating Group a microphone input is assigned. Command Form: DEVICE GRPSEL <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 3 (M) Value Channel See 4 (G) in Groups and Channels (Null to query in text) HOOK –...
Page 222 LMO – Last Mic On Mode This command selects/reports last Mic on mode. Command Form: DEVICE LMO <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 4 (G) Value Unsigned Integer 0 = Off 1 - 8 = Mic 1 –...
Page 223 LOCCOMP – Location: Company This command sets/reports the location of the unit: Company string. Command Form: DEVICE LOCCOMP [Value] Argument Type Size Values Units Value String CLEAR = Clear current value 1 – 63 Characters (Null to query in text) LOCREGION –...
Page 224 LOGMASK – Device Log Mask This command sets or reports the device event log mask. Command Form: DEVICE LOGMASK [Value] Argument Type Size Values Units Value Hexadecimal X X X X X X X X X X X X X X X X | | | | | | | | | | | | | | | | Reset | | | | | | | | | | | | | | |...
Page 225 MACRO – Macro Execution/Reporting This command executes a specified macro or reports the last macro executed. Command Form: DEVICE MACRO [Value] Argument Type Size Values Units Value Channel See 14 (C) in Groups and Channels (Null to query last macro ran in text) NOTE: The response will indicate successful execution of the macro, but it does not guarantee that each command in the macro was executed.
Page 226 MIN – Minimum Gain Setting This command changes or reports back the minimum gain setting for a channel. Command Form: DEVICE MIN <Channel> <Group> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 1, 2, 3, 5, 7, 12, 16, 17 (I, O, M, P , L, F, T, R) Value Signed Float -65.00 –...
Page 227 MTRX – Matrix Routing This command selects/reports the matrix routing of an input to an output. Command Form: DEVICE MTRX <Src. Ch.> <Src. Gp.> <Dest. Ch.> <Dest. Gp.> [Value] Argument Type Size Values Units Source Channel Channel See Groups and Channels Source Group Group 1, 3, 5, 6, 7, 12, 17...
Page 228 MTRXLVL – Matrix Attenuation Adjust This command selects/reports the matrix level at the cross point. Command Form: DEVICE MTRXLVL <Src. Ch.> <Src. Gp.> <Dest. Ch.> <Dest. Gp.> [Value] [A/R] Argument Type Size Values Units Source Channel Channel See Groups and Channels Source Group Group 1, 3, 5, 6, 7, 12, 17...
Page 229 NCSEL – Noise Cancellation Select This command selects/reports the setting of the Noise Cancellation for each microphone channel. Command Form: DEVICE NCSEL <Channel> <Group> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 3, 17 (M, R) Value Unsigned Integer 0 = Off...
Page 230 NULL – Null the Line (840T & TH20 only) This command nulls the line. There is no query for this command. Command Form: DEVICE NULL <Channel> Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 17 (R) Reserved OFFA –...
Page 231 PHONEBOOKCNT – Counts Entries in the Phonebook (840T & TH20 only) This command queries the number of entries in the phonebook. This command is query only. Command Form: DEVICE PHONEBOOKCNT <Value> Argument Type Size Values Units Value Unsigned Integer 0 – 20 PHONEBOOKDEL –...
Page 232 PRGSTRING – Program String This command sets/reports a programmed string. DEVICE PRGSTRING <ID> [Value] COMMAND FORM Argument Type Size Values Units Unsigned Integer 0 – 7 Value String CLEAR = Clear current value 1 – 80 Chars (Null to query in text) Special Characters: \a = alert \b = backspace...
Page 233 17 (R) Reserved REFSEL – Reference Select for PA Adaptation & AEC (880, 840T, 8i Only) This command selects/reports which output or expansion bus reference is used for a Mic input as a reference for power amp adaptation mode and acoustic echo cancellation where applicable.
Page 234 RINGEREN – Audible Ring Enable (840T & TH20 only) This command sends/reports the use of an audible ring. Command Form: DEVICE RINGEREN <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 17 (R) Value Unsigned Integer 0 = Off 1 = On...
Page 235 RXBSTEN – Receive Boost Enable (840T & TH20 only) This command selects/reports the receive boost status. Command Form: DEVICE RXBSTEN <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 17 (R) Value Unsigned Integer 0 = Off 1 = On 2 = Toggle...
Page 236 SIGGENEN – Signal Generator Enable This command selects/reports of the signal generator activation. Command Form: DEVICE SIGGENEN [Value] Argument Type Size Values Units Value Unsigned Integer 0 = Off 1 = On 2 = Toggle (Null to query in text) SIGGENSWEEP –...
Page 237 SMTPSRV – SMTP Mail Server Address This command selects/reports the IP address of the SMTP Mail server, and the Email Address the unit’s SMTP client sends messages to. Command Form: DEVICE SMTPSRV [Value Address] Argument Type Size Values Units Value IP Address (Null to query in text) (0.0.0.0 Clears IP and String)
Page 238 STRING – String Execution This command sends the specified string out the serial port. Command Form: DEVICE STRING [ID] Argument Type Size Values Units Unsigned Integer 0 – 7 (Null to query last string in text) SYSCHECKS – System Checks Initiates the system checks.
Page 239 SYSRESULT – System Check Result This command reports the results of the system check. This command is reportable only. It cannot be queried or set. The System Check integer bits determine which test result will be reported. Each test results in a separate SYSRESULT message.
Page 240 TE – Telco Enable (840T & TH20 only) This command selects/reports the hook status. Command Form: DEVICE TE <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 17 (R) Value Unsigned Integer 0 = Off 1 = On 2 = Toggle (Null to query in text)
Page 241 UID – Unit ID This command reports the unit id. This command is read only. Command Form: DEVICE UID [Value] Argument Type Size Values Units Value Hexadecimal (Sent with a Null, value returned in text) VER - Version This command reports the version of the unit. This command is read only. Command Form: DEVICE VER [Value] Argument Type...
Page 242 Serial Command Support Table The following table shows serial command support by Converge Pro device type. Converge Pro Converge Pro Converge Pro Converge Pro Command Name 840T TH20 AAMB AARINGS ACONN ACONNLVL ADCLIP ADPRESENT AGCSET AMBLVL AMXDUET AUDIOMASTER BAUD CALLDUR CALLERID CGROUP CHAIRO...
Page 243 Converge Pro Converge Pro Converge Pro Converge Pro Command Name 840T TH20 ENETADDR ENETDHCP ENETDNS ENETDNSA ENETDNSA2 ENETDOMAIN ENETGATE ENETSUBN EREF FILTER FILTSEL FLOW FPGAVER GAIN GATE GHOLD GMODE GOVER GPIOSTATUS GRATIO GREPORT GRPSEL HOOK HOOKD LABEL LCDCONTRAST LOCALNUM LOCBLDG LOCCITY LOCCNTRY LOCCOMP...
Page 244 Converge Pro Converge Pro Converge Pro Converge Pro Command Name 840T TH20 MINMAX MLINE MMAX MTRX MTRX2 MTRXCLEAR MTRXLVL MUTE NAME NCSEL NTPSRV NULL OFFA PBDIAL PHONEBOOKADD PHONEBOOKCNT PHONEBOOKDEL PHONEBOOKREAD PRESET PRGSTRING PTTTHRESHOLD PUSHTOTALK RAMP REDIAL REFSEL REFSET RESET RING RINGEREN RINGERLVL RINGERSEL...
Page 245 Converge Pro Converge Pro Converge Pro Converge Pro Command Name 840T TH20 SIGGEN SIGGENEN SIGGENSWEEP SIGTOUT SLVL SMTPSRV SNMPMNGRIP SNMPMNGRPORT SNMPREADCOMM SNMPWRITECOMM SPEEDDIAL STRING SYSCHECKS SYSRESULT TAMODE TELCOLVLCTRL TIMELOCALE TOUT UCLOCK WAITSTATE Appendix A: Serial Commands...
Page 246 Technical Services: 800-283-5936...
Page 247: Appendix B: Default Pinouts
APPENDIX B: DEFAULT PINOUTS CONTROL/STATUS PORT A & B DEFAULT PINOUTS Converge Pro 880: Port A Pin # User Definable Control/Status Default Description Control (Input) Status (Output) Control (Input) Mute All Mics Toggle Status (Output) Status of Mute All Mics...
Page 248 Pin # User Definable Control/Status Default Description Status (Output) Status of Auto Answer Control (Input) Mute Output 5 Toggle Status (Output) Status of Mute Output 5 Control (Input) Mute Input 5 Toggle Status (Output) Status of Mute Input 5 Control (Input) Volume Up Output 8 (1 dB) Status (Output) Control (Input)
Page 249 Status (Output) Microphone 6 Gate Status Status (Output) Microphone 7 Gate Status Status (Output) Microphone 8 Gate Status Ground Converge Pro 880, 840T, 8i, TH20: Port B Pin # User Definable Control/Status Default Description Control (Input) Preset Mask Bit 0...
Page 250 Pin # User Definable Control/Status Default Description Status (Output) Preset Indicator Bit 4 Control (Input) Preset Mask Bit 5 Status (Output) Preset Indicator Bit 5 Control (Input) Preset Mask Bit 6 Status (Output) Preset Indicator Bit 6 Control (Input) Preset Mask Bit 7 Status (Output) Preset Indicator Bit 7 Control (Input)
Page 251: Appendix C: Specifications
APPENDIX C: SPECIFICATIONS Converge Pro 880 » Low Pass Audio Performance » High Pass • Conditions: Unless otherwise specified, all » Notch measurements are performed with a 20 Hz to 22 kHz » BW limit (no weighting) • Mute on/off •...
Page 252 Converge Pro 880 (continued) Control/Status Ports • DB-25 female A/B (2) • Inputs A/B: active low (pull to ground) • Outputs A/B: open collector, 40 VDC max, 40 mA each • +3.3 VDC pins (2) (300 mA over-current protected) Configuration & Administration Software •...
Page 253 Converge Pro 840T • AGC on/off Audio Performance • Automatic Level Control on/off • Conditions: Unless otherwise specified, all • Auto Gate/Manual gate measurements are performed with a 20 Hz to 22 kHz • Adaptive Ambient on/off BW limit (no weighting) •...
Page 254 • AES48-2005: AES standard on interconnections — Grounding and EMC practices — Shields of connectors in audio equipment containing active circuitry (self certified) Optional Accessories • Converge Pro 880 • Converge Pro 8i • Converge Pro TH20 • Tabletop Controller •...
Page 255 Converge Pro 8i • Auto Gate/Manual gate Audio Performance • Adaptive Ambient on/off • Conditions: Unless otherwise specified, all • Pre AEC channel measurements are performed with a 20 Hz to 22 kHz BW limit (no weighting) Mic/Line Inputs 1-8 •...
Page 256 • AES48-2005: AES standard on interconnections — Grounding and EMC practices — Shields of connectors in audio equipment containing active circuitry (self certified) Optional Accessories • Converge Pro 880 • Converge Pro 840T • Converge Pro TH20 • Tabletop Controller •...
Page 257 • Proprietary Network 910-151-820 Converge Pro TH20 • RJ-45 (2), 1.9 Mbps, 110 KΩ Impedance Telephone Interface for Converge Pro 880, 840T, 8i • Category 5 twisted-pair cable, 200’ maximum cable length between any two Converge Pro devices Ethernet •...
Page 258 Technical Services: 800-283-5936...
Page 259: Appendix D: Compliance
(2) this device must accept any interference received including interference that may cause undesired operation. Changes or modifications not expressly approved by ClearOne Communications could void the user’s authority to operate the equipment.
Page 260 No user serviceable parts are contained in this product. If damage or malfunction occurs, contact ClearOne Communications for instructions on its repair or return.
Page 261 5225 Wiley Post Way, Suite 500 Salt Lake City, Utah 84116 U.S.A. Model: Converge Pro (880, 8I, 840T & TH20). Declares that the product(s) listed above conform(s) to the following Council Directive(s): 1999/5/EC Radio equipment and Telecommunications Terminal Equipment (R&TTE) Directive.
Page 262 Public Telephone Networks. 2003/11/EC & 2002/95/EC “RoHS Compliance Directive”: We herein certify that the Converge Pro (880, 8I, 840T & TH20) including all supplied accessories and cables are in compliance with the EU directive 2003/11/EC and EU directive 2002/95/EC. We, the undersigned, hereby declare that the equipment specified above conforms to the above directives and standards.
Page 263: Glossary
GLOSSARY Acoustic Echo Cancellation (AEC) A process in which acoustical echo is removed from a signal. AEC can be used to remove unwanted signals from mic audio if the unwanted acoustic signal is available separately as an electronic signal. Adaptive Ambient This portion of the mixer monitors the varying ambient noise level in the room and changes the threshold level at which a microphone gates on.
Page 264 Clipping Clipping occurs when a signal level exceeds the maximum level a circuit can handle. This is usually caused by improper gain settings. Clipping causes distortion, listener fatigue, and accelerated failure of speakers. Compression An induced reduction in the dynamic range of all or part of an audio signal. Compression is usually used to protect individual loudspeaker components from damage caused by transient peaks in audio signals.
Page 265 Dial Tone Level A setting in the Channel Property Configuration window for Telco Rx channels that allows you to adjust the dial tone level in 1dB steps to ±12dB. DNS (Domain Name System) Part of the IP protocol suite, DNS manages the translation of plain-text internet domain names (URLs) into numeric IP addresses.
Page 266 • Auto The microphone will gate on according to the input level, assigned gating parameters, and gating group. • Manual On The microphone will gate on unless it exceeds the NOM requirements of the gating group. • Manual Off The microphone is deactivated. Gate Ratio Specifies how much louder the microphone audio level must be over the ambient sound level before a microphone gates on.
Page 267 There are four processing blocks available for the 840T and eight for the 880 and 8I (A-D for 840T, A-H for 880 and 8I). See also Filters, Delay, Compression, and Matrix.
Page 268 Release Time Release is a parameter which determines how quickly compression is released after the input signal drops below the specified threshold. See also Compressor, Compression, and Ratio. Reverberation A diffused acoustic energy field fed and maintained by sound reflections from the room surfaces. S–Z Buses These eight buses are line input mixer buses.
