ClearOne CONVERGE Pro 2 Installation Manual

Tabletop mount kit for touch panel controller
Hide thumbs Also See for CONVERGE Pro 2:
Table of Contents

Advertisement

Quick Links

Download this manual
Tabletop Mount Kit for Touch Panel Controller
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CONVERGE Pro 2 and is the answer not in the manual?

Questions and answers

Related Manuals for ClearOne CONVERGE Pro 2

Summary of Contents for ClearOne CONVERGE Pro 2

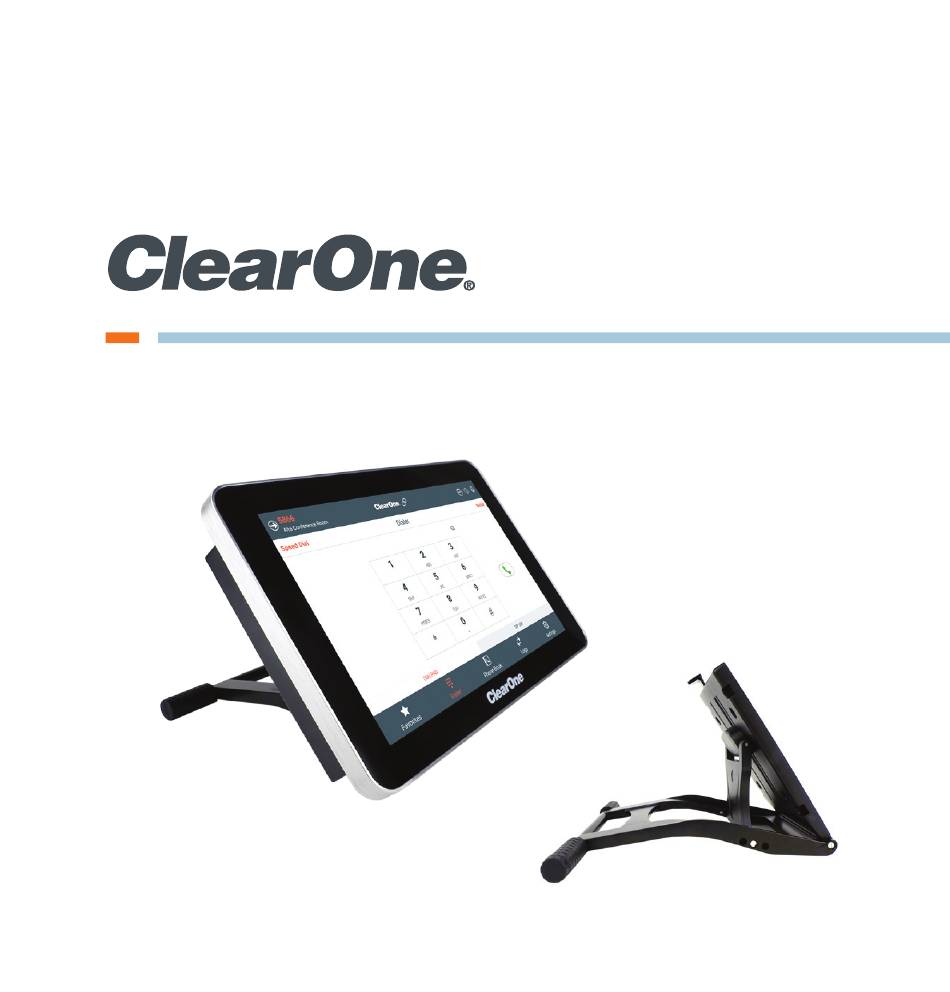

  • Page 1 Tabletop Mount Kit for Touch Panel Controller Installation Guide...

  • Page 2: Table Of Contents

    ............. 3 ommunicaTion onnecTions TableToP MoUnT inSTallaTion ..........4 ................. 4 arTs eceived : ... 4 he following ParTs are delivered wiTh The ableToP ounTing ................5 ools equired ............5 ableToP ounTing rocedure Clearone ConTaCTS..............9...

  • Page 3: Getting Started

    Congratulations on purchasing your CONVERGE Pro 2 (CP2) Touch ® Panel Controller. The ClearOne Touch Panel Controller is a highly intuitive 10-inch, touch-screen device designed for CP2, and allows users to control their audio conference, including managing contacts and placing and controlling calls.

  • Page 4: Skus Used

    Touch Panel conTroller SKUS USed The following products or kits may be used in the Touch Panel Controller installation: • 910-3200-501 Touch Panel Controller for CONVERGE Pro 2 • 910-3200-502 Tabletop Mount Kit • 910-3200-503 Wall Mount Kit • 910-3200-504-50 Serial RS232 DB9 Male to Female cable – 50 ft.

  • Page 5: Connections

    tABLEtOP MOunt InstALLAtIOn GuIdE ConneCTionS This section explains the connections made in Touch Panel Controller installations. owering a ouch anel onTroller The Touch Panel Controller can be powered by: • included power adapter • standard PoE injector or PoE Ethernet switch •...

  • Page 6: Tabletop Mount Installation

    Verify that you have all the parts required to complete your installation. When you open the shipping package for the first time, please check that all items purchased are included. If any of the items (according to your customer order) are missing or damaged, contact your ClearOne distributor immediately.

  • Page 7: Tools Required

    tABLEtOP MOunt InstALLAtIOn GuIdE Tools required The following tools may be required for Tabletop Mount installation of the Touch Panel Controller. #1 Phillips screwdriver Tabletop Mounting Procedure The tabletop mounted Touch Panel Controller must be placed on the table. This is a free-standing unit on the table, and is not permanently fixed on the table.
  • Page 8 Touch Panel conTroller Attach the Table Top Mount to the Touch Panel Controller with the M4 x 8mm screws included in the mount kit, using the #1 Phillips screwdriver. The mount has screw holes for both 75 mm x 75 mm, and 100 mm x 100 mm VESA standards, but the Touch Panel Controller only has 75 mm x 75 mm mounting holes.
  • Page 9 MOunt InstALLAtIOn GuIdE You can adjust the position of the plate to be lower or higher on the controller, but ClearOne recommends installing the tabletop mount on the lower set of holes (green outline). noTe: Connections are at the bottom of the Touch Panel Controller.
  • Page 10 Touch Panel conTroller...

  • Page 11: Clearone Contacts

    Salt Lake City, UT 84116 Fax: 801.303.5711 international Sales Tel: +1.801.975.7200 Tel: 801.975.7200 e-mail: global@clearone.com e-mail: sales@clearone.com TechSupport Tel: 801.974.3760 e-mail: tech.support@clearone.com © 2017 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice. DOC-0322-001 Revision 1.0 APRIL 2017...
