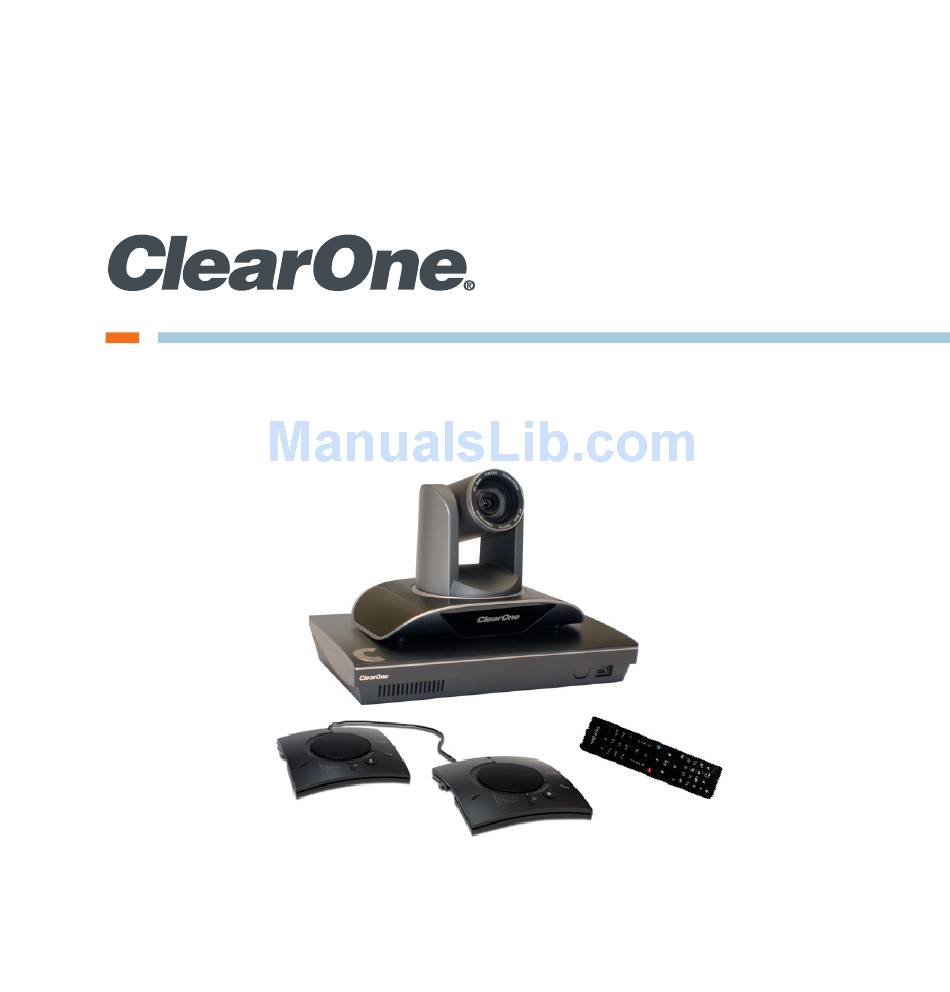

- Page 1 COLLABORATE Pro 600 ® Quick-Start Guide...
-
Page 2: Components Included

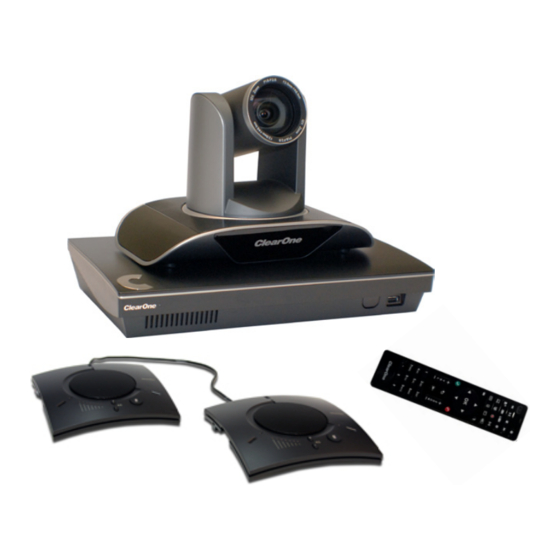

COLLABORATE PRO 600 COMPONENTS INCLUDED COLLABORATE Pro 600 COLLABORATE Pro 600 codec with power supply and COLLABORATE Remote control with dongle 910-2100-001 UNITE 100 PTZ camera, power supply, DVI-I to HDMI cable and RS232 Serial Control cable 910-401-205-00 COLLABORATE Attach Microphone Array, cables and power supply. -
Page 3: Making The Connections
QUICK-START GUIDE MAKING THE CONNECTIONS Connect the COLLABORATE Attach Microphone Array, the UNITE 100 camera, Ethernet, and monitor(s) to the COLLABORATE Pro 600 codec as shown. 1080p or 720p Digital Displays Display Port Out HDMI Out (2nd Monitor) (Primary Monitor) - Page 4 COLLABORATE PRO 600 CONNECTING THE REMOTE CONTROL DONGLE The Remote Control includes a dongle that plugs into the FRONT USB port on the codec.
-
Page 5: Audio Output Options
QUICK-START GUIDE AUDIO OUTPUT OPTIONS There are three audio output options, accessed from the back of the COLLABORATE Pro, for connecting the audio. Balanced Audio output to an amplifier that is connected to speakers Line output to powered speakers HDMI output to the primary monitor Balanced Audio Output HDMI Combined Video Line Audio Output... -
Page 6: Configuring Display Settings
COLLABORATE PRO 600 CONFIGURING DISPLAY SETTINGS After all peripherals are connected to the unit, turn the unit on. Once COLLABORATE Pro is loaded – you will see your local camera video on your screen. Using the remote control, navigate to the display settings: Settings >... -
Page 7: Configuring Audio Settings
QUICK-START GUIDE CONFIGURING AUDIO SETTINGS The COLLABORATE Pro 600 audio input is COLLABORATE Mic Array and audio output is set to the Balanced Audio Output. Verify this in COLLABORATE Settings > System > Audio Note: It is recommended to use the COLLABORATE Attach Mic Array... -
Page 8: Configuring Network Settings
Using your remote control, navigate into the network settings: Settings > Advanced > IP Clearone.com The COLLABORATE Pro 600 obtains its IP automatically by default from the DHCP server. Uncheck the DHCP checkbox in order to manually configure network settings. -
Page 9: Clearone Contacts
Tel: +852.3590.4526 e-mail: global@clearone.com e-mail: global@clearone.com Latin America Middle East Tel: +801.974.3621 Tel: +852.3590.4526 e-mail: global@clearone.com e-mail: global@clearone.com © 2015 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice. QSG-0024-001 Revision 1.1, September, 2015...
