Summary of Contents for ClearOne CONVERGE Pro 2

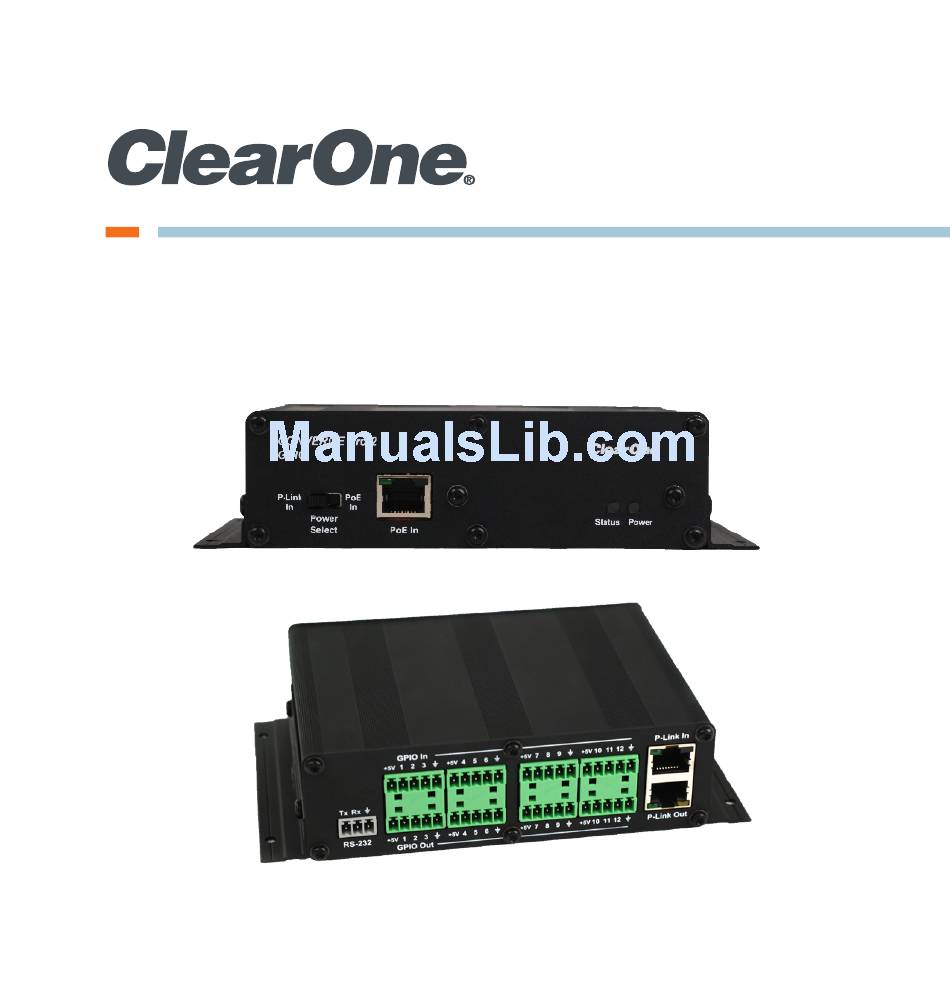

- Page 1 CONVERGE Pro 2 GPIO Expander ® A General Purpose Input and Output Expander unit for CONVERGE Pro 2 ® Quick-Start Guide...
-
Page 2: Table Of Contents
Table of Contents CONVERGE PRO 2 GPIO EXPANDER .......... 1 UNPACKING .................. 1 ................. 1 arts ncluded ................1 arts ncluded ................2 ools equIred QUICK-START OVERVIEW ............2 MOUNT THE GPIO EXPANDER............. 3 ............... 3 helf ountIng .............. 4... -
Page 3: Converge Pro 2 Gpio Expander
3rd party systems and devices. It is designed specifically for CP2 DSP Mixers. IMPORTANT: The CP2 GPIO expander can only be used only with CONVERGE Pro 2 systems. It is not compatible with first generation CONVERGE Pro. UNPACKING... -
Page 4: T Ools R Equired
CONVERGE PRO 2 GPIO EXPANDER The following parts are not included with the CP2 GPIO Expander: 4 Qty #6 or M3.5 screws 4 Qty Wall fasteners appropriate to the wall/ceiling material ools equIred The following tools are required to install the GPIO expander:... -
Page 5: Mount The Gpio Expander
3) on the wall, 4) above the ceiling. Each mounting type is explained below. Mounting hardware is not provided. helf ountIng ClearOne offers a standard 1U rack shelf with 20lb (9kg) weight capacity. ClearOne 1U Rack Shelf (Part No. 910-6106-001) Determine location for rack shelf. -
Page 6: M Ounting U Nder T He T Able
CONVERGE PRO 2 GPIO EXPANDER Secure expander unit(s) to the rack shelf. You must supply your own hardware (four #6 or M3.5 screws) for securing the expander(s). Pre-installed Pre-installed Torx screws Torx screws Pre-installed mounting ear Pre-installed mounting ear ountIng... -
Page 7: M Ounting O N T He W All
QUICK-START GUIDE Align mounting holes on expander mounting ears with pilot holes. Insert four #6 or M3.5 screws and tighten. ountIng Mounting hardware is not provided. Select your own hardware based on your specific installation needs. Determine location for the mount. Using expander as a guide (and level if needed), mark four mounting hole locations with a pencil. -
Page 8: Connections
Third-party systems and devices with GPIO inputs and outputs via the 5 Position Terminal Block Plug 3.81mm GN connectors, • A remote control serial device (such as ClearOne’s Touch Panel Controller, or any 3 -party controller) with the RS232 port via the 3... - Page 9 QUICK-START GUIDE The CP2 GPIO Expander can be powered by a standard PoE injector, or a P-Link connection. P-Link In and Out ports enable you to connect with a CP2 unit or other P-Link devices. P-Link connections also carry power and control through CAT5e or CAT6 cable.
-
Page 10: Configure The Gpio Expander
Solid Blue - P-Link plugged in and system working normally Flashing Blue - Locate mode initiated from CP2 CONSOLE Software Red - Error condition Detailed instructions on using the Locate function in the CP2 CONSOLE software can be found in the CONVERGE Pro 2 CONSOLE User Manual at: http://www.clearone.com/resources#professional_audio... - Page 11 Creating and managing Room Partition settings • Configure GPIO pins input (triggers) and output (actions) pins • Configure gating settings for microphones • View project file status • Send configurations These processes are detailed in the CONVERGE Pro 2 CONSOLE User Manual at: http://www.clearone.com/resources#professional_audio...
-
Page 12: Part Numbers
US & Canada TechSupport Tel: 801.975.7200 Tel: 801.974.3760 Toll Free: 800.945.7730 e-mail: tech.support@clearone.com Fax: 801.303.5711 International Tel: +1.801.975.7200 e-mail: global@clearone.com © 2017 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice. QSG-0040-001 Rev1.0 May 2017...
