Page 8
3.

CONFIGURATION

This and the following chapters are exclusively meant for electricians and non-operators. In these,
an extensive description of all software settings and hardware connections are provided.
•
Mounting, electrical installation, start-up and maintenance of this device may only be
carried out by trained persons authorized by the operator of the facility. Persons must
read and understand this manual before carrying out its instructions.
•
This device may only be operated by persons who are authorized and trained by the
operator of the facility. All instructions in this manual are to be observed.
•
Make sure, the measuring system is correctly wired up according to the wiring diagrams.
Protection against accidental contact is no longer assured when the enclosure cover is
removed or the panel cabinet has been opened (danger from electrical shock). The
enclosure may only be opened by trained persons authorized by the operator of the
facility..
•
Take careful notice of the "Safety rules, instructions and precautionary measures" in the
front of this manual.
The setup menu is used to program the F110-A .
The setup menu is accessible at all times while the F110-A remains fully operational. Be aware that
in this case any change to the settings may have an influence on the operation.
It is possible to prevent access to the SETUP menu with a password. A password may be
required to enter the SETUP menu. Without this password, access to SETUP is denied.
3.1.

HOW TO PROGRAM THE F110-A

How to enter the setup menu
When the setup menu is protected by a password, the F110-A asks for a password to access the
setup menu. When in the operator mode, press and hold the PROG/ENTER key for 7 seconds to
access the setup menu.
How to navigate in the setup menu
The setup menu has different submenus to program the F110-A . For navigation, the submenus
and the settings are identified with numbers (for the submenu: e.g. 1; for the setting: e.g. 12.).
The CLEAR/► key and the PROG/ENTER key are used for navigation. The explanation
assumes that you are in the submenu TOTAL.
Action
Press the CLEAR/► key
1
to select the next
submenu.
2 Press again to go to the
next submenu.
3 Momentarily, press the
PROG/ENTER key to
select the previous
submenu.
4 Press again to go to the
previous submenu.
Result
• The submenu FLOW
RATE shows
• The submenu DISPLAY
shows.
• The submenu FLOW
RATE shows
• The submenu TOTAL
shows
FW_F110A_v1901_02_EN.docx

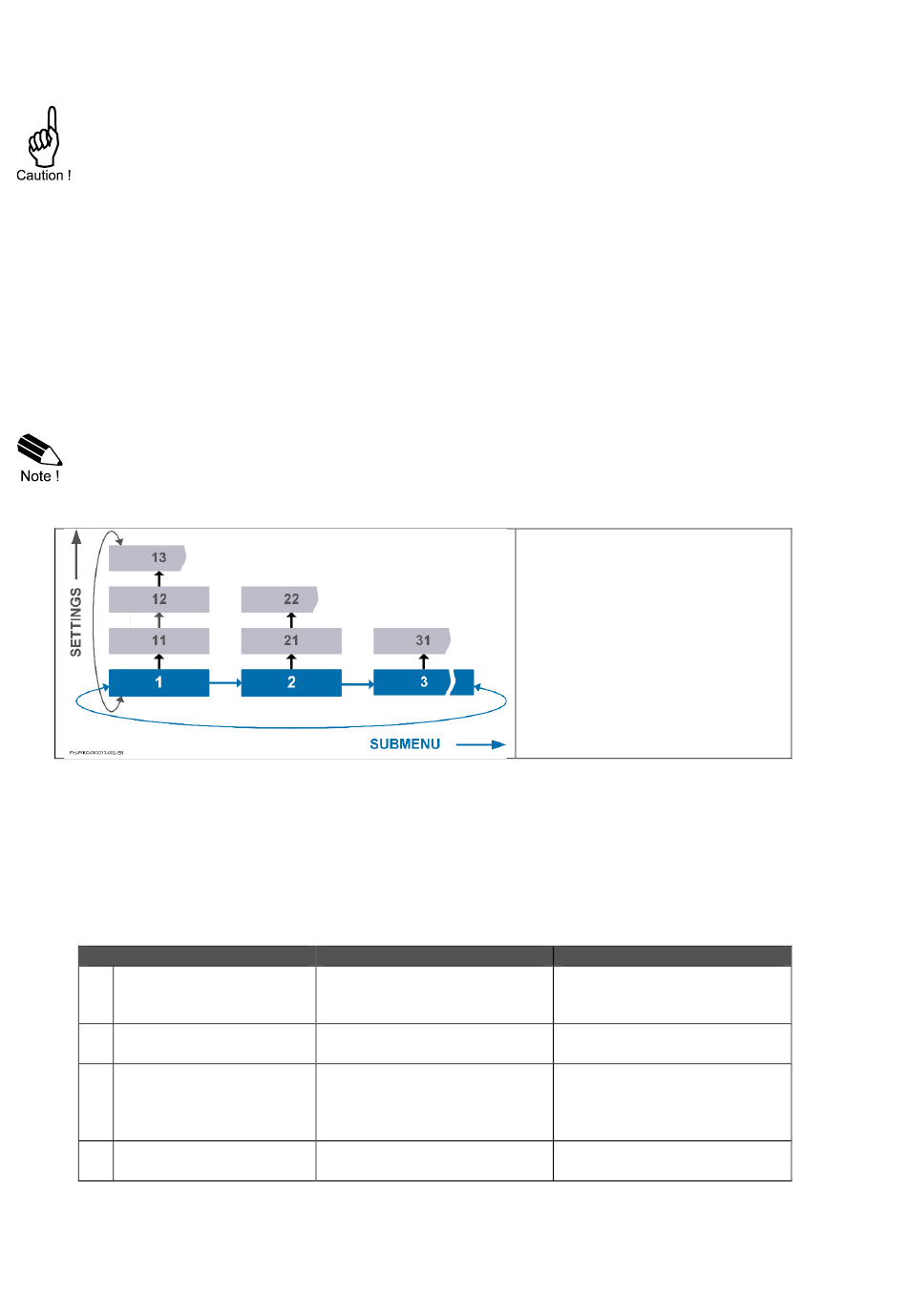

The setup menu has different
submenus. Each submenu has an
unique number which is shown in
front of the menu name.
Each setting has an unique two-
digit number which is shown in
front of the setting. The first digit
refers to the submenu and the
second digit refers to the setting.
Note that sometimes the name of
the setting is shown on the upper
line of the display.
Remark
-
-
The PROG/ENTER key is
used as a ◄ key.
The PROG/ENTER key is
used as a ◄ key.
