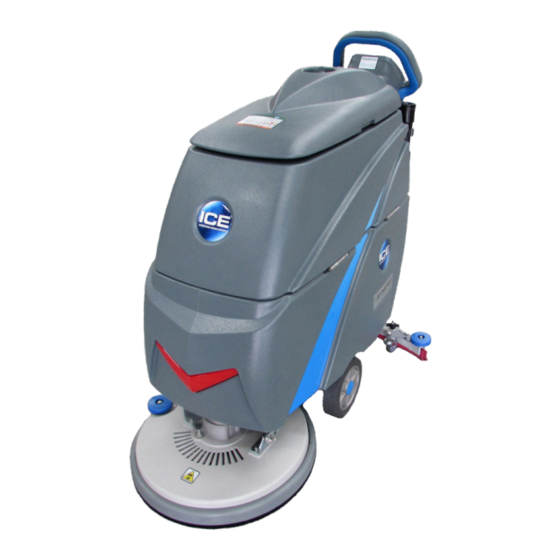

Ice i20NBL+ Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Auto Scrubber
Operator Manual
i20NBL+
i20NBL+-OB
i20NBTL+
i24BTL+

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i20NBL+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ice i20NBL+

Summary of Contents for Ice i20NBL+

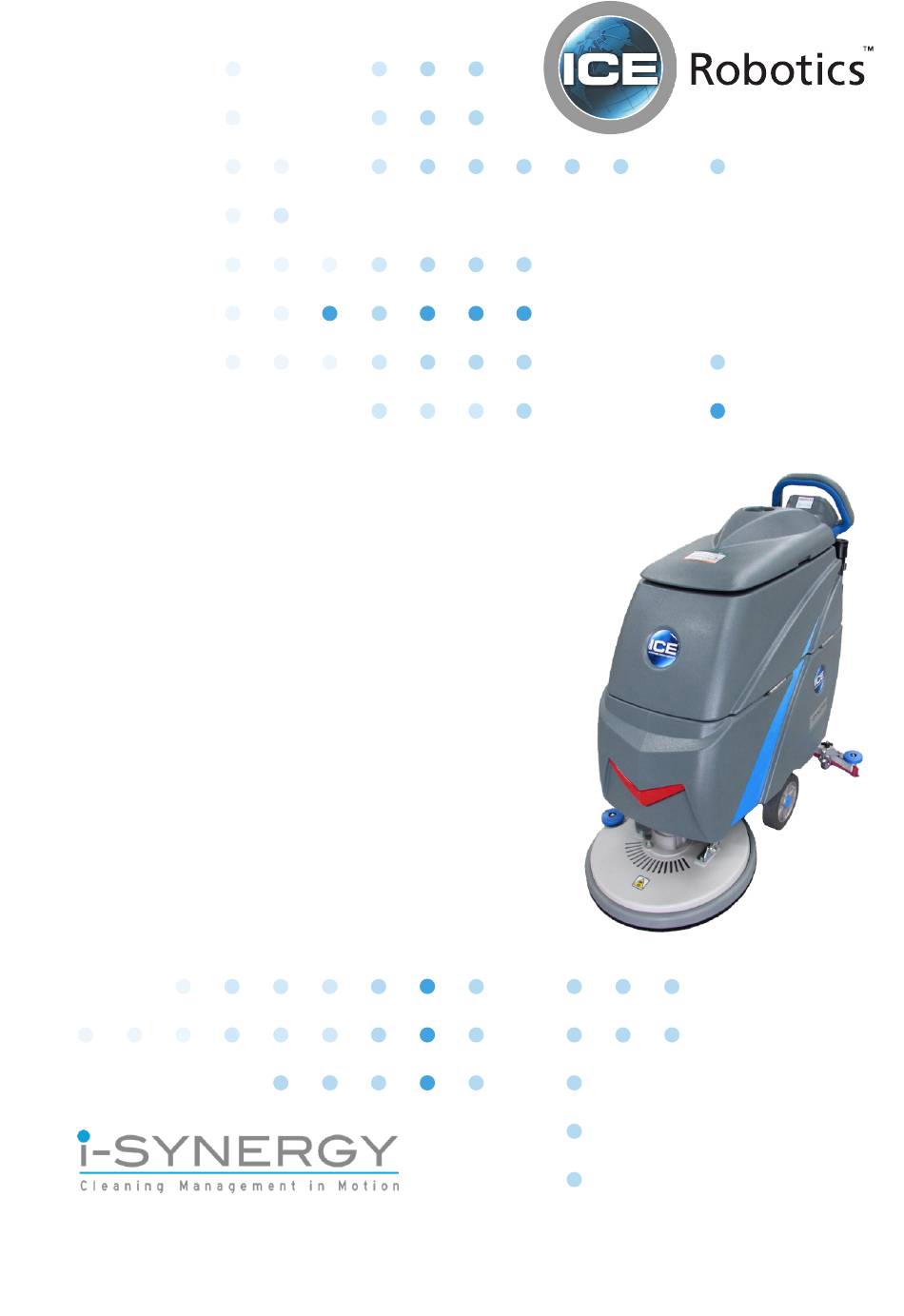

  • Page 1 Auto Scrubber Operator Manual i20NBL+ i20NBL+-OB i20NBTL+ i24BTL+...
  • Page 3 Please dispose of packaging materials, old machine components such as bat- teries, hazardous fluids, including antifreeze and oil, in an environmentally safe way according to local waste disposal regulations. Always remember to recycle. ICE Company Limited XiangShi Road LiaoBu DongGuan GuangDong China Tel: 0769 - 81869000 Fax:0769 – 81863000 Specifications and parts are subject to change without notice.
  • Page 4 Customer ID Number ___________________________________________ Installation Date _______________________________________________ HOW TO ORDER PARTS Only use ICE Company supplied or equivalent parts. Parts and supplies may be ordered online, by phone, by fax or by mail. Identify the machine model. Identify the machine serial number from the data label.

  • Page 5: Table Of Contents

    OPERATOR MANUAL TABLE OF CONTENTS SAFETY PRECAUTIONS …............6 – 7 MACHINE COMPONENTS............8 – 14 Machine Components 8 -11 Panel Components Old Design Panel Components New Design i20NBL+ Panel Components New Design i20NBTL+/i24BTL+ i-Synergy Introduction MACHINE SETUP & INSTALLATION ........... 16 –...

  • Page 6: Safety Precautions

    OPERATOR MANUAL SAFETY PRECAUTIONS This machine is intended for commercial use. It is designed exclusively to scrub hard floors in an indoor environment and is not constructed for any other use. Only use recommended accessories. All operators shall read, understand and exercise the following safety precautions: Do not operate machine: Before leaving or servicing machine: - Unless trained and authorized.
  • Page 7 OPERATOR MANUAL WARNING: Fire or Explosion Hazard. Keep sparks and open flames away! Keep battery compartment open when charging. WARNING: Flammable materials can cause an explosion or fire. Do not use flammable materials in tanks. WARNING: Flammable materials or reactive metals can cause explosion or fire. Do not pick up.
  • Page 8 OPERATOR MANUAL Old Design New Design i20NBL+ / i20NBTL+/ i20NBTL+-OB / i24BTL+...

  • Page 9: Machine Components

    Motor Hub Lock Pin (Disk Models) Scrub Head Assembly Scrub Head Skirt Wheels, 8 Inch Caster, 3.15 Inch Caster, 2 Inch, Squeegee Blade Adjustment i-Synergy decal ICE Logo Hose Fill-Port Squeegee Storage Bracket NEW DESIGN Control Handle Control Handle Start Bail i-Synergy...
  • Page 10 OPERATOR MANUAL Old Design New Design i20NBL+ / i20NBTL+/ i20NBTL+-OB / i24BTL+...

  • Page 11: Machine Components

    OPERATOR MANUAL MACHINE COMPONENTS OLD DESIGN Control panel (see Panel components) Emergency Stop Button (Drive Models) Main controller breaker On-board battery charger / Window Solution Tank Level / Drain Hose Heavy Down Pressure Lever Scrub Head Lift Pedal Bumper Rollers Squeegee Assembly Squeegee Vacuum Hose Filter Assembly...

  • Page 12: Panel Components Old Design

    OPERATOR MANUAL MACHINE COMPONENTS Panel Components Old Design Fault indicator Vacuum motor switch Battery meter Fault code Brush motor indicator Timer LED display screen Speed control button (-) Solution flow indicator Speed indicator Solution flow control button (-) Speed control button (+) Solution flow control button (+) NOTE: Decall i20NBTL is similar of Fault message display area...

  • Page 13: Panel Components New Design I20Nbl

    OPERATOR MANUAL Panel Components New Design i20NBL+ Calendar time Power saving Battery meter Custom Pattern Solution flow control button Heavy load Setting Timer Vacuum motor switch Regulating detergent Fault indicator i20NBL+ / i20NBTL+ / i20NBTL+-OB/ i24BTL+...

  • Page 14: Panel Components New Design I20Nbtl+/I24Btl

    OPERATOR MANUAL Panel Components New Design i20NBTL+/i24BTL Calendar time Power saving Battery meter Speed control button Solution flow control button Heavy load Setting Custom Pattern Vacuum motor switch Timer Fault indicator Regulating detergent i20NBL+ / i20NBTL+/ i20NBTL+-OB / i24BTL+...

  • Page 15: I-Synergy Tm

    ICE’s server. The ICE server generates daily reports and sends them to designated end users by email. From these reports, end users will have information about machines’ usage and even specific timings.

  • Page 16: Machine Setup & Installation

    OPERATOR MANUAL MACHINE SET UP & INSTALLATION Uncrating Machine Be sure and check packing carton for any damage. Immediately report any damage to carrier. Check the contents of package to ensure that the following items are included: • Machine, • Battery Charger (in-build) •...

  • Page 17: Battery Charging

    Fire or explosion hazard. Keep sparks and open flame away. Keep battery compartment propped open when charging. Use only ICE supplied or approved batteries charger, use of unapproved charger may cause damage to the batteries and machine. Batteries charger specifications: •...

  • Page 18: Installing Instaling Pad Driver Or Brush

    OPERATOR MANUAL Figure 5 Figure 6 Installing Pad Driver Or Brush Ensure that the machine is turned off. Mount the pad driver or brush to the brush motor hub by lining up the three Step down on the scrub head lift pedal studs with the three holes in the brush (see machine components, item #26) to motor hub.

  • Page 19: Mounting The Squeegee Assembly

    OPERATOR MANUAL Mounting the Squeegee Assembly Lift the squeegee lift lever (see machine Connect the vacuum hose to the squeegee components, item #33) to the upward assembly. Loop the hose by using the hose position. clip provided. Mount the squeegee assembly to the Check the squeegee blades for proper squeegee pivot bracket.

  • Page 20: Filling The Solution Tank

    OPERATOR MANUAL Filling the Solution Tank The machine is equipped with a hose fill-port (see machine components, item #18) at the rear of the machine, and a bucket fill-port (see machine components, item #7, see Fig. 9) located under the recovery tank. Before accessing the bucket fill-port make sure that the recovery tank is empty.

  • Page 21: Machine Operation

    OPERATOR MANUAL MACHINE OPERATION Pre-Operation Checks Sweep or dust mop the surface to be Check that squeegee is properly in- cleaned. stalled. Make sure that the battery is fully Check that brush/ pad is properly in- charged before using it. stalled.
  • Page 22 OPERATOR MANUAL Check the solution flow indicator (see Panel components, item #5), press the solution flow control button (see Panel components, item #6 and 7, see Fig 12, blue buttons on the bottom) to a de- sired flow rate. Figure 12 NOTE: Solution will not begin to flow until the control handle bail is pulled.
  • Page 23 OPERATOR MANUAL When more brush pressure is need- ed for heavily soiled areas simply lift the down pressurelever (see machine components, item #25). To stop scrubbing, release the control handle bail, raise the scrub head and the squeegee assembly. (See Fig. 16) Figure 15 Figure 16 NOTE:...

  • Page 24: While Operating Machine

    OPERATOR MANUAL WHILE OPERATING THE MACHINE WARNING: Fire or explosion hazard. Do not pick up flammable materials or reactive metals. Go slow on inclines and slippery sur- faces. Do not operate the machine on inclines that exceed 5 % (3 °). Do not keep the machine in the same position with pad/ brush spinning, keep the machine...

  • Page 25: Circuit Breaker

    OPERATOR MANUAL WARNING: When battery is very low, do not continue to operate the machine. Battery damage may result. When the solution tank runs empty, raise the brush head off the floor. Keep the squeegee down and continue to vacuum until all the dirty water is picked up.

  • Page 26: Tank Draining

    OPERATOR MANUAL TANK DRAINING Turn the machine off. With the squeegee and scrub head in their „up“ position, transport machine to approved area for draining tank(s). WARNING: If the recovery tank is not drained when the solution tank has been refilled, foam or water may enter the float shutoff screen and cause damager to the vacuum motor.

  • Page 27: Draining The Solution Tank

    OPERATOR MANUAL Draining The Solution Tank Any time scrubbing operation is completed, the solution tank should be drained and cleaned. Pull the solution tank level hose (see Rinse the solution tank with clean wa- machine components, item #24) off ter after every use. This will help pre- the hose fitting, this will allow the so- vent chemical build up and clogging of lution to flow freely into a bucket or...

  • Page 28: Preventative Maintenance

    OPERATOR MANUAL PREVENTIVE MAINTANANCE Daily maintanance WARNING: Before performing any maintenance on the machine, be sure that the power is turned off, or the batteries are disconnected! WARNING: Repairs are to be completed by Authorized service centers only. Any repairs completed by unauthorized persons will not be covered by the warrenty.

  • Page 29: Machine Storage

    OPERATOR MANUAL Machine Storage For Orbital head, you should have checked the eight isolators located in the Orbital head every 300 hours. Using a flashlight, do a visual inspec- If any of the eight isolators show signs tion of the isolators by looking through of wear, degradation or damage, con- the opening in the Orbital head and tact your local distributor to replace...

  • Page 30: Fault Code & Solution

    Fault code (see Panel components, item #6) & If the fault is occurred frequently, or the fault Fault message display on the LED screen, and the can’t be eliminated, please contact ICE service Fault indicator (see Panel components, item #6) center.
  • Page 31 OPERATOR MANUAL FAULT Model FAULT FAULT CODE SOLUTION MESSAGE i20NBL+ i20BTL+ CAUSE i24BTL+ Lower Brush Deck Brush deck is Release the control off the floor handle bail or lower the brush deck Vac Mtr O.L. Vacuum motor RE-START! overload Bru Mtr O.L. Brush motor Turn off the machine, RE-START!
  • Page 32 OPERATOR MANUAL FAULT Model FAULT FAULT MESSAGE CODE i20NBL+ i20BTL+ CAUSE SOLUTION i24BTL+ Check Proximity Proximity Check the proximity switch fault switch Release Handle Operation Release the control mistake handle ball Turn Dead SW Off Emergency stop Release emergency RE-START button activated stop button and restart the machine...
  • Page 33 OPERATOR MANUAL FAULT Model FAULT FAULT CODE SOLUTION MESSAGE i20NBL+ i20BTL+ CAUSE i24BTL+ Brush Motor Short Brush motor Check the brush Circuit short circuit motor/ wiring Vac Mtr Short Vac Mtr Short Check the brush Circuit Circuit motor/ wiring i20NBL+ / i20NBTL+ / i20NBTL+-OB/ i24BTL+...

  • Page 34: Basic Troubleshooting

    Tighten the connector Main control unit circuit breaker tripped Reset main control unit breaker Fault i-Synergy module Contact ICE service center Scrub head is raised of floor Lower scrub head Faulty scrub head (up/down) switch Contact ICE service center Brush motor will...
  • Page 35 Replace vacuum hose Recovery tank cover not in place Properly position cover Damaged recovery tank cover seal Replace seal Faulty vacuum motor Contact ICE service center Low battery charge Recharge batteries Low battery charge Fully recharge batteries Defective batteries Replace batteries...

  • Page 36: Technical Specification

    OPERATOR MANUAL TECHNICAL SPECIFICATIONS i20NBL+ i20NBTL+ i24BTL+ MODEL Brush Assist W/ Drive Dual Disk LENGTH 55.7 in / 1415 mm 52.2 in / 1325 mm WIDTH 22 in / 560 mm 25.6 in / 650 mm HEIGHT 44.9 in / 1140 mm 44.9 in / 1140 mm WEIGHT 210 lbs / 95 Kg...
  • Page 37 OPERATOR MANUAL i20NBL+ i20NBTL+ i24BTL+ MODEL Brush Assist W/ Drive Dual Disk VOLTAGE DC DECIBEL RATE AT OPERATORS EAR, 68dB(A) 68dB(A) INDOORS GRADE LEVEL, MAX 5% (3°) i20NBL+ / i20NBTL+ / i20NBTL+-OB/ i24BTL+...

  • Page 38: Wear And Tear Parts List

    PARTS MANUAL WEAR AND TEAR PARTS LIST DIA NO PART NUMBER DESCRIPTION NO REQ‘D 8115200 WHEEL, 8 INCH, i20NBL+ 1612607 BEARING, BALL, 6004, 8”WHEEL 8125200 WHEEL, 8 INCH, i20NBTL+ / i24BTL+ 8116009 PROTECTIVE WHEEL 8118021 SQUEEGEE BLADE, FRONT, LINATEX SQUEEGEE BLADE, 8118022 REAR, LINATEX 9050020...
  • Page 39 OPERATOR MANUAL i20NBL+ / i20NBTL+ / i20NBTL+-OB/ i24BTL+...

  • Page 40: Ce Approval

    CE APPROVAL i20NBL+ / i20NBTL+/ i20NBTL+-OB / i24BTL+...
  • Page 41 CE APPROVAL i20NBL+ / i20NBTL+ / i20NBTL+-OB/ i24BTL+...
  • Page 42 Smarter Cleaning. Brighter Future. ICE Robotics EMEA ICE Robotics USA ICE Robotics China Airborne Avenue 55 101 E. Roosevelt 2F, Building #5, 2133 LV Hoofddorp, Zeeland, MI 49464 1151 Lianxi Road The Netherlands Pudong, Shanghai, China 31 (0)23 20 41 020...
