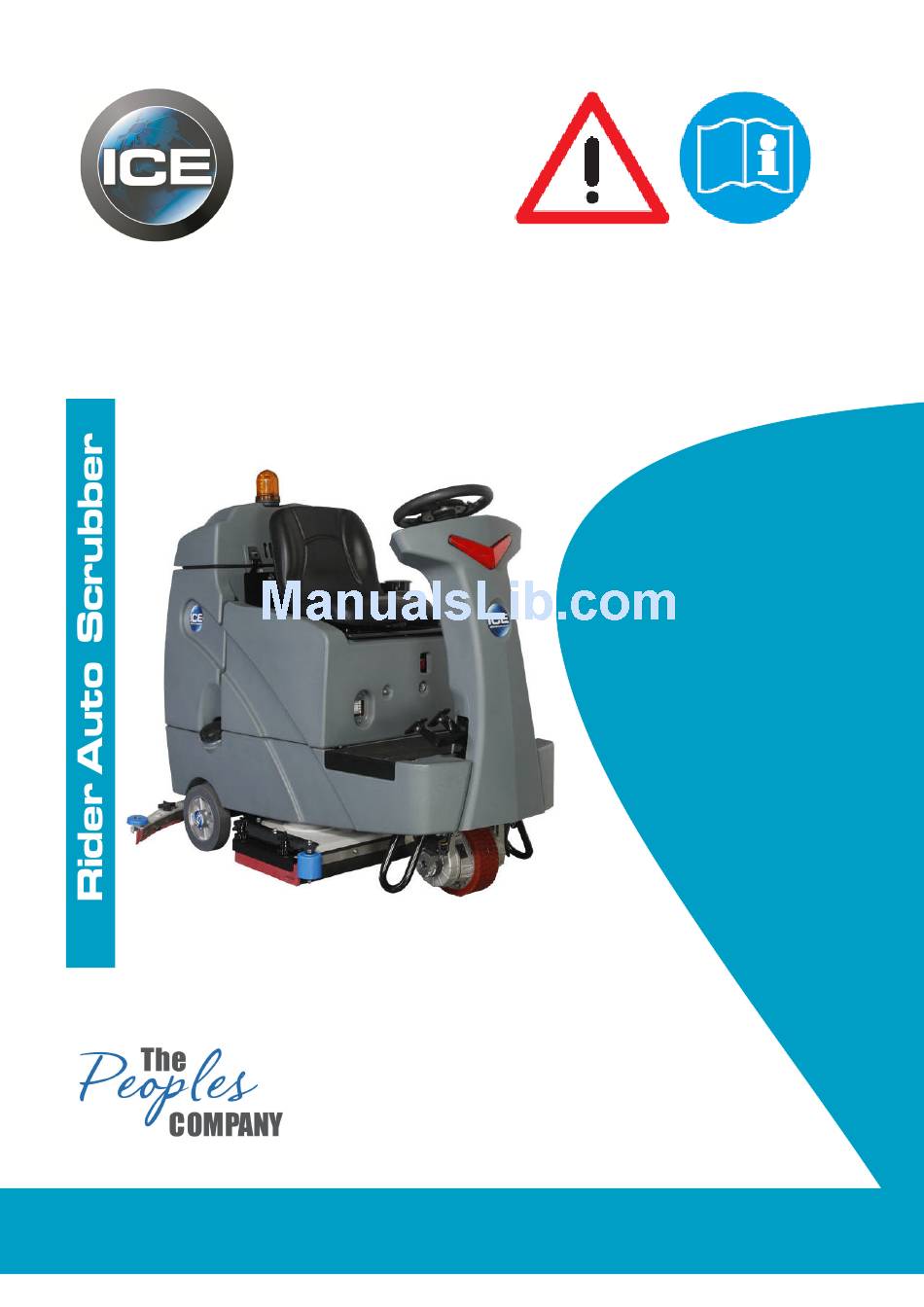

Operator & Parts Manual
www.icecompanies.com
RS26
RS32
8300005
REV.01 (04-2014)
INTERNATIONAL CLEANING EQUIPMENT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS26 and is the answer not in the manual?

Questions and answers

Related Manuals for Ice RS26

Summary of Contents for Ice RS26

  • Page 1 Operator & Parts Manual www.icecompanies.com RS26 RS32 8300005 REV.01 (04-2014) INTERNATIONAL CLEANING EQUIPMENT...
  • Page 2 Customer ID Number Installation Date HOW TO ORDER PARTS Only use ICE Company supplied or equivalent parts. Parts and supplies may be ordered online,by phone, by fax or by mail. 1. Identify the machine model. 2. Identify the machine serial number from the data label.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY PRECAUTIONS......................4 MACHINE COMPONENTS....................5-6 MACHINE SETUP & INSTALLATION..................7 MACHINE OPERATION......................8 WHILE OPERATING MACHINE....................9 TANK DRAINING.........................10 BATTERY CHARGING......................10 PREVENTATIVE MAINTENANCE..................11 FAULT CODE AND ELIMINATE..................12 TECHNICAL SPECIFICATION....................13 PARTS LIST........................14-39 WEAR AND TEAR PARTS....................40 WIRING DIAGRAM......................41 ICE RS26 / RS32...

  • Page 4: Safety Precautions

    - Secure machine with wheel blocks prior to jacking the machine up. - Use approved jack or hoist to safely elevate the machine. - Disconnect batteries prior to working on machine. - Wear gloves when handling batteries or battery cables. ICE RS26 / RS32...

  • Page 5: Machine Components

    13. LED light, work 14. Adjusting handle, seat 15. Off-board battery charger receptacle 16. Detergent level watching window 17. Warning light 18. Recovery tank cover 19. Recovery tank 20. Cup holder 21. Cap 22. Detergent bottle 23. Battery box ICE RS26 / RS32...
  • Page 6 34. 1-Step switch & Indicator 35. Solution flow adjusting buttons & indicators 36. Horn button & Indicator 37. Brush pressure adjusting buttons & indicators 38. Drain hose, recovery tank 39. Drain hose, solution tank 40. Vacuum hose ICE RS26 / RS32...

  • Page 7: Machine Setup & Installation

    1. Turn the Main power key switch off. scrub head and remove the Side squeegee 2. Remove the Operator seat & the Battery box assembly (machine components, #6), push the (machine components, #23). edge of brush downward. ICE RS26 / RS32...

  • Page 8: Machine Operation

    Contact your janitorial supply raise automatically (the vacuum motor will turn distributor for recommendations on off after a short delay) when drive machine properchemicals. backwards. This is to prevents damaging the squeegee. NOTE: Go slow when drive machine backwards. ICE RS26 / RS32...

  • Page 9: While Operating Machine

    1-Step switch (if it is ON), the scrub head will 4. If the squeegee assembly leaves streaks on the raise and then start to working. floor, raise the squeegee off the floor and wipe ICE RS26 / RS32...

  • Page 10: Tank Draining

    8. Upon completion of charging, disconnect the specifications: AC power supply cord first, and then disconnect • Automatic shut off circuit the charger from the machine. • Deep cycle charging • Output current of 20-30 Amps • Output voltage of 24 volts ICE RS26 / RS32...

  • Page 11: Preventative Maintenance

    7. Drain the recovery tank. maintenance. 8. Drain the solution tank of all fluid. 2. Motor should have the brushes checked every 250 hours. Brushes should be replaced when they are worn to a length of 10 mm or less. ICE RS26 / RS32...

  • Page 12: Fault Code And Eliminate

    ICE service center Vac. OverLoad Vacuum motor overload 1. Turn off the machine, wait a moment, restart machine. Bru. OverLoad Brush motor overload 2. If the fault is still exist,contact ICE service Propel Error Propel motor overload center. Recovery tank is full...

  • Page 13: Technical Specification

    24VDC 450W × 2 VACUUM MOTOR 24VDC 450W BATTERIES 4 × 6V,260AH@20 hr RUN TIME PER CHARGE 3~3.5 Hours VOLTAGE DC DECIBEL RATING AT 68 dB(A) OPERATOR'S EAR, INDOORS GRADE LEVEL, MAX Scrubbing: 4°/7% Transporting (empty):10°/17.5% ICE RS26 / RS32...

  • Page 14: Parts List

    PARTS LIST MAIN FRAME GROUP ICE RS26 / RS32...
  • Page 15 FLAT WASHER, M8× ∮ 24×2.0 8310120 BRACKET, STAND 1421824 1422821 LOCK WASHER M8 1021825 BOLT, HEX HEAD, M8×25 PLAT WASHER, M3× ∮ 7×0.5 1123305 LOCK NUT M3 1421307 8310708 HORN, 24VDC 1211316 SCREW, PAD HEAD, M3×16 8210118 STATIC STRAP ICE RS26 / RS32...
  • Page 16 PARTS LIST STEERING & DRIVE WHEEL GROUP ICE RS26 / RS32...
  • Page 17 FLAT WASHER, M10× ∮ 30×2.5 1422026 LOCK WASHER, M10 1421030 8310601 SUPPORT BRACKET, STEERING FLAT WASHER, M14× ∮ 24×2.0 8310430 ACCELERATOR/ BRAKE PEDAL 1421824 1021820 BOLT, HEX HEAD, M8×20 8310603 STEER-CONTROL ASSY. 8310610 DRIVE WHEEL, 24VDC 800W ICE RS26 / RS32...
  • Page 18 PARTS LIST SOLUTION TANK GROUP ICE RS26 / RS32...

  • Page 19: Solution Tank Group

    SENSOR, SOLUTION LEVEL 8310125 CAP, SOLUTION TANK SLEEVE, ∮ 8.1× ∮ 12.7×7.8 1021825 BOLT, HEX HEAD, M8×25 8310225 8310224 ARM, RECOVERY TANK SUPPORT 1962050 CLAMP, 2 INCH 8131030 HOSE ASSEMBLY 8310123 ADAPTER, STRAINER ASSY 8310122 STRAINER ASSY ICE RS26 / RS32...
  • Page 20 PARTS LIST RECOVERY TANK GROUP ICE RS26 / RS32...

  • Page 21: Recovery Tank Group

    1022860 BOLT, HEX HEAD, M8×60 1123810 LOCK NUT, M8 SLEEVE, ∮ 8.1× ∮ 12.7×7.8 1021825 BOLT, HEX HEAD, M8×25 8310225 8310223 ARM, RECOVERY TANK SUPPORT 8310215 BRACKET, RECOVERY TANK SUPPORT 8310211 BRACKET, SUPPORT 8310214 SPACER, RUBBER ICE RS26 / RS32...
  • Page 22 PARTS LIST RECOVERY TANK COVER GROUP ICE RS26 / RS32...
  • Page 23 8310235 8310229 SEALING STRIP FLAT WASHER, M8× ∮ 24×2.0 1021820 BOLT, HEX HEAD, M8×20 1421824 8310203 PLATE, VACCUM MOTOR MNTG 8310208 ISOLATER, M6 8310209 BRACKET, VACCUM MOTOR 8310234 INSULATION 1311316 SCREW, SELF-TAPPING, ST4.8×16 8310206 SEAL, FAN ICE RS26 / RS32...
  • Page 24 PARTS LIST CONTROL PANNEL GROUP ICE RS26 / RS32...
  • Page 25 SCREW, PAN HEAD, M5×20 8133602 COVER, LED LIGHT 4010316 ICE LOGO 8310711 GASKET, SWITCH PANNEL 8310702 PLATE, SWITCH PANNEL 8310704 DECAL, SWITCH PANNEL 2010121 ICE LOGO, SMALL 8310706 MAIN KEY SWITCH 8310707 EMERGENCY STOP SWITCH 8310709 ROCKER SWITCH ICE RS26 / RS32...
  • Page 26 PARTS LIST MAIN CONTROLLER GROUP ICE RS26 / RS32...
  • Page 27 LOCK NUT, M3 1434300 WASHER, TOOTH, M3 FLAT WASHER, M3× ∮ 7×0.5 8310423 MICRO SWITCH 1421307 1211320 SCREW, PAN HEAD, M3×20 8113020 CONNECTOR 8210106 ON BOARD BATTERY CHARGER, 25A 8310428 BRACKET, BATTERY CHARGER 1123507 LOCK NUT, M5 ICE RS26 / RS32...
  • Page 28 PARTS LIST SEAT & DETERGENT SYSTEM GROUP ICE RS26 / RS32...
  • Page 29 BOLT, HEX HEAD, M8×20 FLAT WASHER, M8× ∮ 28×2.5 1422821 LOCK WASHER, M8 1421828 8310465 BOX, DETERGENT BOTTLE 8310421 BRACKET FLAT WASHER, M3× ∮ 7×0.5 1221312 SCREW, HEX HEAD, M3×12 1421307 8310372 PUMP 8310466 ONE WAY VALVE 8310467 FITTING ICE RS26 / RS32...
  • Page 30 PARTS LIST BATTERY GROUP ICE RS26 / RS32...
  • Page 31 8310408 CONECTOR, PP120 8310481 BATTERY CONNECT CABLE, BLACK 8210141 BATTERY CONNECT CABLE, BLACK 1221412 SCREW, PAN HEAD, M4×12 8310406 COVER 8210114 COVER 1662316 RIVET, 3.2×16 FLAT WASHER, M4× ∮ 9×0.8 8310404 HINGE ASSEMBLY 1421409 8310403 COVER ICE RS26 / RS32...
  • Page 32 PARTS LIST SCRUB HEAD LIFTING GROUP ICE RS26 / RS32...
  • Page 33 BRACKET, SCRUB HEAD LIFTING 1421020 8310307 BUSHING, FLANGE SLEEVE, ∮1 6× ∮ 18.6×25.4 1123012 LOCK NUT, M10 8310144 8310118 ARM, SCRUB HEAD LIFTING SLEEVE, ∮ 10.5× ∮ 18.5×34 1011025 BOLT, HEX HEAD, M10×25 8310306 8310308 SPRING ICE RS26 / RS32...
  • Page 34 PARTS LIST SCRUB HEAD GROUP ICE RS26 / RS32...
  • Page 35 9000004 CLUTCH, G-400S 9050013 BRUSH, 13 INCH, RS26 9050016 BRUSH, 16 INCH, RS32 9000003 CENTER LOCK, #3 9040013 PAD DRIVER, 13 INCH, RS26 9040016 PAD DRIVER, 16 INCH, RS32 8311358 SKIRT, RS26 8310358 SKIRT, RS32 8311359 CLAMP, SKIRT, RS26 FLAT WASHER, M6× ∮ 18×1.6...
  • Page 36 PARTS LIST SQUEEGEE GROUP ICE RS26 / RS32...

  • Page 37: Squeegee Group

    SCREW, PAN HEAD, M5×75 1123507 LOCK NUT, M5 8210518 KNOB, M8 8311514 CLAMP ASSEMBLY, RS26 8310514 CLAMP ASSEMBLY, RS32 8311531 REAR BLADE, LINATEX, RS26 8310531 REAR BLADE, LINATEX, RS32 8311511 SQUEEGEE HOSING, RS26 8310511 SQUEEGEE HOSING, RS32 8311512 RETAINER, SQUEEGEE, RS26 8310512...
  • Page 38 PARTS LIST SOLUTION & DETERGENT SYSTEM ICE RS26 / RS32...
  • Page 39 8310373 FITTING, PLASTIC 8310904 TUBING, ID=12MM L=210MM 1914080 TIE, 3×80MM 8310905 TUBING, ID=4MM L=310MM 8310467 FITTING 8310906 TUBING, ID=4MM L=420MM 8310907 TUBING, ID=4MM L=140MM 8310908 TUBING, ID=4MM L=50MM 8310466 ONE WAY VALVE 8310909 TUBING, ID=4MM L=30MM ICE RS26 / RS32...

  • Page 40: Wear And Tear Parts

    REAR BLADE, LINATEX, RS32 8311532 FRONT BLADE, LINATEX, RS26 8310532 FRONT BLADE, LINATEX, RS32 9050013 BRUSH, 13 INCH, RS26 9050016 BRUSH, 16 INCH, RS32 9040013 PAD DRIVER, 13 INCH, RS26 9040016 PAD DRIVER, 16 INCH, RS32 ICE RS26 / RS32...

  • Page 41: Wiring Diagram

    WIRING DIAGRAM ICE RS26 / RS32...
