Ice RS28-OB Operator's & Parts Manual

Rider auto scrubber
Hide thumbs
Table of Contents

Advertisement

Quick Links

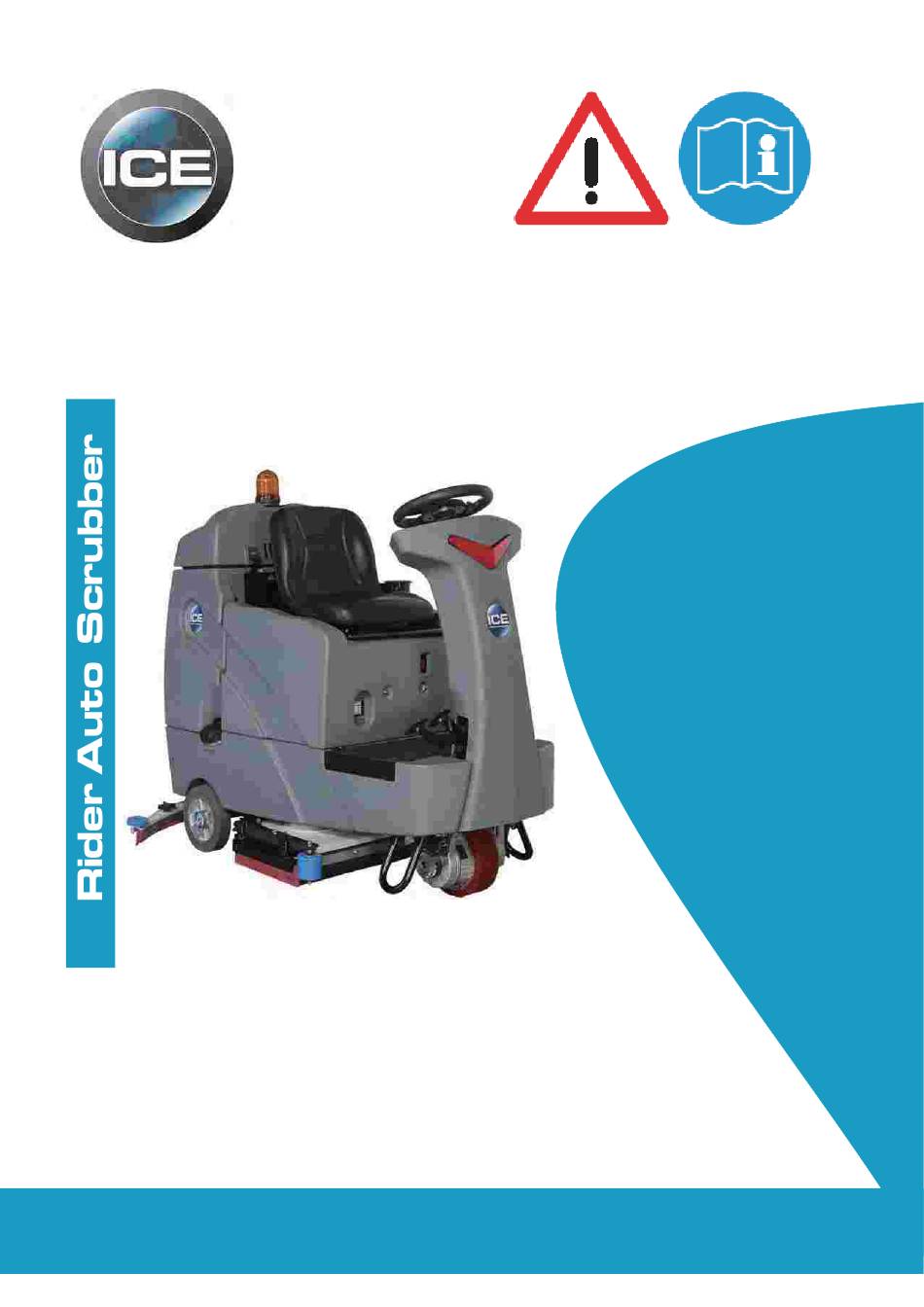

Operator & Parts Manual
www.icecompanies.com
RS26
RS28-OB
RS32
8300004
REV.05 (03-2018)
INTELLIGENT CLEANING EQUIPMENT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS28-OB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ice RS28-OB

Summary of Contents for Ice RS28-OB

  • Page 1 Operator & Parts Manual www.icecompanies.com RS26 RS28-OB RS32 8300004 REV.05 (03-2018) INTELLIGENT CLEANING EQUIPMENT...
  • Page 2 Customer ID Number Installation Date HOW TO ORDER PARTS Only use ICE Company supplied or equivalent parts. Parts and supplies may be ordered online,by phone, by fax or by mail. 1. Identify the machine model. 2. Identify the machine serial number from the data label.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY PRECAUTIONS......................4 MACHINE COMPONENTS....................5-6 MACHINE SETUP & INSTALLATION..................7 MACHINE OPERATION......................8 WHILE OPERATING MACHINE....................9 TANK DRAINING.........................10 BATTERY CHARGING......................10 PREVENTATIVE MAINTENANCE..................11 FAULT CODE AND ELIMINATE..................12 TECHNICAL SPECIFICATION....................13 PARTS LIST........................14-45 WEAR AND TEAR PARTS....................46 WIRING DIAGRAM......................47 ICE RS26 / RS28-OB / RS32...

  • Page 4: Safety Precautions

    - Secure machine with wheel blocks prior to jacking the machine up. - Use approved jack or hoist to safely elevate the machine. - Disconnect batteries prior to working on machine. - Wear gloves when handling batteries or battery cables. ICE RS26 / RS28-OB / RS32...

  • Page 5: Machine Components

    14. Adjusting handle, seat 15. Off-board battery charger receptacle 16. Detergent level watching window 17. Warning light 18. Recovery tank cover 19. Recovery tank 20. Cup holder 21. Cap 22. Detergent bottle 23. Battery box ICE RS26 / RS28-OB / RS32...
  • Page 6 34. Fault message 35. Hour meter indicator 37. Horn button 38. 1-Step switch & Indicator 39. Brush pressure adjusting button & indicator 40. Drain hose, recovery tank 41. Drain hose, solution tank 42. Vacuum hose ICE RS26 / RS28-OB / RS32...

  • Page 7: Machine Setup & Installation

    1. Turn the Main power key switch off. scrub head and remove the Side squeegee 2. Remove the Operator seat & the Battery box assembly (machine components, #6), push the (machine components, #23). edge of brush downward. ICE RS26 / RS28-OB / RS32...

  • Page 8: Machine Operation

    OPERATOR MANUAL 5. For Orbital head model RS28-OB, you need MACHINE OPERATION to attach a rectangular 28in (710mm) ×14in (356mm) pad to the Orbital Pad driver, align the pad to the orbital pad driver, press from to back WARNING: Do not operate machine and side to side to alignment.

  • Page 9: While Operating Machine

    / brush spinning, keep the machine (squeegee will lower down) and turn off the 1-Step switch (if it is ON), the scrub head will 4. If the squeegee assembly leaves streaks on the raise and then start to working. ICE RS26 / RS28-OB / RS32...

  • Page 10: Tank Draining

    Automatic shut off circuit Deep cycle charging it down with a damp towel. Be sure to store the Output current of 20-30 Amps squeegee in the up position. Output voltage of 24 volts ICE RS26 / RS28-OB / RS32...
  • Page 11 If the fault is occurred frequently, or the fault can't Fault code (see Machine components, item #33) be eliminated, please contact ICE service center. & Fault message (see Machine components, item #34) display on the LED screen, and the Fault...

  • Page 12: Fault Code And Eliminate

    Release emergency stop button and Emergency stop button activated RE-START! restart machine Replace Control Unit Return Control Unit Contact service center, Replace the Return Control Unit Bad Control Unit Control Unit Return Control Unit Return Control Unit ICE RS26 / RS28-OB / RS32...

  • Page 13: Technical Specification

    VACUUM WATER LIFT (MAX) 70 in. H2O / 1780 mm. H2O RUN TIME PER CHARGE 3~3.5 Hours 3.5~4.0 Hours DECIBEL RATING AT 68 dB(A) OPERATOR'S EAR, INDOORS GRADE LEVEL, MAX Scrubbing: 4°/7% Transporting (empty):10°/17.5% ICE RS26 / RS28-OB / RS32...

  • Page 14: Parts List

    ICE RS26 / RS28-OB / RS32...
  • Page 15 SCREW, PAN HEAD, M5×12 8310120 BRACKET, STAND 1421824 FLAT WASHER, M8× 24×2.0 1422821 LOCK WASHER M8 1021825 BOLT, HEX, M8×25 8210118 STATIC STRAP 8310708A HORN, 24VDC, KIT 1421307 PLAT WASHER, M3× 7×0.5 1211316 SCREW, PAN HEAD, M3×16 ICE RS26 / RS28-OB / RS32...
  • Page 16 ICE RS26 / RS28-OB / RS32...
  • Page 17 FLAT WASHER, M14× 24×2.0 8310640 ACCELERATOR/ BRAKE PEDAL 8310431 HALL SENSOR WITH CABLE 8310603 STEER-CONTROL ASSY. 8310660 DRIVE WHEEL, 24VDC 800W 8310611 PU TIRE, DRIVER WHEEL 8310612 ARMATURE BRUSH 8310613 BRUSHES CONNECTION BOX 8310625A ELECTRICALLY RELEASED BRAKE ICE RS26 / RS28-OB / RS32...
  • Page 18 ICE RS26 / RS28-OB / RS32...
  • Page 19 SENSOR, SOLUTION LEVEL, KIT 8310125 CAP, SOLUTION TANK 1021825 BOLT, HEX HEAD, M8×25 8310225 SLEEVE, 8.1× 12.7×7.8 8310224 ARM, RECOVERY TANK SUPPORT 1962050 CLAMP, 2 INCH 8011030 HOSE ASSEMBLY 8310123 ADAPTER, STRAINER ASSY 8310122 STRAINER ASSY ICE RS26 / RS28-OB / RS32...
  • Page 20 ICE RS26 / RS28-OB / RS32...
  • Page 21 1022860 BOLT, HEX HEAD, M8×60 1123810 LOCK NUT, M8 1021825 BOLT, HEX HEAD, M8×25 8310225 SLEEVE, 8.1× 12.7×7.8 8310223 ARM, RECOVERY TANK SUPPORT 8310215 BRACKET, RECOVERY TANK SUPPORT 8310211 BRACKET, SUPPORT 8310214 SPACER, RUBBER ICE RS26 / RS28-OB / RS32...
  • Page 22 ICE RS26 / RS28-OB / RS32...
  • Page 23 LOCK WASHER, M6 1021820 BOLT, HEX HEAD, M8×20 1421824 FLAT WASHER, M8× 24×2.0 8310203 PLATE, VACCUM MOTOR MNTG 8310208 ISOLATER, M6 8310209 BRACKET, VACCUM MOTOR 8310234 INSULATION 1311316 SCREW, SELF-TAPPING, ST4.8×16 8310206 SEAL, FAN ICE RS26 / RS28-OB / RS32...
  • Page 24 ICE RS26 / RS28-OB / RS32...
  • Page 25 8310702 PLATE, SWITCH PANEL 8310704 DECAL, SWITCH PANEL, RS32 8312704 DECAL, SWITCH PANEL, RS28-OB 8310750 DECAL, SWITCH PANEL, RS26 2010121 ICE LOGO, SMALL 8310709 ROCKER SWITCH 8310707 EMERGENCY STOP SWITCH 8310706A KEY SWITCH, KIT ICE RS26 / RS28-OB / RS32...
  • Page 26 ICE RS26 / RS28-OB / RS32...
  • Page 27 SCREW, HEX HEAD, M5×20 8310790 MAIN CONTROLLER, RS26 / RS32 8310790-OR MAIN CONTROLLER, RS28-OB 1423612 FLAT WASHER M6× 12×1, COPPER 1023612 HEX BOLT M6 X 12, COPPER 1422513 LOCK WASHER,M5 1221525 SCREW, HEX HEAD, M5×25 ICE RS26 / RS28-OB / RS32...
  • Page 28 ICE RS26 / RS28-OB / RS32...
  • Page 29 8310460 SPACER 8310463 ADAPTOR, KEY 8310464 INSERT, LOCK 8310461 BOTTLE, DETERGENT 8310462 CAP, BOTTLE 1021820 BOLT, HEX HEAD, M8×20 1422821 LOCK WASHER, M8 1421828 FLAT WASHER, M8× 28×2.5 8310465 BOX, DETERGENT BOTTLE 8310421 BRACKET ICE RS26 / RS28-OB / RS32...
  • Page 30 ICE RS26 / RS28-OB / RS32...
  • Page 31 BATTERY CONNECT CABLE, BLACK 8114751 JACKET, BATTERY TERMINAL,BLACK 8210141 BATTERY CONNECT CABLE, BLACK 1221412 SCREW, PAN HEAD, M4×12 8310406 COVER 8210114 COVER 1662316 RIVET, 3.2×16 8310404 HINGE ASSEMBLY 1421409 FLAT WASHER, M4× 9×0.8 8310403 COVER ICE RS26 / RS28-OB / RS32...
  • Page 32 ICE RS26 / RS28-OB / RS32...
  • Page 33 BRACKET, SCRUB HEAD LIFTING 1421020 FLAT WASHER, M10× 20×2 8310307 BUSHING, FLANGE 1123012 LOCK NUT, M10 8310144 SLEEVE, 6× 18.6×25.4 8310118 ARM, SCRUB HEAD LIFTING 1011025 BOLT, HEX HEAD, M10×25 8310306 SLEEVE, 10.5× 18.5×34 8310308 SPRING ICE RS26 / RS28-OB / RS32...
  • Page 34 ICE RS26 / RS28-OB / RS32...
  • Page 35 8133151 DAMPER, RUBBER 1435013 WAVE WASHER, 13× 24×0.5 8340120 BRACKET, ORBTIAL HEAD LIFT 1123115 NUT,LOCK, M12 8340132 DAMPER 8340137 BRACKET, ACTUATOR 1421030 FLAT WASHER, M10× 30×2.5 1123012 LOCK NUT, M10 8340135 SHOULDER BOLT, M10 ICE RS26 / RS28-OB / RS32...
  • Page 36 ICE RS26 / RS28-OB / RS32...
  • Page 37 BOLT, HEX HEAD, M6×16 8310361 BRACKET, PROTECTIVE WHEEL 1021840 BOLT, HEX HEAD, M8×40 8310362 PROTECTIVE WHEEL 8115404 SLEEVE, 8× 12.7×12.7 1022800 BOLT, HEX HEAD, M8×100 8310354 KNOB, M10 8310351 BRACKET, SIDE SKIRT, RIGHT 8310353 BRACKET, RIGHT ICE RS26 / RS28-OB / RS32...
  • Page 38 ICE RS26 / RS28-OB / RS32...
  • Page 39 8146201 ECCENTRIC SHAFT 8146202 ECCENTRIC 1513616 HEX SOCKET SCREW,M6×20 8340101 MOTOR MOUNTING BRACKET 1421510 FLAT WASHER, M5× 10×1.0 1221515 SCREW M5×15 8340180 BRACKET,SKIRT,RIGHT 8310365 SKIRT BLADE, LINATEX 8340515 CLAMP STRIP 1514616 SOCKET ROUND HEAD,M6×16 ICE RS26 / RS28-OB / RS32...
  • Page 40 ICE RS26 / RS28-OB / RS32...
  • Page 41 8311531 REAR BLADE, LINATEX, RS26 8310531 REAR BLADE, LINATEX, RS28-OB / RS32 8311541 REAR BLADE, PU, RS26, OPTION 8310541 REAR BLADE, PU, RS28-OB / RS32, OPTION 8311561 SQUEEGEE HOSING, RS26 8310561 SQUEEGEE HOSING, RS28-OB / RS32 8311562 RETAINER, SQUEEGEE, RS26...
  • Page 42 ICE RS26 / RS28-OB / RS32...
  • Page 43 TUBING, ID=12MM L=175MM 8310374 FITTING, PLASTIC 8310904 TUBING, ID=12MM L=210MM 8310905 TUBING, ID=4MM L=330MM 8310930A DETERGENT PUMP, KIT 1914080 TIE, 3×80MM 8310910 TUBING, ID=4MM L=100MM 8310467 FITTING 8310909 TUBING, ID=4MM L=30MM 8310466 ONE WAY VALVE ICE RS26 / RS28-OB / RS32...
  • Page 44 ICE RS26 / RS28-OB / RS32...
  • Page 45 FITTING, PLASTIC 8146350 TUBING,ID=12mmWIRE REINFORCED 8146511 RIGHT-ANGLE TUBING FITTING 8310905 TUBING, ID=4MM L=330MM 8310930A DETERGENT PUMP, KIT 1914080 TIE, 3×80MM 8310910 TUBING, ID=4MM L=100MM 8310467 FITTING 8310909 TUBING, ID=4MM L=30MM 8310466 ONE WAY VALVE ICE RS26 / RS28-OB / RS32...

  • Page 46: Wear And Tear Parts

    10" WHEEL, PU TIRE 8116009 PROTECTIVE WHEEL 8310362 PROTECTIVE WHEEL 8311531 REAR BLADE, LINATEX, RS26 8310531 REAR BLADE, LINATEX, RS28-OB / RS32 8311534 FRONT BLADE, LINATEX, RS26 8310534 FRONT BLADE, LINATEX, RS28-OB / RS32 9050013 BRUSH, 13 INCH, RS26 9050016...

  • Page 47: Wiring Diagram

    WIRING DIAGRAM ICE RS26 / RS28-OB / RS32...

This manual is also suitable for:

Rs32Rs26
