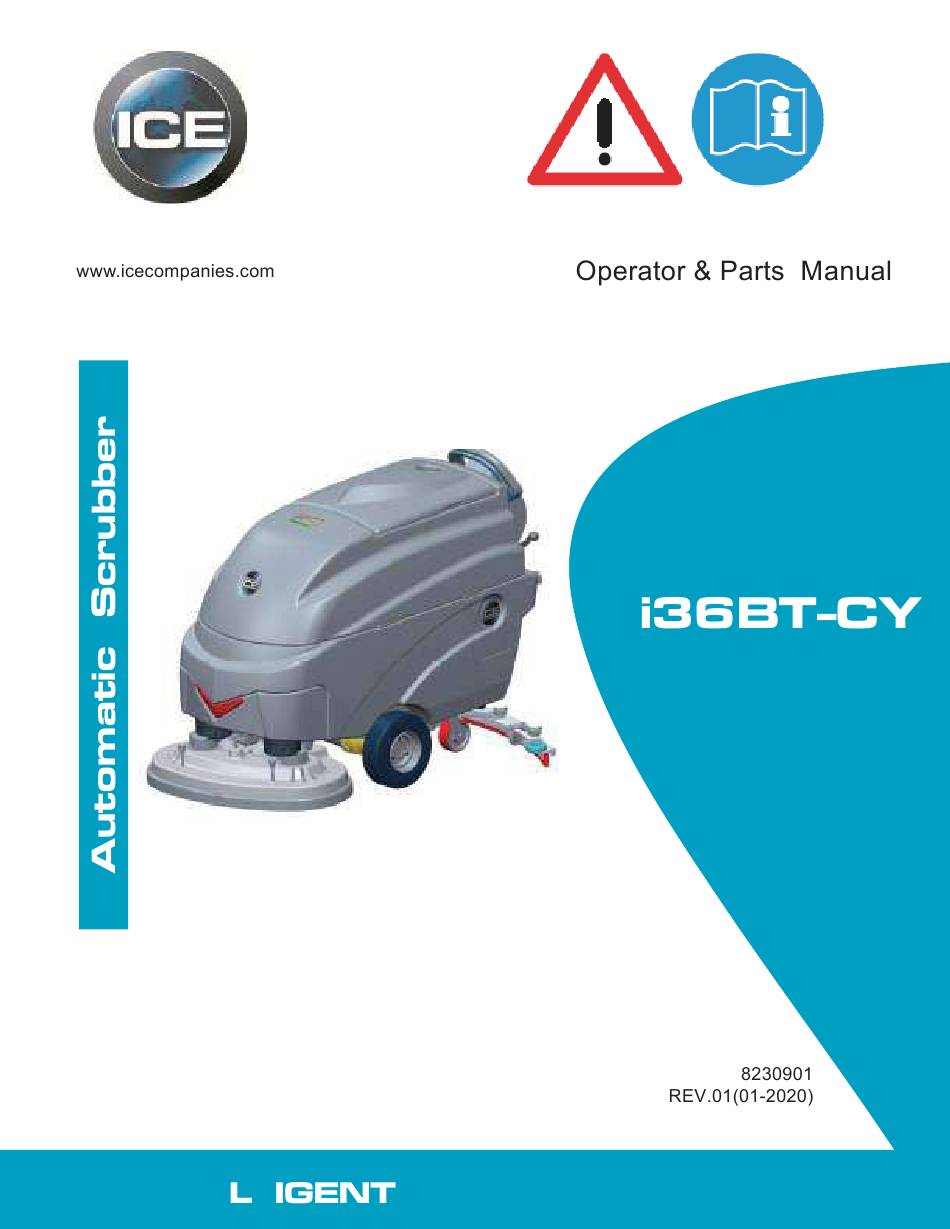

- Page 1 INTE L CLEANING EQUIPMENT...
- Page 2 OPERATOR MANUAL IMPORTANT: HOW TO ORDER PARTS PROTECT THE ENVIRONMENT Specifications and parts are subject to change without notice.
- Page 3 TABLE OF CONTENTS SAFETY PROCATIONS.......................4 MACHINE COMPONENTS....................5 MACHINE SETUP & INSTALLATION..................6 MACHINE OPERATION....................7 WHILE OPERATING MACHINE..................7 TANK DRAINING........................8 BATTERY CHARGING......................9 PREVENTATIVE MAINTENANCE..................9 CYLINDRICAL BRUSH MODEL..................11 CYLINDRICAL ASSEMBLY INSTRUCTIONS.............12-13 BASIC TROUBLESHOOTING....................14 TECHNICAL SPECIFICATION....................15 PARTS LIST....................16-43 WEAR AND TEAR PARTS..............44 WIRING DIAGRAM..................45 ICE i36BT...
- Page 4 OPERATOR MANUAL 1. Do not operate machine: 2. Before starting machine: 3. When using machine: 4. Before leaving or servicing machine: 5. When servicing machine:...
- Page 5 OPERATOR MANUAL...
- Page 6 OPERATOR MANUAL...
- Page 7 OPERATOR MANUAL NOTE: Raise squeegee when reversing machine. NOTE: 45-60 meters (150-200 ft)per minute is the recommended scrubbing speed. NOTE: When fi lling the solution tank with a bucket, make sure that the bucket is clean. Do not use the same bucket for fi lling and draining the machine.
- Page 8 OPERATOR MANUAL NOTE: Brush motors will not work when the scrub head assembly raised. NOTE: See TANK DRAINING section to learn how to drain recovery and solution tanks. NOTE: The machine can not be moved unless the Main Power Key Switch and the Control Handle bail be turned on.
- Page 9 OPERATOR MANUAL NOTE: Use only apprved chargers with the following specifi cations: NOTE: The machine will can not operate when charging.
- Page 10 OPERATOR MANUAL NOTE: For the best machine performance, keep batteries charged at all times. Do not let them sit in a discharged condition.
- Page 11 6.Pull the control handle bail to create a brush pattern on the fl oor. 7.Raise the scrub head and pull the machine away. 8.Observe the brush pattern on fl oor. If the brush pattern is uneven or tapered, adjustment is required. ICE i36BT...
- Page 14 OPERATOR MANUAL...
- Page 15 WATER LIFT - AIR FLOW 73 inch BATTERIES 6 - 6V, 260AH optional 305AH @ 20 hr RUN TIME PER CHARGE 4 or 4.5 Hours VOLTAGE DC DECIBEL RATING AT 68 dB(A) OPERATOR'S EAR, INDOORS GRADE LEVEL, MAX 10% (6°) ICE i36BT...
- Page 16 PARTS LIST RECOVERY TANK GROUP ICE i36BT / i36BT-CY...
- Page 17 1123507 LOCK NUT,M5 8112005 GASKET, VACUUM MOTOR 1121605 HEX NUT,M6 8210209 STUD,M6 X 110 8230200 3 STAGE VACUUM MOTOR,36VDC,640W,KIT 1421612 FLAT WASHER,M6 X 12 X 1.6 1123608 LOCK NUT,M6 8230110 KIT,RECOVERY TANK(Replace the old version) ICE i36BT / i36BT-CY...
- Page 18 RECOVERY TANK SUPPORT 8115404 SLEEVE, P/M 1021830 HEX BOLT,M8 X 30 1221510 SCREW,M5 X 20 8230210 BRACKET,FILTER 8320237 FILTER,DUST 8310230 GASKET,FILTER 1421511 FLAT WASHER,M5 X 12 X 1 8111016 PLATE 1221510 SCREW,M5 X 10 8230207 PLATE ICE i36BT / i36BT-CY...
- Page 19 PARTS LIST SOLUTION TANK GROUP ICE i36BT / i36BT-CY...
- Page 20 BATTERY, 305AH @ 20Hr (OPTIONAL) 8230121 BATTERY TRAY 8230104 COVER, FRONT 1321110 SELF-TAPPING SCREW,ST3.5 X 10 1421409 FLAT WASHER,M4 X 9 X 0.8 8230750 LED LIGHT,36V,KIT 8133601 LED LIGHT MOUNTING BASE 1221520 SCREW,M5 X 20 8133602 LED LIGHT COVER ICE i36BT / i36BT-CY...
- Page 21 LOCK WASHER, M6 8230707 KIT,BATTERY CONNECT CABLE 8230714 CONNECTOR, SB175-GREY 1521635 SCREW, HEX SOCKET, M6 X 35 8230706 KIT,BATTERY CONNECT CABLE 1021610 HEX BOLT,M6 X 10 8144024 LABEL,CIRCUIT BREAKER 8230702 SOLENOID SWITCH,36VDC 8114705 STAND-OFF, M6, RED ICE i36BT / i36BT-CY...
- Page 22 PARTS LIST FRAME & DRIVE GROUP ICE i36BT / i36BT-CY...
- Page 23 FLAT WASHER,M12.1 X 20 X 2 8230129 WHEEL,12", FOAM FILL 8230116 WHEEL,12", PNEUMATIC (OPTIONAL) 8230118 BRACKET, TRANSAXLE MOUNTING 8230810 TRANSAXLE, 36VDC,KIT 8230811 ELECTRIC BRAKE KIT 8230119 5",CASTER 1022809 HEX BOLT,M8 X 90 1021820 HEX BOLT,M8 X 20 1422821 LOCK WASHER,M8 ICE i36BT / i36BT-CY...
- Page 24 LOCK NUT,M10 100293- for i36BT 8230137 BUSHING for i36BT-CY -100292 for i36BT 8210116 BUSHING(OLD) -100161 for i36BT-CY 100293- for i36BT HEX BOLT,M10 X 90 1032090 for i36BT-CY 100293- for i36BT 8230140 FRAME for i36BT-CY -100292 for i36BT 8230105 FRAME(OLD) -100161 for i36BT-CY...
- Page 25 PARTS LIST SCRUB HEAD GROUP ICE i36BT / i36BT-CY...
- Page 26 SPACER 1022090 HEX BOLT,M10 X 90 1111215 HEX NUT, M16 8210811 AJUSTMENT STUD, M16 8210810 BRACKET, ROLLER MNTG 1421824 FLAT WASHER,M8 X 24 X 2 8115404 SLEEVE, P/M 8116009 PROTECTIVE WHEEL 1021830 HEX BOLT,M8 X 30 ICE i36BT / i36BT-CY...
- Page 27 PARTS LIST SCRUB HEAD LIFT GROUP ICE i36BT / i36BT-CY...
- Page 28 FLAT WASHER,M 12 X 32 X 1.5 8210322 8210309 PIN, COTTER 8210318 SPRING 8230311 SLEEVE 8210321 BOLT, SHOULDER, 3/8 8230302 ACTUATOR, 36VDC 8210301 8210303 BRACKET, ACTUATOR MNTG 1421612 FLAT WASHER,M6 X 12 X 1.6 1422616 LOCK WASHER,M6 1021616 HEX BOLT,M6 X 16 ICE i36BT / i36BT-CY...
- Page 29 PARTS LIST SQUEEGEE GROUP (46.5 INCH STANDARD) ICE i36BT / i36BT-CY...
- Page 30 SQUEEGEE BLADE, REAR, PU (OPTIONAL) 8230502 RETAINER,SQUEEGEE 8230503 SQUEEGEE BLADE, FRONT, LINATEX 8230506 SQUEEGEE BLADE, FRONT, PU (OPTIONAL) 8118400 CASTER, 2 INCH 1121008 HEX NUT,M10 8118200 LEFT BRACKET 8230500 SQUEEGEE ASSEMBLY 8118109 HOLDER VACUUM HOSE 8118015 VACUUM HOSE 1962050 CLAMP ICE i36BT / i36BT-CY...
- Page 31 PARTS LIST SQUEEGEE GROUP (OLD) ICE i36BT / i36BT-CY...
- Page 32 SQUEEGEE BLADE, FRONT, LINATEX 8210516 SQUEEGEE BLADE, FRONT, PU (OPTIONAL) 8210519 CLAMP, FRONT BLADE 8210530 KNOB, M6 8118400 CASTER, 2 INCH 1121008 HEX NUT,M10 8118200 LEFT BRACKET 8210510 SQUEEGEE ASSEMBLY 8118109 HOLDER VACUUM HOSE 8118015 VACUUM HOSE 1962050 CLAMP ICE i36BT / i36BT-CY...
- Page 33 PARTS LIST SQUEEGEE GROUP (44.5 INCH OPTIONAL) ICE i36BT / i36BT-CY...
- Page 34 SQUEEGEE BLADE, FRONT, PU (OPTIONAL) 8220518 FRONT CLAMP,LEFT 1121403 HEX NUT,M4 1123406 LOCK NUT,M4 1421409 FLAT WASHER,M4 X 9 X 0.5 1211435 SCREW,M4 X 35 8220515 FRONT CLAMP,RIGHT 8220500 SQUEEGEE ASSEMBLY 8118109 HOLDER VACUUM HOSE 8118006 VACUUM HOSE 1962050 CLAMP ICE i36BT / i36BT-CY...
- Page 35 PARTS LIST SOLUTION GROUP ICE i36BT / i36BT-CY...
- Page 36 FLAT WASHER,M5 X 10 X 1 8230122 SOLENO 0 VALVE,36V0C 1914300 T E, NYLON, 5X300 8230307 TUB NG, 0=16 X 300MM 8310903 TUB NG, 0=12 X 175MM 8230308 F TT NG, PLAST C, TEE 1962016 CLAMP, 10-16mm ICE i36BT / i36BT-CY...
- Page 37 PARTS LIST CONTROL CONSOLE GROUP ICE i36BT / i36BT-CY...
- Page 38 TIMER 8114709 KEY SWITCH 8114752 8124717A POTENTIOMETER, KIT 8124718 KNOB, POTENTIOMETER 8210410 CONTROL PANEL 8230710 CONTROL PANEL DECAL, i36BT 1221512 SCREW M5×12 1021616 HEX BOLT M6 X 16 1421618 PLAIN WASHER 6×18×1.6,SS 8310707 EMERGENCY STOP BUTTON 8144029 DECAL, EMERGENCY STOP...
- Page 39 8114306 SPRING 8114101 SHAFT 8134300 LEVER, BAIL 1123507 LOCK NUT M5 8124501B SPEED CONTROL BOARD 8134021 REAR PLATE, CONTROL CONSOLE 1421824 FLAT WASHER M8×24×2 1021820 HEX BOLT M8×20 1021535 SCREW, M5 × 35 8114707 RELAY, 40A ICE i36BT / i36BT-CY...
- Page 40 PARTS LIST CYLINDRICAL SCRUB HEAD GROUP ICE i36BT / i36BT-CY...
- Page 41 COUNTERSUNK HEX SCREW,M10X20 8236013 SKIRT,CYLINDRICAL 1021816 SCREW, M8 X 16 8236014 CLAMP,SKIRT 8236002 DOOR,BRUSH 1123810 LOCK NUT,M8 1644206 PIN,M2.5X6 8236005 BRUSH,CYLINDRICAL 8013007 TUBING FITTING 1962016 CLAMP ,16MM 1111215 HEX NUT, M16 8210811 AJUSTMENT STUD, M16 8236003 FRONT COVER ICE i36BT / i36BT-CY...
- Page 42 PARTS LIST SOLUTION GROUP ICE i36BT / i36BT-CY...
- Page 43 LOCK NUT,M8 8118003 STAR KNOB,M8 8236034 HEX BOLT,M8 X 185 1121804 NUT,M8 8236021 DEFLECTOR,WATER 8236014 CLAMP,SKIRT 8236013 SKIRT,CYLINDRICAL 1612602 BEARING, 6002LLU 8236007 DRIVEN PULLEY,6PJ 8236024 BUSHING 8236025 PLUG, DRIVE,BRUSH 8236010 SHAFT 1655015 KEY,5 X 5 X 15 ICE i36BT / i36BT-CY...
- Page 44 PART DESCRIPTION NUMBER REQ'D 8230116 WHEEL, 12 INCH 8116009 PROTECTIVE WHEEL 8230119 CASTER, 5 INCH 8210513 SQUEEGEE BLADE, FRONT, LINATEX 8210514 SQUEEGEE BLADE, REAR, LINATEX 9050016 16" BRUSH 9040016 16" PAD HOLDER 8236005 CYLINDRICAL BRUSH 8236013 CYLINDRICAL SKIRT ICE i36BT...
