S t y l i s t i c S T 4 0 0 0 P S e r i e s U s e r ' s G u i d e – S e c t i o n O n e

CONNECTORS AND PERIPHERAL INTERFACES

Connectors and peripheral interfaces on the Stylistic
ST4000P Series pen tablet PC allow connection of a
variety of devices. Specific locations are illustrated in
Figures 1-2 through 1-5.
Connector/ Pen Tablet
Peripheral
DC in
connector
USB Port
PCMCIA
Card slot
Microphone
jack
Headphone
jack
IrDA/FIR port
Modem
Tablet Dock
port
Infrared
keyboard/
mouse port
TM
Kensington
Lock slot
14
PC Icon
Connect an external power source such as the AC adapter or auto/
airline adapter.
Connect Universal Serial Bus 1.1 compliant devices to the pen tablet PC.
Install a Type I or Type II PC Card.
Connect an external microphone. The internal microphone is disabled
when you plug in an external microphone.
Connect stereo headphones or powered external speakers. The internal
speaker is disabled when you plug in external headphones or powered
speakers.
An infrared transceiver built into the pen tablet PC allows you to
communicate with other devices that are compliant with the IrDA
Standard Rev. 1.1. Effective range for infrared communication is about
3 feet, and within 15 degrees off center. A clear line-of-sight path must
exist between the IrDA port on the pen tablet PC and the IrDA
transceiver on the other device.
Connect a telephone line to the optional internal modem using a
standard RJ-11 telephone plug.
Connect the Stylistic ST4000P Series dock or other approved docking
device. Refer to documentation accompanying the docking device for
more information.
An infrared receiver built into the pen tablet PC allows you to
communicate with a wireless infrared keyboard or mouse. The keyboard
infrared port works optimally between 10 to 30 cm (approximately 4 in.
to 12 in.) from the keyboard infrared port, located on the bottom edge
of the pen tablet PC. Ensure that there is a clear line-of-sight path
between the infrared receiver on the pen tablet PC and the infrared
transmitter on the keyboard or mouse.
The Kensington Microsaver
tablet PC using Kensington-compatible locking devices.

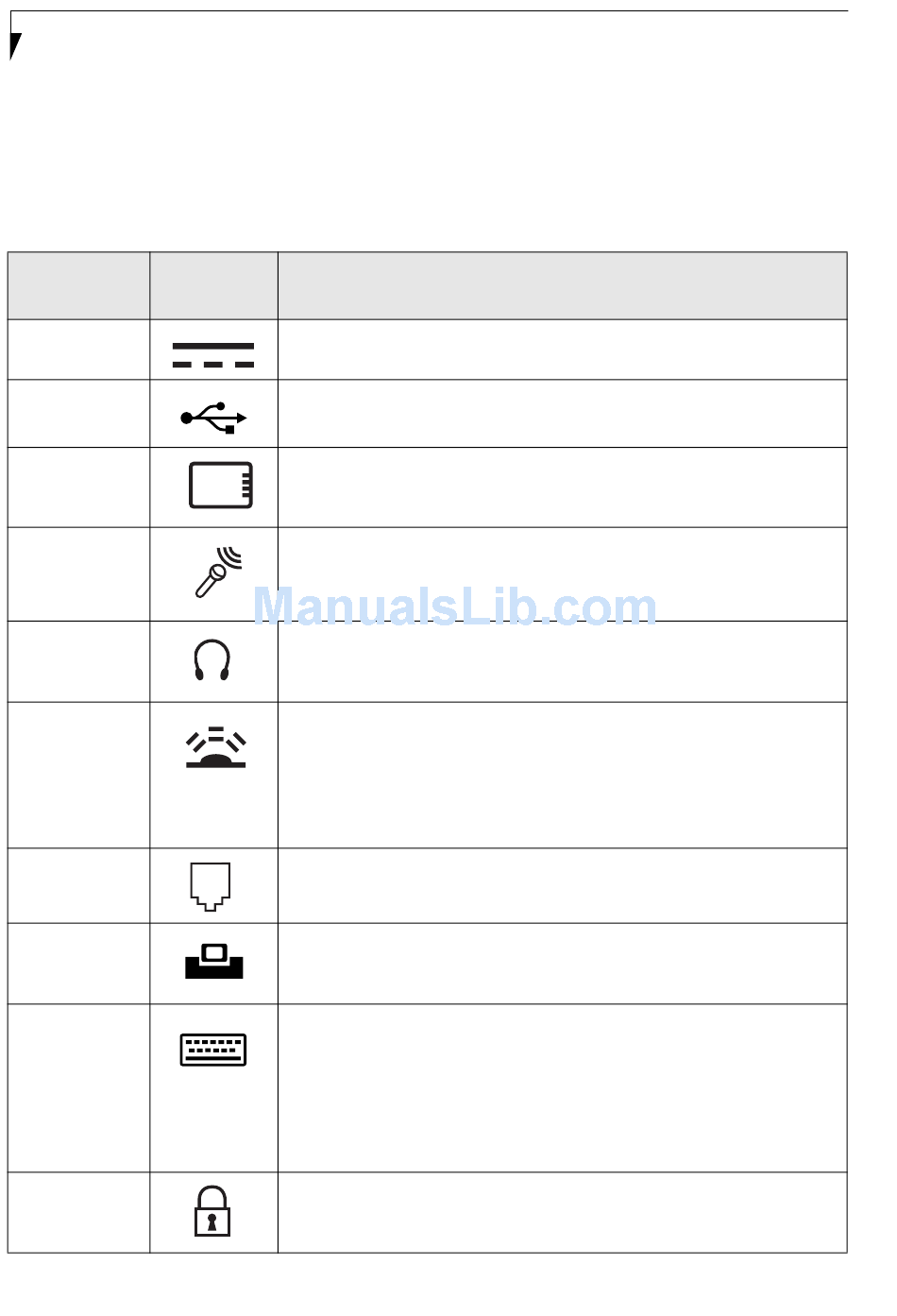

Table 1-6 provides a description of each peripheral
connector on the Stylistic ST4000P Series pen tablet PC.
Each of the illustrated icons is either molded into or
printed on the pen tablet PC case.
Purpose
TM
security slot allows you to secure the pen
