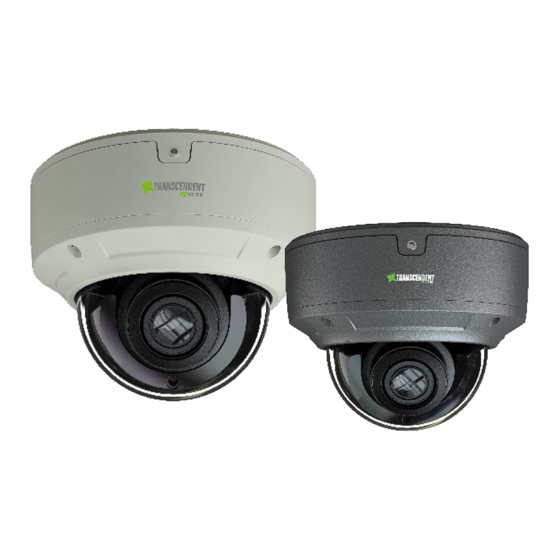

4 megapixel indoor/outdoor wdr ip motorized vandal dome camera with matrix ir
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

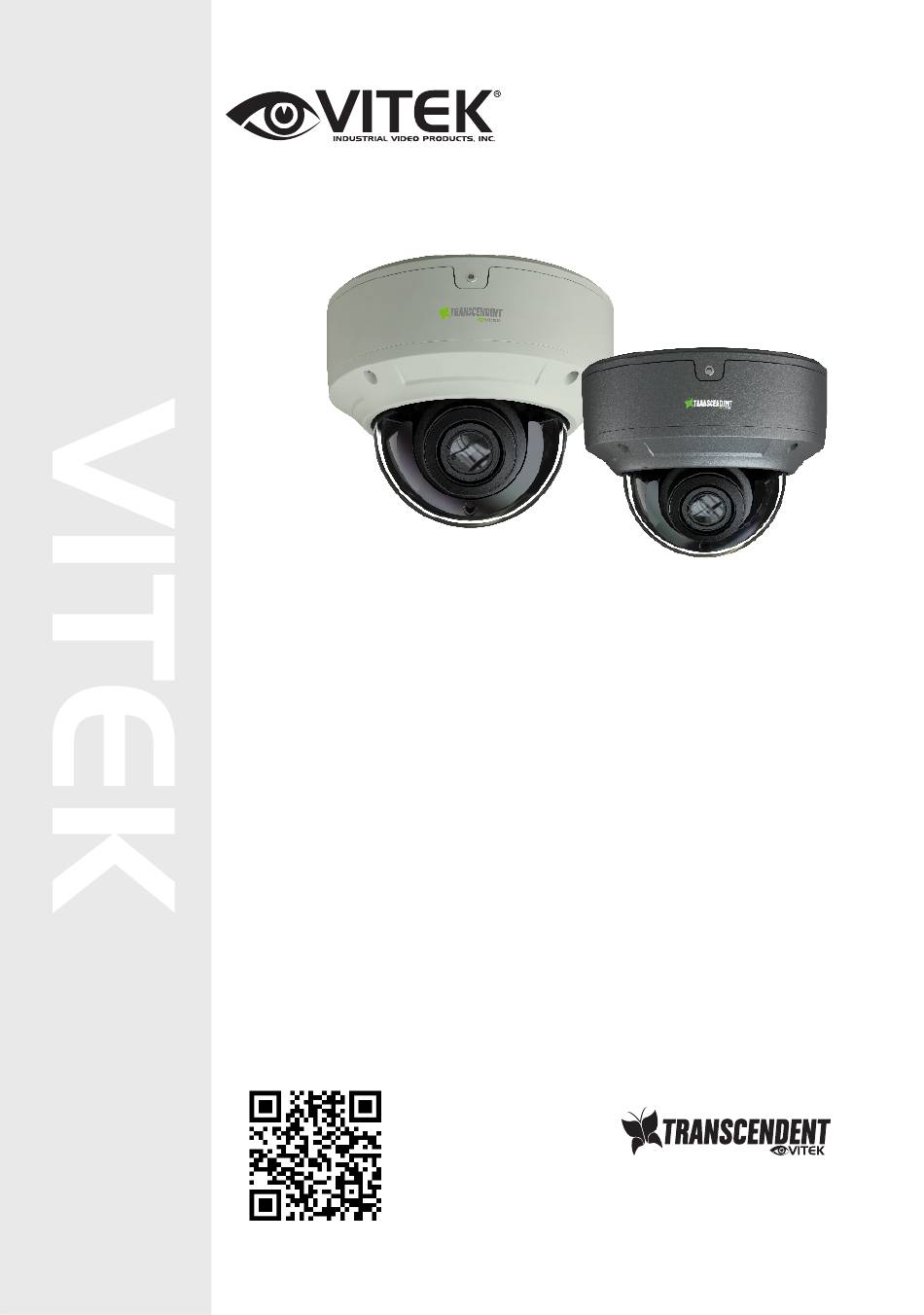

QUICK START GUIDE
FEATURES:
• 1/3" 4.0 Megapixel CMOS Image Sensor
• Up to 30fps live view @ 4 MegaPixel (2592x1520)
• 2.8~12mm Motorized Varifocal Lens
• 3 Matrix IRs (up to 165' IR Range)
• True Wide Dynamic Range
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• 1 Ch. Alarm In + 1 Ch. Alarm Out
• 1 Ch. Audio In + Out*
• Abnormal Video, Face Detection, Regional Intrusion Detection, Regional
Entrance / Exiting Detection, Line Crossing, Target Counting Detection
• H.265, H.264 & MJPEG Compression
• Secondary Video Output (CVBS)
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (128GB)
• IP67 Weather Resistance + IK10 Impact Rating
• Available with Optional Junction Box (VT-TJB02A, VT-TJB021), Wall
Mounts (VT-TWM03, TWMT-A1), Pendant Mounts (VT-PDMT-A1
[+TV-TJB02A], VT-TPDM-3 [+VT-TJB021]) and In-Ceiling Semi Flush
Mount (VT-TFMT-L)
• 12VDC & PoE (Power over Ethernet) Operation
• Available in Ivory or Charcoal Grey (VTD-TND4RMA3B)
*Please research local, state and federal laws
regarding the implementation of audio surveillance.
VTD-TND4RMA3
4 MegaPixel Indoor/Outdoor
WDR IP Motorized Vandal Dome
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series
Camera with Matrix IR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Transcendent VTD-TND4RMA3B and is the answer not in the manual?

Questions and answers

Related Manuals for Vitek Transcendent VTD-TND4RMA3B

Summary of Contents for Vitek Transcendent VTD-TND4RMA3B

  • Page 1 VTD-TND4RMA3 Transcendent Series 4 MegaPixel Indoor/Outdoor WDR IP Motorized Vandal Dome Camera with Matrix IR QUICK START GUIDE FEATURES: • 1/3” 4.0 Megapixel CMOS Image Sensor • Up to 30fps live view @ 4 MegaPixel (2592x1520) • 2.8~12mm Motorized Varifocal Lens •...

  • Page 2: Cable Connections

    Components and Accessories Camera Quick start guide 4 tapping screws PA 4×2 Rubber plug CVBS&DC Screwdriver ×4 Drill template Plastic plug IN cables Overview Ethernet Connector Audio Input (MIC) Audio Output (HP) CVBS Video Output Alarm Input/Output DC12V Power Connector Zoom- Zoom+ Micro SD Card Slot...

  • Page 3: Installation

    Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler, 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera.
  • Page 4 3. Route the cables and 3. Route the cables and connect the power & video connect the power & video cables, use the rubber plug cables, use the rubber plug Sponge to fill the gap of the mounting to fill the gap of the mounting base.

  • Page 5: Lan Configuration

    LAN Configuration LAN Configuration Switch Switch Network Cable Network Cable Network Cable Network Cable MENU MENU IP Camera IP Camera Computer Computer Router Router The camera can be accessed on the local network either using the The camera can be accessed on the local network either using the IP-Tool or directly in a web browser.
  • Page 6 4. Double-click the IP address and then the system will pop up the web 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X browser to connect IP-CAM .

  • Page 7: Wan Configuration

    2. Open the IE Browser and input the default address of IP-CAM and 2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. confirm. The IE browser will download Active X control. 3.

  • Page 8: Limited Product Warranty

    (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
