QUICK START GUIDE
FEATURES:
• 1/1.8" 8.0 Megapixel [4K] CMOS Image Sensor
• Up to 30fps live view @ 8 MegaPixel (3840x2160)
• 2.8~12mm Motorized Varifocal Lens
• Matrix IR (up to 165' IR Range)
• True Wide Dynamic Range
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Gen. III Advanced Analytics: Abnormal Video, Face Detection, Regional
Intrusion Detection, Regional Entrance / Exiting Detection, Line
Crossing, Target Counting Detection
• Smart H.265/H.265+/H.265/Smart H.264/H.264+/H.264/MJPEG
• 1 Ch. Audio In + 1 Ch. Audio Out + Built-in Mic*
• 1 Ch. Alarm Input + 1 Ch. Alarm Output
• Remote Viewing via CMS, Internet Explorer, iOS & Android Apps
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (256GB)
• IP67 Weather Resistance + IK10
• Optional Junction Boxes (VT-TJB02A, VT-TJB021), Wall Mounts
(VT-TWM03, VT-TWMT-A1), Pendant Mounts (VT-PDMT-A1 [use w/
VT-TJB02A], VT-TPDM-3 [use w/ VT-TJB021]) and In-Ceiling Semi
Flush Mount (VT-TFMT-L)
• 12VDC & PoE (Power over Ethernet) Operation
• Available in Ivory or Charcoal Grey (VTD-TND8RMA3B)
*Please research local, state and federal laws
regarding the implementation of audio surveillance.

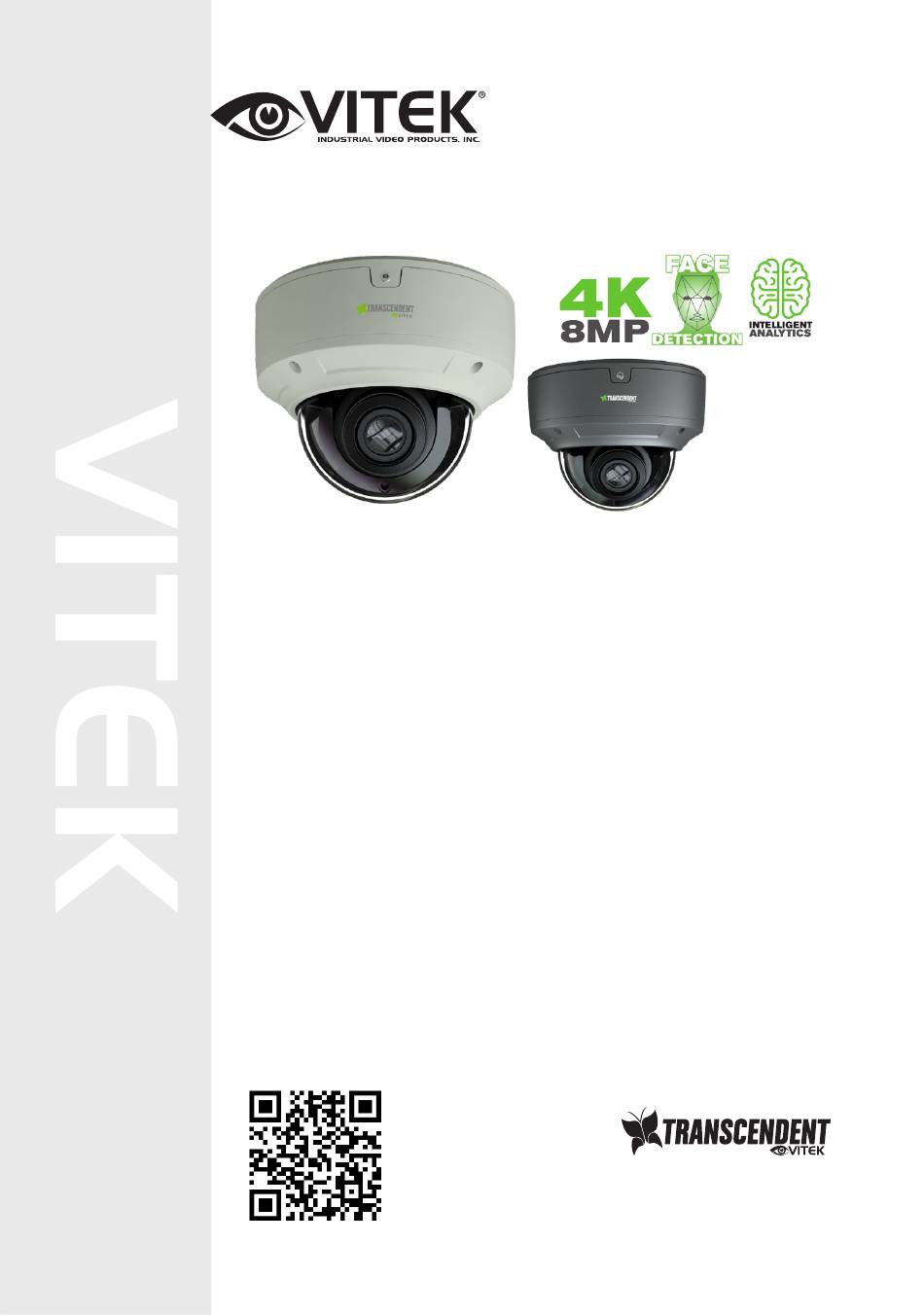

VTD-TND8RMA3
Transcendent Series 8 MegaPixel
[4K] Indoor/Outdoor WDR IP
Motorized Vandal Dome Camera
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
+
PLUS
Advertisement
Table of Contents
Related Manuals for Vitek VTD-TND8RMA3
Summary of Contents for Vitek VTD-TND8RMA3
- Page 1 VTD-TND8RMA3 Transcendent Series 8 MegaPixel [4K] Indoor/Outdoor WDR IP Motorized Vandal Dome Camera QUICK START GUIDE PLUS FEATURES: • 1/1.8” 8.0 Megapixel [4K] CMOS Image Sensor • Up to 30fps live view @ 8 MegaPixel (3840x2160) • 2.8~12mm Motorized Varifocal Lens •...
-
Page 2: Components And Accessories
Components and Accessories Camera Quick start guide 4 tapping screws PA 4×2 Rubber plug CVBS&DC ×4 Allen Key Drill template Plastic plug IN cables Overview Ethernet Connector Audio Input (MIC) Audio Output (HP) CVBS Video Output Alarm Input/Output DC12V Power Connector Zoom- Zoom+ Micro SD Card Slot... -
Page 3: Installation
C onnecting A lar m I nput/O utput A lar m I nput A L A R M -I N Sensor A L A R M -G N D A lar m O utput A L A R M -C O M A lar m A L A R M -O P E N P ower S our ce... - Page 4 3. Route the cables and connect the power & video cables, use the rubber plug Sponge to fill the gap of the mounting base. Then secure the mounting base to the ceiling or wall with screws. Mounting Base 4. Fix the camera to the mounting base with the lock screw. 5.
-
Page 5: Lan Configuration
LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2. - Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
-
Page 7: Wan Configuration
2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example. - Page 8 VTC-TND8RMA3 Detailed Specifications Image Sensor 1/1.8” 8.0 Megapixel [4K] CMOS Image Sensor Image Size 8 MegaPixel (3840 × 2160) Resolution 8MP(3840 × 2160 ), 6MP(3072 × 2048 ), 5MP(2592 × 1944), 4MP(2592 × 1520 ), 3MP(2304 × 1296), 1080P(1920 × 1080 ), 720P(1280 × 720), D1, CIF, 480 × 240 Min.
- Page 9 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR TRANSCENDENT IP CAMERAS VT-TJB02A VT-TWM03 VT-TWMT-A1 VT-TJB021 Optional Junction Optional Wall Optional Wall Optional Junction Box for use with Mount for use Mount for use Box for use with Transcendent Transcendent with Transcendent Transcendent Motorized Domes Motorized Domes Motorized Domes...
- Page 10 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR TRANSCENDENT IP CAMERAS NVRs INTRODUCING OUR NEW INTRODUCING OUR NEW ADVANCED LEARNING A Standalone Solution with FULL Analytic Support • 8MP (4K) HDMI Output • H.265 / H.264 Compression • Full Analytic Support Including Face Detection •...
- Page 11 Also Consider Vitek Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.
-
Page 12: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
