EVAL-M1-099M-C User Manual
iMOTION™ Modular Application Design Kit
Main features
3.1
Key data

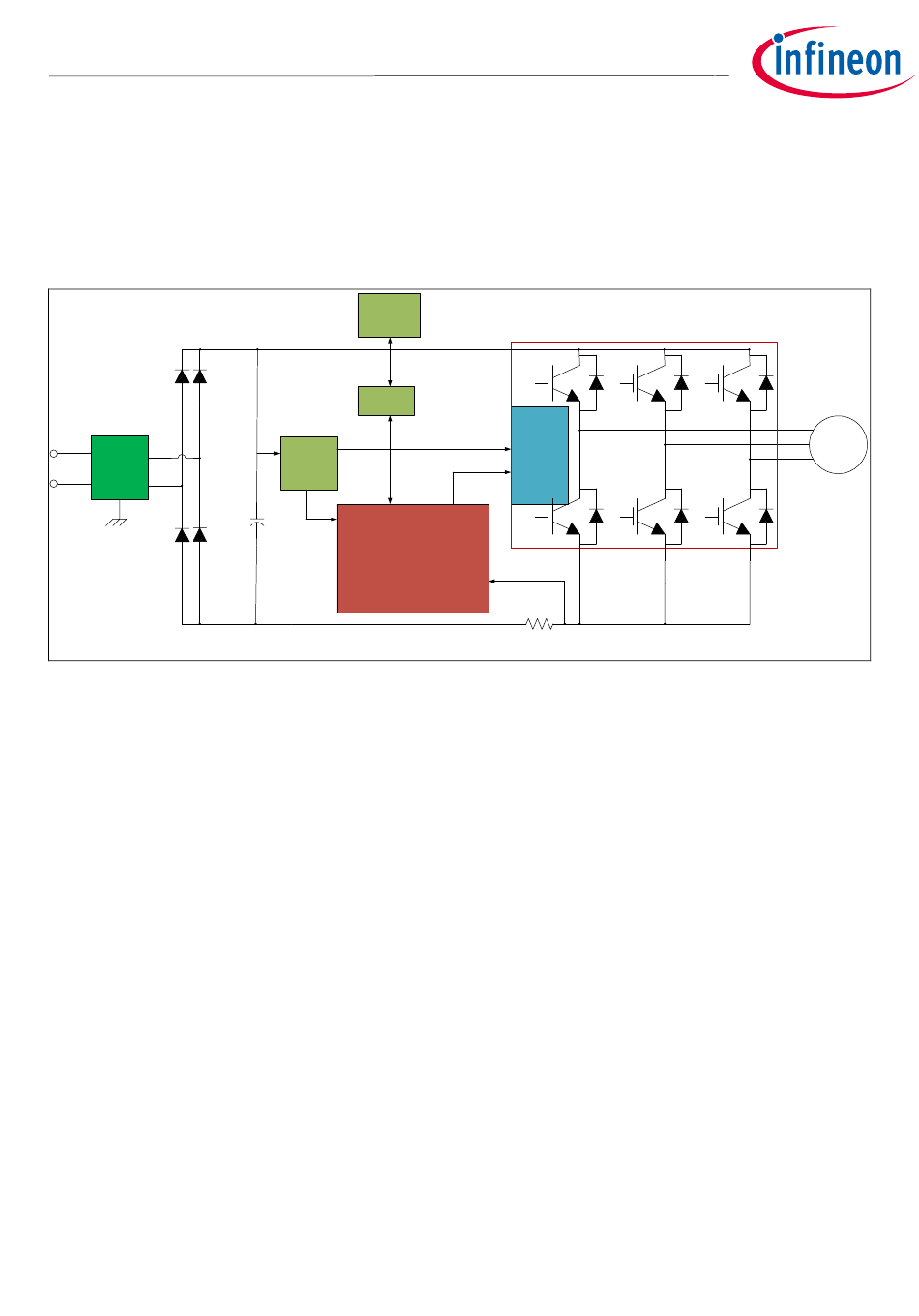

Figure 2 shows a typical motor control application block diagram using the IRMCK099. The IRMCK099 provides
a built-in closed loop sensorless control algorithm using the unique flexible Motion Control Engine (MCE) for
permanent magnet motors. The MCE™ consists of a collection of control elements, motion peripherals, a
dedicated motion control sequencer and internal memory to map internal signal nodes. IRMCK099 also
employs a unique single shunt current reconstruction circuit in addition to two leg shunt current sensing circuit
to eliminate additional analog/digital circuitry.
Passive
Line
EMI
Neutral
Filter
Figure 2
Typical Application Block Diagram Using IRMCK099
Application Note
Host
Communication
Galvanic
Isolation
Power Supply
Gate signal
3.3V
EVAL-M1-099M
5
15V
Drive
M
<Revision 1.0>
<2017-08-21>
