EVAL-M1-099M-C User Manual
iMOTION™ Modular Application Design Kit
Main features

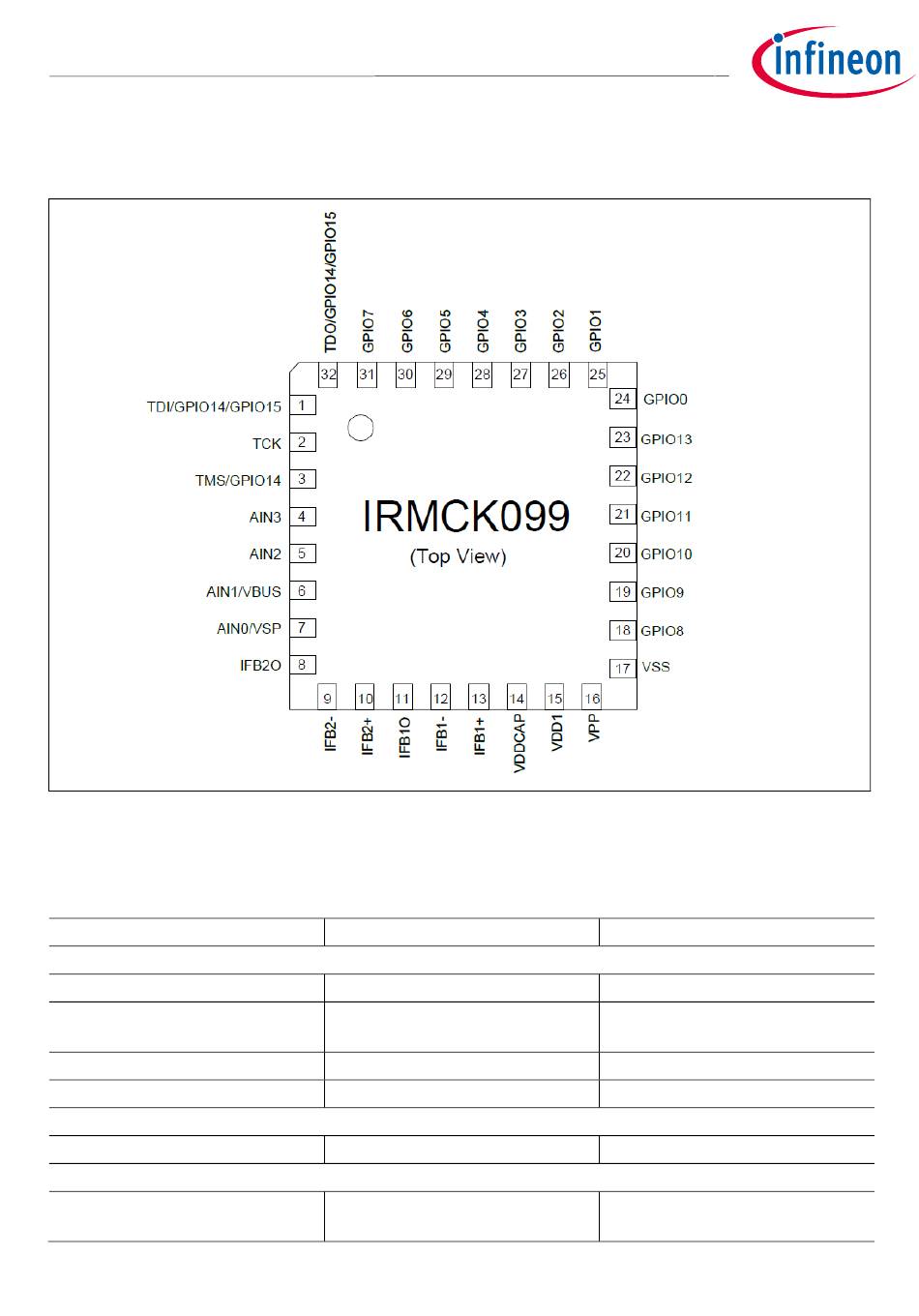

Figure 3 indicates pinout of IRMCK099. IRMCK099 contains 16 Kbytes of OTP program memory and comes in a
compact 5mm x 5mm 32-pin QFN package.
Figure 3 Pinout of IRMCK099
Table 2 depicts the important specifications of the evaluation board EVAL-M1-099M.
Table 2 Eval-M1-099M board specifications
Parameters
Host Interface (Non isolation)
UART(TXD RXD)
TMS TDI TCK TDO
8 Bit 2 Channel
12 Bit
Input
Voltage
DC Bus
DC Bus Scaling
Application Note
Values
3.3V
3.3V
0-3.3V output
0-1.2V
3.3V
8.29 counts/v
6
Conditions / comments
Typical 5.76 kbps. single ended
Interface with FS2 or
MCETOOLV2.0
GPIO Configurable to DAC
Power supply
Power board is supposed to have
2MΩ resistor
<Revision 1.0>
<2017-08-21>
