Schematics and Layout

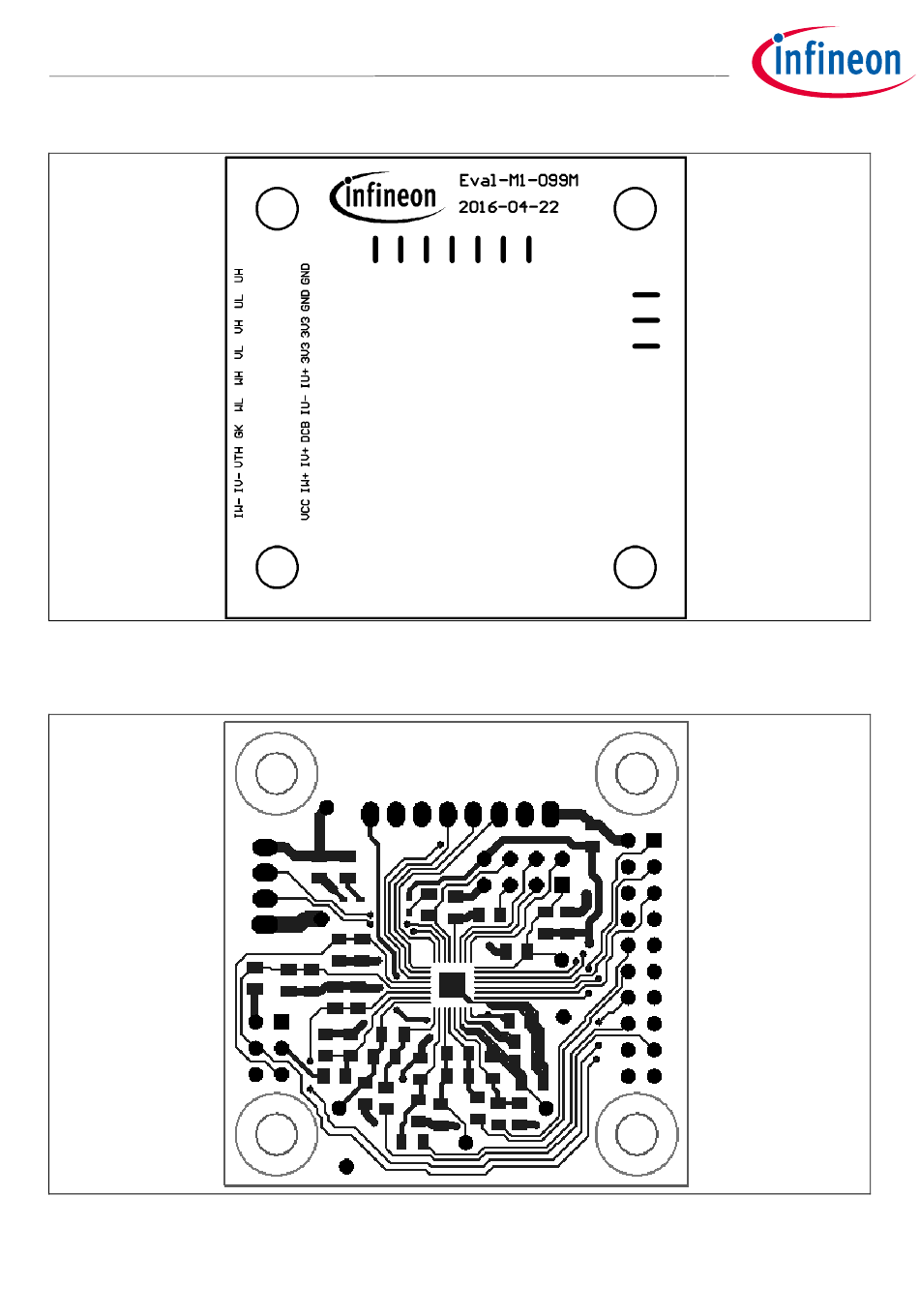

Figure 9 depicts the bottom assembly print of the evaluation board.
Figure 9
Bottom overlay print of the EVAL-M1-099M evaluation board
The top layer routing of the PCB is provided in the following Figure 10.
Top layer routing of the EVAL-M1-099M
Figure 10
