Schematics and Layout
5.3
AD port Input

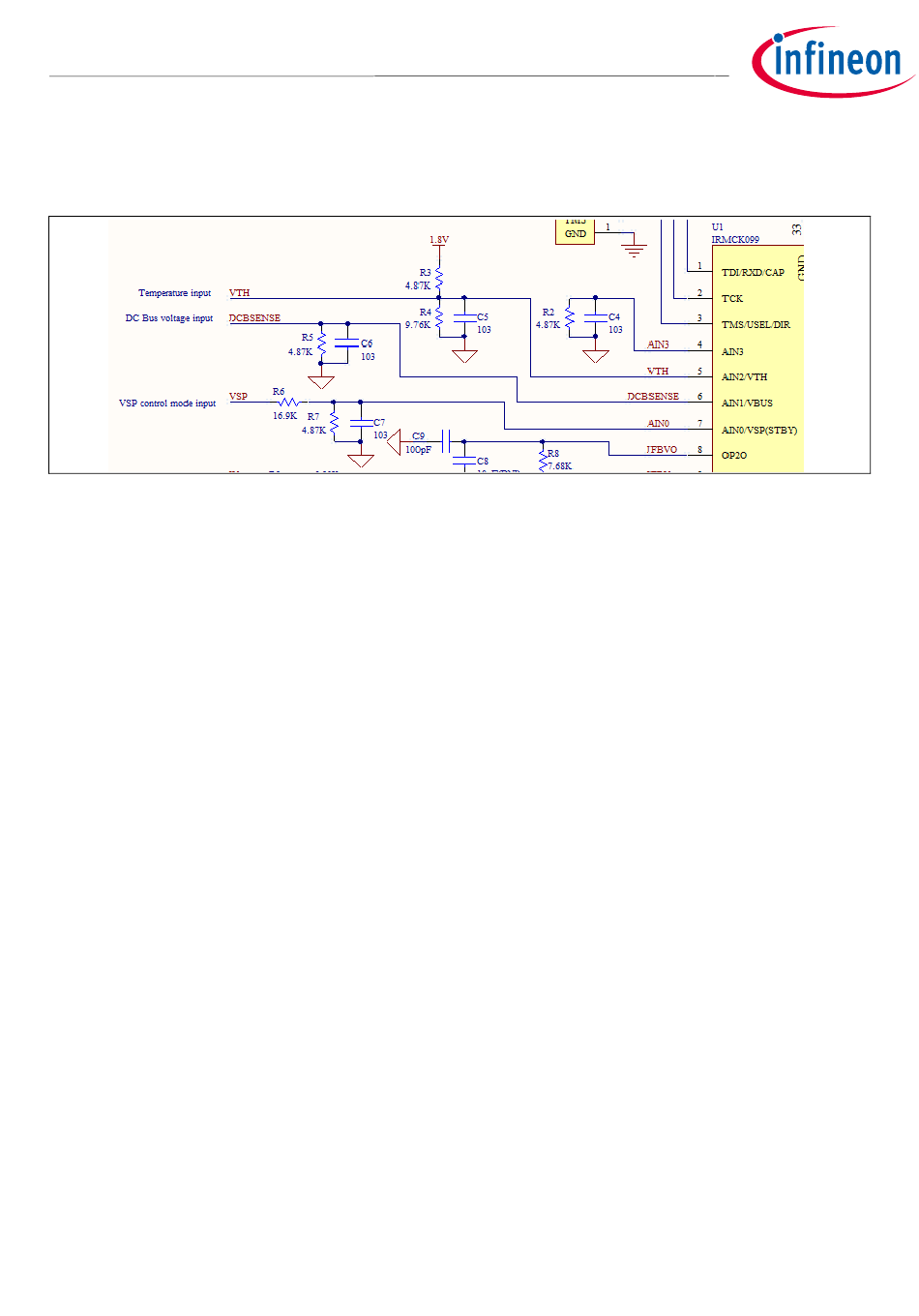

Figure 7 depicts AD input for IRMCK099. Temperature input should fit to the design recommendation in the
IRMCK099 application note.
Figure 7
AD input on the Eval-M1-099M evaluation board
