Summary of Contents for Victory PS-17

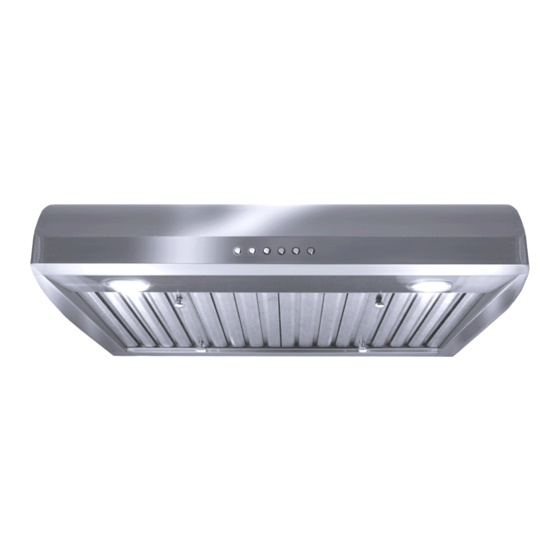

- Page 1 INSTALLATION GUIDE AND USERS MANUAL Professional Under Cabinet Range Hood PS-17 Model Name: 30”, 36” Available Sizes: NOTICE: For residential use only. Installer: Leave this guide with the homeowner. Homeowner: Keep this guide for future reference. Rev. 3062u.3a...
-
Page 2: Table Of Contents
Parts Supplied................... 9 Dimensions..................10 Preparation..................12 Installation..................13 Venting Methods................17 Range Hood Operations..............18 Troubleshooting................19 Use and Care Information..............20 Maintenance..................21 Bulb Replacement................22 Warranty..................... 24 Disclaimer..................25 Contact Us..................25 VICTORY range hoods | PS-17... -
Page 3: Important Safety Notice
Use high settings on cooking range only when necessary. • Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. VICTORY range hoods PS-17... - Page 4 The manufacturer and/or distributor/reseller will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. VICTORY range hoods | PS-17...
-
Page 5: Electrical Requirements
(at the range hood and at the junction box). Copies of the standards listed may be obtained from: * National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575 VICTORY range hoods PS-17... -
Page 6: Venting Requiremens
Round - 7” minimum • Round - 8” recommended if 7” round cannot be acquired. Use Aluminimum foil tape to properly seal. * Due to different ceiling height configurations, recommended height may not be applicable. VICTORY range hoods | PS-17... -
Page 7: Calculating Duct System Length
2 x 35W halogen / 2 x 5W LED, GU10, 120V Venting Size Top, 7 Inches Round Warranty 1 YEAR ( parts warranty ) * Subject to change without notice, please contact Victory Range Hoods for details. VICTORY range hoods PS-17... -
Page 8: Required Tools
REQUIRED TOOLS Marker or Pencil Putty Knife Tape Measure Phillips Screwdriver Level Power Drill Aluminum Tape Utility Knife Drywall Knife VICTORY range hoods | PS-17... -
Page 9: Parts Supplied
PARTS SUPPLIED Where necessary, additional screws will be needed for added support, but is not included. Please review contents before installation. Range Hood Spacer (for Model 36 only) Baffle Filters (x2) VICTORY range hoods PS-17... -
Page 10: Dimensions
DIMENSIONS TOP VIEW [Model PS-17-36 shown] 6”- Ø transition ¾ ” FRONT VIEW SIDE VIEW ¼ ” ¾ ” ½ ” 7” 1 ” ½ 22” ” BOTTOM VIEW VICTORY range hoods | PS-17... - Page 11 DIMENSIONS ( continued ) Model: PS-17-30 ¾ ” ½ ” 7”- Ø Duct 1” ¼ ” ½ ” ¾ ” ” ¾ ” 22” Model: PS-17-36 ¾ ” ½ ” 7”- Ø Duct 1” ¼ ” ¾ ” ” ½...
-
Page 12: Preparation
12” of electrical cord hanging from the ceiling. Do not restore power until wiring is completed. 7. Disconnect power cord, remove the stainless steel baffle filter and grease tunnel. 8. Set aside the stainless steel baffle filters and grease tunnel until the range hood is properly installed. VICTORY range hoods | PS-17... -
Page 13: Installation
(3) secure with 4 mounting screws from the inner side of the range hood. NOTE: Wood blocking may be needed for added support for mounting screws. CAUTION: Make certain the range hood is secure before releasing! VICTORY range hoods PS-17 | 13... - Page 14 Before connecting wires, switch power off at service panel and lock service panel to prevent power from being switched on accidentally. VICTORY range hoods | PS-17...
- Page 15 Use aluminum foil tape to roof cut out for exhaust connecting duct. make all joints secure and air tight. Use 10” round steel pipe when using 10” - Ø Transition. VICTORY range hoods PS-17 | 15...
- Page 16 Raise the filter at the front. Filter Spacer available only for 36” model. Ease filter into the front recess allowing the ribbon spring to push back for a secure fit. VICTORY range hoods | PS-17...
-
Page 17: Venting Methods
Min height: 88” from bottom of duct to ground when range height to stove is 30” Wall Vent 36” typical Roof Vent * Due to different ceiling height configurations, recommended height may not be applicable. VICTORY range hoods PS-17 | 17... -
Page 18: Range Hood Operations
Press the FAN On/Off/Timer button once to turn off the power and cancel timer mode. Turn On/Off Lights: • Press the Light Switch button to power on/off the lights. CAUTION: DO NOT touch the lights until switched OFF and cooled. VICTORY range hoods | PS-17... -
Page 19: Troubleshooting
Check if all joints are properly con- nected, sealed, and taped. • Make sure the power is on high speed for heavy cooking. NOTE: For all other inquiries, please contact Victory Range Hoods. VICTORY range hoods PS-17 | 19... -
Page 20: Use And Care Information
DO NOT operate blowers when filters are removed. Never disassemble parts to clean without proper instructions. Disassembly is recommended to be performed by qualified personnel only. Read and understand all instructions and warnings in this manual before proceeding. VICTORY range hoods | PS-17... -
Page 21: Maintenance
Dry the filters and re-install before using the hood. Replacing Filters: • Should filters wear out due to age and prolonged use, please contact Victory Range Hoods to order replacement filters. VICTORY range hoods... -
Page 22: Bulb Replacement
Twist the connector cap off, and dislodge from electrical tether. LED Bulb is model: GU10. Contact Victory Range Hood and place an order, or you may purchase at your nearest hardware store. VICTORY range hoods | PS-17... - Page 23 *Observe all safety precautions before you proceed to turn ON breaker and range hood to test for operation. VICTORY range hoods PS-17 | 23...
-
Page 24: Warranty
Subject to the conditions and limitations set forth below, Victory Range Hoods will, at its option, either repair or replace any part of its products that prove defective by reason of improper workmanship or materials. Repaired parts or replace- ment products will be provided by Victory Range Hoods on an exchange basis, and will be either new or refurbished to be functionally equivalent to new. -
Page 25: Disclaimer
Toll Free: 1-800-394-4020 info@kitchenhoods.ca The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. VICTORY range hoods PS-17 | 25... - Page 26 583 Nicola Avenue | Port Coquitlam | BC | Canada | V3B 0M3 www.kitchenhoods.ca...
