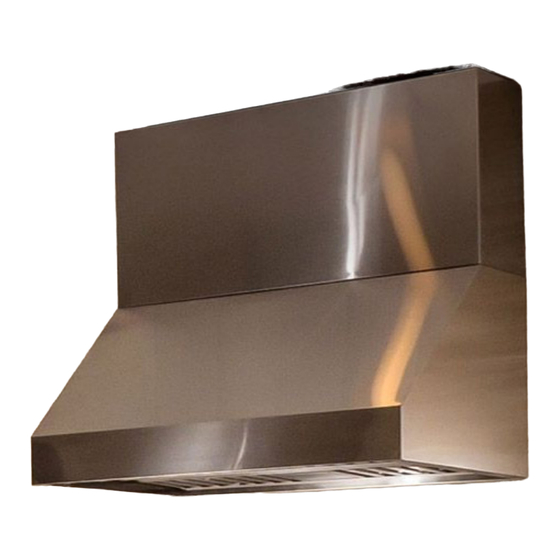

- Page 1 INSTALLATION GUIDE AND USERS MANUAL Professional Under-Cabinet / Wall-Mount Range Hood NOTICE: For residential use only. Installer: Leave this guide with the homeowner. Homeowner: Keep this guide for future reference. PRESTIGE Model Name: Available Sizes: 42”, 48”, 60” Rev. 3062u.3a...
-
Page 2: Table Of Contents
Dimensions..................10 Preparation..................12 Installation..................13 Venting Methods................19 Wiring Diagram................. 22 Range Hood Operations..............22 Troubleshooting................23 Use and Care Information..............24 Maintenance..................25 Bulb Replacement................26 Warranty..................... 28 Disclaimer..................29 Contact Us..................29 VICTORY range hoods | PRESTIGE... -
Page 3: Important Safety Notice
Use high settings on cooking range only when necessary. • Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. VICTORY range hoods PRESTIGE... - Page 4 The manufacturer and/or distributor/reseller will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. VICTORY range hoods | PRESTIGE...
-
Page 5: Electrical Requirements
(at the range hood and at the junction box). Copies of the standards listed may be obtained from: * National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575 VICTORY range hoods PRESTIGE... -
Page 6: Venting Requiremens
If available, also refer to stove top manufacturer’s height clearance requirements and recommended hood mounting height above range. Minimum Duct Size: • Round - 10” * Due to different ceiling height configurations, recommended height may not be applicable. VICTORY range hoods | PRESTIGE... -
Page 7: Calculating Duct System Length
Halogen 35W Type GU10 120V or (Optional) LED 5.5W Venting Size 2x Top Transition 10 inches Round Warranty 5 YEARS ( parts warranty ) * Subject to change without notice, please contact Victory Range Hoods for details. VICTORY range hoods PRESTIGE... -
Page 8: Required Tools
REQUIRED TOOLS Marker or Pencil Putty Knife Tape Measure Phillips Screwdriver Level Power Drill Aluminum Tape Utility Knife Drywall Knife VICTORY range hoods | PRESTIGE... -
Page 9: Parts Supplied
Please review contents before installation. Ø - 10” Transition Install Plates Baffle Filters (x2) (x3, may vary in shape/size (x6) depending on model) Filter Handles (x12) Grease Tunnel (x2) Range Hood VICTORY range hoods PRESTIGE... -
Page 10: Dimensions
DIMENSIONS TOP VIEW Hood shown: Model-48 Please refer to next pages for available models and their respective dimensions Ø 10” FRONT VIEW SIDE VIEW 12” 6” BOTTOM VIEW VICTORY range hoods | PRESTIGE... - Page 11 DIMENSIONS ( continued ) 10”- Ø Transition 12” 6 ” VICTORY range hoods PRESTIGE | 11...
-
Page 12: Preparation
NOTE: To avoid damage to your hood, preduct debris from entering the duct opening. 1. Disconnect power cord, remove the stainless steel baffle filter and grease tunnel. 2. Set aside the stainless steel baffle filters and grease tunnel until the range hood is properly installed. VICTORY range hoods | PRESTIGE... -
Page 13: Installation
Areas to install wall or roof vent ducting. 10”- Ø Transitions Top Installed Range Hood placement 42”, 48”, 60” Min: 30” Max: 36” Cooking Surface FRONT VIEW VICTORY range hoods PRESTIGE | 13... - Page 14 (5) Use knife and saw to cut out drywall to accommo- (6) Screw on plywood to the exposed studs (wood- date plywood brace support. screws not included). The inserted plywood should be the same depth as the drywall slab it is replacing. VICTORY range hoods | PRESTIGE...
- Page 15 (8) Use woodscrews (not included) to screw onto and drywall seamlessly. Sand down any rough the area of the plywood brace based on your spackle to smooth out. Paint area if required. measurements already established. VICTORY range hoods PRESTIGE | 15...
- Page 16 Connect the range hood to a designated standard outlet and check the fan motor and lights are functioning. Be alert of any electrical hazards and refer to the product label for the suitable voltage of this unit. VICTORY range hoods | PRESTIGE...
- Page 17 Use aluminum foil tape to width, and comes in different heights (12”, 24”, 36”). Use make all joints secure and air tight. M4-4mm screws to fasten cover to range hood. VICTORY range hoods PRESTIGE | 17...
- Page 18 SIDE VIEW (2) Slide toward and into the recess above the light switch panel while raising the filter at the rear. Lower filter while sliding back until it rests onto Grease Tunnel. VICTORY range hoods | PRESTIGE...
-
Page 19: Venting Methods
30” ½ Min height: 98 ” from bottom of duct to ground when range height to stove is 36” 36” typical * Due to different ceiling height configurations, recommended height may not be applicable. VICTORY range hoods PRESTIGE | 19... - Page 20 30” ½ Min height: 98 ” from bottom of power outlet to floor when range height to stove is 36” * Due to different ceiling height configurations, recommended height may not be applicable. VICTORY range hoods | PRESTIGE...
- Page 21 This hood comes with a back exhaust option (additional charges will apply to make the hood rear-vented). This option must be purchased prior shipping. Changing from the top vent to back vent onsite can be difficult. Please contact Victory Range Hoods if you have any further questions. VICTORY range hoods PRESTIGE...
-
Page 22: Wiring Diagram
The switch has 5 positions: OFF, SPEED 1,2,3,4. LIGHT SWITCH: Rotate the switches clockwise to switch the lights ON. The light switch allows you to control the intensity of the light via Typical rotary switch rotary dimmer. VICTORY range hoods | PRESTIGE... -
Page 23: Troubleshooting
Check if all joints are properly con- nected, sealed, and taped. • Make sure the power is on high speed for heavy cooking. NOTE: For all other inquiries, please contact Victory Range Hoods. VICTORY range hoods PRESTIGE | 23... -
Page 24: Use And Care Information
DO NOT operate blowers when filters are removed. Never disassemble parts to clean without proper instructions. Disassembly is recommended to be performed by qualified personnel only. Read and understand all instructions and warnings in this manual before proceeding. VICTORY range hoods | PRESTIGE... -
Page 25: Maintenance
Dry the filters and re-install before using the hood. Replacing Filters: • Should filters wear out due to age and prolonged use, please contact Victory Range Hoods to order replacement filters. VICTORY range hoods... -
Page 26: Bulb Replacement
Twist the connector cap off, and dislodge from electrical socket. LED Bulb is model: GU10. Contact Victory Range Hood and place an order, or you may purchase at your nearest hardware store. VICTORY range hoods | PRESTIGE... - Page 27 *Observe all safety precautions before you proceed to turn ON breaker and range hood to test for operation. VICTORY range hoods PRESTIGE | 27...
-
Page 28: Warranty
Victory Range Hoods. The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. VICTORY range hoods... -
Page 29: Disclaimer
Toll Free: 1-800-394-4020 info@kitchenhoods.ca The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. VICTORY range hoods PRESTIGE | 29... - Page 30 583 Nicola Avenue | Port Coquitlam | BC | Canada | V3B 0M3 www.kitchenhoods.ca...
