Summary of Contents for Southern Enterprises CELINA MS663600TX

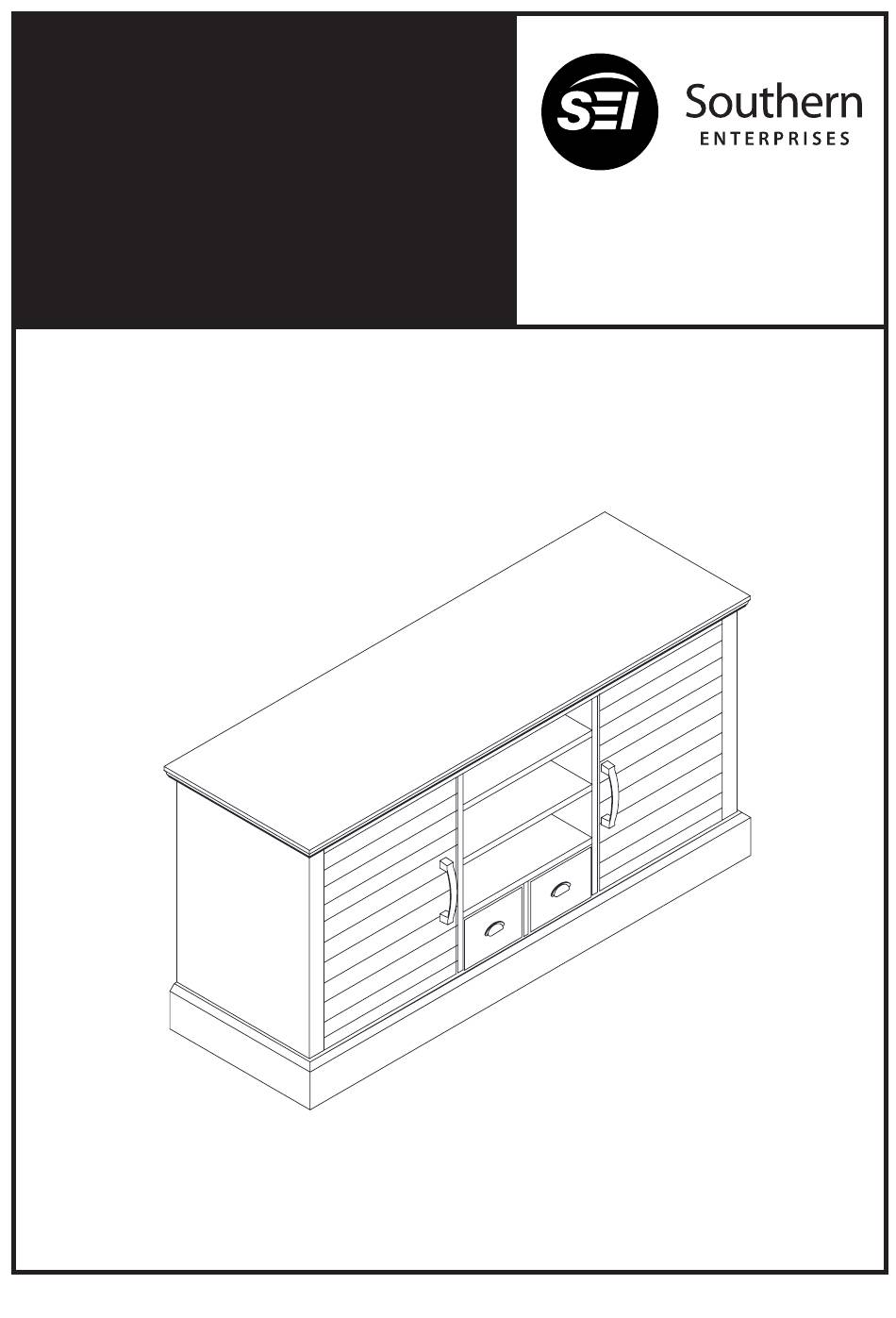

- Page 1 MS663600TX CELINA TV/MEDIA CONSOLE For assistance with assembly contact: Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com www.seidal.com (B) 1 pcs (C) 1 pcs (D) 1 pcs (E) 2 pcs ) 1 pcs...
- Page 2 (F) 1 pcs (G) 1 pcs (F) 1 pcs (F) 1 pcs (G) 1 pcs (G) 1 pcs (H) 1 pcs (J) 2 pcs (I) 1 pcs (F) 1 pcs (G) 1 pcs (H) 1 pcs (H) 1 pcs (J) 2 pcs (J) 2 pcs (I) 1 pcs (I) 1 pcs...
- Page 3 MS663600TX CELINA TV/MEDIA CONSOLE For assistance with assembly contact: Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com www.seidal.com PARTS LIST: DESCRIPTION DESCRIPTION Bottom Base Center Upper Back Panel Left Center Divider Center Lower Back Panel Right Center Divider Adjustable Shelves Lower Center Shelf...
- Page 4 Bottom Base (A) as shown. Step 2: Screw Cam Bolts (2) into Left Center Divider (B), Right Center Divider (C) and Lower Center Shelf (D) as shown. Figure 1 Customer Service 1-800-633-5096 service@seidal.com Southern Enterprises, Inc. 600 Freeport Pkwy Ste: 200 Coppell, Texas 75019...
- Page 5 MS663600TX CELINA TV/MEDIA CONSOLE Assembly Instructions Step 1: Attach Upper and Middle Center Shelve s (E) and Lower Center Shelf (D) to Left Center Divider (B) and Right Center Divider (C) by inserting Wood Dowers (1) and Cam Bolts (2) into their corresponding holes until panels meet.
- Page 6 MS663600TX CELINA TV/MEDIA CONSOLE Assembly Instructions Step 1: Screw Cam Bolts (2) into the threaded inserts on the bottom of Top Panel (I). Step 2: Install Magnets (13) to the Top Panel (I) using Screws (12) as shown. Step 3: Attach the Top Panel (I) to the assembled unit by inserting Wood Dowels (1)
- Page 7 MS663600TX CELINA TV/MEDIA CONSOLE Assembly Instructions Step 1: Attach the Left Back Panel ( J ), Center Upper Back Panel (K), Center Lower Back Panel (L) and Right Back Panel (J) to the back of the unit using Screws (3) and Pins (10).
- Page 8 MS663600TX CELINA TV/MEDIA CONSOLE Assembly Instructions Step 1: Attach the Door Handles (7) to Left Door Panel (N) and Right Door Panel (O) using Screws (6) on shown. Step 2: Attach Door Panels (N/O) to Side Panels (G/H) using Screws (12) into the pre-drilled holes.
- Page 9 MS663600TX CELINA TV/MEDIA CONSOLE Assembly Instructions Step 1: Insert the drawers onto the drawer glides. Figure 6...
- Page 10 This unit contains a permanent warning sticker located on back panel. Do not allow children under 16 years to move the cart. Model: MS663600TX CELINA TV/MEDIA CONSOLE Southern Enterprises, Inc 600 Freeport Parkway, Suite 200 Coppell, Texas, 75019 Manufacture Date: 06/15/2015...
-
Page 11: Parts Replacement Form
If damages or missing parts are not reported within 90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon- hollyandmartin.com Fri Central time if you have product issues or email us at service@ .
