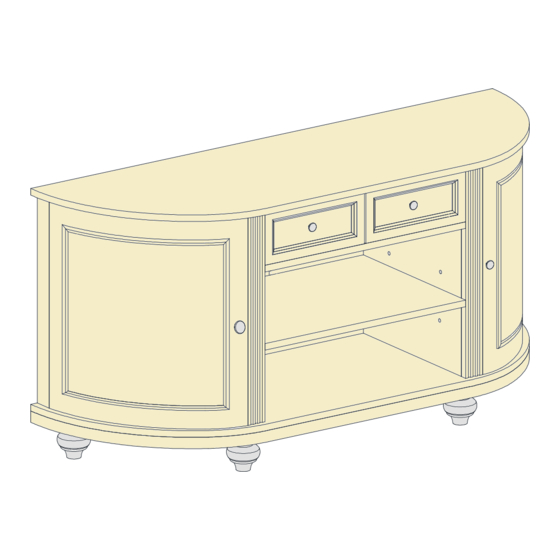

- Page 1 MS834100TX Dandridge TV/Media Stand-Black MS834200TX Dandridge TV/Media For assistance with assembly contact: Southern Enterprises, Inc. Customer Service 1-800-633-5096 Stand - Antique White sservice@seidal.com wwww.seidal.com Assembly Instruction PO#： Page 1...
-
Page 2: Parts List
Dandridge TV/Media Stand Parts list Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw. Carefully study the diagrams below. - Page 3 Quantity Quantity Quantity of 1 of 1 of 1 drawer bottom Upper back panel drawer Front Quantity Quantity of 1 of 6 Below back panel Quantity Quantity Quantity of 26 of 20 of 20 Wood Dowel cam blot calm lock Dia5/16”x1-3/16”L Quantity Quantity...
- Page 4 Quantity Quantity Quantity of 24 of 4 of 12 Paper cover bracket screw :Dia1/8”x1/2”L Quantity Quantity Quantity of 1 of 1 of 1 Female slide right Female slide left male slide left Quantity Quantity Quantity of 1 of 4 screw :Dia1/8”x1-5/8”L male slide right Plastic Anchor Quantity...
- Page 5 Dandridge TV/media Stand Assembly Instructions Assembly Instructions: Wood may scratch easily, Be careful when assembling. Do not scratch. Attach female slide left (13) to left side panel(C) with screw (12). Tighten screw with phillips screwdriver (not included) Figure 1 Attach female slide right (15) to right side panel (D) with screw (12), tighten screw with phillips...
- Page 6 Attach legs (T) to pre-assembly unit on figure 3. Tighten by your hand. Figure 4 Insert cam lock (3) into predrilled holes on on pre-assembly unit on figure 3.Screw cam bolt (2) into pre-drilled holes on bottom panel (B). Attach pre-assembly unit on figure 3 to bottom panel (B) by inserting wood dowel (1) &...
- Page 7 Insert cam lock (3) into predrilled holes on post (H)&(I) Screw cam bolt (2) into pre-drilled holes on pre-assembly unit on figure 6. Attach two post (H)(I) to pre-assembly on figure 6 by inserting wood dowel (1) & cam bolt (2) into corresponding pre-drilled holes until post (H)(I) &...
- Page 8 Insert cam lock (3) into predrilled holes on pre-assembly unit on figure 9 Screw cam bolt (2) into pre-drilled holes on Top panel (A) to pre-assembly on figure 9 by inserting wood dowel (1) & cam bolt (2) into corresponding pre-drilled holes until Top panel (A) &...
- Page 9 Insert calm lock(3) into predrilled hole on drawer side Figure 13 panel left (N)& drawer side panel right (O),screw calm bolt(2) into predrilled on drawer front panel(Q), Attach the drawer side panel left (N) & drawer side panel right (O) to drawer front panel(Q) together by groove well match, as well tight them by rotating cam lock (3)
- Page 10 Attached drawer box into pre-assembly unit on figure 14 , please make sure drawer box side’s male slide into side panel’s female slide, please try and make sure slide smoothly. Figure 15 Attach Bracket (11) to back Panel using Screw (19). wall Tighten screw (19) using Philips screwdriver.
- Page 11 DANDRIDGE TV/MEDIA STAND=BLACK is ready to use Figure 17 Page 11...
-
Page 12: Parts Replacement Form
90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts. - Page 13 This unit contains a permanent warning sticker located on under side of top shelf or inside drawer. Do not allow children under 16 years to move the cart. Model: MS834100TX Dandridge TV/Media Stand Southern Enterprises, Inc 600 Freeport Parkway,...
