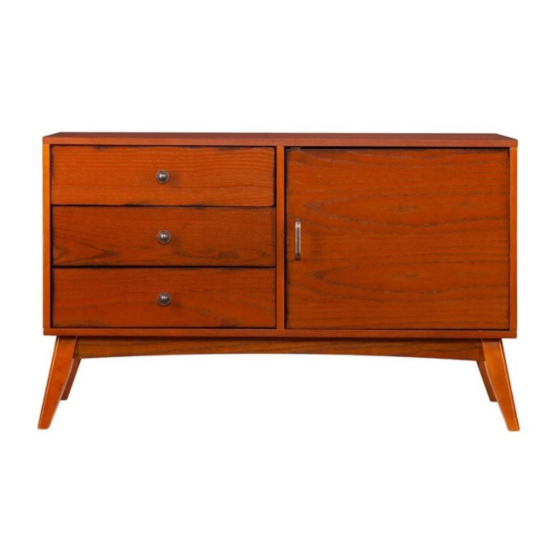

- Page 1 MS664700TX Putnam Media Console For assistance with assembly, contact: Southern Enterprises Inc. Customer Service 1-800-633-5096 Assembly Instructions service@seidal.com www.seidal.com PO#: Page | 1...
- Page 2 Putnam Media Console Assembly Instructions Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is missing. Before beginning assembly, carefully study the diagrams below and sort your hardware according to the pictures.
- Page 3 Quantity Quantity Quantity of 1 of 1 of 4 Upper Back Panel Lower Back Panel Quantity Quantity Quantity of 24 of 24 of 12 Cam Lock Wood Dowel Ø 8 x 30mm Cam Bolt Quantity Quantity Quantity of 49 of 5 of 18 Round Head Screw Ø...
- Page 4 Quantity Quantity Quantity of 12 of 1 of 1 Long Handle Magnet Screw ∅1/8"x1" Quantity Quantity Quantity of 2 of 1 of 4 Magnet Plate Shelf Support Hinge Quantity Quantity Quantity of 4 of 4 of 4 Screw Screw ∅1/8"x5/8" Ø...
- Page 5 Putnam Media Console Assembly Instructions Please separate Drawer Slides (7) into male and female components as shown. Note: There is a lever located on the male slide. Push the lever to either side while pulling in order to detach the male slide from the female slide. Male Metal Slide Female Metal Slide Figure 1...
- Page 6 Attach Female Drawer Slide (7) to Middle Vertical Panel (E) using Flat Head Screws (4). Tighten Flat Head Screws (4) with Phillips screwdriver. Figure 3 Attach Legs (O) to Bottom Panel (B) using Bolts (9), Flat Washers (11) and Spring Washers (12) as shown. Tighten Bolt (9) with Allen Wrench (10).
- Page 7 Screw with fingers to help align cam bolts before using screwdriver. Insert Cam Locks (2) into corresponding holes on Middle Vertical Panel (E), Left Side Panel (C) and Right Side Panel (D) Screw Cam Bolts (1) and insert Wood Dowels (3) into corresponding holes on Bottom Panel (B).
- Page 8 Insert Cam Locks (2) into corresponding holes on assembled unit from Figure 5. Screw Cam Bolts (1) and insert Wood Dowels (3) into corresponding holes on Top Panel (A). Attach Top Panel (A) to assembled unit by inserting Wood Dowels (3) and Cam Bolts (1) into corresponding holes until Top Panel (A) and assembled unit meet.
- Page 9 Attach Male Drawer Slides (7) to Drawer Side Panels (I/J) using Flat Head Screws (4). Tighten Flat Head Screws (4) with Phillips screwdriver. Figure 9 Insert Cam Locks (2) into corresponding holes on Drawer Side Panels (I/J) Screw Cam Bolts (1) into corresponding holes on Drawer Front Panel (H).
- Page 10 Insert Drawer Bottom Panel (L) into the grooves of assembled drawer. Figure 11 Attach Drawer Back Panel (K) to the assembled drawer using Screws (13). Tighten Screws (13) with Phillips screwdriver. Repeat Figures 9-12 to assemble the other drawers. Figure 12 Page | 10...
- Page 11 Insert three drawers into assembled unit. Make sure drawer’s male ball bearing slides are carefully inserted into side panel’s female ball bearing slide. Make sure ball bearing slides glide smoothly in and out. Figure 13 Attach Metal Plate (17) to the inside of Door (F) using Flat Head Screws (4).
- Page 12 Attach the Door (F) to the assembled unit from Figure 13 using Flat Head Screws (4) Tighten Flat Head Screws (4) with Phillips screwdriver. Figure 15 Insert Shelf Supports (18) into holes on Right Side Panel and Middle Vertical Panel. Cover Cam Locks with Covers (24) as shown.
- Page 13 Insert Adjustable Shelf Panel (G) in the arrows direction. Make sure the shelf supports holds the shelf (G) firmly. Figure 17 Attach Brackets (19) to back panel using Screws (20). Tighten Screws (20) using Philips screwdriver. Mark two desired locations on wall and drill two 3/16"...
- Page 14 Move this item close to the wall Brackets (19) and tie in all Brackets (19) together with Plastic Straps (23) as shown in diagram. Anti-tipping hardware must be used for this product to avoid tipping and injury. Figure 19 Now your Putnam Media Console is ready for use.
-
Page 15: Parts Replacement Form
90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. For product issues, please contact Southern Enterprises at 800-633-5096 (toll-free) / 972-869-0111 (Dallas) Mon-Fri 9am – 4pm CST, or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts. - Page 16 This unit contains a permanent warning sticker located on under side of top shelf or inside drawer. Do not allow children under 16 years to move the cart. Model: MS664700TX Putnam Media Console Southern Enterprises, Inc 600 Freeport Parkway,...
