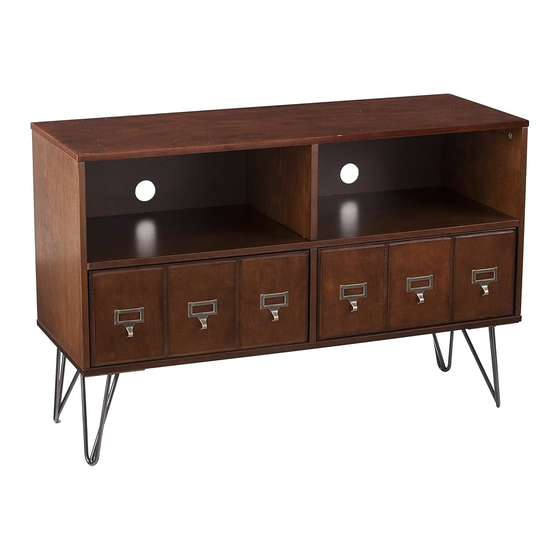

- Page 1 MS040700TX Blankenship Media Console For assistance with assembly, contact: Southern Enterprises, Inc. Customer Service: 1-800-633-5096 Assembly Instructions service@seidal.com www.seifurniturestore.com PO#: Page | 1...
-
Page 2: Parts List
Blankenship Media Console Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or a blanket. Check that you have all parts indicated. Call customer service if any hardware is missing. - Page 3 Quantity of 4 Quantity Quantity Quantity of 16 of 16 of 16 Cam Bolts Cam Locks Wood Dowels Dia. 5/16"x1-1/4" Quantity Quantity Quantity f 12 f 12 f 12 Bolt Dia. 1/4x3/4” L Spring Washer Dia.1/4” Flat washer Dia.1/4” x3/4” Quantity Quantity Quantity...
- Page 4 Quantity Quantity Quantity of 4 of 2 of 2 Bracket Screws Dia. 1/8”x1-1/2”L Screws Dia. 1/8”x5/8”L Quantity Quantity of 2 of 14 Anchor Adhesive Pad Care and Cleaning Instructions: Before using, wipe with a clean, dry cloth. For replacement parts or questions, please call Periodically apply furniture wax to renew the SEI Customer Service at 1-800-633-5096.
- Page 5 Blankenship Media Console Assembly Instructions Align Bolts (D) by hand. Attach Legs (13) to the Bottom Panel (6) with Bolts (D), Spring Washers (E), and Flat Washers (F). Tighten Bolts (D) with Allen Wrench (G). Figure 1 Attach the Shelf Panel (4) to the Middle Panel (5).
- Page 6 Align Cam Bolts (A) by hand. Insert Cam Locks (B) into corresponding holes on Shelf Panel (4). Please do not overtighten cam locks. Stop when they feel Screw Cam Bolts (A) into threaded holes secure. on Side Panels (2/3). Attach Side Panels (2/3) to Shelf Panel (4) by inserting Cam Bolts (A) and Wood Dowels (C) into corresponding holes until all panels meet.
- Page 7 Start with finger to help align Cam Bolts. Insert Cam Locks (B) into corresponding holes on Side Panel (2/3) & Middle Panel (5). Screw Cam Bolts (A) into threaded holes on Top Panel (1). Attach Top Panel (1) to Side Panel (2/3) & Middle Panel (5) by inserting Cam Bolts (A) and Wood Dowel (C) into corresponding holes until all panels meet.
- Page 8 Attach Drawer Side Panels (9/10) to Drawer Front Panel (8) using Cam Bolts (I) and Cam Locks (J). Cover Cam Locks (J) with Adhesive Pads (Q). Attach Drawer Back Panel (11) to Side Panels (9/10) using Screws (K). Insert Drawer Bottom Panel (12) into grooves of Panels (9/10/11).
- Page 9 Attach Brackets (M) to Back Panel using Screws (O). Tighten Screws (O) using a Philips screwdriver (not included). Mark two desired locations on wall. Drill two 3/16" holes. Insert Plastic Anchors (P) into the holes, tap lightly with hammer (not included) as needed.
- Page 10 Now your Blankenship Media Console is ready to use! Figure 11 Page | 10...
- Page 11 This unit contains a permanent warning sticker located on back panel. Do not allow children under 16 years to move the media stand. Model: MS040700 TX Blankenship Media Console Southern Enterprises, Inc 600 Freeport Parkway, Suite 200 Coppell, Texas, 75019 Manufacture Date: 11/25/2015...
-
Page 12: Parts Replacement Form
90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. For product issues, please contact Southern Enterprises at 800-633-5096 (toll-free) / 972-869-0111 (Dallas), Mon-Fri 9am – 4pm CST, or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
