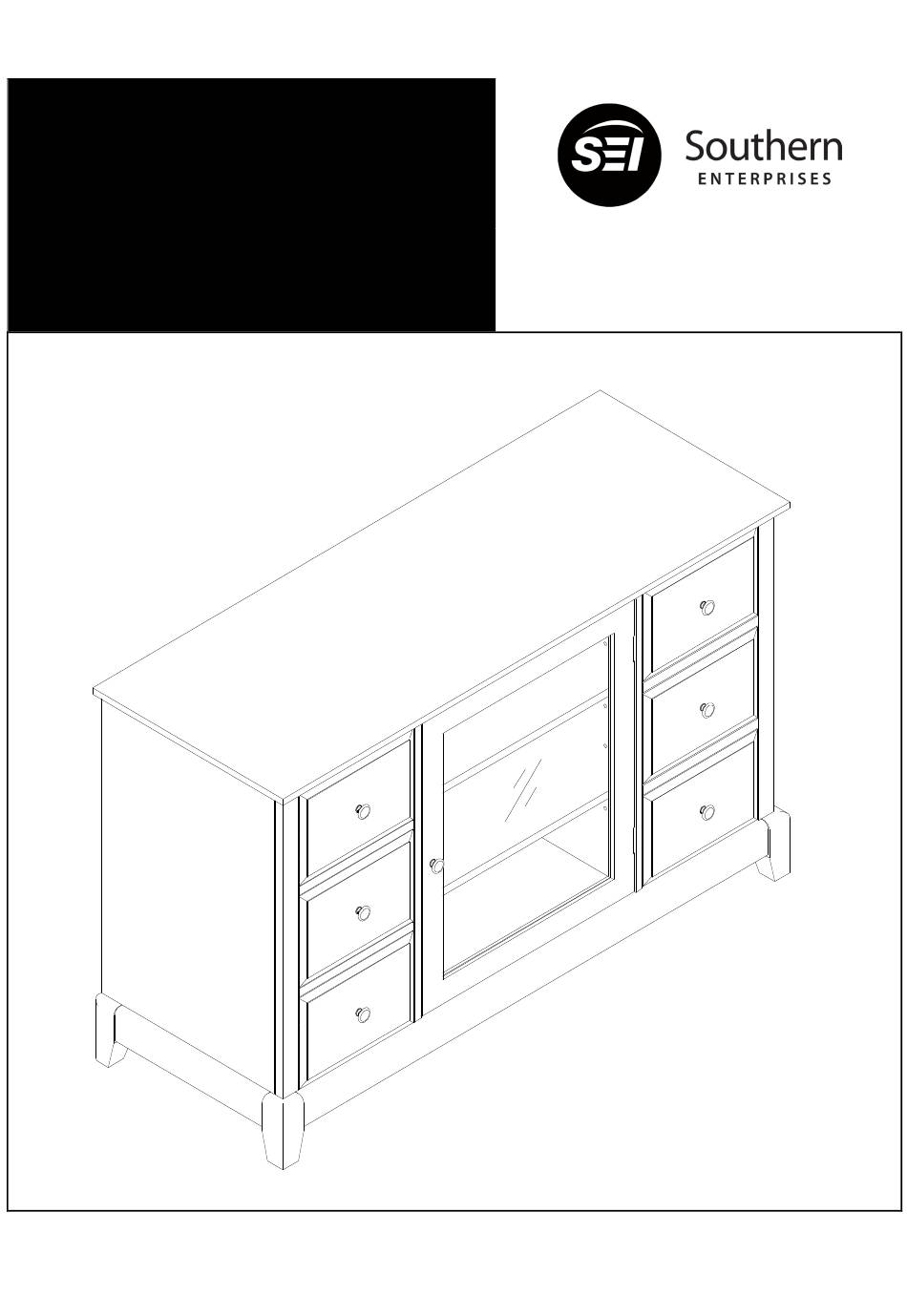

- Page 1 MS341700TX Denver Media Console For assistance with assembly, contact: Southern Enterprises Inc. Assembly Instructions Customer Service: 1-800-633-5096 service@seidal.com www.seidal.com Page | 1...
- Page 2 Denver Media Console Parts List Please review all parts and hardware before disposing of any packaging. Before beginning assembly, separate each type of hardware. Carefully study the diagrams below and check that you have all parts indicated. Call Customer Service if missing hardware. Using the incorrect hardware will cause damage.
- Page 3 Quantity of 16 Quantity of 34 Shelf Pins Screws (￠3x14mm) Quantity Quantity of 2 of 2 Plastic Anchors Screws (￠3.5x19mm) Quantity Quantity of 2 of 2 Plastic Straps Screws (￠3.5x25mm) Quantity of 4 Quantity of 8 Brackets Covers Quantity Quantity of 1 of 1 Top Panel...
- Page 4 12-1. Quantity Quantity of 2 of 1 Middle Adjustable Panels Top Drawer Front 12-2. 12-3. Quantity Quantity of 1 of 1 Middle Drawer Front Bottom Drawer Front Quantity Quantity of 3 of 3 Left Drawer Sides Right Drawer Sides Quantity Quantity of 3 of 3...
- Page 5 Denver Media Console Assembly Instructions Insert Cam Locks (B) into holes on Cross Bars (7). Attach Cross Bars (7) to Right Side Panel (4) and Divider Panel (6) using Cam Bolts (A) and Wood Dowels (C). Tighten by rotating Cam Locks (B) clockwise with Phillips screwdriver.
- Page 6 Insert Cam Locks (B) into holes on top side of Side Panels (3/4) and Divider Panels (5/6). Attach Top Panel (1) to Side Panels (3/4) and Divider Panel (5/6) using Wood Dowels (C) and Cam Bolts (A). Tighten by rotating Cam Locks (B) clockwise with Phillips screwdriver.
- Page 7 Attach Back Panels (19/18/20) to back of assembled unit in same sequence as shown with Screws (P). Tighten screws with Phillips screwdriver. Figure 5 Insert Shelf Pins (O) into corresponding holes on unit. Place Adjustable Shelves (10/11) onto Shelf Pins (O). Figure 6 Page | 7...
- Page 8 Connect Magnet (M) on underside of Top Panel (1) using Screws (P). Attach Hinges (H) to Door Panel (8) with Screws (I). Attach door to unit using attached Hinges (H) and Screws (I). Attach Metal Plate (N) to door with Screw (I).
- Page 9 Use Long Screws (J) to connect Drawer Left/Right Side Panels (13/14) to Drawer Back Panel (16). Slide Drawer Bottom Panel (15) into corresponding grooves on drawer side and back panels. Attach Drawer Front Panel (12-1) to assembled drawer using Long Screws (J).
- Page 10 If drawer hits adjoining parts or if drawer gap is not consistent, you can loosen screws on side and adjust drawer. Figure 11 Attach Brackets (U) to Back Panel using Screws (R). Tighten Screws (R) using a Philips screwdriver. Mark two desired locations on wall. Drill two 3/16"...
- Page 11 Move unit close to wall and tie all Brackets (U) with Plastic Straps (T) as shown. wall wall Anti-tipping hardware must be used for this product to avoid tipping and injury. FURNITURE FURNITURE Figure 13 Now your Denver Media Console is ready to use! Figure 14 Page | 11...
-
Page 12: Parts Replacement Form
90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. For product issues, please contact Southern Enterprises at 800-633-5096 (toll-free) / 972-869-0111 (Dallas), Mon-Fri 9am – 4pm CST, or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts. - Page 13 DO NOT EXCEED RECOMMENDED LOAD. Use with products heavier than the maximum sizes and weights indicated may result in instability causing possible injury. This unit contains a permanent warning sticker located on back panel. Model: MS341700TX Denver Media Console Southern Enterprises, Inc...
