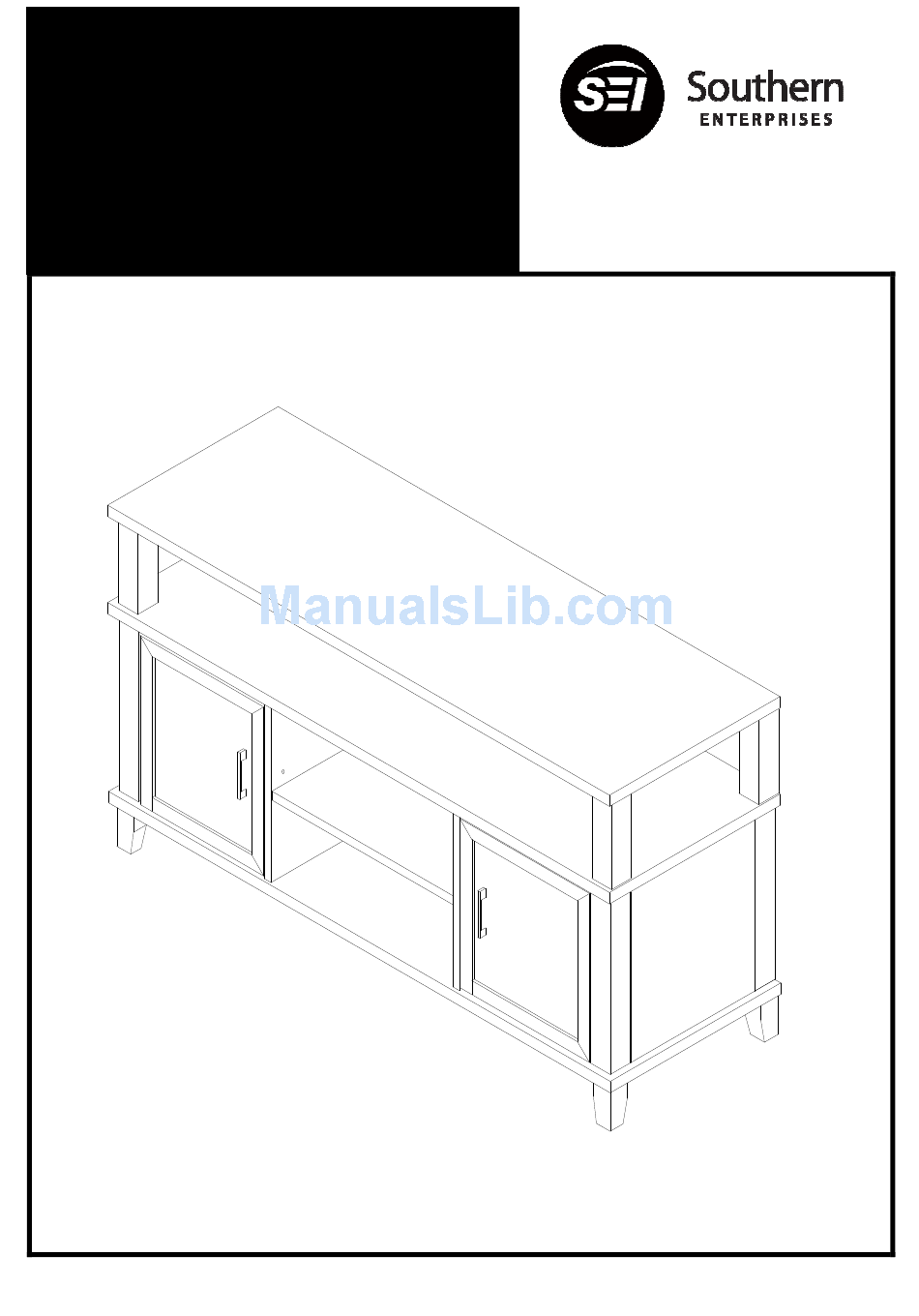

- Page 1 MS040800TX Talus Media Console For assistance with assembly, contact: Southern Enterprises, Inc. Customer Service: 1-800-633-5096 service@seidal.com Assembly Instructions www.seifurniturestore.com PO#: Page | 1...
- Page 2 Talus Media Console Parts List Please check packaging for all parts and hardware before discarding. Before beginning assembly, separate each type of hardware. Carefully study the diagrams below and check that you have all parts indicated. Call Customer Service if missing any hardware. Using the incorrect hardware will cause damage. Quantity Quantity Quantity...
- Page 3 Quantity Quantity Quantity of 4 of 1 of 1 Adjustable Leg Back Panel Quantity Quantity Quantity of 16 of 28 of 16 Cam Bolts Wood Dowels Cam Locks Dia. 5/16"x1-1/4 Quantity Quantity Quantity of 16 of 8 of 4 Cotton Mat Screw Dia.3*10 Bolts...
- Page 4 Quantity Quantity Quantity of 2 of 2 of 26 Cam Locks Screw Dia.3*14 Quantity Quantity Quantity of 4 of 12 of 4 Bolts Dia. 3*x 14 Shelf Pin Screw Dia.1/8”*5/8L” Quantity Quantity of 4 Quantity of 4 of 2 Bracket Plastic chain Anchor Quantity...
- Page 5 Talus Media Console Assembly Instructions Insert Cam Locks (C) into corresponding holes on Supports (2). Screw Cam Bolts (A) into threaded holes on Top Panel (1). Attach Supports (2) to Top Panel (1) by inserting Cam Bolts (A) and Wood Dowels (B) into corresponding holes until all panels meet.
- Page 6 Attach Magnets (O) to pre-assembled unit from Figure 2 with Screws (S). Tighten Screws (S) with Phillips screwdriver (not included) Figure 3 Insert Cam Locks (C) into corresponding holes on Panels (4L/4R/5L/5R). Screw Cam Bolts (A) into threaded holes on pre-assembled unit from Figure 3.
- Page 7 Attach Hinges (PL/PR) to Left Door Panel (7L) with Screws (E). Attach Iron Plate (Q) to left Door Panel (7L) with Screw (H). Attach Handle (G) to Left Door Panel (7L) with Bolts (F). Tighten Bolts (F) and Screws (E/H) with Phillips screwdriver (not included).
- Page 8 Insert Cam Locks (C) into corresponding holes on pre-assembled unit from Figure 4. Screw Cam Bolts (A) into threaded holes on Bottom Panel (6). Attach Doors (7L/7R) to pre-assembled unit from Figure 4 by inserting upper hinges into corresponding holes. Lower hinges will fit into holed on Bottom Panel (6) Attach Bottom Panel (6) to...
- Page 9 Flip over pre-assembled unit from Figure 8 so that the unit is resting on its legs. Attach Back Panel (12) to pre-assembled unit from Figure 8 with Screws (R). Tighten Screws (R) with Phillips screwdriver (not included). Figure 9 Insert Shelf Pins (T) into desired pre-drilled holes on pre-assembled unit from Figure 9.
- Page 10 Attach Brackets (V) to back of pre-assembled unit from Figure 10 using Screws (U). Tighten Screws (U) using Philips screwdriver (not included). Mark two desired locations on wall. WALL Drill two 3/16" holes on wall. Insert Plastic Anchors (X) into the 2 holes on wall, tap with hammer (not included) as needed Attach Brackets (V) to wall using...
-
Page 11: Parts Replacement Form
90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. For product issues, please contact Southern Enterprises at 800-633-5096 (toll-free) / 972-869-0111 (Dallas), Mon-Fri 9am – 4pm CST, or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts. - Page 12 This unit contains a permanent warning sticker located on under side of top shelf or inside drawer. Do not allow children under 16 years to move the media console. Model: MS040800TX Talus Media Console Southern Enterprises, Inc 600 Freeport Parkway, Suite 200 Coppell, Texas, 75019 Manufacture Date: 11/28/2015 Page | 12...
