Lutron Electronics HT-3007SD Operation Manual

Sd card real time data recorder type k/j thermometer, dew point, wet bulb humidity/temp. meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

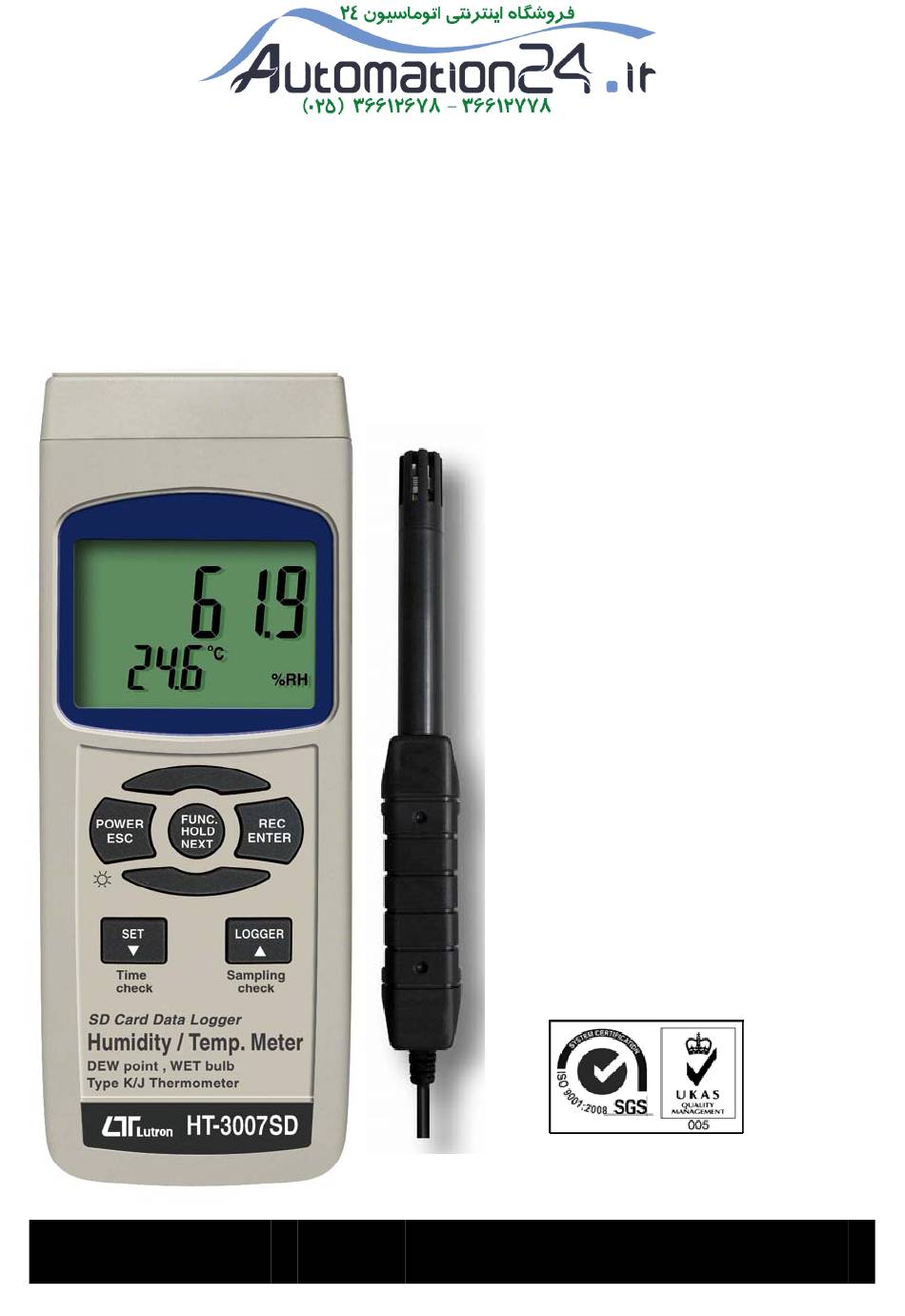

SD card real time Data Recorder
Type K/J thermometer, Dew point, Wet bulb
HUMIDITY/TEMP. METER
Model : HT-3007SD
OPERATION MANUAL
Your purchase of this
HUMIDITY/TEMP.
METER with SD CARD
D A T A
R E C O R D E R
marks a step forward for
you into the field of
precision measurement.
A l t h o u g h
DATALOGGER
complex
and
instrument, its durable
structure
will
many years of use if
o p e r a t i n g
p r o p e r
t e c h n i q u e s
developed. Please read
t h e
f o l l o w i n g
instructions
and always keep this
manual
within
reach.
t h i s
is
a
delicate
allow
a r e
carefully
easy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT-3007SD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lutron Electronics HT-3007SD

Summary of Contents for Lutron Electronics HT-3007SD

  • Page 1 SD card real time Data Recorder Type K/J thermometer, Dew point, Wet bulb HUMIDITY/TEMP. METER Model : HT-3007SD Your purchase of this HUMIDITY/TEMP. METER with SD CARD D A T A R E C O R D E R marks a step forward for you into the field of precision measurement.
  • Page 2 TABLE OF CONTENTS 1. FEATURES................1 2. SPECIFICATIONS..............2 3. FRONT PANEL DESCRIPTION........... 6 3-1 Display................6 3-2 Power Button ( ESC, Backlight Button )....... 6 3-3 Hold Button ( Function, Next Button )......... 6 3-4 REC Button ( Enter Button )..........6 3-5 SET Button ( Button, Time check Button )......
  • Page 3 1. FEATURES * Humidity/Temp., Dew point ( Humidity ), Wet bulb ( Humidity ), Type K/J thermometer, 4 kinds measurement are combined into one meter, intelligent and professional. * Type K, Type J thermocouple thermometer. * Fast humidity measuring response time. * Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds.

  • Page 4: Specifications

    2. SPECIFICATIONS 2-1 General Specifications Circuit Custom one-chip of microprocessor LSI circuit. Display LCD size : 52 mm x 38 mm LCD with green backlight ( ON/OFF ). Measurement Humidity/Temp. : %RH/ ℃ ℉ Unit Dew point ( Humidity ) : ℃...
  • Page 5 Data Hold Freeze the display reading. Memory Recall Maximum & Minimum value. Sampling Time Approx. 1 second. of Display Data Output RS 232/USB PC computer interface. * Connect the optional RS232 cable UPCB-02 will get the RS232 plug. * Connect the optional USB cable USB-01 will get the USB plug.
  • Page 6 Optional SD Card ( 1 GB ) Accessories SD Card ( 2 GB ) Type K thermocouple probe. AC to DC 9V adapter. USB cable, USB-01. RS232 cable, UPCB-02. Data Acquisition software,SW-U801-WIN. Hard carrying case, CA-06 2-2 Electrical Specifications (23± 5 ℃...

  • Page 7: Type K/J Thermometer

    Wet bulb ( Humidity ) Range -21.6 to 50.0 ℃ ℃ ℃ Resolution 0.1 ℃ Range -6.9 to 122.0 ℉ ℉ ℉ Resolution ℉ Remark : * Wet bulb display value is calculated from the Humidity/Temp. measurement automatically. * The Welt bulb accuracy is sum accuracy value of Humidity &...

  • Page 8: Front Panel Description

    3. FRONT PANEL DESCRIPTION 3-1 Display 3-2 Power Button ( ESC, Backlight Button ) 3-3 Hold Button ( Function, Next Button ) 3-4 REC Button ( Enter Button ) 3-5 SET Button ( Button, Time check Button ) ▼ 3-6 Logger Button ( Button, Sampling time check Button ) ▲...

  • Page 9: Measuring Procedure

    4. MEASURING PROCEDURE 4-1 Function selection 1) Turn on the meter by pressing the " Power Button " ( 3-2, Fig. 1 ) momentarily. Pressing the " Power Button " ( 3-2, Fig. 1 ) continuously and > 2 seconds again will turn off the meter.
  • Page 10 3) Humidity and Temperature measurement a. Plug the " Probe Plug " ( 3-17, Fig. 1 ) into the " Probe Input Socket " ( 3-7, Fig. 1 ). b. Power on the meter by pressing the " Power Button " ( 3-2, Fig.
  • Page 11 6) Type K/J thermometer a. Function select to " Type K/J thermometer " b. Not install the Humidity " Probe Plug " ( 3-17, Fig. 1 ) into the " Probe Input Socket " ( 3-7, Fig. 1 ) c. Plug the Thermocouple Temp. Probe ( Type K Temp. probe pr Type J Temp.

  • Page 12: Data Logger

    2) With the " REC. " symbol on the display : a) Press the " REC Button " ( 3-4, Fig. 1 ) once, the " REC. MAX. " symbol along with the maximum value will appear on the display. If intend to delete the maximum value, just press the "...
  • Page 13 b. SD card Format If SD card just the first time use into the meter, it recommend to make the " SD card Format " at first. , please refer chapter 7-8 ( page 20 ). c. Time setting If the meter is used at first time, it should to adjust the clock time exactly, please refer chapter 7-1 ( page 17 ).
  • Page 14 b. Pause the datalogger During execute the Datalogger function , if press the " Logger Button " ( 3-6, Fig. 1 ) once will pause the Datalogger function ( stop to save the measuring data into the memory circuit temporally ). In the same time the text of "...
  • Page 15 Remark : During execute the Manual Datalogger, press the " ▼ Button " ( 3-5, Fig, 1 ) the lower no. ( position no. ) will flashing. It can use the " Button " ( 3-6, Fig. 1) or " ▲...
  • Page 16 2) If the first time to execute the Datalogger, under the route HTA01\, will generate a new file name HTA01001.XLS. After exist the Datalogger, then execute again, the data will save to the HTA01001.XLS until Data column reach to 30,000 columns, then will generate a new file, for example HTA01002.XLS 3) Under the folder HTA01\, if the total files more than 99 files, will generate anew route, such as...
  • Page 17 6. Saving data from the SD card to the computer ( EXCEL software ) 1) After execute the Data Logger function, take away the SD card out from the " SD card socket " ( 3-9, Fig. 1 ). 2) Plug in the SD card into the Computer's SD card slot ( if your computer build in this installation ) or insert the SD card into the "...

  • Page 18: Advanced Setting

    EXCEL graphic screen ( for example ) 7. ADVANCED SETTING Under do not execute the Datalogger function, press the " SET Button " ( 3-5, Fig. 1 ) continuously at least two seconds will enter the " Advanced Setting " mode. then press the "...

  • Page 19: Set Clock Time ( Year/Month/Date, Hour/Minute/ Second )

    Remark : During execute the " Advanced Setting " function, if press " Esc Button " ( 3-2, Fig. 1 ) once will exit the " Advanced Setting " function, the LCD will return to normal screen. 7-1 Set clock time ( Year/Month/Date, Hour/Minute/ Second ) When the lower display show "...
  • Page 20 7-2 Decimal point of SD card setting The numerical data structure of SD card is default used the " . " as the decimal, for example "20.6" "1000.53" . But in certain countries ( Europe ...) is used the " , " as the decimal point, for example "...
  • Page 21 7-4 Set beeper sound ON/OFF When the lower display show " bEEP " 1) Use the " Button " ( 3-6, Fig. 1 ) or " Button " ▲ ▼ ( 3-5, Fig. 1 ) to select the upper value to " yES " or "...
  • Page 22 7-6 Select the Temp. unit to ℃ ℉ When the lower display show " t-CF " 1) Use the " Button " ( 3-6, Fig. 1 ) or " Button " ▲ ▼ ( 3-5, Fig. 1 ) to select the upper Display text to " C " or "...

  • Page 23: Power Supply From Dc Adapter

    2) If select the upper to " yES ", press the " Enter Button " ( 3-4, Fig. 1 ) once again, the Display will show text " yES Enter " to confirm again, if make sure to do the SD memory card format, then press "...

  • Page 24: System Reset

    10. SYSTEM RESET If the meter happen the troubles such as : CPU system is hold ( for example, the key button can not be operated... ). Then make the system RESET will fix the problem. The system RESET procedures will be either following method : During the power on, use a pin to press the "...
  • Page 25 Meter (9W 'D" Connector) Center Pin......Pin 4 (3.5 mm jack plug) Ground/shield.......Pin 2 2.2 K resistor Pin 5 The 16 digits data stream will be displayed in the following format : D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Each digit indicates the following status : End Word D1 &...

  • Page 26: Optional Type K Temp. Probe

    RS232 FORMAT : 9600, N, 8, 1 Baud rate 9600 Parity No parity Data bit no. 8 Data bits Stop bit 1 Stop bit 12. Optional Type K Temp. probe (Type K) TP-01 * Max. short-tern operating Temperature: 300 (572 ℃...
  • Page 27 13. PATENT The meter ( SD card structure ) already get patent or patent pending in following countries : Germany Nr. 20 2008 016 337.4 JAPAN 3151214 TAIWAN M 358970 M 359043 CHINA ZL 2008 2 0189918.5 ZL 2008 2 0189917.0 Patent pending 1007-HT3007SD...
