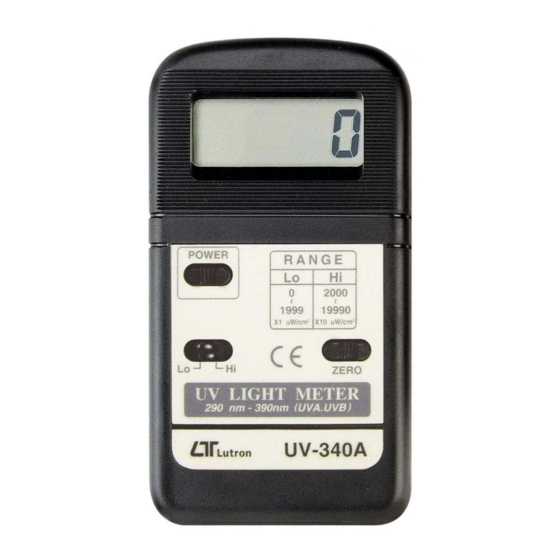

UV LIGHT METER
Model : UV-340A
OPERATION MANUAL
Your purchase of this UV
LIGHT METER marks a
step forward for you
into
the
field
precision measurement.
Although this METER is
a complex and delicate
instrument, its durable
structure
will
many years of use if
p r o p e r
o p e r a t i n g
t e c h n i q u e s
developed. Please read
t h e
f o l l o w i n g
instructions
and always keep this
manual
within
reach.
of
allow
a r e
carefully
easy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UV-340A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lutron Electronics UV-340A

Summary of Contents for Lutron Electronics UV-340A

  • Page 1 UV LIGHT METER Model : UV-340A Your purchase of this UV LIGHT METER marks a step forward for you into field precision measurement. Although this METER is a complex and delicate instrument, its durable structure will allow many years of use if...
  • Page 2 Storage for the " UV sensor " UV sensor is with extremely precise structure. Once don't use it , be sure to store it in the dry environment. For example, put the whole sensor including Desiccant ( Drier ) into to the Plastic bag and seal the bag as tightly as possible ( refer the following figure ).

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. FEATURES..............1 2. APPLICATIONS............1 3. SPECIFICATIONS............2 4. FRONT PANEL DESCRIPTION........3 4-1 Display.............. 3 4-2 Power Button............ 3 4-3 Range Switch (Hi/Lo Switch)........ 3 4-4 Zero Button............3 4-5 Stand..............3 4-6 Battery Compartment/Cover........ 3 4-7 UV Probe Handle..........4-8 UV Sensor............

  • Page 4: Features

    1. FEATURES * Professional, high quality UV meter. * Ultra-violet irradiation measurement for UVA & UVB. * UV detector spectrum from 290 nm to 390 nm. * Hi, Lo measurement range. 19990 and 1999 uW/cm^2. * Exclusive UV sensor structure. * Sensor with cosine correction filter.

  • Page 5: Specifications

    3. SPECIFICATIONS Display LCD size : 18 mm x 45 mm. Maximum indication 1999. 2 ranges : Hi & Lo range Measurement ranges & Lo range : 1999 uW/cm^2 x 1 uW/cm^2 resolution Hi range : 19990 uW/cm^2 x 10 uW/cm^2 * 1000 uW/cm^2 = 1 mW/cm^2 UV sensor Band pass 290 nm to 390 nm.

  • Page 6: Front Panel Description

    4. FRONT PANEL DESCRIPTION 4-1 Display 4-2 Power Button 4-3 Range Switch (Hi/Lo Switch) 4-4 Zero Button 4-5 Stand 4-6 Battery Compartment/Cover 4-7 UV Probe Handle 4-8 UV Sensor...

  • Page 7: Measuring Procedure

    5. MEASURING PROCEDURE 1) Push the " Power Button ( 4-2, Fig. 1 ) continuously until the " Display " ( 4-1, Fig. 1 ) on then release the " Power Button : will power ON the meter. * After power ON if push the " Power Button ( 4-2, Fig. 1 ) once a while again will power OFF the meter.

  • Page 8: Battery Replacement

    2) Storage for the " UV sensor " UV sensor is with extremely precise structure. Once don't use it , be sure to store it in the dry environment. For example, put the whole sensor including Desiccant ( Drier ) into to the Plastic bag and seal the bag as tightly as possible.
