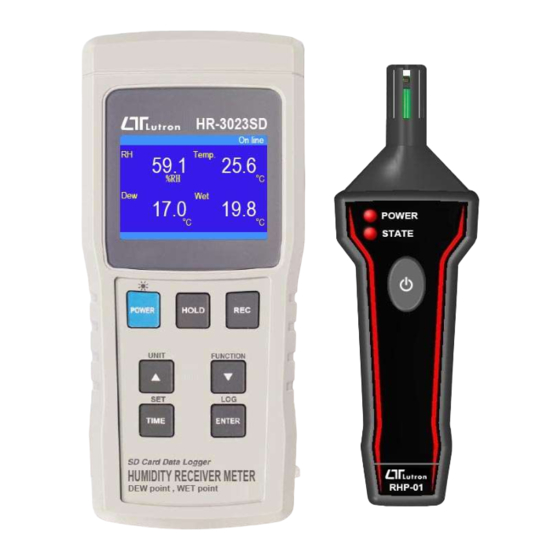

SD Card real time data recorder
Humidity/ dew/wet/Temp. , w/o wire
HUMIDITY RECEVER METER
Model : HR-3023SD
Your purchase of this HUMIDITY RECEVER METER marks a step forward for
you into the field of precision measurement. Although this Meter is a
complex and delicate instrument, its durable structure developed. Please
read the following instructions carefull yand always keep this manual
within easy reach.
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HR-3023SD and is the answer not in the manual?

Questions and answers

Related Manuals for Lutron Electronics HR-3023SD

Summary of Contents for Lutron Electronics HR-3023SD

  • Page 1 SD Card real time data recorder Humidity/ dew/wet/Temp. , w/o wire HUMIDITY RECEVER METER Model : HR-3023SD Your purchase of this HUMIDITY RECEVER METER marks a step forward for you into the field of precision measurement. Although this Meter is a complex and delicate instrument, its durable structure developed.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. FEATURES......................2. SPECIFICATIONS....................3. FRONT PANEL DESCRIPTION................4. MEASURING PROCEDURE.................. 4-1 Hygro-Thermometer measurment ................4-2 Change the temperature unit ( ℃, ℉ )................ 4-3 Data Hold........................4-4 Data Record ( Max./ Min. reading )..............4-5 LCD brightness select....................5.

  • Page 3: Features

    1. FEATURES * Meter and probe w/o wire connect. * Humidity/Temp. meter, * Humidity measurement can show %RH and Temp., Dew , Wet , Temp. * Temp. display unit default to ℃ or ℉. * Meter can default auto power off or manual power off. * Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds.

  • Page 4: Specifications

    2. SPECIFICATIONS 2-1 General Specifications Circuit Custom one-chip of microprocessor LSI circuit. Display TFT LCD size : 2.4 " Measurement function * Humidity/Temp. meter,DEW ,WET Datalogger Auto 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 second Sampling Time For anemometer measurement, Setting range the sampling time setting value...
  • Page 5 Data Hold Freeze the display reading. Memory Recall Maximum & Minimum value. Sampling Time Approx. 1 second. of Display Data Output RS 232/USB PC computer interface. * Connect the optional RS232 cable UPCB-02 will get the RS232 plug. * Connect the optional USB cable USB-01 will get the USB plug.
  • Page 6 Optional * SD Card ( 4 G ) Accessories * Humidity Probe, RHS-221 * AC to DC 9V adapter. * USB cable, USB-01. * RS232 cable, UPCB-02. * Data Acquisition software,SW-U801-WIN. * Hard carrying case ( CA-06 ) ℃ 2-2 Electrical Specifications (23±5 Humidity/Temp.
  • Page 7 Wet bulb ( Humidity ) Range -21.6 ℃ to 50.0 ℃ ℃ 0.1 ℃ Resolution Range -6.9 ℉ to 122.0 ℉. ℉ 0.1 ℉. Resolution Remark : * Wet bulb display value is calculated from the Humidity/Temp. measurement automatically. * The Welt bulb accuracy is sum accuracy value of Humidity &...

  • Page 8: Front Panel Description

    3. FRONT PANEL DESCRIPTION Fig. 1...
  • Page 9 3-1 Display 3-2 Power Button ( LCD Brightness adjustment ) 3-3 Hold Button 3-4 REC Button 3-5 ▲ Button (Unit Button ) 3-6 ▼ Button ( Function Button ) 3-7 TIME Button ( SET Button ) 3-8 ENTER ( LOG Button ) 3-9 SD card socket 3-10 Reset Button 3-11 RS-232 Output Terminal...

  • Page 10: Measuring Procedure

    4. MEASURING PROCEDURE 4-1 Hygro-Thermometer measurment Pressing the " Power Button "( 3-2, Fig. 1 ) > 2 seconds Turn on the meter. * Pressing the " Power Button " ( 3-2, Fig. 1 ) continuously and > 2 seconds again will turn off the meter. 2) Turn on the humidity Probe by pressing the "...

  • Page 11: Change The Temperature Unit

    ℃ ℉ 4-2 Change the temperature unit ( How to change the Temperature unit, select to the Humidity and Temperature measurement function only,then press the "Unit Button " ( 3-5 Fig.1) continuously,the unit will change from " ℃ " to " ℉ " sequence, until the desired unit is present on the Display release the "...

  • Page 12: Lcd Brightness Select

    4-5 LCD brightness select Depending on the brightness of the environment, can use the "Backlight Button " ( 3-2, Fig. 1 ) select from 3rd-order LCD Backlight brightness.

  • Page 13: Datalogger

    5. DATALOGGER 5-1 Preparation before execute datalogger function a. Insert the SD card Prepare a " SD memory card " ( 4 G to 16 G, optional ), insert the SD card into the " SD card socket " ( 3-9, Fig. 1). The front panel of the SD card should face against the down case.

  • Page 14: Auto Datalogger( Set Sampling Time ≧ 1 Second )

    ≧ 5-2 Auto Datalogger ( Set sampling time 1 second ) a. Start the datalogger Press the " LoggerButton ( 3-8, Fig. 1 ) > 2 Sec. , the LCD will show the text " LOGGER ", and flashing , at the same time the measuring data along the time information will be saved into the memory circuit.

  • Page 15: Manual Datalogger ( Set Sampling Time = 0 Second )

    5-3 Manual Datalogger ( Set sampling time = 0 second ) a. Set sampling time is to 0 second Press the " Logger Button ( 3-8, Fig. 1 ) >2 Sec. , the LCD will show the text " Logger ", then press the " Logger Button " ( 3-8, Fig.

  • Page 16: Sd Card Data Structure

    5-5 SD Card Data structure 1) When the SD card is used into the meter, the SD card When the first time, the SD card is used into the meter, the SD card will generate a folder : HRA01 2) If the first time to execute the Datalogger, under the route HRA01\, will generate a new file name HRA01001.XLS.

  • Page 17: Saving Data From The Sd Card To The Computer

    6. Saving data from the SD card to the computer ( EXCEL software ) 1) After execute the Data Logger function, take away the SD card out from the " SD card socket " ( 3-9, Fig. 1 ). 2) Plug in the SD card into the Computer's SD card slot ( if your computer build in this installation ) or insert the SD card into the "...

  • Page 18: Advanced Setting

    EXCEL graphic screen ( for example ) 7. ADVANCED SETTING Under do not execute the Datalogger function, press the " SET Button " ( 3-7, Fig. 1 ) continuously at least two seconds will enter the " Advanced Setting " mode. then press the "...

  • Page 19: Sd Memory Card Format

    Remark : During execute the " Advanced Setting " function,if press " Power Button " ( 3-2, Fig. 1 ) once will exit the " Advanced Setting " function, the LCD will return to normal screen. 7-1 SD memory card Format 1) Use the "...

  • Page 20: Set Sampling Time (Second )

    Remark : After the time value is setting, the internal clock will run precisely even Power off if the battery is under normal condition ( No low battery power ). 7- 3 Set sampling time ( SecondS ) 1) Use the " ▲ Button " ( 3-5, Fig. 1 ) or " ▼ Button " ( 3-6, Fig.

  • Page 21: Set Beeper Sound On/Off

    7- 5 Set beeper sound ON/OFF 1) Use the " ▲ Button " ( 3-5, Fig. 1 ) or " ▼ Button " ( 3-6, Fig. 1 ) select to " BEEPER SOUND " position then press " ENTER " key. 2) Use the "...

  • Page 22: Probe Patting

    7-7 Select the PROBE PATTING 1) Use the " ▲ Button " ( 3-5, Fig. 1 ) or " ▼ Button " ( 3-6, Fig. 1 ) select to " PROBE PATTING " position then press " ENTER " key. 2) Use the "...

  • Page 23: Battery Replacement

    9. BATTERY REPLACEMENT Main meter : 1) When the left corner of LCD display show " ", it is necessary to replace the battery. However, in-spec. measurement may still be made for several hours after low battery indicator appears before the instrument become inaccurate.

  • Page 24: Rs232 Pc Serial Interface

    11. RS232 PC SERIAL INTERFACE The instrument has RS232 PC serial interface via a 3.5 mm terminal ( 3-11, Fig. 1 ). The data output is a 16 digit stream which can be utilized for user's specific application. A RS232 lead with the following connection will be required to link the instrument with the PC serial port.

  • Page 25: Patent

    D11 & D12 Annunciator for Display ℃ = 01 ℉ = 02 % RH = 04 WET_C = G7 DEW_C = G5 DEW_F = G6 WET_F = G8 When send the upper display data = 1 When send the lower display data = 2 Start Word (02) RS232 FORMAT : 9600, N, 8, 1 Baud rate...
