ASSEMBLY INSTRUCTIONS
WILMINGTON

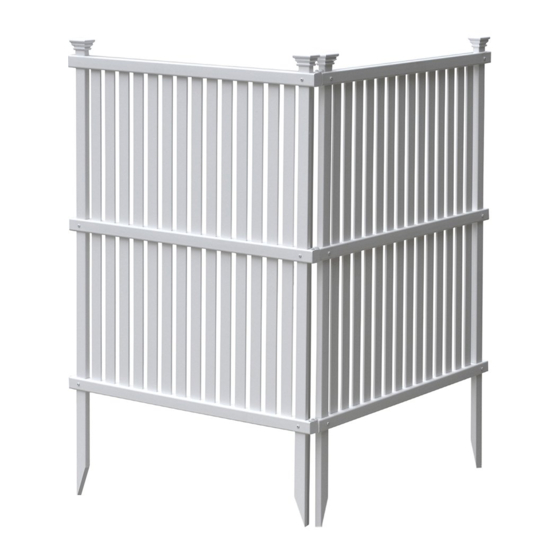

PRIVACY SCREEN
(36" W X 45"H)
Approximate assembly time for 2 screens
Want to see a video on how to
assemble this product?
WWW.ZIPPITY-OUTDOOR.COM
WWW.ZIPPITY-OUTDOOR.COM
2-PACK
45 MIN
Scan the QR code
ASSEMBLY
INSTRUCTIONS
ZP19008
ZP19008
1
VER. 091020
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Zippity WILMINGTON
Summary of Contents for Zippity WILMINGTON
- Page 1 ZP19008 ASSEMBLY INSTRUCTIONS WILMINGTON ASSEMBLY INSTRUCTIONS PRIVACY SCREEN 2-PACK ZP19008 (36” W X 45”H) 45 MIN Approximate assembly time for 2 screens Want to see a video on how to assemble this product? Scan the QR code WWW.ZIPPITY-OUTDOOR.COM WWW.ZIPPITY-OUTDOOR.COM VER. 091020...
- Page 2 If you experience any further trouble with your product, please contact our customer service department. nychgroup.com/parts support@zippity-outdoor.com 704-892-5222 877-234-6196 Customer service agents are available to take calls weekdays from 8am- 5pm EST. If you call outside of business hours, please leave a voicemail.
- Page 3 Stainless Steel Screw (24) Middle Rail (2) Top Rail (2) 1½" x 1½" x 36½" 1½" x 1½" x 36½" Bottom Rail (2) Post Anchor (4) 1" Self-Drilling Stainless Steel Screw (8) 1½" x 1½" x 36½" ¾" x 1¼" x 16" WWW.ZIPPITY-OUTDOOR.COM...
- Page 4 Fasten together using (8) ¾" self-drilling stainless steel screws (J). Align holes Guide (14) pickets down through the top and middle rails. Push down into the top rail until the pickets lock into place. WWW.ZIPPITY-OUTDOOR.COM...
- Page 5 10" of the post posts. Insert each picket into the anchor should be bottom rail. visible beyond the bottom of the posts. Fasten together through the pre- drilled holes in the bottom rail with (4) ¾" self-drilling stainless steel screws. WWW.ZIPPITY-OUTDOOR.COM...
- Page 6 Move the screen to its final Attempt to push the unit into the location, and identify the ground as illustrated. All 10" of the location of posts. post anchors should be inserted into the ground, so that they are no longer visible. WWW.ZIPPITY-OUTDOOR.COM...
- Page 7 6” or 7” of the ground with a claw hammer as illustrated. Add water to loosened soil. Use a block of wood to protect the top of post, and gently hammer the post into the ground. Block of wood WWW.ZIPPITY-OUTDOOR.COM...
- Page 8 If your ground is really hard, you may need to dig a hole large enough to accommodate one post from each panel into the same hole - Approximately 8” in diameter and 10” deep. Backfill and compact the dirt. WWW.ZIPPITY-OUTDOOR.COM...
- Page 9 ZP19008 ASSEMBLY INSTRUCTIONS FASTEN JOINER CLIPS STEP 5: STEP 3.1 Fasten screens together with joiner clips using the 1" self- drilling stainless steel screws as illustrated. 45° degree 90° degree application application WWW.ZIPPITY-OUTDOOR.COM...
- Page 10 ZP19008 ASSEMBLY INSTRUCTIONS FASTEN POST CAPS STEP 6: STEP 2.1 Push the post caps down over the posts to lock into place. WWW.ZIPPITY-OUTDOOR.COM...
- Page 12 ZP19008 ASSEMBLY INSTRUCTIONS 6935 Reames Rd. Ste. K. Charlotte, NC 28216 support@zippity-outdoor.com 704-892-5222 877-234-6196 WWW.ZIPPITY-OUTDOOR.COM WWW.ZIPPITY-OUTDOOR.COM...
