ASSEMBLY INSTRUCTIONS

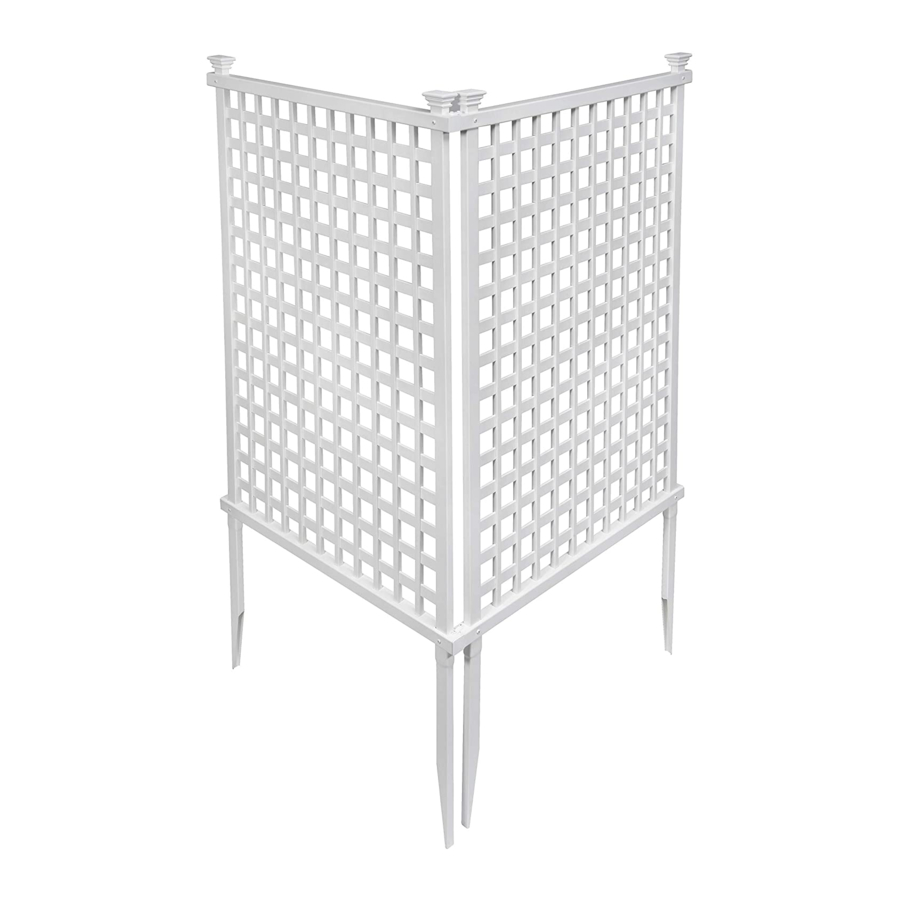

HIGHLAND
VINYL PRIVACY
LATTICE SCREEN
(36" W X 57" H)
Approximate assembly time
Want to see a video on how to
assemble this product?
WWW.ZIPPITY-OUTDOOR.COM
WWW.ZIPPITY-OUTDOOR.COM
2-PACK
60 MIN
Scan the QR code
ASSEMBLY
INSTRUCTIONS
ZP19047
ZP19047
1
VER. 110520
Advertisement
Related Manuals for Zippity Highland
Summary of Contents for Zippity Highland
- Page 1 ZP19047 ASSEMBLY INSTRUCTIONS HIGHLAND ASSEMBLY INSTRUCTIONS VINYL PRIVACY LATTICE SCREEN ZP19047 2-PACK (36” W X 57” H) 60 MIN Approximate assembly time Want to see a video on how to assemble this product? Scan the QR code WWW.ZIPPITY-OUTDOOR.COM WWW.ZIPPITY-OUTDOOR.COM VER. 110520...
- Page 2 If you experience any further trouble with your product, please contact our customer service department. nychgroup.com/parts support@zippity-outdoor.com 704-892-5222 877-234-6196 Customer service agents are available to take calls weekdays from 8am- 5pm EST. If you call outside of business hours, please leave a voicemail.
- Page 3 Vertical Picket (20) ⅞” x 1½” x 56½” ⅝” x ⅝” x 52½” 1" Self-Drilling Horizontal Picket (28) Stainless Steel Screw (4) ¼” x 1¼” x 32½” Bag B Horizontal Rail (4) 1½” x 1½” x 36” Joiner Clip (2) WWW.ZIPPITY-OUTDOOR.COM...
- Page 4 Make sure the routed holes for each vertical picket line up. STEP 2.2 Insert (14) horizontal pickets through the routed holes in the vertical pickets. Note: It may take some light force to insert horizontal pickets through the routed holes. WWW.ZIPPITY-OUTDOOR.COM...
- Page 5 ATTACH THE RAILS STEP 4: STEP 4.1 Take (2) loose rail end caps pressure fit one rail end cap to the end of each of the two horizontal rails (F). WWW.ZIPPITY-OUTDOOR.COM...
- Page 6 Continue sliding the rail down, inserting each vertical picket into the routed holes in the top rail, until the pre-drilled holes in the top rail and posts align. Drive (4) ¾” self-drilling stainless steel screws into the pre-drilled holes. WWW.ZIPPITY-OUTDOOR.COM...
- Page 7 Use a block of wood to protect the longer visible. top of post, and gently hammer the post into the ground. Push down on the top of the posts with both hands. Block of wood WWW.ZIPPITY-OUTDOOR.COM...
- Page 8 If your ground is very hard, you may need to dig a single hole large enough to accommodate one post from each panel. This hole should be approximately 8” in diameter and 16” deep. Backfill and tamp the dirt. 8” diameter 16” deep. WWW.ZIPPITY-OUTDOOR.COM...
- Page 9 ZP19047 ASSEMBLY INSTRUCTIONS FASTEN JOINER CLIPS STEP 6: STEP 6.1 Fasten the screens together with (2) joiner clips using (4) 1” self- drilling stainless steel screws (I). Bottom Rail Top Rail 90° application 45° application WWW.ZIPPITY-OUTDOOR.COM...
- Page 10 ZP19047 ASSEMBLY INSTRUCTIONS INSTALL POST CAPS STEP 7: STEP 7.1 Push the post caps down over the posts to lock into place. WWW.ZIPPITY-OUTDOOR.COM...
- Page 11 ZP19047 ASSEMBLY INSTRUCTIONS 6935 Reames Rd. Ste. K. Charlotte, NC 28216 support@zippity-outdoor.com 704-892-5222 877-234-6196 WWW.ZIPPITY-OUTDOOR.COM WWW.ZIPPITY-OUTDOOR.COM...
