This fence can easily be
trimmed down horizontally to
fit your custom space. Use a
fine-toothed circular saw or
hack saw.
30 MIN
6935 Reames Rd. Ste. K. Charlotte, NC 28216
support@zippity-outdoor.com
@
704-892-5222 / 877-234-6196
zippity-outdoor.com
6 in
42 in
29 1/2 in

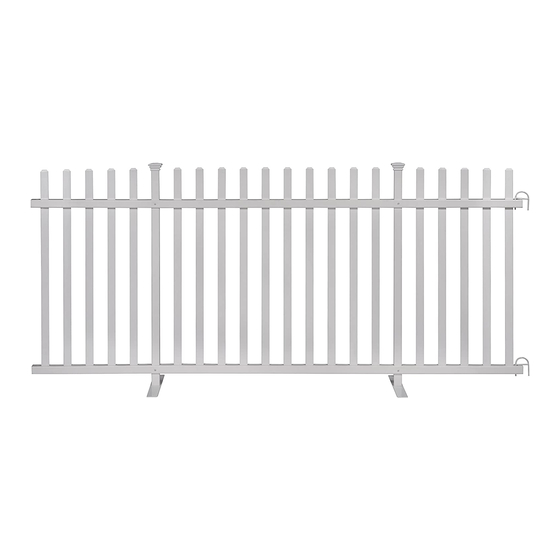

PORTABLE VINYL FENCE KIT
Approximate assembly
time
ASSEMBLY
INSTRUCTIONS
92 in
2 5/8 in
44 1/2 in
46 in
ZIPPITY LIGHTWEIGHT
(42"H X 92"W)
Want to see a video on how to
40 7/8 in
Ground
assemble this product? Scan
the code below!
www.zippity-outdoor.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Zippity ZP19026
Summary of Contents for Zippity ZP19026
- Page 1 40 7/8 in 29 1/2 in hack saw. 44 1/2 in Ground 46 in ZIPPITY LIGHTWEIGHT PORTABLE VINYL FENCE KIT (42”H X 92”W) 30 MIN Approximate assembly time Want to see a video on how to 6935 Reames Rd.
- Page 2 To help you quickly and accurately, please have reference item number ZP19026 found on the next page. It is helpful if you can provide the batch lot which is a stamped number on the end of the box.
- Page 3 1½” x 1½” x 91⅞” Metal U-Joiner (2) Post (2) Picket (20) ⅞” x 1½” x 41½” ¼” x 1½” x 38⅜” Metal Foot (2) ¾” Self-Drilling Bottom Rail (1) Stainless Steel Screw (8) 1½” x 1½” x 91⅞” www.zippity-outdoor.com...
- Page 4 Align holes STEP 3: INSTALL METAL FEET Insert the metal feet (G) into the bottom of both posts. STEP 3.1 Note: You may need to squeeze the metal prongs together slightly for them to fit inside the posts. www.zippity-outdoor.com...
- Page 5 Insert each picket (D) down through the top rail and into the bottom rail. STEP 4.2 Note: The tabs on the bottom of the pickets are designed to go into the bottom rail and lock into place. www.zippity-outdoor.com...
- Page 6 To attach multiple fence panels to each other, bring the two ends close to each other, and STEP 5.1 insert the metal U-joiners (F) through the pre-drilled holes on both the top and bottom rails as shown. 90° application 45° application 6935 Reames Rd. Ste. K. Charlotte, NC 28216 support@zippity-outdoor.com 704-892-5222 / 877-234-6196 zippity-outdoor.com www.zippity-outdoor.com...
