Note: The battery of the cable tracer must according to corresponding positive pole + and
negative pole -, otherwise will damage the tester.
Note: While the cable tracer tester is receiving the audio signal from the tester, it may be
influenced by other signals and make some noise.

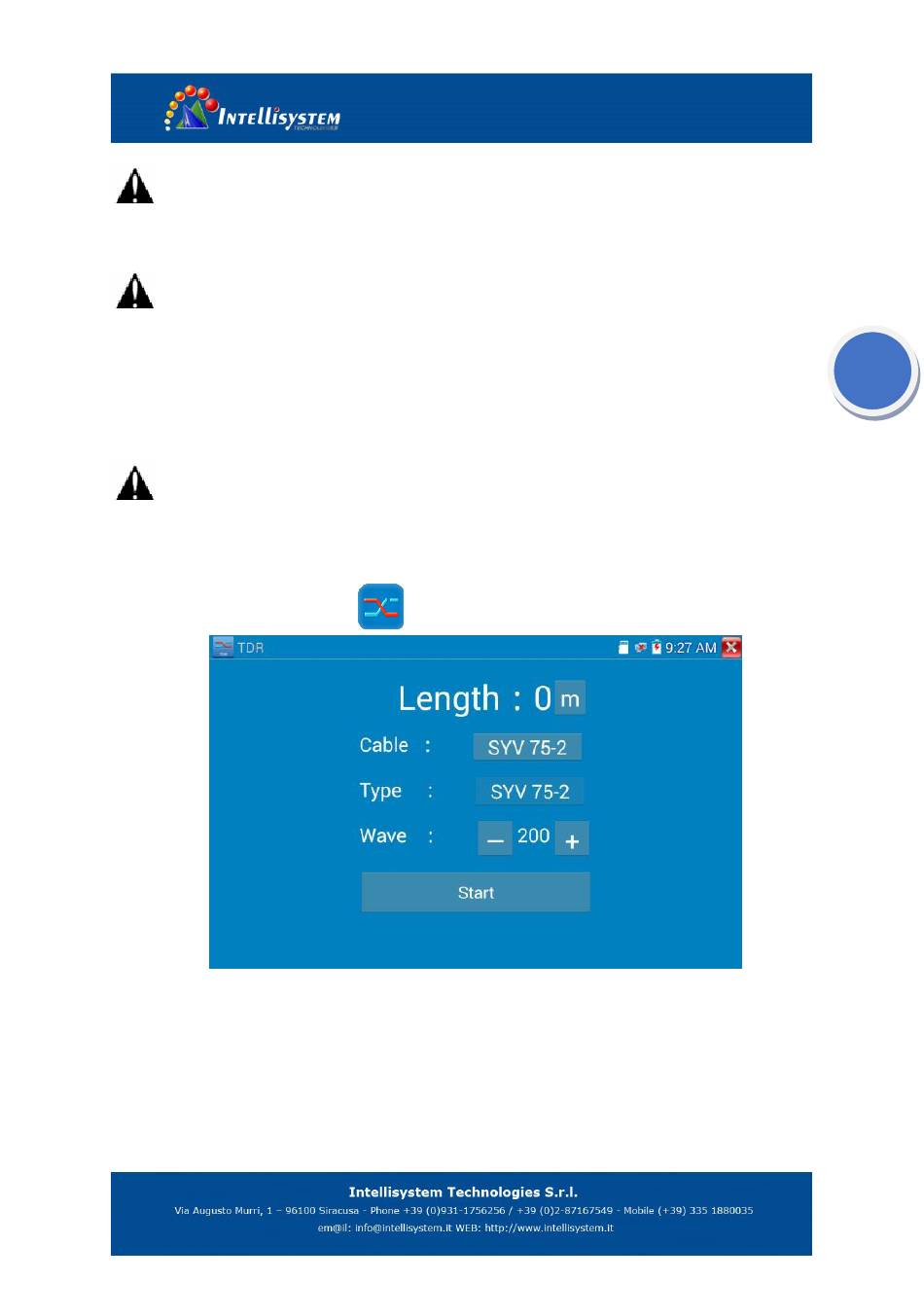

3.3.23 TDR cable test ( *Optional )

Note: The testing cable can't be connected to any equipment; otherwise it will damage the
tester!
Connect Alligator clip cable to the TDR port, and the cable must connect well before testing, otherwise
it will influence the accuracy. Click
Built-in BNC cable, network cable, RVV control cable, Telephone line and TVVB cable etc can test, 11
groups user-defined cable can be set.
Click "Cable" "Type" to select cable and start testing. One tap on "Start" do one testing. If select built
in cable type for testing, click "+" and"-" to adjust cable's wave speed.
to enter, and click "Start" to test
