Drop-Down Menu - Intellisystem IT-900-IPC Series User Manual

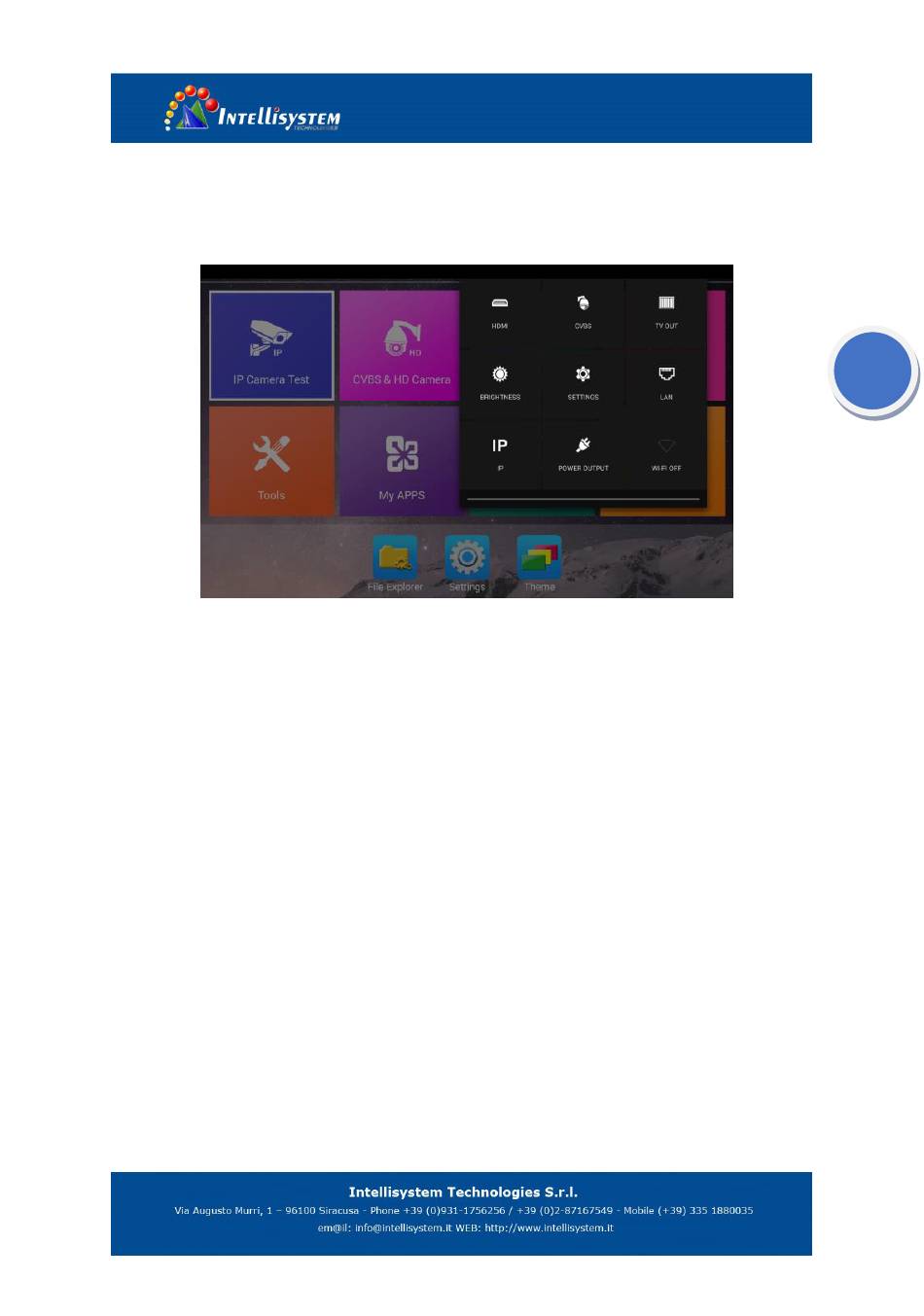

3.3.2 Drop-down Menu

Press and slide at right top right corner twice to open shortcut menu. The shortcut menu includes POE
power output, IP settings, Wi-Fi, HDMI IN, CVBS, Video OUT, LAN, Brightness, settings etc.
HDMI: Click HDMI IN to enter，in HDMI IN mode, It can converter test from analog to digital
with dual test window IP & HDMI IN or Analog & HDMI in
CVBS: Click icon "CVBS "to enter, you can test IP and analog camera at the same time
Video OUT: Click Video OUT to enter floating window, connecting the BNC cable to tester
and appears analog video monitor interface, it can test circuit and BNC cable whether normal.
LAN: display network port or WIFI connection real-time upload and download speeds and other
network parameters.
Brightness: Set brightness
Settings: Enter settings interface.
IP: Enter IP Settings interface.
POE power output: Turn on or off the tester "PoE power "app
WLAN: Turn on WLAN net and displays current WLAN status.
15
