3.3.22 Cable Tracer

Connect test cable or BNC cable to the UTP port or the CABLE SCAN (VIDEO OUT) port on the
bottom. Click icon
Use the blue Combination cable identifier and network cable tester's copper pointer to touch all the
cables in the bundle .
You are searching at the other end. The cable that gives off the loudest tone is the cable connected to
the tester. Press the + or – buttons on your blue cable identifier to adjust the volume.
Note: Install two AAA batteries in your blue Cable Identifier.
Note: While the cable tracer is receiving the audio signal from the tester, it may be induced
into adjacent or crossing cables, however, the cable that makes the loudest noise is the one that's
connected to the meter.
Application
It's convenient for people to find out the other end of the cable from the messy cables in security
maintenance and network engineering.
While searching BNC cable, connect one port of the alligator clips to the copper core or copper net of
the BNC cable, the other one to connect the earth wire (barred windows).

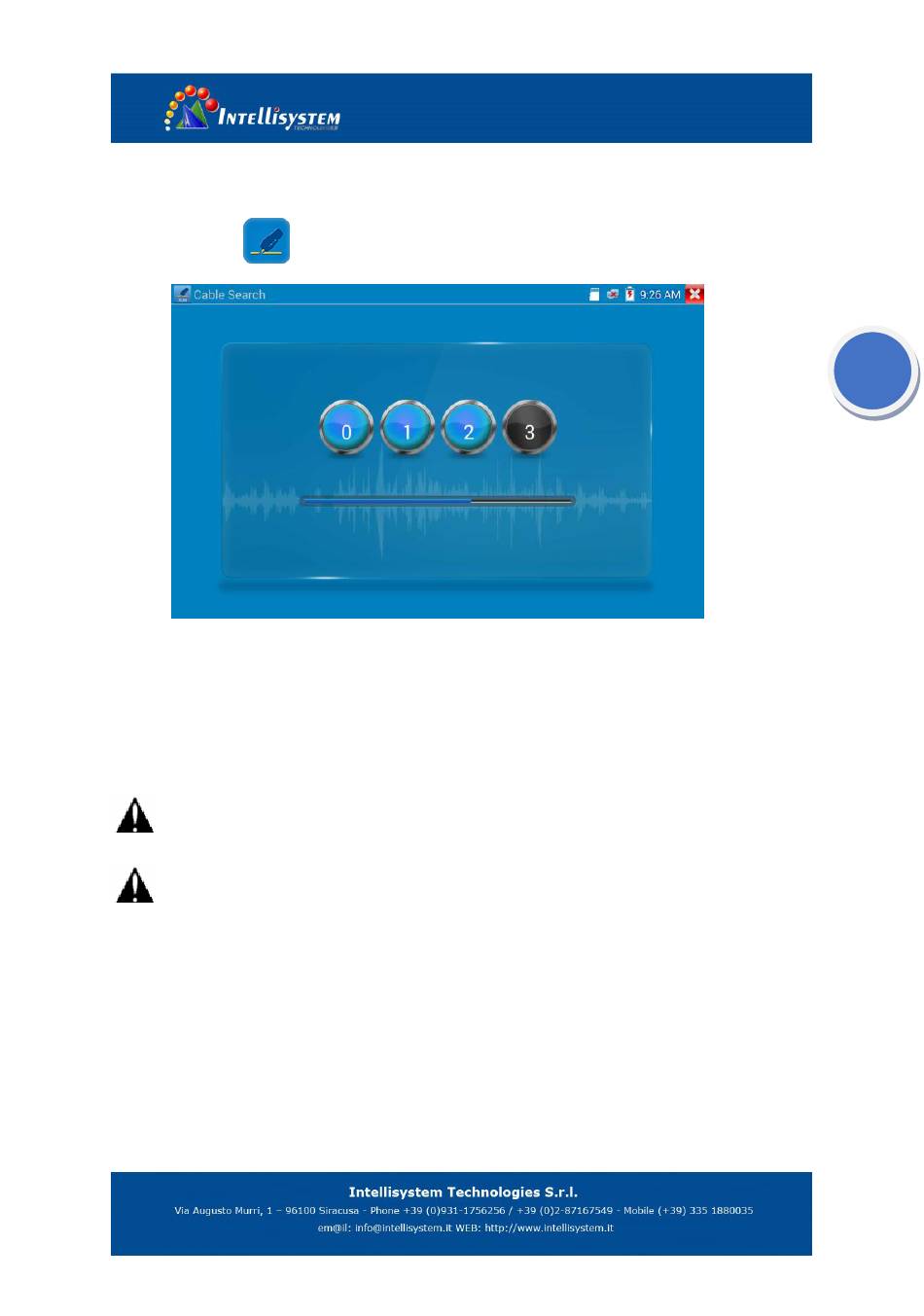

to enter, click the Number on the screen to adjust audio type.
