Before you start, take a moment to familiarize yourself with this Fitting Instruction and the components received.
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE.
IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH.
YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE.
THEREFORE YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE.
IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES,
YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
SAFE010_REV_A00
Ford Ranger

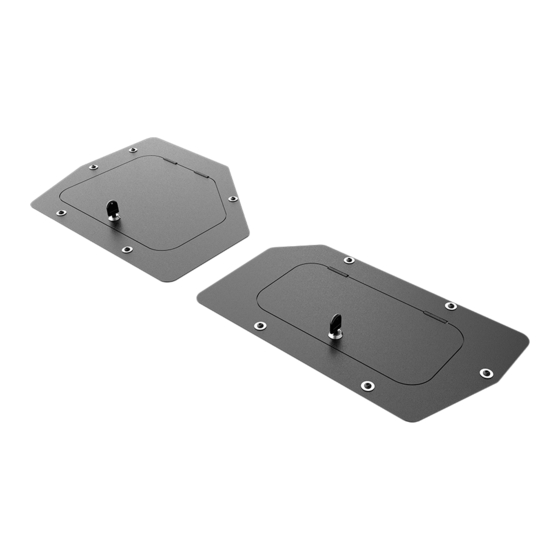

Under Seat Safe
READ ME !
Thank you for purchasing a Front Runner Ford Ranger Under Seat Safe.
Refer to Page 2 for a list of all the components, quantities and tools required.
IMPORTANT WARNING!
1
© COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS
ENG
SAFE010
45 min
Advertisement
Table of Contents
Related Manuals for Front Runner SAFE010
Summary of Contents for Front Runner SAFE010
- Page 1 IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE.
- Page 2 GET ORGANIZED Here is what you are looking at for SAFE010 IN THE BOX TOOLS NEEDED Safe Right Side Safe Left Side Rivnut Tool 10 X M6 Rivnut 9.5MM 22 X M6 x 19 x 1SS Flat Washer 10 X M6 x 20 Button Head FIGURE 1.1...
- Page 3 FIT AND SECURE To fit the Under Seat Safe you need to lift the rear seat of the vehicle. Loosen and remove the bolts holding the two plastic trays in place. On the left side of the vehicle, place the Safe (Item 2) over the plastic tray and mark the holes shown in 2.2.
- Page 4 (Item 3) in all the holes. Re fit the plastic tray back in place. Place the Safe (Item 1) over the plastic tray. Aligning the holes, secure with fasteners shown in 1.1. SAFE010_REV_A00 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS...
- Page 5 Congratulations. You did it. Take a step back and admire your work! INSTALL OTHER VEHICLE AND RACK ACCESSORIES Now's the time to visit your favorite Front Runner Dealer in person or online. SAFE010_REV_A00 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS...
