Front Runner Slimline II Tray Universal Assembly Instructions

Hide thumbs Also See for Slimline II Tray:

Advertisement

Quick Links

Download this manual

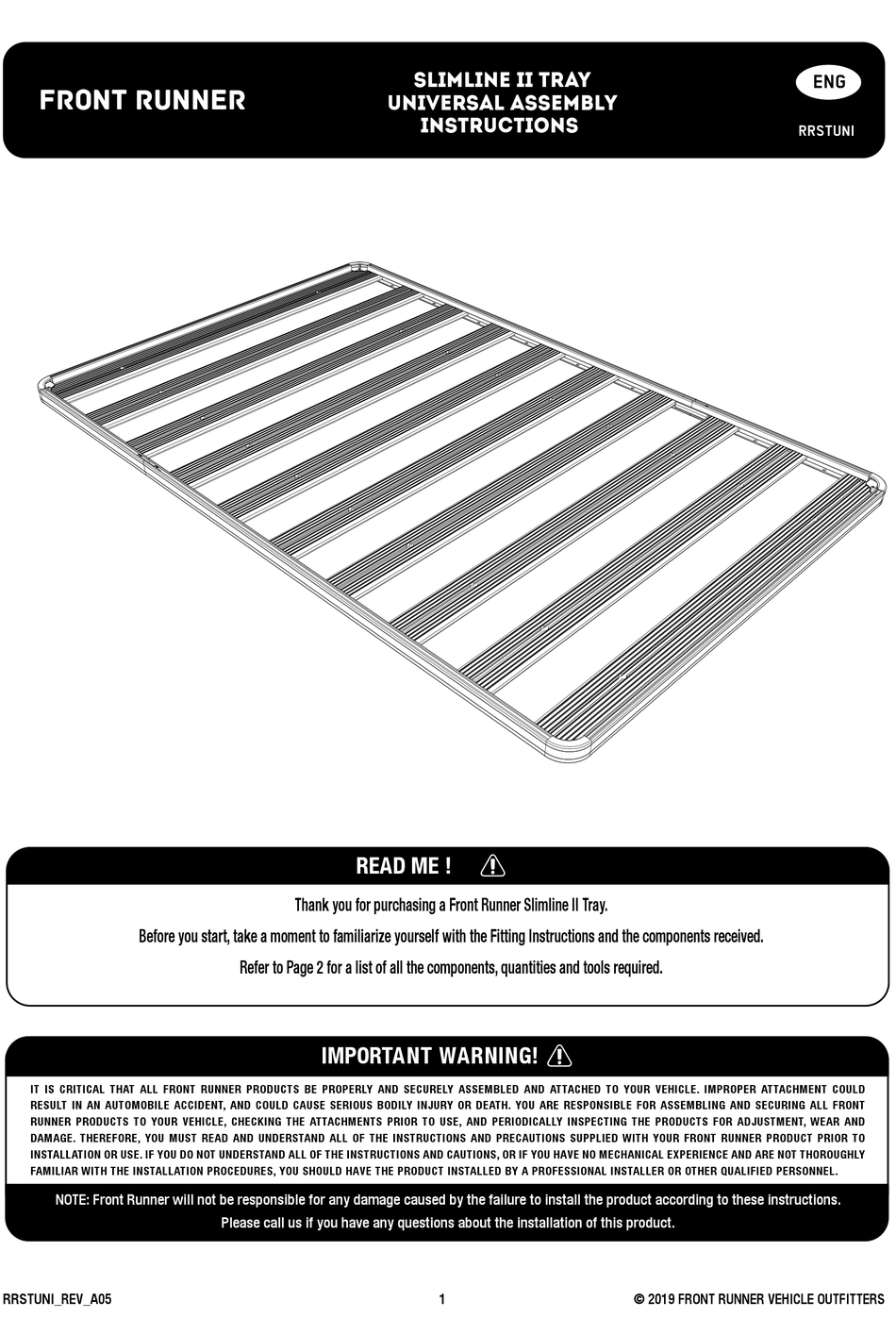

slimline ii tray
ENG
front runner
universal assembly
instructions
RRSTUNI
READ ME !
Thank you for purchasing a Front Runner Slimline II Tray.
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
Refer to Page 2 for a list of all the components, quantities and tools required.
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
Please call us if you have any questions about the installation of this product.
RRSTUNI_REV_A05
1
© 2019 FRONT RUNNER VEHICLE OUTFITTERS

Advertisement

loading
Need help?

Need help?

Do you have a question about the Slimline II Tray and is the answer not in the manual?

Questions and answers

Related Manuals for Front Runner Slimline II Tray

Summary of Contents for Front Runner Slimline II Tray

  • Page 1 FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL. NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
  • Page 2 M8 x45 Button Head Bolt Thick Joiner Piece Thin Joiner Piece Corner Combined Slat 28 X M8 x 25 Button Head Bolt 12 X Standard Slat M6 x 10 Button Head Bolt FIGURE 1.1 RRSTUNI_REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 3 M8 x 45 Button Head Bolt Joiner pieces, remembering to insert a Nyloc Nut, and fasten once again using a M8 x 45 Button Head Bolt. Repeat the above steps for the other side. RRSTUNI_REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 4 Combined Slat and Standard Slats, aligning the holes and loosely inserting the M8 x 25 Button Heads as you work your way to the Combined Slat at the other end. RRSTUNI_REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 5 Flip the tray right side up. Push the Corner into position as shown, aligning the hole in the Corner with the Rivnut already inserted in the Combined Slat. and fasten the Corner in position. RRSTUNI_REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 6 RACK ASSEMBLY - WIND DEFLECTOR IN THE BOX TOOLS NEEDED Slimline II Tray M8 Half Nut Schnorr Washer M8 x 12 Button Head Bolt FIGURE 1.2 © 2019 FRONT RUNNER VEHICLE OUTFITTERS RRSTUNI_REV_A05...
  • Page 7 RACK ASSEMBLY - WIND DEFLECTOR Ensure that your Slimline II Tray is upside down. Check by looking at the product sticker. It should be upside down as shown. Insert two Button Head Bolts, M8 Half Nuts assemblies into the Combined Slat as shown.
  • Page 8 Figure 8.5. USEFULL TIP - PRE-LOAD TIE DOWN RINGS Insert the Tie Down Rings into the machined slots and position them in the center of the rack. RRSTUNI_REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 9 CHECK YOUR VEHICLE INSTALLATION GUIDE Now that your Slimline II Tray is assembled, get your Rack Kit Installation Guide out and follow the instructions HOW TO CARE FOR YOUR FRONT RUNNER GEAR FRONT RUNNER RACKS AND ACCESSORIES ARE HAPPIEST COVERED IN MUD But in order to maintain full functionality of the rack slots and any moving parts, you may want to give your gear a bath now and again.

  • Page 10: Start Here

    Don’t be a hero and muscle through this without first reading these fitting instructions! Improper installation of this gear may void certain aspects of your warranty. Before you begin, take a moment and open all your Front Runner rack kit boxes and gather the assembly instructions for the various components. A complete kit will contain: 1.
  • Page 11 1150mm Protective Trim 6.5mm M6x30x1 Flat Washer M6x12x1 Stainless Steel Flat Washer Chinch Nut Tool M6 Nyloc Hex Nut Hacksaw Utility Knife M6 Nut Cap M6 Clinch Nut (Alternative Fitment) FIGURE 1.1 TRCA003_REV_A03 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 12 Congratulations. You did it. Take a step back and admire your work! INSTALL OTHER VEHICLE AND RACK ACCESSORIES Now's the time to visit your favorite Front Runner Dealer in person or Online. TRCA003_REV_A03 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 13 FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL. NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
  • Page 14 13MM M8 x 16 Hex Bolt M8 x 16 Button Head Bolt 10 X M8 x 16 x 1.6SS Flat Washer 10 X M8 Nyloc Nut 10 X M8 Nut Cap FIGURE 1.1 FASSUNI_REV_A01 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 15 FIT AND SECURE Place your Front Runner Roof Rack onto your vehicle and find the best position. The Rack should sit level to the ground, not the vehicles roof line. Or slanting slightly down toward the front. Find the best position for the Feet, using the first or second Slat.
  • Page 16 Check clearance with sunroof operation and any accessories fitted. 13MM 25mm clearance is needed between roof and table bracket, if fitted. Place M8 Nut Caps (Item 8) over all of the Nyloc Nuts. FASSUNI_REV_A01 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 17 Congratulations! You did it. Take a step back and admire your work! INSTALL OTHER VEHICLE AND RACK ACCESSORIES Now's the time to visit your favorite Front Runner Dealer in person or Online. Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam...
