2U1N Configuration Equipment Installation
Hardware Installation Guide
66
FRUs. The A10 sliding rail assembly (1U) is used for installation of the PowerEdge
R640. The B13 sliding rail assembly (2U) is used for installation of the PowerEdge
R740xd.

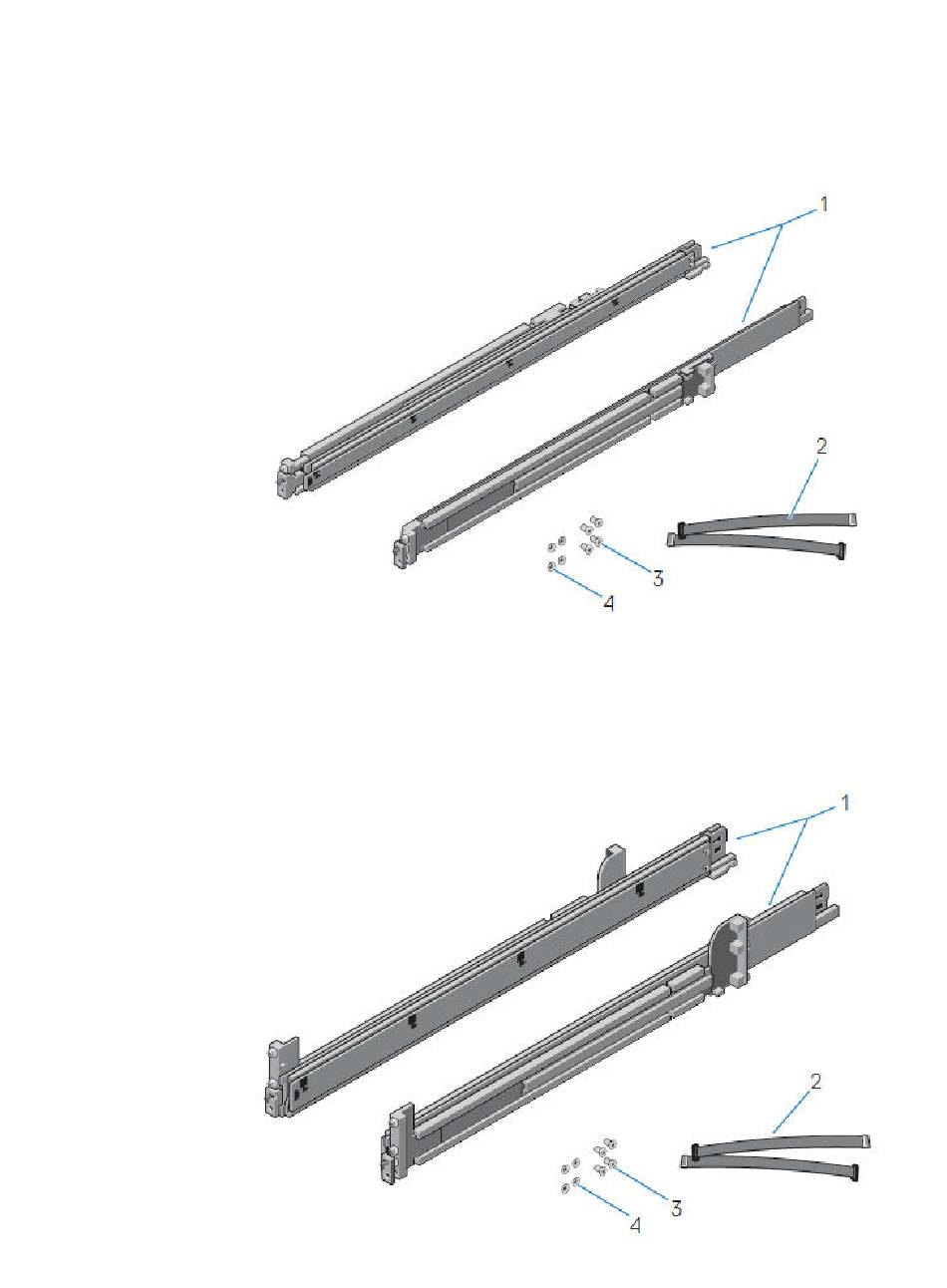

Figure 24 A10 sliding rail assembly - 1U systems
1. A10 sliding rail (2)
2. velcro strap (2)
3. screw (4)
4. washer (4)
Figure 25 B13 sliding rail assembly - 2U systems
