Connect and route cords and cables

Hardware Installation Guide
38

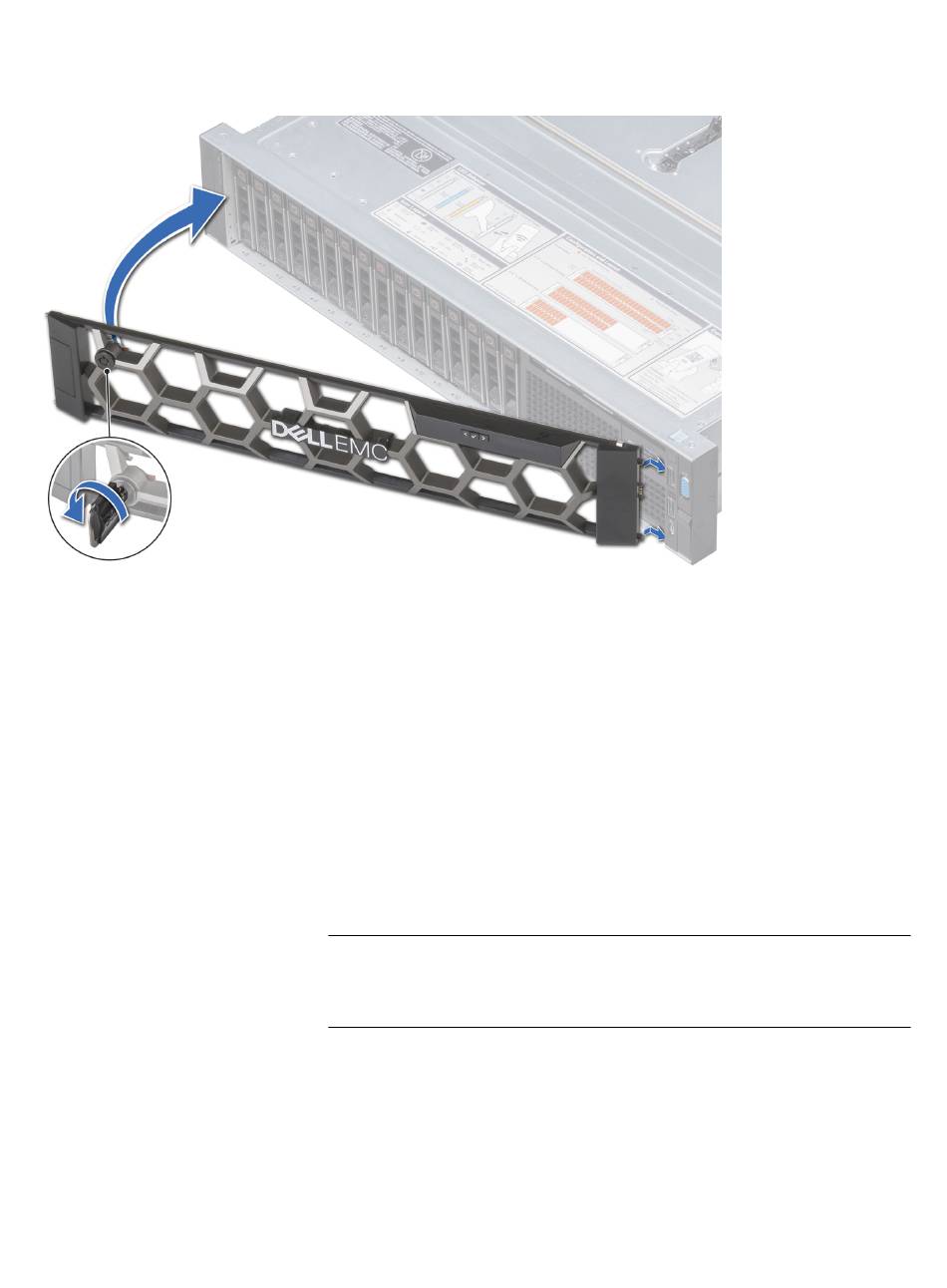

Figure 16 Installing the front bezel on 2U system'
Procedure
1. Connect the power cords and I/O cables as described in documentation for
your system.
2. If the system uses a cable management arm (CMA), install it as described in the
document shipped with the CMA.
3. If the system does not use a CMA, use the two velcro straps to route and
secure cords and cables at the rear of the system:
a. Locate the CMA bracket slots on the rear end of both the rails.
b. Bundle the cables gently, pulling them clear of the system connectors to the
left and right sides.
Note
Ensure that there is enough space for the cables to move when you slide the
system out of the rack.
c. Thread the straps through the CMA bracket slots on each side of the system
to hold the cable bundles.
