  • Page 1 Sonic Dismembrator ULTRASONIC PROCESSOR Part No. FB-705 OPERATION MANUAL Rev. 6-12...
  • Page 2 Rev. 6-12...

  • Page 3: Table Of Contents

    Table of Contents Section Page No. Warranty Warnings Specifications Principles of Operation 9-10 Description of Components / Functions of Controls 11-13 Preparation for Use Operating Instructions(Getting Started) 15-24 Accessories 25-26 Maintenance 26-28 Troubleshooting Service / Return of Equipment Service Safety Certification form Addendum 32-34 Rev.

  • Page 4: Warranty

    1. Warranty Your Ultrasonic Processor is warranted and backed by the manufacturer for a period of two years from the date of shipment against defects in material and workmanship under normal use as described in this instruction manual. During the warranty period, the manufacturer will, at its option, as the exclusive remedy, either repair or replace without charge for material and labor, the part(s) which prove to be defective, provided the unit is returned to us properly packed with all transportation charges prepaid.

  • Page 5: Warnings

    2. Warnings Please read the manual in its entirety. Necessary instruction and guidance are provided to help ensure the successful operation of this device. Your new Ultrasonic Liquid Processor has been designed, built and tested to assure maximum operator safety. However, no design can completely protect against improper use that may lead to bodily injury and/or property damage.
  • Page 6 AC power. Symbols Caution, Risk of electric shock, Hazardous voltage. Caution, Risk of danger. Refer to User Manual. Rev. 6-12...

  • Page 7: Specifications

    3. Specifications Generator 220 VAC – 240 VAC @ 50/60 Hz Input Voltage 100 VAC – 120 VAC @ 50/60 Hz Rated Current 12 Amps max. 6 Amps max. Fuse Rating 15 Amps* 8 Amps* Weight 16 lbs. (7.3 Kg) Dimensions 8"W x 15"L x 9"H 203 mm x 381 mm x 229 mm...
  • Page 8 Environmental Pollution Degree Installation Category Operating Limits Temperature: 41 - 104ºF (5 - 40ºC) Relative Humidity 10 - 95% (Non Condensing) Altitude: 6,651 ft. (2000 m) Temperature: 35 -120 F (2 - 49 Shipping/Storage Relative Humidity 10 - 95% (Non Condensing) Ambient Pressure Extremes: 40,000 ft.

  • Page 9: Principles Of Operation

    4. Principles of Operation The ultrasonic electronic generator transforms AC line power to a 20 KHz signal that drives a piezoelectric converter/transducer. This electrical signal is converted by the transducer to a mechanical vibration due to the characteristics of the internal piezoelectric crystals. The vibration is amplified and transmitted down the length of the horn/probe where the tip longitudinally expands and contracts.
  • Page 10 as the load increases but the amplitude remains the same. The AMPLITUDE control allows the ultrasonic vibrations at the probe tip to be set to any desired level. Although the degree of cavitation/ultrasonic energy required to process the sample can readily be determined by visual observation, the amount of power required cannot be predetermined.

  • Page 11: Description Of Components / Functions Of Controls

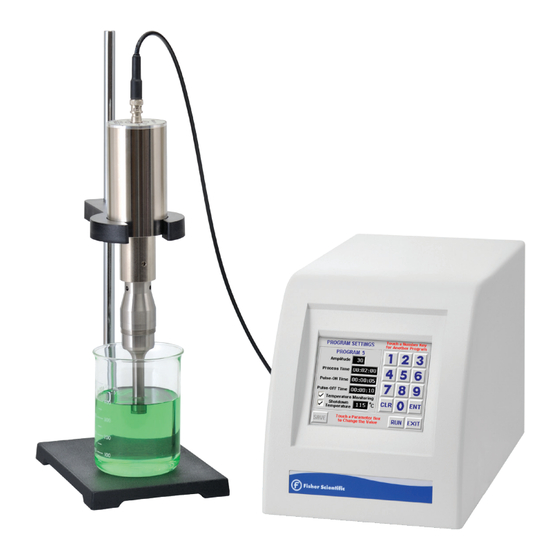

    5. Description of Components / Functions of Controls The Model # FB-705 includes a standard 1/2” diameter probe (#FB4220). FB-705 Front Panel Converter Cable Converter ½” Horn with Generator replaceable tip FB-705 Rear Panel On/Off Switch Cooling Fan Footswitch Jack...
  • Page 12 FRONT PANEL Displays prompts and control parameters including: • Amplitude selected • Output power delivered to the probe in watts • Selected duration of processing • Actual processing time Touch screen display • Elapsed time • Set and read temperature •...
  • Page 13 REAR PANEL On / Off Switch Turns the power supply on and off. Footswitch Connector Connects to the footswitch cable. Temperature Probe Connects to the Temperature monitoring probe or thermocouple Connector Converter Cable Connects to the converter. Connector (Output) Power Supply Connector Connects to the electrical line cord and encases the fuse(s).

  • Page 14: Preparation For Use

    6. Preparation for Use INSPECTION Prior to installing the ultrasonic processor, perform a visual inspection to detect any evidence of damage, which might have occurred during shipment. Before disposing of any packaging material, check it carefully for small items. The ultrasonic processor was carefully packed and thoroughly inspected before leaving our factory.

  • Page 15: Operating Instructions(Getting Started)

    7. Operating Instructions (Getting Started) CAUTION Do not operate the power supply unless it is connected to the converter. • Never allow liquid to spill into the converter. • Do not allow a Microtip to vibrate in air. • Do not allow the vibrating Microtip to contact anything but the sample. •...
  • Page 16 secure the clamp to the upper section of the convertor housing only. Never secure the clamp to any other portion of the convertor/probe assembly. If you are using an acoustic enclosure mount the convertor properly in the convertor collar. 9. Connect the converter cable to the power supply and then to the top of the convertor. Push the connectors in and turn the chrome rings clockwise ¼...
  • Page 17 To Manual Mode To Program Menu To Option Screen To Previous Screen This screen allows the user to select Manual mode, Program menu or Options screen. 2. Select the Mode of Operation or access Options screen. a. Manual Mode: Selecting Manual Run allows the user to set the unit output level manually (setting 1 –...
  • Page 18 The following screen displays the Manual Mode. A. Microtip Mode – Indicates that the unit is set for use with microtips only. This mode should not be used with standard probes or horns (1/2” or larger). See page 15 for information on selecting YES or NO at the “Are you using a Microtip screen”.
  • Page 19 Program Menu The unit can be programmed to sonicate at specific, user-selected time intervals including pulse mode. To Program Sequence 1 Screen Screen To Option Screen Sequence 2 Screen Previous Screen Select/Modify a Program – Create, select or modify up to 10 different programs. Select/Modify Sequence 1 &...
  • Page 20 Programming Screen How To Create a Program The ultrasonic processor has the ability to save up to 10 programs. 1. Select a program number from the keypad, the program number will appear above the Amplitude box. For each of the following steps: After touching a field, the background will change to yellow indicating an active field.
  • Page 21 From the program screen (see image at top of previous page), touch the program number on the right side of the screen and the selected program settings will appear. Follow steps 9 and 10 from the previous page. This Run screen is an example of a sample program in progress. Total programmed time of active sonication.
  • Page 22 Sequencing After selecting Sequence 1 or 2 from the Program Menu, the following screen will appear: Sequence Programming Screen Program Delay Field Number Selected After creating multiple programs, a sequence of those programs may be selected. Select the Program Number and the amount of time desired between Programs. Save the settings and touch Run to begin the sequence of programs.
  • Page 23 The following Option Screen can be accessed from either Menu Screen. The Option menu enables the selection of Temperature units and Footswitch operational mode. Option Screen Temperature Units – A temperature probe (Part# 4102 or 4103) is required for use of this option.
  • Page 24 For example, the ½” horn should be immersed ¾” below the liquid surface. Immersion depth can be less for larger horns and may have to be more for smaller probes used at higher intensity. Foaming and Aerosoling Aerosoling and foaming generally occur when the tip is not immersed far enough into the solution.

  • Page 25: Accessories

    8. Accessories A. 1/16" Microtip (0.5 - 15ml), Catalog #FB4417 B. 1/8" Microtip (0.5 - 15ml), Catalog #FB4418 C. 1/4” Microtip (5 – 50 ml), Catalog #FB4420 D. 1/2" probe with replaceable tip (10 - 250ml), Catalog #FB4220 Note: 1/2“ solid probe* is also available, Catalog #FB4219 *Solid probes are required for low surface tension liquids (i.e.

  • Page 26: Maintenance

    9. Maintenance It is recommended to periodically inspect the unit, both visually and physically, to insure optimum and safe performance. This inspection should be scheduled as a routine maintenance procedure, done with the unit power OFF and with the unit unplugged from the AC power source. Long exposure to acids or caustics results in corrosion of metal parts or components.
  • Page 27 Follow the steps below for attaching and detaching accessories: Disconnect probe from convertor. Use the wrench set provided with the system. Clean threaded stud. Use alcohol and a cotton swab to remove any debris on the threading of the connecting stud. Allow the alcohol to dry completely. 3.
  • Page 28 Replacement Tip Removal Replacement Tip Tightening *Note: When tightening a Microtip the tip must not be in contact with the work surface. Always have the tip extending off of the table or work surface to minimize stress to the tip. System Cleaning Instructions The generator and converter may be cleaned using an acid-free cleaning solution (i.e.

  • Page 29: Troubleshooting

    10. Troubleshooting Your Ultrasonic Processor was designed to provide you with years of safe and dependable service. Nevertheless, because of component failure or improper usage, the possibility does exist that it might not perform as it should, shut down or stop working all together. The most probable causes for malfunction are listed below and should be investigated.

  • Page 30: Service / Return Of Equipment

    11. Return of Equipment It is suggested that an Ultrasonic Processor in need of repair be sent back to the factory. In order to receive prompt service; always contact your Customer Service Representative before returning any instrument. Include date of purchase, model number and serial number. Please obtain a Return Authorization Number prior to returning the instrument.

  • Page 31: Service Safety Certification Form

    SAFETY CERTIFICATION FORM Items being returned: ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________ Please check only one item below: ___ The equipment was never used or exposed to any radiological, biological or chemical agents and is safe to handle, use or dispose of. ___ The equipment was used but not in conjunction with or exposed to any radiological, geological or chemical agents and is safe to handle, use, or dispose of.

  • Page 32: Addendum

    Addendum Converter Cooling Continuous sonication will cause both the probe and sample temperature to increase. The heat will transfer up to the converter. If the converter overheats the internal crystals can crack and the entire converter will require replacement. Converter damage due to overheating is not covered under warranty.
  • Page 33 Frequently Asked Questions (FAQ) Probe size vs. Sample volume Selecting the proper size probe is a critical factor when sonicating a sample. The sample volume to be processed must correlate with the tip diameter. Each probe has a recommended sample volume range. This range may overlap with other probes.
  • Page 34 to be mixed effectively. Without effective mixing you cannot ensure the entire sample volume will pass below the tip and become processed. The probe should be immersed at least 1.5 times the tip diameter. Before processing actual samples, it is recommended to test the probe in a vessel filled with water to observe the ultrasonic energy and the flow pattern of the liquid.
