SETTING UP COMMUNICATION IN SOFTWARE

POWERING UP THE EVALUATION BOARD

To power up the EVAL-ADAU1860EBZ evaluation board, connect
the ribbon cable to P22 of the EVAL-ADAU1860EBZ.

CONNECTING THE AUDIO CABLES

Three channels of the microphone inputs support both differential
and single-end modes. The headphone output is differential and
is dc-coupled. The digital audio signal can be I
multiplexing (TDM) mode through the serial audio interface.
analog.com

CREATING A BASIC SIGNAL FLOW

To create a basic signal flow in
1. Download and install Lark Studio from
2. Start Lark Studio by double clicking the shortcut on the desktop.
3. Click New Project from the Project menu, or click Create a
2
S or time division
4. Click on the Lark option for the ADAU1860 and then OK.
5. Edit the file name, and save the file to a user specified location.
6. Click on Target Connection in the left navigation panel, and

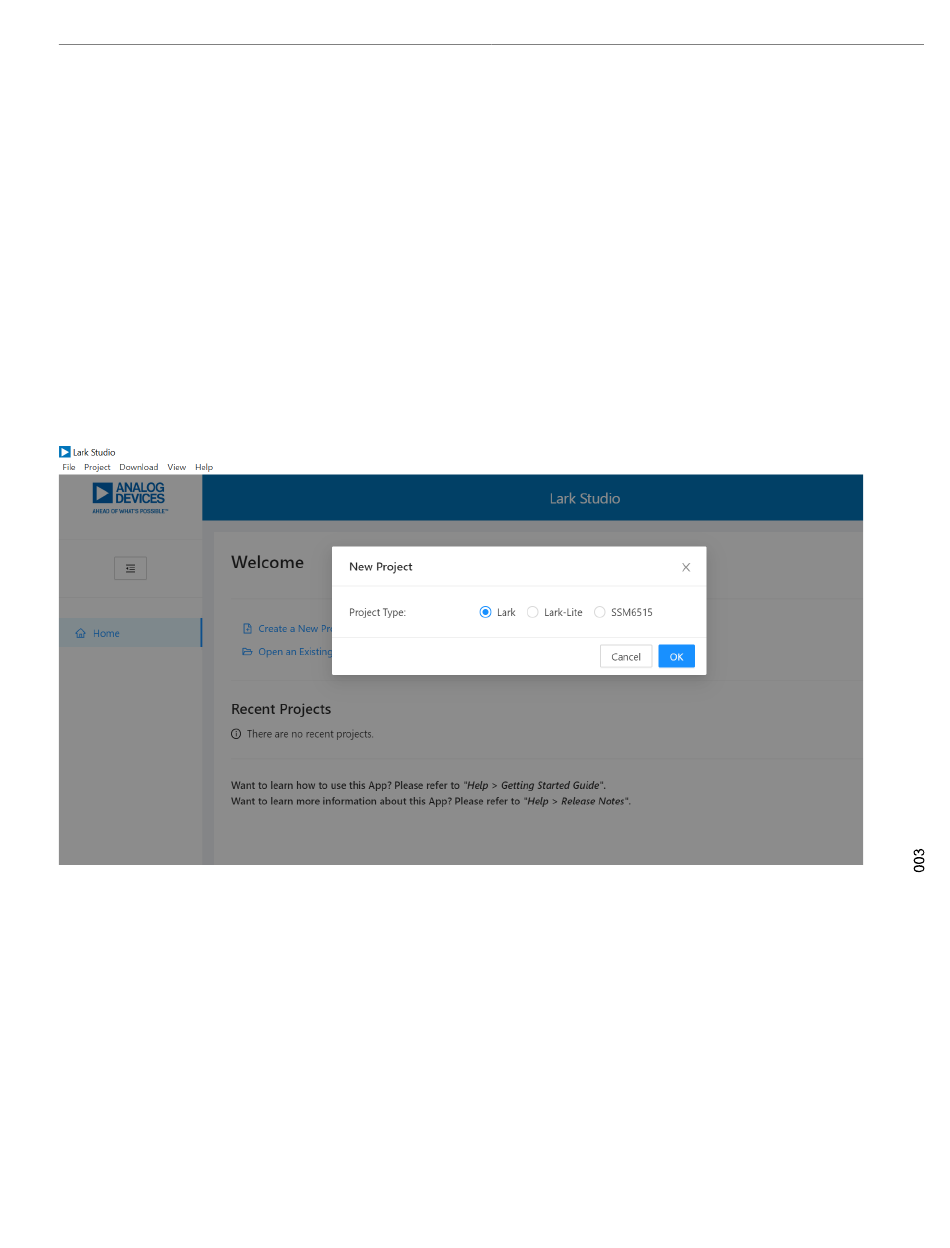

Figure 3. Create a New Project
EVAL-ADAU1860
LARK
log.com/ADAU1860.
New Project in the Welcome section to create a new project,
as shown in Figure 3. The New Project window shows the
Project Type options.
configure the Connection settings panel that opens on the
right to set up the connection. If the USB connects, Target
Connected displays (see Figure
Studio, follow these steps:
www.ana-
4).
