PTX-100 OWNER'S MANUAL

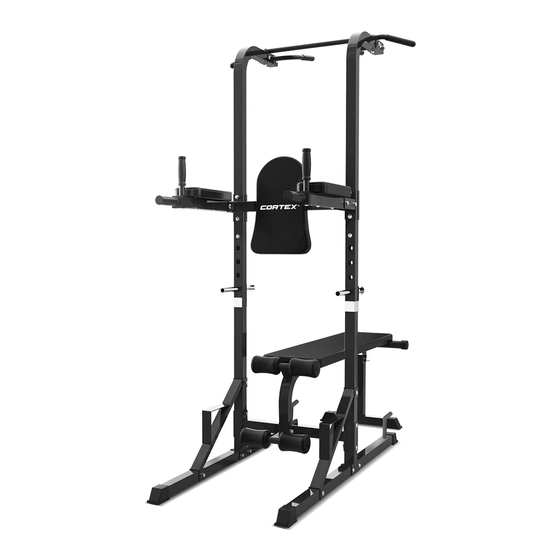

Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner's manual for
future reference.
NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at
www.lifespanfitness.com.au
Advertisement
Related Manuals for LifeSpan PTX-100
Summary of Contents for LifeSpan PTX-100

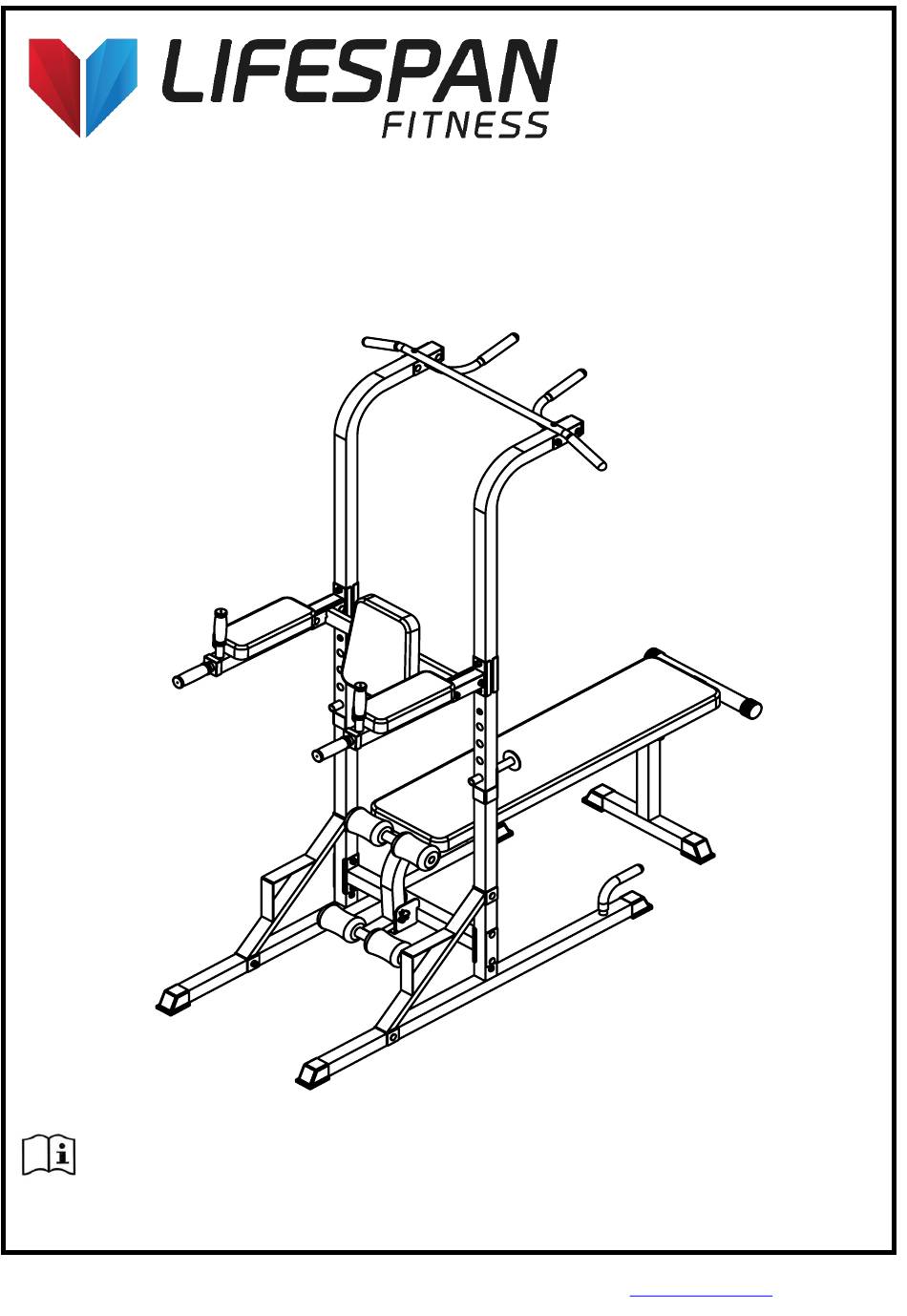

- Page 1 PTX-100 OWNER’S MANUAL Product may vary slightly from the item pictured due to model upgrades Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at...
- Page 2 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS PARTS LIST ASSEMBLY INSTRUCTIONS WARRANTY PTX-100...
- Page 3 Do not use the equipment until the problem has been rectified. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught in the equipment or that may restrict or prevent movement. PTX-100...
- Page 4 This equipment is designed for indoor and family use only Care must be taken when lifting or moving the equipment so as not to injure your back. Always keep this instruction manual and assembly tools at hand for reference. The equipment is not suitable for therapeutic use. PTX-100...
- Page 5 2. PARTS LIST PTX-100...
- Page 6 High pulling bar Hex bolt M10x90 Connection welding tube Connection sheet Hex bolt M8x20 Back pad Hex bolt M8x70 Φ8 Washer Back pad welded connection Weight bench welded tube Support tube Foam tube Foam Bolt M10x65 Weight tube Board Bolt M8X20 PTX-100...
- Page 7 Secure the upright tube (#2) to the stick tube (#1) with hex bolt M10x20 (#5) and washer Φ10 (#7). Attach the welded tube (#3) to the upright tube (#2) and stick tube (#1), use carriage bolt M10x70 (#4), washer Φ1 (#7) and nut M10 (#6). 第 1步 PTX-100...
- Page 8 Attach the bar (#8) to the upright welding (#9). Secure with carriage bolt M10x70 (#4), hex bolt M10x20 (#5), Φ10washer (#7) and M10 nut (#6). Connect the upright welding (#9) to the upright tube (#2). Secure with bracket (#10), hex bolt M10x20 (#5), washer Φ10 (#7). Then insert M10x70 (#4). PTX-100...
- Page 9 Attach the parallel bars (#11) to the upright tube (#2) and upright welding (#9). Secure with carriage bolt M10x70 (#4), hex bolt M10x20 (#5), washer Φ10 (#7), and M10 nut (#6). Attach the bars (#12) to the parallel bars (#11). Secure with hex bolt M10x20 (#5), washer Φ10 (#7). PTX-100...
- Page 10 Install the Back pad welded connection (#22) to the parallel bars (#11). Secure with carriage bolt M10x70 (#4), Φ10wahser (#7), M10 nut (#6) and connection sheet (#16). 2. Attach the high pulling bar (#13) to the upright welding tubes (#9). Secure with hex bolt M10x90 (#14), Φ10wahser (#7) and M10 nut (#6). PTX-100...
- Page 11 1. Attach the pads (#17) to the parallel bars (#11). Secure with hex bolt M8x70 (#20) and Φ8 washer (#21). Attach the back pad (#19) to the Back pad welded connection (#22). Secure with hex bolt M8x20 (#18) and Φ8 washer (#21). PTX-100...
- Page 12 2. Attach the support tube (#24) to weight bench welded tube (#23). Secure with bolt M10X65 (#28), nut (#6), washer Φ10 (#7) and lock with (#27). 3. Place the foam tube (#25) onto the weight bench welded tube (#23) and attach the foams (#26) PTX-100...
- Page 13 STEP 7: 1. See the diagram below. Connect the weight tube (#29) to the upright tube(#2) 2. Attached the board (#30) to the weight n bench welded tube (#23). Secure with bolt M8x20 (#31), Φ8washer (#21). PTX-100...
- Page 14 Please visit our website to view our full warranty terms and conditions: http://www.lifespanfitness.com.au/warranty-repairs Warranty and Support: Please email us at support@lifespanfitness.com.au for all warranty or support issues. For all warranty or support related enquiries an email must be sent before contacting us via any other means. PTX-100...
