LifeSpan PT-1 POWER TOWER Safety And Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. LifeSpan Manuals
  4. Fitness Equipment
  5. PT-1 POWER TOWER
  6. Safety and assembly instructions manual

LifeSpan PT-1 POWER TOWER Safety And Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
PT-1 POWER TOWER
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner's manual for
future reference.
NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at
www.lifespanfitness.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the PT-1 POWER TOWER and is the answer not in the manual?

Questions and answers

Related Manuals for LifeSpan PT-1 POWER TOWER

Summary of Contents for LifeSpan PT-1 POWER TOWER

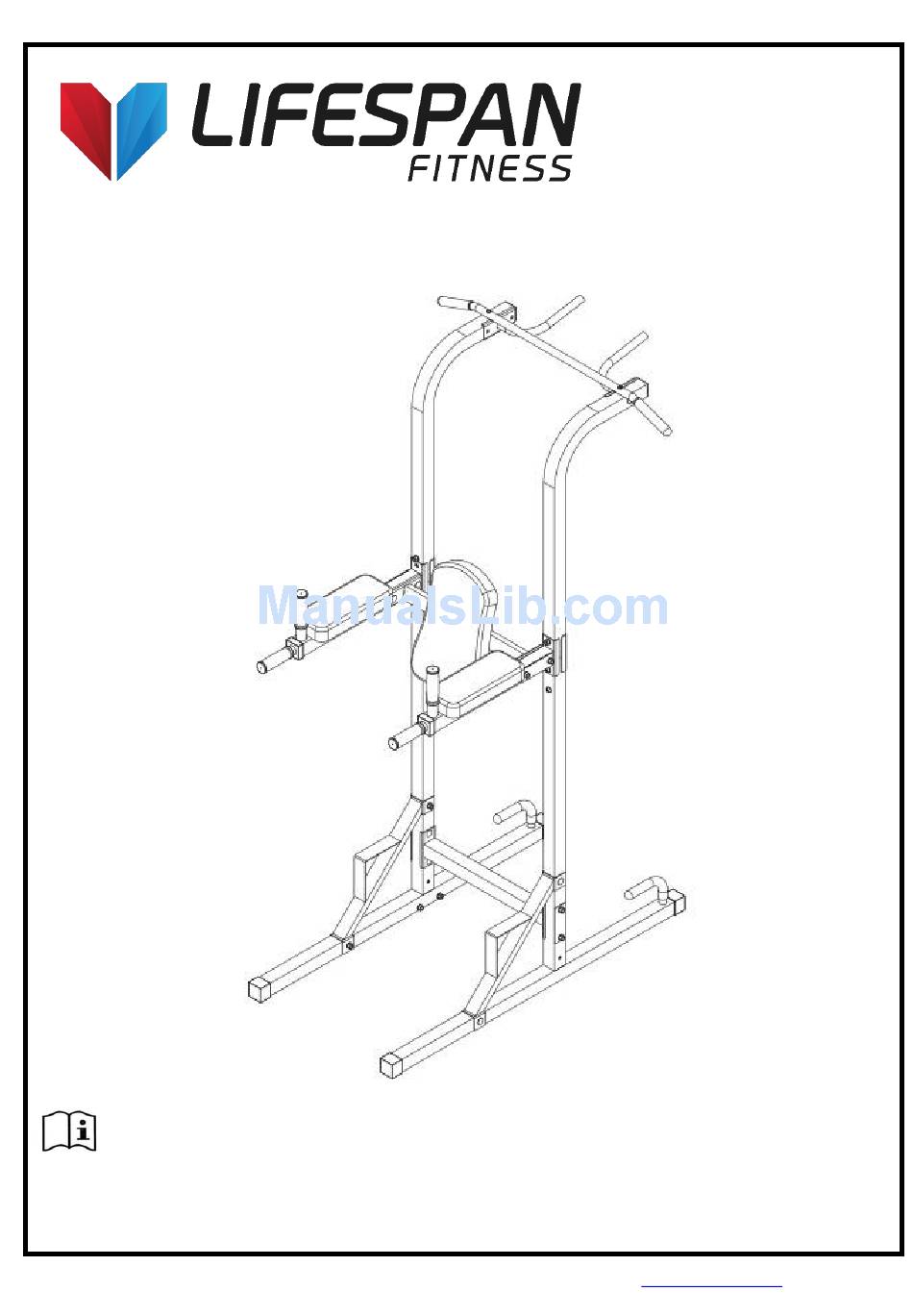

  • Page 1 PT-1 POWER TOWER Product may vary slightly from the item pictured due to model upgrades Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at...
