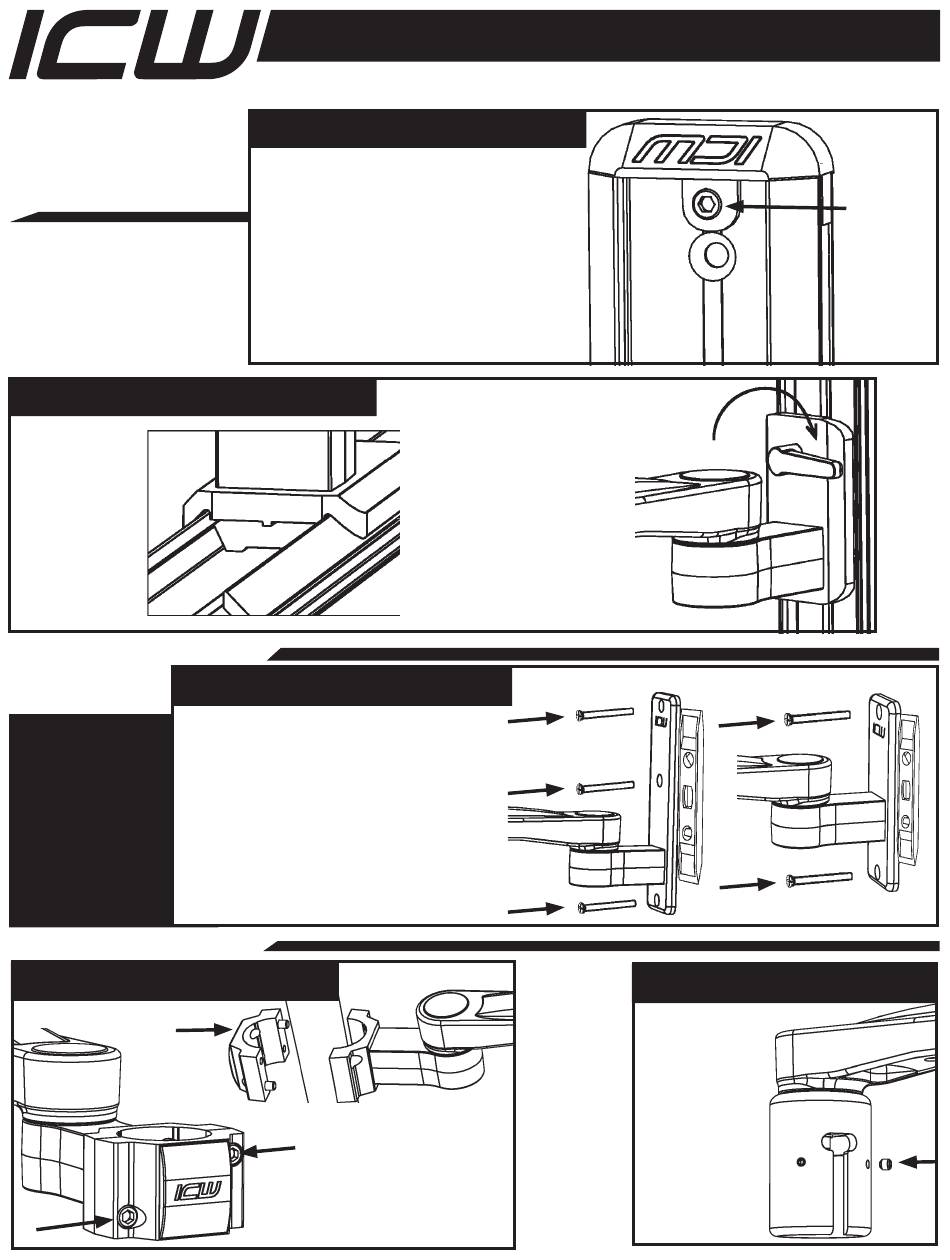

ICWUSA.com, Inc.
IF MOUNTING TO THE
ULTRA WALL TRACK
ATTACH SLIDER TO ULTRA TRACK
Insert Slider
into Wall Track
as shown
at left and
replace the
small socket
head cap
screw and
plastic cover.
IF USING THE W2 OR W3
ATTACH WALL PLATE TO WALL
IF YOUR
SYSTEM
DOESN'T
HAVE AN
EXTENSION
ARM
SEE "ATTACH
TO W2"
SECTION
ON PAGE 4
IF MOUNTING TO A POLE
ATTACH POLE CLAMP TO POLE

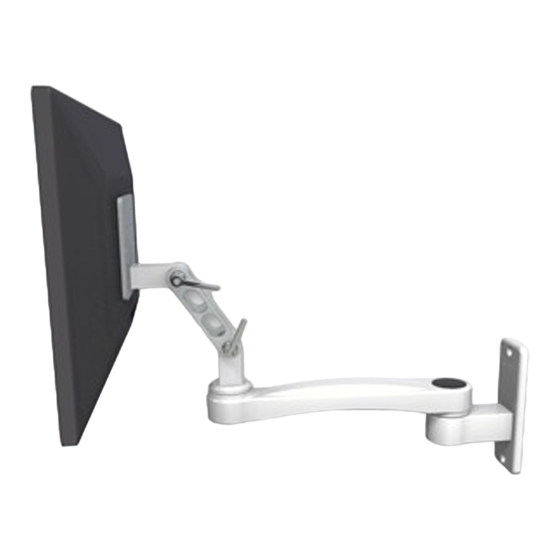

ULTRA ARM INSTRUCTIONS
MOUNT ULTRA TRACK TO WALL
Locate the wall stud and mark the top
hole of the Wall Track, drill 11/64 pilot
hole and insert #14 screw and tighten
slightly. Use a level, mark the lower
holes, drill pilot holes and then insert the
#14 screws.
NOTE: #14 Wood screws are supplied with unit. If
installing into metal studs, you will need to replace
these with proper metal stud fasteners
Locate the stud and mark the top hole,
drill 11/64 pilot hole and insert #14
screw and tighten slightly. Using a
level, mark the lower hole and drill pilot
hole, insert #14 screw and, with the
unit level, tighten both screws.
NOTE: ICW supplies #14 wood screws. If
installing onto metal studs, you will need to
replace with proper metal stud fasteners.
Using the 1/4" hex key,
separate the two halves
of
the
pole
shown, place around pole
at the desired height and
reassemble.
If you have any questions, please call 1-800-558-4435
Once you have adjusted the
slider to the desired height,
tighten down the Track
Slider using the handle on
the slider as shown.
Once tight, make sure the
handle is positioned so that
it is pointing down as far
as possible. Pull and turn
handle to position.
W3
mount
as
ULTRA ARM INSTRUCTIONS - rev 12/06/2012 mf
W2
ATTACH RADIUS MOUNT TO POLE
Using
a
1/8"
hex key wrench
make sure the
set screws in the
radius
mount
are pulled out
enough
that
the mount will
easily
slide
down over the
pole.
Tighten
the set screws.
Remove
small socket
head cap
screw in the
top middle
of the Wall
Track.
Remove
plastic cover.
