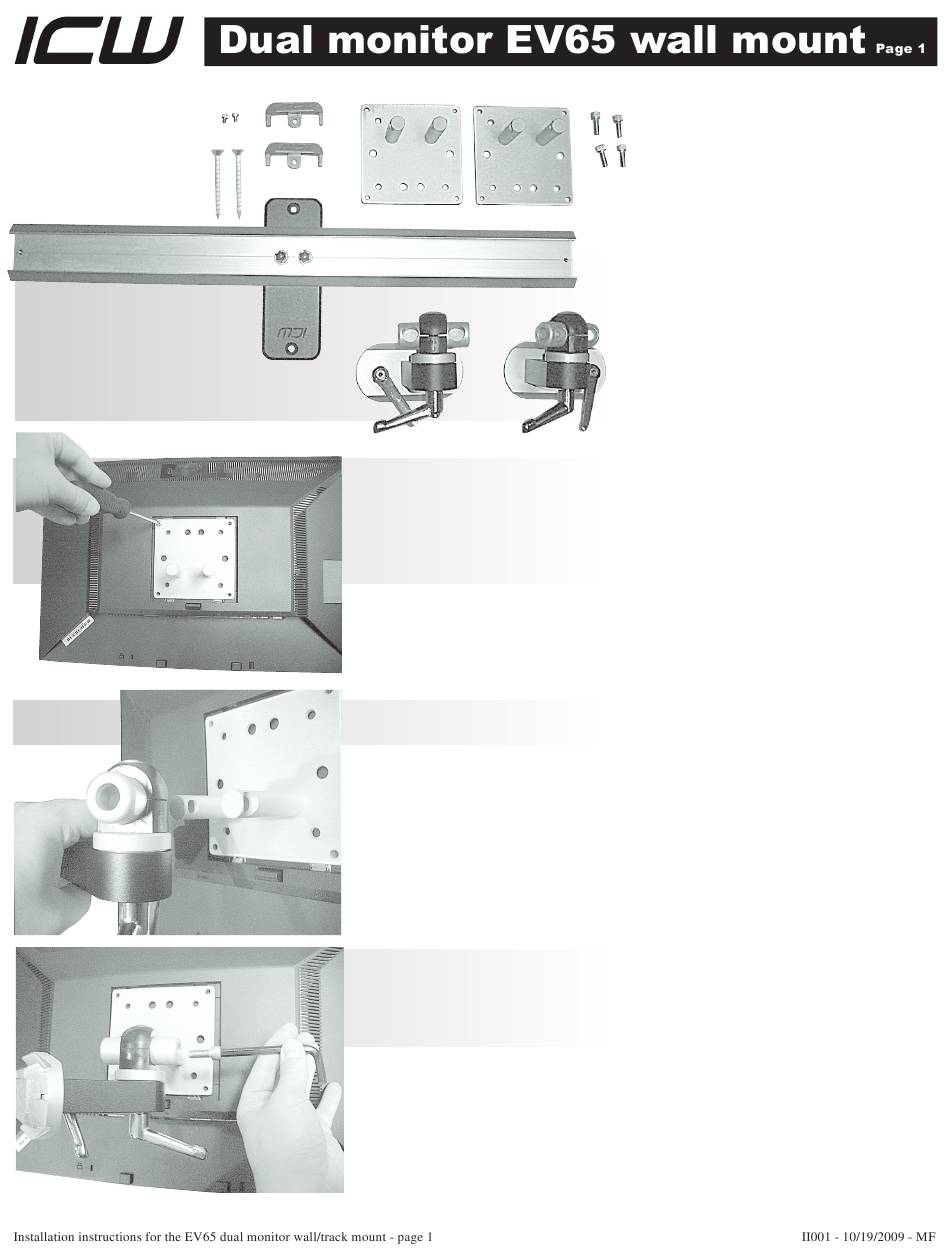

(2) VESA plates
(1 ) Wall plate w/ track
(2) EV65 track sliders
(2) 1 4x2 1 /2
wood screws
(2) 1 0-32x1 /4 sockethead
cap screws
(4) 4mm phillips screws
(2) 5/1 6-1 8x3/4L sockethead
cap screws
(1 ) 1 /4 hex key
(1 ) 5/32 hex key
Screw in the VESA interface plate into
the VESA hole pattern on the back of your
LCD monitor using the four 4mm phillips
screws provided.
Slide the rails into the EV65 joint.
Bolt the rails into place using the two
5/1 6-1 8x3/4L sockethead cap screws
provided with the 1 /4 hex key provided.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICW EV65
Summary of Contents for ICW EV65
- Page 1 VESA hole pattern on the back of your LCD monitor using the four 4mm phillips screws provided. Slide the rails into the EV65 joint. Bolt the rails into place using the two 5/1 6-1 8x3/4L sockethead cap screws provided with the 1 /4 hex key provided.
- Page 2 1 4x2 1 /2 wood screws provided. After loosening the slider plate on the EV65, slide on to the track like shown in the illustration. Once on, tighted the slider place by using the indexing chrome handle on the slider. Do this with both monitors.
