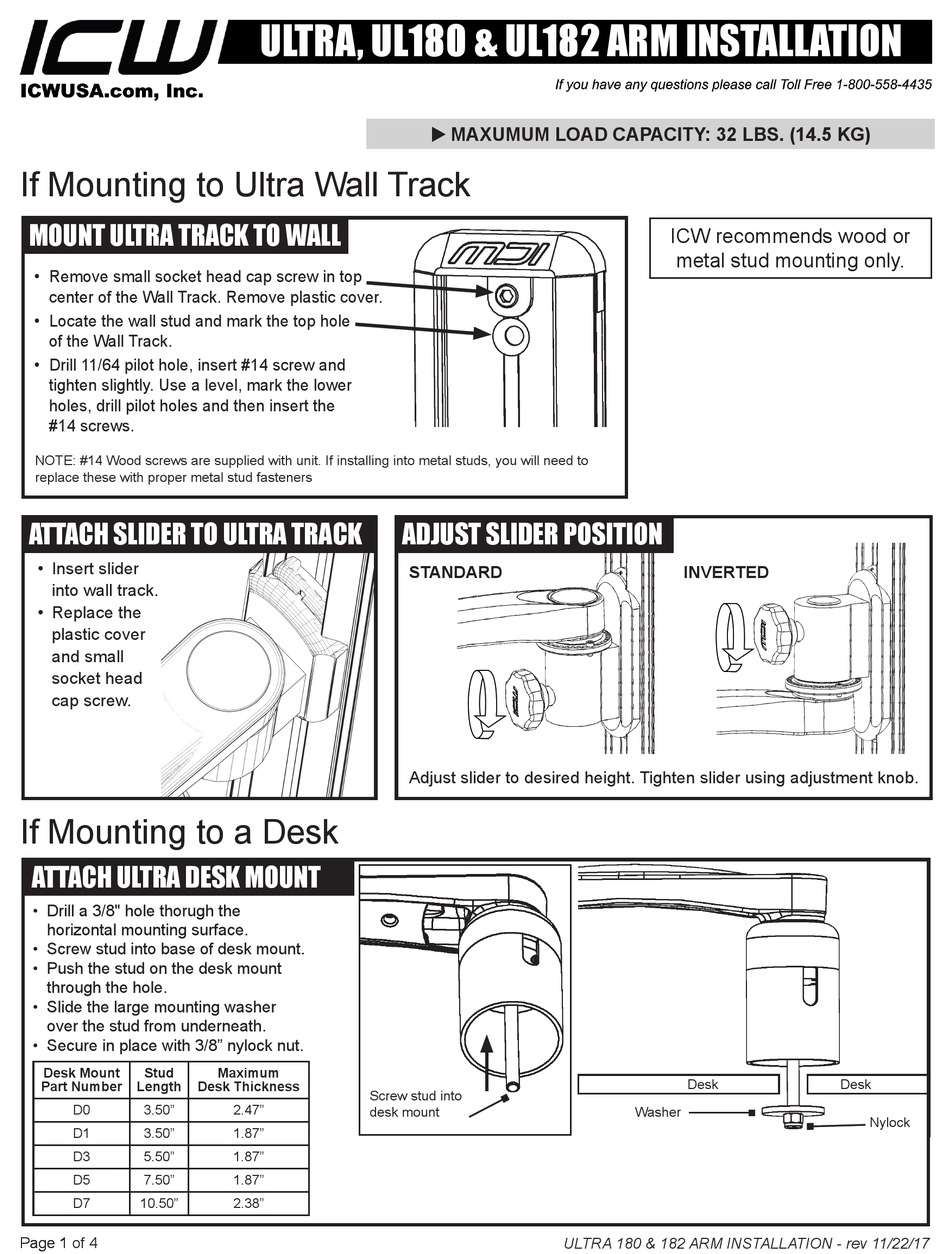

ICW ULTRA UL180 Installation Instructions

If Mounting to Ultra Wall Track
MOUNT ULTRA TRACK TO WALL
• Remove small socket head cap screw in top
center of the Wall Track. Remove plastic cover.
• Locate the wall stud and mark the top hole
of the Wall Track.
• Drill 11/64 pilot hole, insert #14 screw and
tighten slightly. Use a level, mark the lower
holes, drill pilot holes and then insert the
#14 screws.
NOTE: #14 Wood screws are supplied with unit. If installing into metal studs, you will need to
replace these with proper metal stud fasteners
ATTACH SLIDER TO ULTRA TRACK
• Insert slider
• Insert slider into
into wall track.
wall track.
• Replace the
• Replace the
plastic cover
small socket
head cap
and small
screw and
socket head
plastic cover.
cap screw.
If Mounting to a Desk
ATTACH ULTRA DESK MOUNT
• Drill a 3/8" hole thorugh the
• Drill a 3/8" hole through the horizontal
horizontal mounting surface.
mounting surface.
• Screw stud into base of desk mount.
• Screw stud into base of desk mount.
• Push the stud on the desk mount
• Push the stud on the desk mount
through the hole.
through the hole.
• Slide the large mounting washer
over the stud from underneath.
• Slide the large mounting washer over
• Secure in place with 3/8" nylock nut.
the stud from underneath.
• Add the 3/8 split-washer. Desk Mount Stud
Part Number Length Desk Thickness
• Secure in place with the 3/8 nylock.
D0 3.50"
D1 3.50"
D3 5.50"
D5 7.50"
D7 10.50"
Page 1 of 4 Page 1
ULTRA, UL180 & UL182 ARM INSTALLATION
Maximum
Screw stud into
2.47"
desk mount
1.87"
1.87"
1.87"
2.38"
 MAXUMUM LOAD CAPACITY: 32 LBS. (14.5 KG)
ADJUST SLIDER POSITION
STANDARD
Adjust slider to desired height. Tighten slider using adjustment knob.
ULTRA 180 & 182 ARM INSTALLATION - rev 11/22/17
ICW recommends wood or
metal stud mounting only.
INVERTED
Desk
Washer
Desk
Nylock
