ICW ULTRA 180 Installation Manual

IF MOUNTING TO THE ULTRA WALL TRACK
a

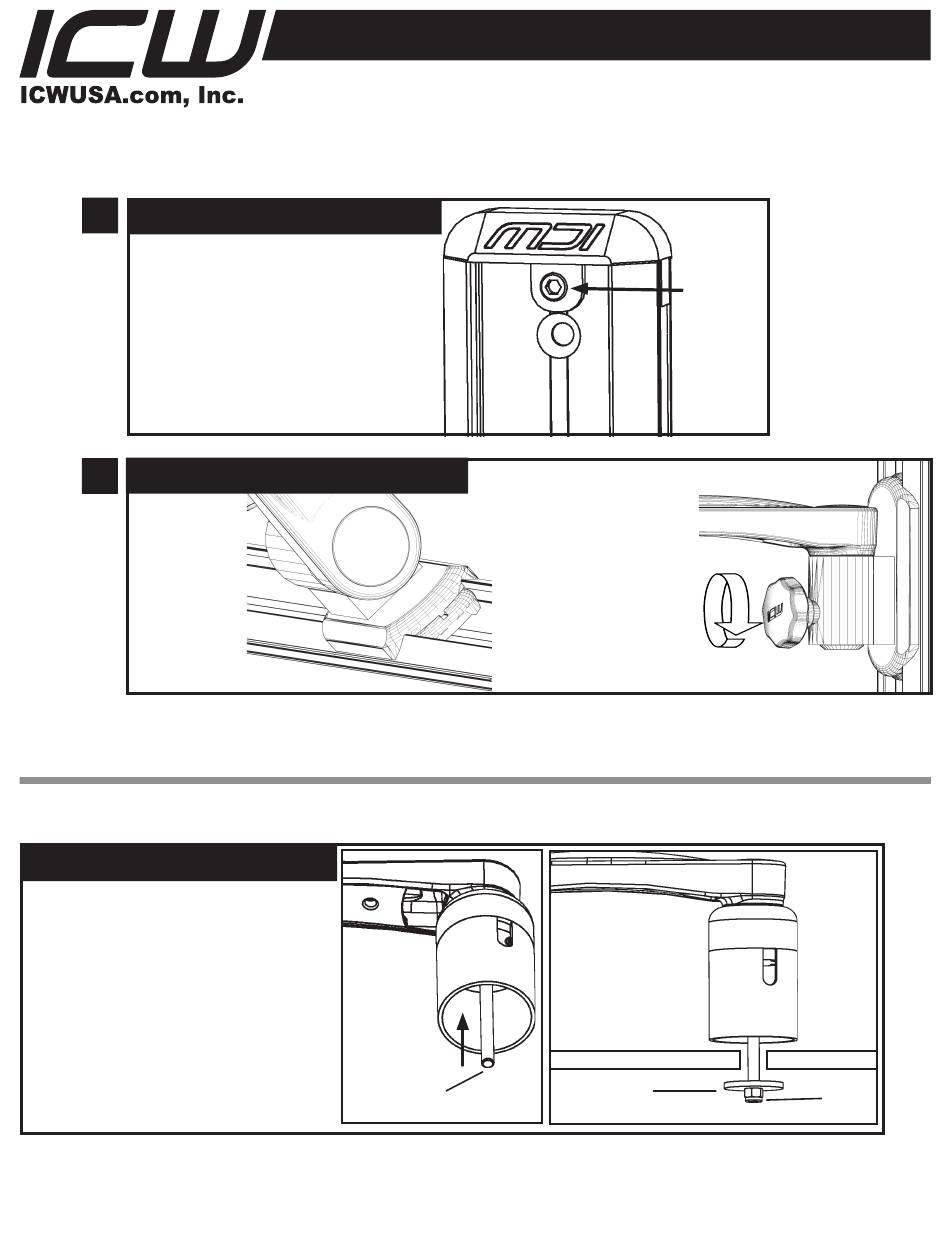

MOUNT ULTRA TRACK TO WALL
Locate the wall stud and mark the top
hole of the Wall Track, drill 11/64 pilot
hole and insert #14 screw and tighten
slightly. Use a level, mark the lower
holes, drill pilot holes and then insert the
#14 screws.
NOTE: #14 Wood screws are supplied with unit. If
installing into metal studs, you will need to replace
these with proper metal stud fasteners
b
ATTACH SLIDER TO ULTRA TRACK
Insert Slider
into Wall Track
as shown
at left and
replace the
small socket
head cap
screw and
plastic cover.
IF MOUNTING TO A DESK
ATTACH DESKMOUNT TO DESK
Drill a 3/8 hole through the
horizontal surface you intend to
mount to and push the 3/8 stud
on the desk mount through the
hole. Slip the large mounting
washer over the stud from
underneath, add the 3/8 split-
washer, and secure in place
with the 3/8 nylock.
Page 1 Page 1 of 4
ULTRA 180 ARM INSTALLATION
Screw stud into desk mount
If you have any questions, please call 1-800-558-4435
Once you have adjusted the
slider to the desired height,
tighten down the Track
Slider using the handle on
the slider as shown.
Once tight, make sure the
handle is positioned so that
it is pointing down as far
as possible. Pull and turn
handle to position.
Desk
Washer
ULTRA 180 ARM INSTALLATION - rev 04/09/14 pjm
Remove
small socket
head cap
screw in the
top middle
of the Wall
Track.
Remove
plastic cover.
Desk
Nylock
