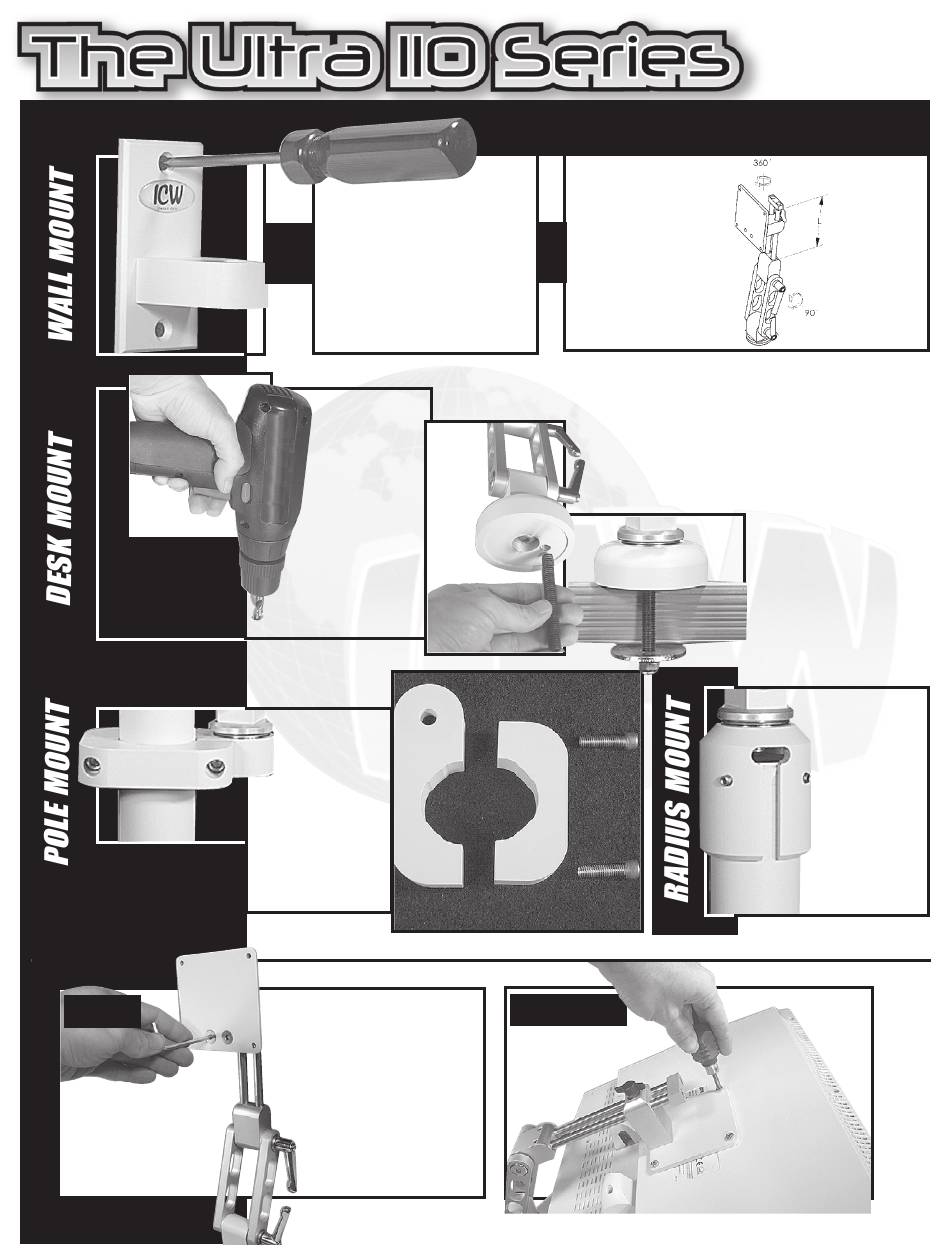

ICW Ultra 110 Series Installation Instructions

Installation instructions for the Ultra 110 series.
II009 Revision B. 9-12-03 MF
VESA
Locate the stud and mark
the top hole, drill 11/64 pilot
hole and insert #14 screw and
tighten slightly. Using a level,
mark the two lower holes and
drill pilot hole, insert the last
two #14 screws again making
sure the unit is level. NOTE 1:
ICW supplies # 14 Wood
Drill a 3/8 hole
through the
horizontal
surface and
insert 3/8 set
screw
provided. If
your desk
mount doesn't
have a riser
tube, place the
desk pad
Using the 1/4"
hex key
wrench,
disassemble
the pole mount
then re-
assemble the
pole mount
around the pole
at the height
desired.
Using the 5/32" hex key
wrench, attach the VESA
plate to the friction mount.
To mount the monitor
lower you can also mount
the VESA upside down
with the screw holes at
the top. Using a phillips
screw driver, attach the
VESA plate to the back of
your LCD monitor.
Products names, photo's, and drawings contained in this document are Copyright
INSTALLATION INSTRUCTIONS
screws, if
installing onto
metal studs,
you will need
to replace with
proper metal
stud fasteners.
provided under the desk puck Attach and washer
lock nut on the lower side of surface you are
mounting to. If you are mounting to a thicker or
thinner surface, the set screw provided can be
replaced with standard 3/8 bolt.
MONITOR
Using a 1/8" hex
key wrench make
sure the set
screws in the
radius mount are
pulled out enough
that the mount will
easily slide down
over the pole.
©
ICWUSA.com, Inc.
