ICW UL90 Installation Instructions

UL90 Installation Instructions

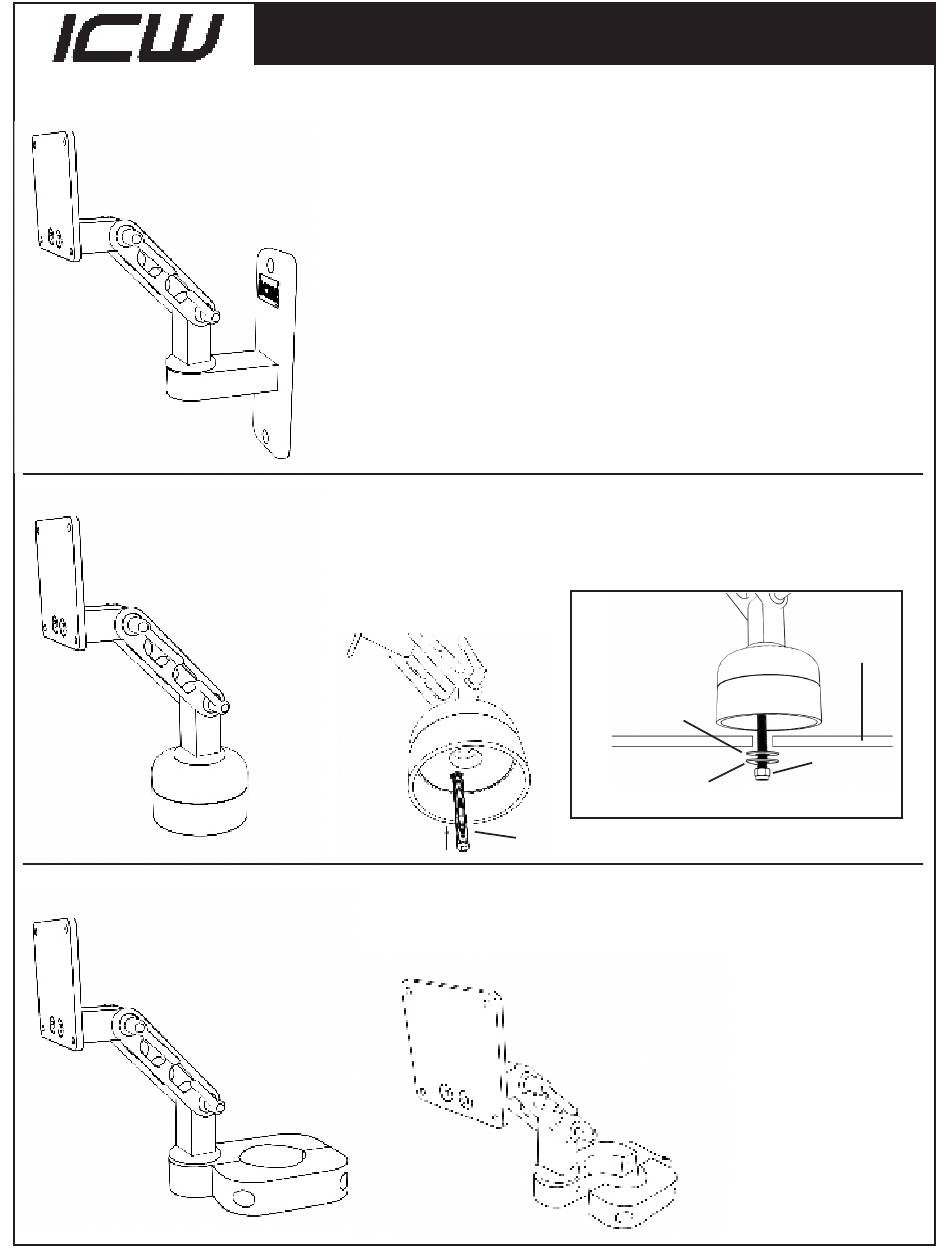

Wall Mount

Locate the stud in the wall you are mounting to and mark the top hole.

Drill 11/64 pilot hole and insert the provided #14 wood screw, tight-

ening slightly. Using a level, mark the lower hole and drill pilot hole,

insert the last #14 screw and, with the unit level, tighten both screws.

Note: #14 wood screws are supplied; if installing into metal studs

you will need to use proper metal stud fasteners.

If your monitor is over 17", the mount may be more effective if

mounted upside down.

Drill a 3/8 hole through the horizontal surface you intend to mount

to and push the 3/8 stud on the desk mount through the hole. Slip the

large mounting washer over the stud from underneath, add the 3/8

split-washer, and secure in place with the 3/8 nylock.

Using the 1/4" hex key, separate the two halves of your pole mount as

shown, place around pole at the desired height and reassemble.

Large washer

3/8 Split-

washer

Screw stud into desk mount.

Desk

Nylock

ul90.indd rev. 2/25/09 sk

Table of Contents

Do you have a question about the UL90 and is the answer not in the manual?

Page 1 Large washer Nylock 3/8 Split- washer Screw stud into desk mount. Pole Mount Using the 1/4" hex key, separate the two halves of your pole mount as shown, place around pole at the desired height and reassemble. ul90.indd rev. 2/25/09 sk...
Page 2 1/4-20 flat head screws supplied. Attach your monitor to the UL90 using the 4mm screws supplied. Use the handles to adjust the tilt of your monitor. Thank you for your purchase of an ICW UL90 monitor mount. Any questions? Contact ICW at 1-800-558-4435.
